Kline Innovation Valvetronic Exhaust System for Lamborghini Urus

Kline Innovation Valvetronic Exhaust System for Lamborghini Urus

The Urus, Lamborghini’s first venture into the SUV market, is a powerful and capable utility vehicle that showcases Italian automotive ingenuity. However, Kline recognized that the sound it produced was somewhat lacking, failing to truly capture the essence of this formidable Bull.

The Sound

• To address this, Kline implemented a significant improvement by replacing the restrictive factory catalysts with either 100 or 200 cell HJS HDPE motorsport catalysts. This modification not only opened up the sound but also incorporated a 20-degree X-pipe to blend the exhaust gases out of phase, raising the pitch of the exhaust note and eliminating unwanted drone.

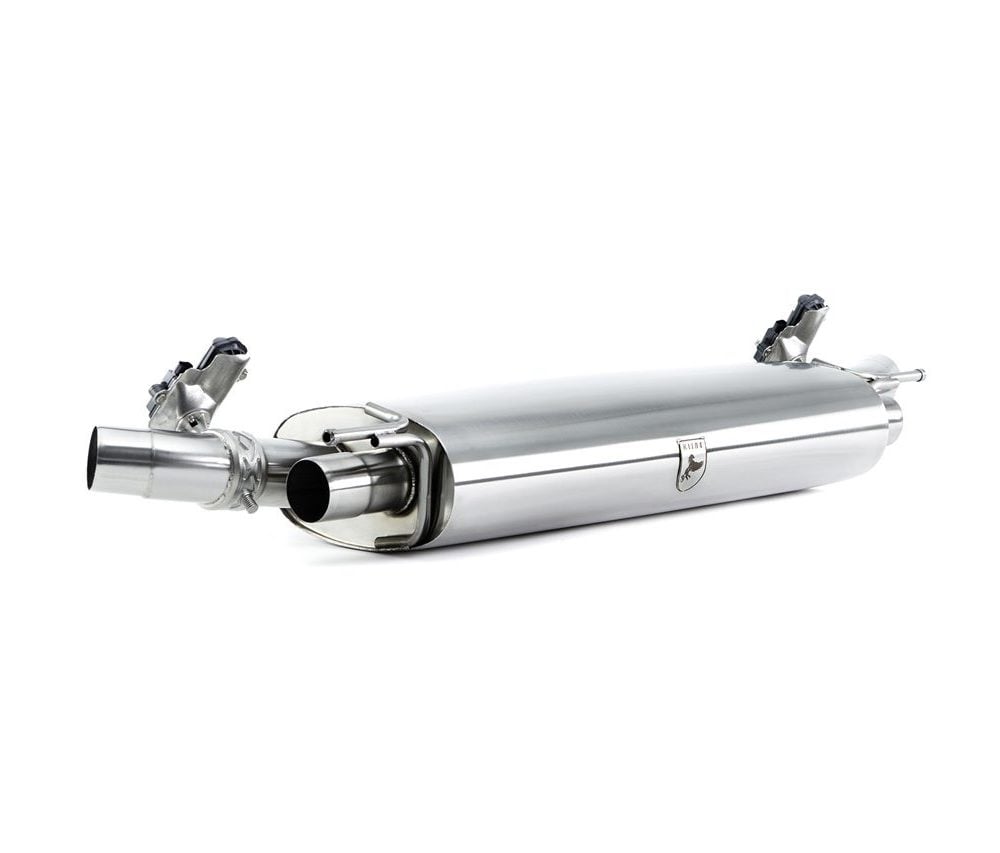

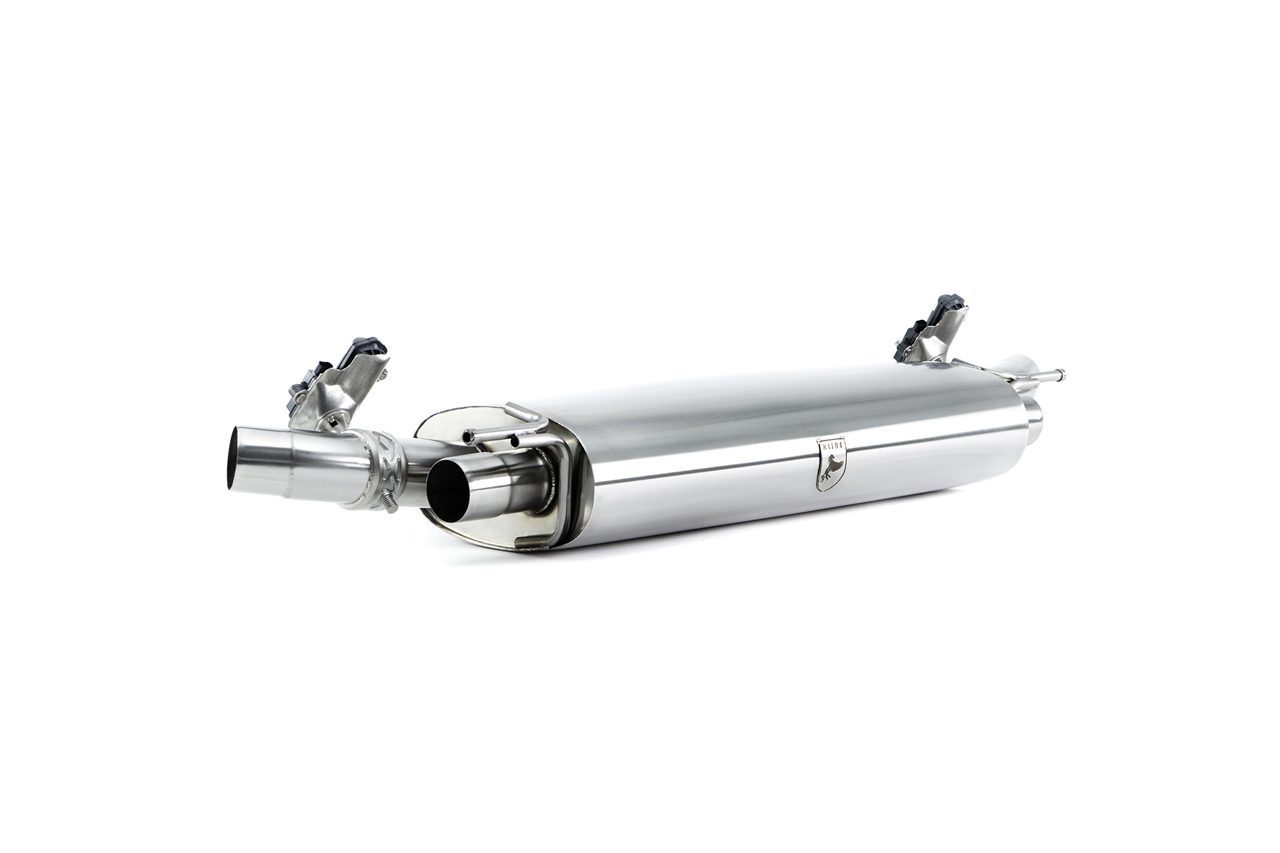

• In the rear section, Kline utilized the car’s stock electronic valve control system. When the valves are closed, the gases are directed through a series of chambers and acoustic fill sections, ensuring a smooth and quiet ride during cruising. However, when the valves are open, the silencer is completely bypassed, allowing for an unhindered and commanding roar that perfectly matches the Urus’s true character.

Performance

• Kline’s performance enhancements involved the removal of restrictions from the silencer section and the implementation of a completely free-flow system under valve open. As a result, the exhaust operates at optimal efficiency, delivering moderate power and torque gains that enhance the Urus’s overall performance.
• With the addition of racing pipes, expect an impressive increase of 37 horsepower and 48 Nm of torque.

Stainless Steel

• In the domain of exhaust manufacturing, Kline adheres to the long-standing industry standard of utilizing 304-grade stainless steel. This grade offers a balanced combination of moderate strength, thermochemical stability, cost-effectiveness, and ease of production, ensuring the construction of exhaust systems that embody a practical fusion of affordability, functionality, and durability. It is important to note that stainless steel, despite its density being similar to regular steel, is relatively heavier compared to alternative materials. Additionally, it possesses slightly lower tensile strength, which imposes certain limitations when aiming to create high-performance exhaust components capable of producing vibrant and captivating exhaust notes.

Inconel

• When prioritizing durability and heat resistance, Kline turns to the ultimate choice: Inconel 625, widely employed in the aerospace industry. This exceptional material finds extensive application in the manufacturing of critical components, particularly exhaust turbine blades for high-performance jet engines. Inconel is highly favored in Formula One exhaust systems and has been selected by manufacturers involved in prestigious hypercar projects such as the McLaren P1 and Aston Martin 177. The advantages of Inconel lie in its exceptional tensile strength and thermochemical stability. Comparable to titanium in terms of tensile strength, Inconel achieves an outstanding strength-to-weight ratio, allowing for the utilization of thin sidewall materials while upholding structural integrity. This facilitates the production of lightweight components that exhibit remarkable resistance to fatigue over prolonged periods. However, working with Inconel presents challenges due to its difficult machinability and specific welding requirements, demanding specialized skills and time-consuming techniques. Moreover, the unique properties and specialized manufacturing processes associated with Inconel contribute to its higher cost as a raw material.

Specifications

• Catalyst:
  • All cross sections have been increased from stock by around 10% to give the best balance of torque, and increased power
• Silencer Section: 70mm
• Valve Closure Transit: 57mm
• Valve Open Transit: 70mm freeflow
• Materials:
  • 304 stainless steel
  • Ultra light weight F1 grade inconel 625
• 20 degree x-pipe

Applications

• Lamborghini Urus: (2018+) – 4.0L TT V8

Notes

• The valves are actuated by the cars OEM vacuum system, and can be controlled by the new Kline INCONEL BUTTON wireless kit
• While certain images may showcase the optional downpipes, it is important to note that they are not included as part of the standard kit

About Kline Innovation

At Kline, exhaust design is approached with utmost seriousness. The company adopts a no-compromise stance when it comes to delivering a product that meets the highest standards and satisfies customers’ expectations. Kline offers a comprehensive original equipment design and manufacturing service. Starting from provided drawings or design briefs, the team utilizes advanced 3D modeling techniques to create final designs. They also provide valuable consultation during the process and are capable of manufacturing tooling and fixtures for production, as well as handling final production runs, particularly catering to low to medium volume needs. Kline’s commitment to excellence ensures that customers receive a top-quality product without any compromises.

Development

• All projects at Kline are executed entirely in-house, utilizing a diverse range of processes. These internal capabilities include laser scanning, CNC laser cutting, CNC mandrel bending, tubing and silencer manufacturing, CNC welding, pressings, CNC milling, mold manufacturing, and autoclave carbon fiber production. Notable automotive clients, such as W Motors with their Fenyr Supersport, Corbellati Missile, and RUF Automobil, have recently collaborated with Kline.
• Kline has expanded its design and manufacturing process by incorporating laser scanning capabilities. This valuable addition enables the team to achieve enhanced precision in both design and quality control, resulting in an exceptional end product for customers. The adoption of laser scanning technology at Kline showcases the company’s unwavering dedication to delivering superior outcomes.
