Kline Innovation Valvetronic Exhaust System for 992 Porsche 911 Carrera

Kline Innovation Valvetronic Exhaust System for 992 Porsche 911 Carrera

The Porsche 992 Carrera, with its progressive yet retro aesthetics and a twin-turbo flat 6 pumping out 380hp, is undoubtedly an impactful and potent machine. However, its exhaust, encumbered by manufacturer and emissions constraints, is somewhat underwhelming. The experts at Kline specialize in transforming muted turbo sounds into an exotic supercar roar.

Sound Quality

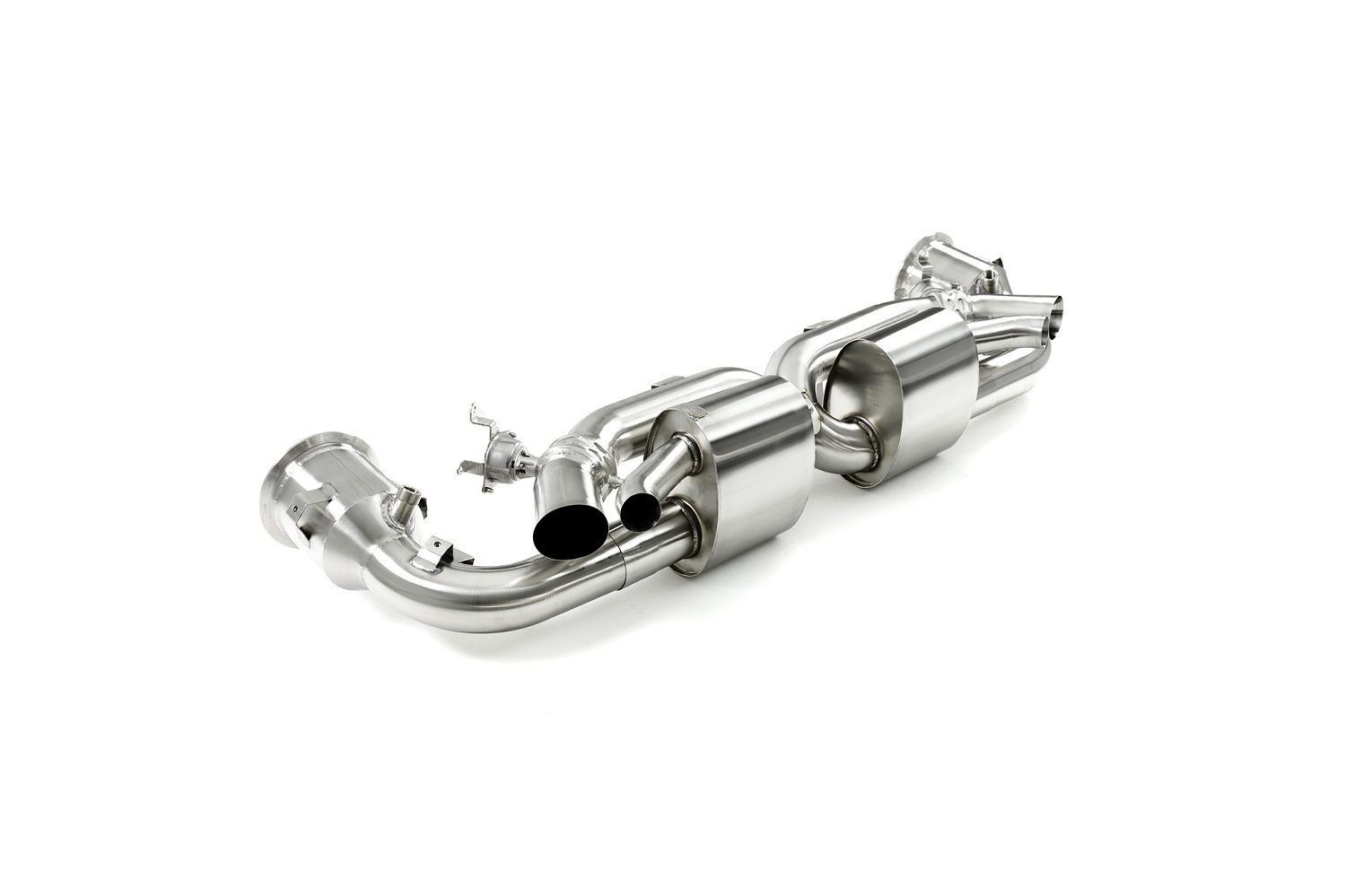

• By eliminating the weighty chambered rear silencer and replacing it with a lightweight F1-grade Inconel 625 X pipe and fully bypassable lightweight Inconel silencers, a significant amount of weight is shed. This also elevates the exhaust pitch to a more exotic tonal spectrum. The use of either HJS motorsport catalysts or racing pipes, dramatically opens up the sound, thereby enhancing and amplifying the high-pitched silencer section into an exotic scream. The Kline innovation rear valvetronic setup ensures the car can be driven quietly with the valves closed, however, with the valves open, an unfiltered and raw sound is attainable. The system is perfectly complemented by the addition of beautifully crafted F1-grade pre-preg carbon fiber exhaust tips.

Performance Enhancement

• Like all Porsche turbo models, the tuning potential of the 992 is immense. Over 40hp and 55nm of torque can be achieved by replacing the stock catalysts with their racing pipes and adjusting the ensuing A/F ratios. Coupled with a full ECU remap, gains of over 80hp can be expected.

Stainless Steel

• 304-grade stainless steel is commonly used in the exhaust manufacturing industry due to its strength, thermal stability, cost-effectiveness, and easy fabrication. However, its weight and limited tensile strength may pose issues when used in high-performance exhaust components. The need for thicker walls with stainless steel could also negatively impact the exhaust sound.

Inconel

• Inconel 625, renowned for its sturdiness and heat resistance, is often employed in building vital parts such as high-performance jet engine exhaust turbine blades. It is the preferred material for Formula One exhaust systems and highly-regarded hypercar projects like the McLaren P1 and Aston Martin 177. Despite Inconel’s capacity to withstand temperatures over 1000°C and its emphasis on lightweight design, it presents unique challenges due to its complex machinability and specialized welding requirements.

Carbon Fiber

• Carbon fiber-reinforced polymer, distinguished for its remarkable strength-to-weight ratio, is highly sought after in industries like automotive and aerospace. Its incorporation can result in weight reduction and increased rigidity, thereby improving the overall performance of the vehicle.

Specifications

• Cross Sections:
  • X-Pipe Diameter: 70mm
  • Silencer Transit: 50mm
  • Catted Test Pipe Diameter: 70mm
  • Catted Test Pipe Overall Cross Section: 122mm
  • Manifold Primaries: 41mm
  • Secondaries: 50mm
  • Available with either 100 cell, 200 cell or racing pipes for optimum performance
  • All cross section chosen for the optimum balance of torque and power
• Materials
  • Rear Silencer Section: 304 Grade Stainless Steel / F1 Grade Inconel 625 Superalloy (light)
  • Catted Test Pipes: 304 Grade Stainless Steel / F1 Grade Inconel 625 Superalloy (light)
  • Racing Test Pipes: 304 Grade Stainless Steel / F1 Grade Inconel 625 Superalloy (light)
  • Manifolds: 304 Grade Stainless Steel / F1 Grade Inconel 625 Superalloy (light)

Applications

• Porsche 911 Carrera: 992 (2019+) – 3.0L TT Flat-6

Notes

• Despite the prominent display of the test pipes, manifolds, and carbon fiber tips in the images, it’s crucial to specify that these components do not come with the basic package
• Kline Innovation carbon aero available here

About Kline Innovation

At Kline, exhaust design is approached with utmost seriousness. The company adopts a no-compromise stance when it comes to delivering a product that meets the highest standards and satisfies customers’ expectations. Kline offers a comprehensive original equipment design and manufacturing service. Starting from provided drawings or design briefs, the team utilizes advanced 3D modeling techniques to create final designs. They also provide valuable consultation during the process and are capable of manufacturing tooling and fixtures for production, as well as handling final production runs, particularly catering to low to medium volume needs. Kline’s commitment to excellence ensures that customers receive a top-quality product without any compromises.

Development

• All projects at Kline are executed entirely in-house, utilizing a diverse range of processes. These internal capabilities include laser scanning, CNC laser cutting, CNC mandrel bending, tubing and silencer manufacturing, CNC welding, pressings, CNC milling, mold manufacturing, and autoclave carbon fiber production. Notable automotive clients, such as W Motors with their Fenyr Supersport, Corbellati Missile, and RUF Automobil, have recently collaborated with Kline.
• Kline has expanded its design and manufacturing process by incorporating laser scanning capabilities. This valuable addition enables the team to achieve enhanced precision in both design and quality control, resulting in an exceptional end product for customers. The adoption of laser scanning technology at Kline showcases the company’s unwavering dedication to delivering superior outcomes.
