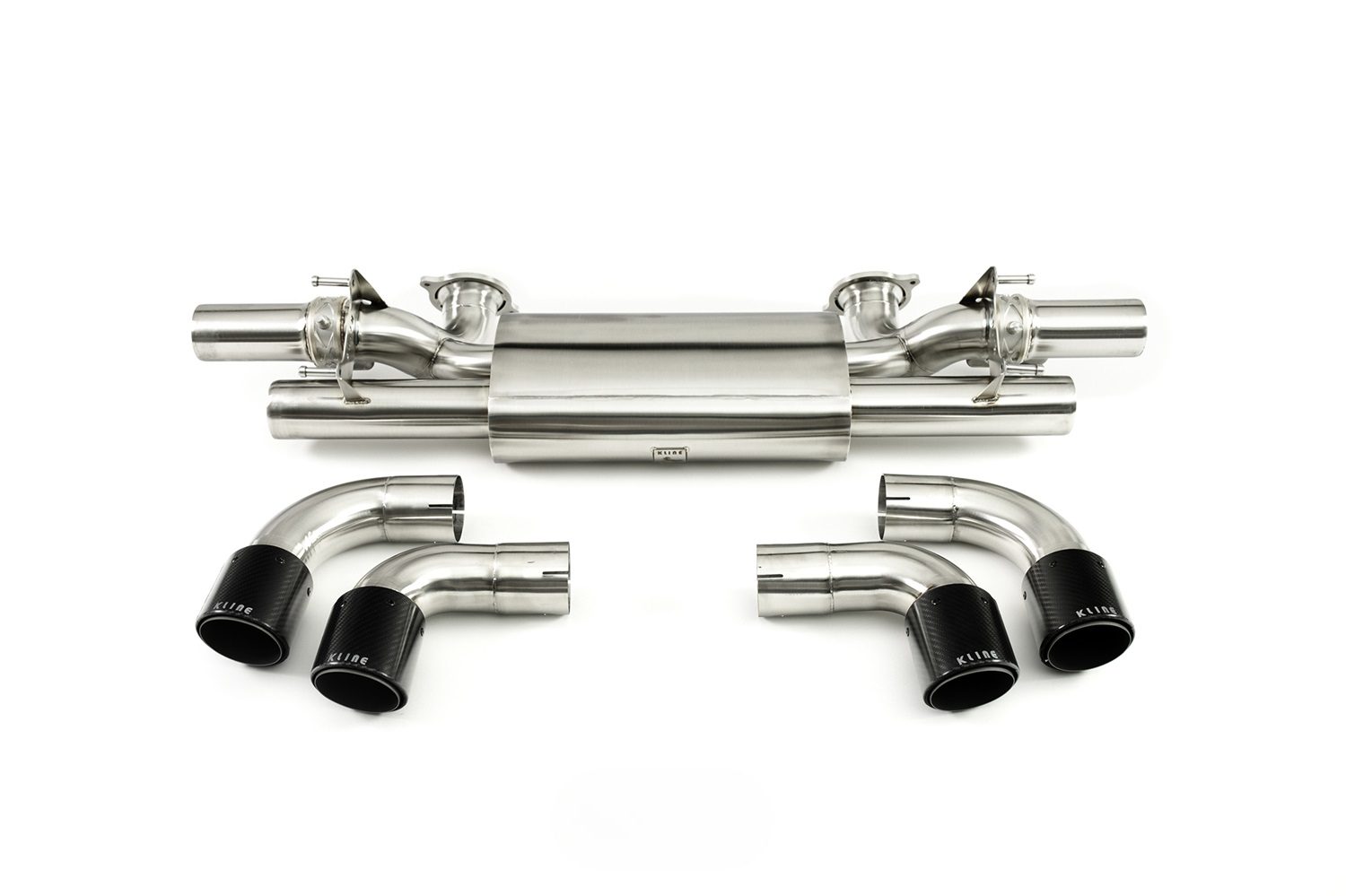

Kline Innovation Valvetronic Catback Exhaust System w/ Carbon Tips for AM6 Aston Martin Vantage

Kline Innovation Valvetronic Catback Exhaust System w/ Carbon Tips for AM6 Aston Martin Vantage

The 2018 Aston Martin Vantage, elevating the standards of previous grand tourer versions, features a V8 twin-turbo motor producing 665hp, establishing it as a serious power machine. However, with modern regulations and the turbos somewhat muting the sound, Kline Innovation decided to give the beauty a sonic makeover. Replacing the stock 600-CPSI cats with 100 or 200 cell high flow HJS sports cats significantly enhances the sound. The addition of Kline’s perfect X pipe geometry raises the pitch into a beautiful, exotic wail. The silencer has been harmonically tuned to completely eliminate any cruising drone, while, with the valve open, the silencer is entirely bypassed, allowing the full exhaust note to sing.

Catalysts

• Available with a choice of 100 or 200 cell high flow sports cats, or a race cat for maximum performance.

Features

• Valvetronic
• Available in stainless steel or inconel 625 (extremely lightweight) materials
• Optional catalysts & heat shield to complete exhaust system
• Quad carbon tips
• Improves performance & sound
• No drone

Specifications

• Type: Valvetronic catback
• Downpipe Cross Section: 70mm
• X-Pipe: 70mm
• Center Section: 70mm
• Rear Section: 70mm
• When valve is closed: 50mm
• When valve is open: 70mm
• Weight:
  • Stainless: 24.45kg (53.90lbs)
  • Inconel: N/A

Applications

• Aston Martin Vantage: AM6 (2018-2023) – 4.0L TT V8 M177

Notes

• It’s important to note that while some images may feature optional cat-pipes, they do not come as standard inclusions with the system
• Kline Innovation carbon aero available here

About Kline Innovation

At Kline, exhaust design is approached with utmost seriousness. The company adopts a no-compromise stance when it comes to delivering a product that meets the highest standards and satisfies customers’ expectations. Kline offers a comprehensive original equipment design and manufacturing service. Starting from provided drawings or design briefs, the team utilizes advanced 3D modeling techniques to create final designs. They also provide valuable consultation during the process and are capable of manufacturing tooling and fixtures for production, as well as handling final production runs, particularly catering to low to medium volume needs. Kline’s commitment to excellence ensures that customers receive a top-quality product without any compromises.
