Kline Innovation Turboback Exhaust System for 996.2 Porsche 911 GT2

Kline Innovation Turboback Exhaust System for 996.2 Porsche 911 GT2

The Kline’s primary marque, Porsche 996 GT2, has several notable issues with the factory exhaust, including its sound, torque curves, peak power, turbo lag, and excess weight, especially as it’s positioned at the car’s far rear.

The Sound

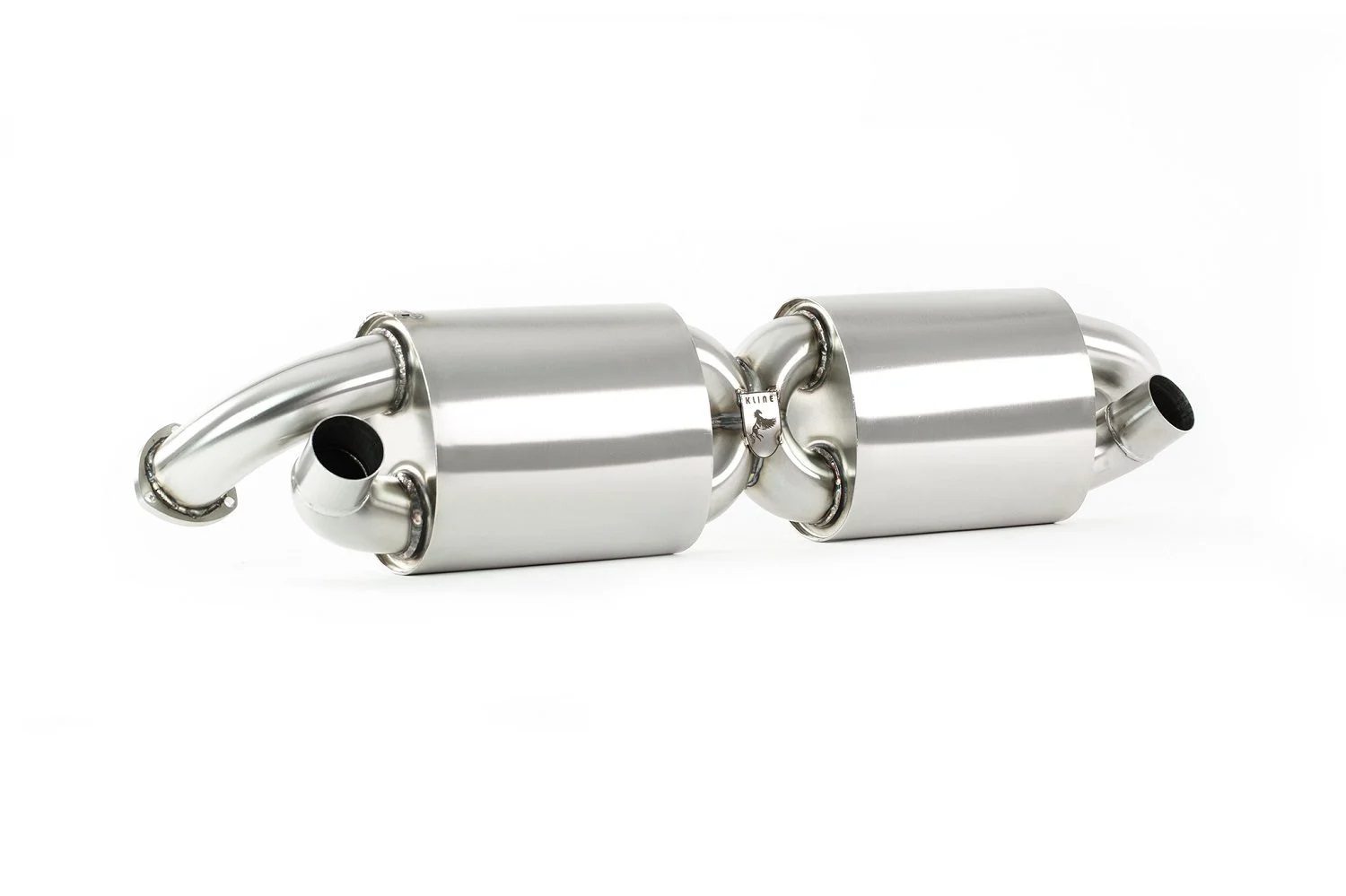

• The factory exhaust’s sound is notably underwhelming, largely due to several chambers, 600 cell catalysts, and an imbalance between opposing banks. However, swapping the stock cats for 100cpsi, 200cpsi, or racing pipes, and replacing the chambered transverse rear silencer with free-flow, harmonically tuned silencers can greatly enhance the sound quality. Adding Kline’s signature 1D CLR laminar flow X pipe elevates the exhaust pitch, reducing cabin penetration of bass noise during hard throttle and high revs, and creating a rich and robust tone. Although Kline pioneered this design, many imitations have started to surface.

Performance

• Given that it’s a turbo car, there’s substantial potential for performance enhancement through exhaust and software modifications. Kline’s racing system version provides the most significant gains: 40hp and 64nm, or 70hp and 94nm when paired with software. The 100cpsi and 200cpsi options offer smaller increases of 21hp and 16hp, respectively.

Stainless Steel

• The exhaust manufacturing industry often favors 304-grade stainless steel due to its strength, thermal stability, affordability, and ease of fabrication. However, stainless steel’s weight and limited tensile strength can hinder its high-performance exhaust use. The thicker walls needed for stainless steel might also mute the exhaust sound.

Inconel

• Inconel 625, widely valued in the aerospace industry for its durability and heat resistance, is commonly used in crafting critical parts such as high-performance jet engine exhaust turbine blades. It’s the material of choice for Formula One exhaust systems and high-profile hypercar projects like the McLaren P1 and Aston Martin 177. Despite its ability to withstand temperatures above 1000°C and emphasis on lightweight design, Inconel requires specialized skills and intricate procedures due to its complex machinability and specific welding needs.

Carbon Fiber

• Carbon fiber reinforced polymer is highly sought after in various sectors, including the automotive and aerospace industries, due to its high tensile strength-to-weight ratio, which makes it strong yet lightweight. Integrating carbon fiber components can reduce weight and increase stiffness, ultimately improving the vehicle’s overall dynamics.

Specifications

• Cross Section:
  • Racing Version Cross Section: 70mm OD (specifically chosen for a balance of peak torque and power)
  • Silencer Section Cross Section: 63mm OD
  • Manifold Primaries: 41mm OD (chosen specifically for faster turbo spool)
  • Catalysts come in a variety, from 108mm OD to 127mm OD
• Materials:
  • Turboback System:
    • Standard 304 Grade Stainless Steel Weight:
      • 200 cell test pipes: 14kg
      • Racing version: 12.5kg
    • Inconel 625 Formula One Grade Material Weight:
      • Racing version: 7.0kg
      • 100 cell cats: 10.1kg
  • Manifolds
    • Standard 304 Grade Stainless Steel Weight: 6kg Total
    • Inconel 625 Weight: 2.9kg Total

Applications

• Porsche 911 GT2: 996.2 (2001-2004) – 3.6L TT Flat 6

Notes

• While the images may prominently showcase the test pipes, manifolds, and carbon fiber tips, it’s essential to understand that these components are not part of the standard package

About Kline Innovation

At Kline, exhaust design is approached with utmost seriousness. The company adopts a no-compromise stance when it comes to delivering a product that meets the highest standards and satisfies customers’ expectations. Kline offers a comprehensive original equipment design and manufacturing service. Starting from provided drawings or design briefs, the team utilizes advanced 3D modeling techniques to create final designs. They also provide valuable consultation during the process and are capable of manufacturing tooling and fixtures for production, as well as handling final production runs, particularly catering to low to medium volume needs. Kline’s commitment to excellence ensures that customers receive a top-quality product without any compromises.

Development

• All projects at Kline are executed entirely in-house, utilizing a diverse range of processes. These internal capabilities include laser scanning, CNC laser cutting, CNC mandrel bending, tubing and silencer manufacturing, CNC welding, pressings, CNC milling, mold manufacturing, and autoclave carbon fiber production. Notable automotive clients, such as W Motors with their Fenyr Supersport, Corbellati Missile, and RUF Automobil, have recently collaborated with Kline.
• Kline has expanded its design and manufacturing process by incorporating laser scanning capabilities. This valuable addition enables the team to achieve enhanced precision in both design and quality control, resulting in an exceptional end product for customers. The adoption of laser scanning technology at Kline showcases the company’s unwavering dedication to delivering superior outcomes.
