Kline Innovation Exhaust System for McLaren 12C

Kline Innovation Exhaust System for McLaren 12C

The McLaren MP124C, equipped with a powerful 3.8-liter twin-turbo V8 engine producing 592 horsepower, represents McLaren’s first production car in a decade and was designed to disrupt the established supercar industry. However, considering the prevailing trend for turbo induction supercars, the 12C is in need of a sonic makeover. The main design objective for Kline is to make the MP124C roar like a true supercar should!

The Sound

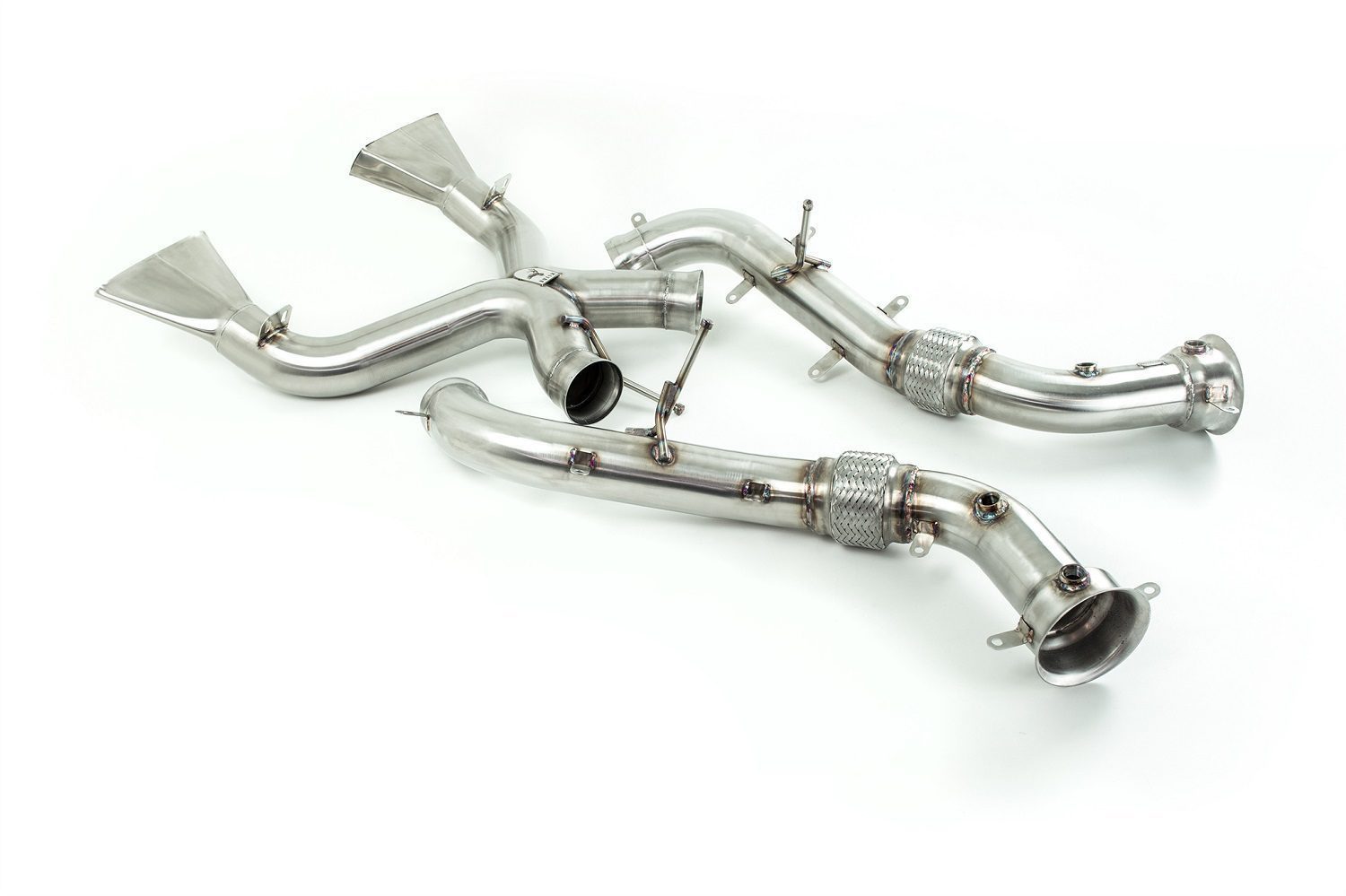

• To achieve this, high-flow catalysts or racing pipes are utilized to significantly increase the volume. The signature 1D CLR tight-radius X-pipe, expertly crafted from premium F1-grade Inconel 625 superalloy, raises the pitch to the level expected of a supercar. The incorporation of Inconel not only results in significant weight reduction but also adds a distinct tonal quality to the McLaren that can only be achieved with Kline’s Inconel range.
• Customers are given the option to choose a racing version for optimal sound and performance or select from 100 or 200 cell high-flow sports cats. The modular design of the cats section allows for quick interchangeability between cats and racing pipes, depending on the intended use.

Performance

• Replacing the factory catalysts with Kline’s 100 CPSI HJS race cats or racing pipes leads to a substantial improvement in performance.
  • 100 CPSI Race Cats: 18 horsepower, 25 Newton-meters
  • Racing Pipes: 35 horsepower, 40 Newton-meters

Stainless Steel

• Kline adheres to the industry standard by utilizing 304-grade stainless steel for exhaust manufacturing. This grade offers a well-balanced combination of moderate strength, thermochemical stability, cost-effectiveness, and ease of production, ensuring the construction of practical and durable exhaust systems. It is important to note that while stainless steel has a density similar to regular steel, it is relatively heavier and possesses slightly lower tensile strength. However, it fulfills the requirements for creating high-performance exhaust components capable of producing captivating exhaust notes.

Inconel

• For exceptional durability and heat resistance, Kline turns to the ultimate choice: Inconel 625, widely employed in the aerospace industry. This exceptional material finds extensive application in the manufacturing of critical components, including exhaust turbine blades for high-performance jet engines. Inconel is highly favored in Formula One exhaust systems and has been selected by manufacturers involved in prestigious hypercar projects such as the McLaren P1 and Aston Martin 177. The advantages of Inconel lie in its exceptional tensile strength and thermochemical stability. Comparable to titanium in terms of tensile strength, Inconel achieves an outstanding strength-to-weight ratio, allowing for the utilization of thin sidewall materials while maintaining structural integrity. This facilitates the production of lightweight components that exhibit remarkable resistance to fatigue over extended periods. However, working with Inconel presents challenges due to its difficult machinability and specific welding requirements, demanding specialized skills and time-consuming techniques. Moreover, the unique properties and specialized manufacturing processes associated with Inconel contribute to its higher cost as a raw material.

Specifications

• Materials:
  • Premium Grade Inconel 625 Superalloy:
    • Full Valvetronic System: 5.5kg
  • 304 Grade Stainless Steel:
    • Full Valvetronic System: 11kg
• Cross Sections:
  • Racing Cross Section: 70mm
  • X-Pipe: 70mm
  • Catalysts come in a variety of cross sections from 108mm OD to 127mm OD

Applications

• McLaren 12C: (2011-2014) – 3.8L TT V8

About Kline Innovation

At Kline, exhaust design is approached with utmost seriousness. The company adopts a no-compromise stance when it comes to delivering a product that meets the highest standards and satisfies customers’ expectations. Kline offers a comprehensive original equipment design and manufacturing service. Starting from provided drawings or design briefs, the team utilizes advanced 3D modeling techniques to create final designs. They also provide valuable consultation during the process and are capable of manufacturing tooling and fixtures for production, as well as handling final production runs, particularly catering to low to medium volume needs. Kline’s commitment to excellence ensures that customers receive a top-quality product without any compromises.

Development

• All projects at Kline are executed entirely in-house, utilizing a diverse range of processes. These internal capabilities include laser scanning, CNC laser cutting, CNC mandrel bending, tubing and silencer manufacturing, CNC welding, pressings, CNC milling, mold manufacturing, and autoclave carbon fiber production. Notable automotive clients, such as W Motors with their Fenyr Supersport, Corbellati Missile, and RUF Automobil, have recently collaborated with Kline.
• Kline has expanded its design and manufacturing process by incorporating laser scanning capabilities. This valuable addition enables the team to achieve enhanced precision in both design and quality control, resulting in an exceptional end product for customers. The adoption of laser scanning technology at Kline showcases the company’s unwavering dedication to delivering superior outcomes.
