Are hood pins, the inner rain protector or the aluminum net included?

No. The hood ships with fittings and bolts for the factory hood catch, which is all it needs to mount. Hood pins are recommended by the manufacturer for sports driving but are not included, and the inner rain protector and aluminum net are separate optional purchases.

How much lighter is the Type-S Vented Hood for ZF1 cars?

In Carbon and FRP, the Type-S Vented Hood for ZF1 cars weighs 4.6kg, compared with 9.6kg for the factory hood, a saving of 5kg. The FRP version weighs 4.7kg. The manufacturer does not publish a figure for Full Carbon, so we do not quote one.

Which material option is right for me?

Choose FRP if you want to paint the hood body color, since both faces are FRP. Carbon and FRP shows carbon on top with an FRP underside, which suits most owners who want exposed carbon. Full Carbon uses carbon FRP on both faces for those who want carbon visible underneath as well.

Does the hood help intake as well as cooling?

Yes. Besides venting engine bay heat through the outlet duct, the hood raises the panel over the factory intake duct area, which the manufacturer says improves intake efficiency. Pairing it with the matching front grille from the same company lets the car draw in air even more actively.

Is it strong enough for track use?

Yes. The manufacturer uses a double-layer structure specifically so the hood can withstand circuit driving. For sports driving it still recommends adding hood pins, which are sold separately, as extra security at speed on top of the factory catch and bolts.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

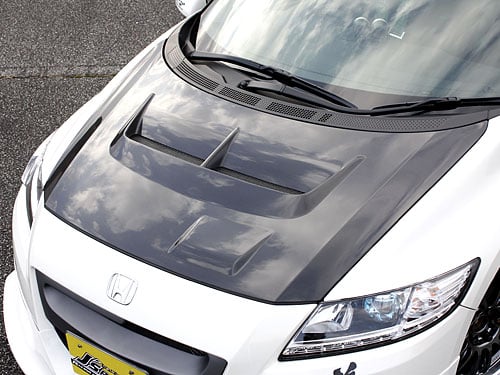

J’s Racing Type-S Vented Hood for ZF1 Honda CR-Z

J’s Racing’s Type-S Vented Hood for ZF1 CR-Z owners pairs an outlet duct refined through repeated testing with a raised air inlet section, so it works on heat and on intake at the same time. Compared with the factory hood, the duct releases hot air from the engine bay to prevent heat soak, while the bulge over the factory intake duct improves the engine’s intake efficiency. A double-layer structure gives the strength needed for circuit driving, and the Carbon and FRP version weighs 4.6kg against 9.6kg for the stock hood. It suits a CR-Z that is driven hard; a lightly used commuter will mostly notice the looks.

Design and Performance

J’s Racing says fitting the hood together with its own front grille brings in air even more actively. On the carbon versions, a single piece of carbon cloth covers the panel, so there are no seams in the weave. The hood uses the factory catch, and the catch fittings and bolts are included.

Features

Outlet duct developed through repeated testing
Raised inlet section over the factory intake duct
Double-layer construction with strength for circuit use
Single-piece carbon cloth with no seams on the carbon versions
Carbon and FRP weighs 4.6kg versus 9.6kg stock
Works with the factory hood catch

Applications

Honda CR-Z: ZF1 | 2010-2016 | 1.5L LEA hybrid

Notes

Options: Full Carbon uses carbon FRP on both faces, Carbon and FRP pairs a carbon top with an FRP underside, and FRP is FRP on both faces
Paint is not included; plan to paint the FRP version to match the body
Hood pins are not included, and J’s Racing recommends them for sports driving
J’s Racing sells the inner rain protector and aluminum net separately
Built to order by J’s Racing in Japan, with lead time confirmed by Bulletproof Automotive through J’s Racing USA after purchase

Frequently Asked Questions

Are hood pins, the inner rain protector or the aluminum net included? No. The hood ships with fittings and bolts for the factory hood catch, which is all it needs to mount. Hood pins are recommended by the manufacturer for sports driving but are not included, and the inner rain protector and aluminum net are separate optional purchases.
How much lighter is the Type-S Vented Hood for ZF1 cars? In Carbon and FRP, the Type-S Vented Hood for ZF1 cars weighs 4.6kg, compared with 9.6kg for the factory hood, a saving of 5kg. The FRP version weighs 4.7kg. The manufacturer does not publish a figure for Full Carbon, so we do not quote one.
Which material option is right for me? Choose FRP if you want to paint the hood body color, since both faces are FRP. Carbon and FRP shows carbon on top with an FRP underside, which suits most owners who want exposed carbon. Full Carbon uses carbon FRP on both faces for those who want carbon visible underneath as well.
Does the hood help intake as well as cooling? Yes. Besides venting engine bay heat through the outlet duct, the hood raises the panel over the factory intake duct area, which the manufacturer says improves intake efficiency. Pairing it with the matching front grille from the same company lets the car draw in air even more actively.
Is it strong enough for track use? Yes. The manufacturer uses a double-layer structure specifically so the hood can withstand circuit driving. For sports driving it still recommends adding hood pins, which are sold separately, as extra security at speed on top of the factory catch and bolts.

About J’s Racing

J’s Racing was established in Osaka in 1989, as VTEC engines and lightweight Civics and Integras were changing what a Honda could do, and it has built parts for Hondas ever since. The company develops engine response, suspension, braking, cooling and aerodynamics together as one system, then proves the parts in time attack, gymkhana, endurance and circuit racing. Its Fit lapped Tsukuba Circuit in 1’00.459, and its naturally aspirated AP1 S2000, the Maou car, became the company’s reference build for the Honda roadster. Every J’s Racing part is designed and tested in Japan, and J’s Racing USA in Carson, California handles distribution in the United States.
