Do I have to drill the bumper to fit the Carbon Canard for DC5 cars?

Yes. The Carbon Canard for DC5 cars mounts through holes drilled in the front bumper, using the stainless bolts and nuts that come with it. Depending on the angle and position you choose, the body-side edge may also need trimming, so a body shop install is the sensible route.

Is it made for the stock front bumper?

Yes. The price list describes this part as a carbon canard for the stock DC5 bumper, and the manufacturer designs it around the factory shape. Fitment to aftermarket front bumpers is not listed, so check with us before ordering if your car wears a different bumper.

Why would a front-wheel-drive car need canards?

A rear wing adds downforce at the back, which can leave the front tires short of grip in fast corners. The canard generates load at the front to balance that, and the manufacturer says it markedly raises cornering speed, especially on cars that already run a GT wing.

What is the canard made of?

The blades are CFRP, a carbon fiber reinforced plastic, and they sit on stays cut from aluminum plate. The combination keeps the assembly very light while giving it a structure strong enough to handle intense downforce without flexing out of position.

Will it fit a US-market Acura RSX?

Yes. The Acura RSX and the Japanese Integra Type R are both DC5 chassis cars, and the US distributor files this canard under the RSX. The canard is built for the stock front bumper, so a car with its original bumper is the intended fit.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

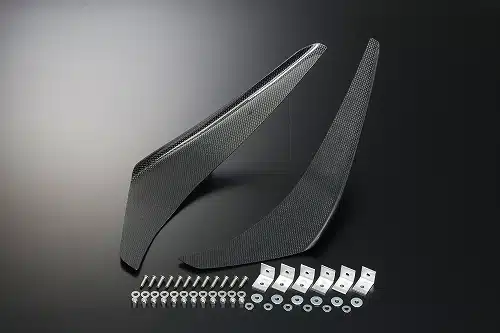

J’s Racing Carbon Canard for DC5 Honda Integra Type R and Acura RSX

J’s Racing’s Carbon Canard for DC5 Integra Type R and RSX cars adds front grip to a front-driver, and J’s Racing argues it becomes essential once a GT wing is fitted: the wing loads the rear, and the canard helps the front axle find traction to match, which lifts cornering speed. The blades are CFRP mounted on aluminum plate stays, very light yet built to withstand heavy downforce, and they attach to the stock front bumper with the stainless bolts and nuts in the box. It belongs on a DC5 chasing corner speed or lap time; without a wing it is mainly a styling piece.

Tips

Installation means drilling the front bumper. Depending on the position and angle you settle on, the inner, body-side edge of each canard may also need shaving or cutting so it sits cleanly against the bumper, so plan for some fitting work rather than a pure bolt-on.

Features

CFRP canard blades keep weight to a minimum
Aluminum plate stays built to carry strong downforce loads
Dedicated stainless steel bolts and nuts supplied
Designed for the factory DC5 front bumper
Restores front traction on cars running a large rear wing

Applications

Acura RSX Type S: DC5 | 2002-2006 | 2.0L K20A2
Honda Integra Type R: DC5 | 2001-2006 | 2.0L K20A

Notes

The front bumper must be drilled to mount the canard
Depending on mounting position and angle, the body-side edge of the canard may need trimming
J’s Racing USA lists the canard under the RSX on its price list; J’s Japan catalogs it for the DC5 Integra Type R
Pairs with the 3D GT Wing Type 1 Wet Carbon for the DC5 Integra Type R and RSX
Ships from Osaka through J’s Racing USA; Bulletproof Automotive will confirm stock and lead time when the order comes in

Frequently Asked Questions

Do I have to drill the bumper to fit the Carbon Canard for DC5 cars? Yes. The Carbon Canard for DC5 cars mounts through holes drilled in the front bumper, using the stainless bolts and nuts that come with it. Depending on the angle and position you choose, the body-side edge may also need trimming, so a body shop install is the sensible route.
Is it made for the stock front bumper? Yes. The price list describes this part as a carbon canard for the stock DC5 bumper, and the manufacturer designs it around the factory shape. Fitment to aftermarket front bumpers is not listed, so check with us before ordering if your car wears a different bumper.
Why would a front-wheel-drive car need canards? A rear wing adds downforce at the back, which can leave the front tires short of grip in fast corners. The canard generates load at the front to balance that, and the manufacturer says it markedly raises cornering speed, especially on cars that already run a GT wing.
What is the canard made of? The blades are CFRP, a carbon fiber reinforced plastic, and they sit on stays cut from aluminum plate. The combination keeps the assembly very light while giving it a structure strong enough to handle intense downforce without flexing out of position.
Will it fit a US-market Acura RSX? Yes. The Acura RSX and the Japanese Integra Type R are both DC5 chassis cars, and the US distributor files this canard under the RSX. The canard is built for the stock front bumper, so a car with its original bumper is the intended fit.

About J’s Racing

J’s Racing was established in Osaka in 1989, as VTEC engines and lightweight Civics and Integras were changing what a Honda could do, and it has built parts for Hondas ever since. The company develops engine response, suspension, braking, cooling and aerodynamics together as one system, then proves the parts in time attack, gymkhana, endurance and circuit racing. Its Fit lapped Tsukuba Circuit in 1’00.459, and its naturally aspirated AP1 S2000, the Maou car, became the company’s reference build for the Honda roadster. Every J’s Racing part is designed and tested in Japan, and J’s Racing USA in Carson, California handles distribution in the United States.
