How firm is the ride?

Firmer than a typical street coilover. The manufacturer describes the RS as a high-spec street damper focused on sports driving, with spring rates of 10kg/mm front and 8kg/mm rear, higher than common street kits. The 15-step damping range lets you soften the setting for daily use, within the limits of those springs.

How low can the Black Series Coilovers for FN2 cars go?

The manufacturer recommends lowering the Black Series Coilovers for FN2 cars by 20 to 40mm at the front and 10 to 30mm at the rear. Full-length adjustment with shortened cases and stroke means the car can be set within that range without giving up bump travel.

Yes. The front pillow upper mounts are adjustable, allowing fine camber changes, and the front bracket mounting position has been altered so the kit reaches a maximum of about 4 degrees of front camber. That range suits circuit setups that call for extra negative camber at the front.

Can the dampers be rebuilt?

Yes. The manufacturer states that every Black Series damper can be overhauled, so the kit can be serviced as it ages. Replacement damper cartridges are also offered for the front and rear individually, which helps if one corner is damaged. Contact us for overhaul and cartridge pricing.

Can the kit be installed on a US-market Civic?

No. The kit is made exclusively for the FN2 Civic Type R, built from 2007 to 2011 for Europe and the UK with the 2.0L K20Z4. Honda never sold the FN2 in the US, and no US-market Civic is listed by the manufacturer for this kit.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

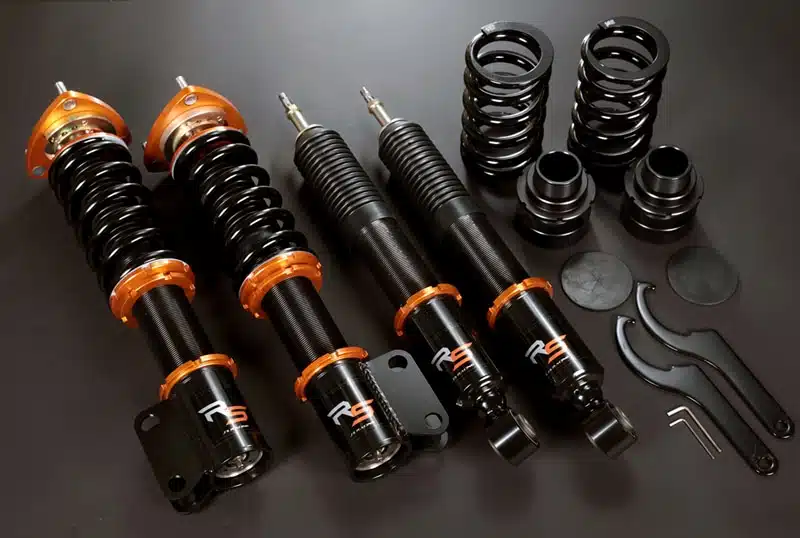

J’s Racing Black Series Coilovers for FN2 Honda Civic Type R

J’s Racing’s Black Series Coilovers for FN2 Civic Type R owners are the Black Series Damper RS, the first fully original coilover J’s Racing has made, built on more than 20 years of race know-how from Super Taikyu and other categories. Unlike street-biased kits, the RS is a high-spec street damper tuned for sports driving, with spring rates of 10kg/mm front and 8kg/mm rear for a lower stance and a cornering-focused balance. Full-length adjustment and short cases preserve bump travel when lowered. It suits an FN2 driven briskly on back roads and at track days; owners who want a soft ride will find it firm.

Design and Performance

The series uses monotube dampers, with an inverted large-diameter design where a strut needs extra rigidity. An adjustable pillow upper mount at the front allows fine camber changes, and a relocated front bracket mounting position extends the range to about 4 degrees. Every damper can be overhauled, so the kit can be serviced rather than replaced.

Features

15-step damping force adjustment
Full-length ride height adjustment with shortened cases
Front adjustable pillow upper mounts for camber
Higher spring rates than a typical street kit
Overhaulable dampers for long service life
Ride height wrench and damping hex wrench included

Specifications

Spring rate, front: 10kg/mm
Spring rate, rear: 8kg/mm
Spring inner diameter: 65mm
Spring free length, front: 200mm
Spring free length, rear: 175mm
Recommended lowering, front: 20 to 40mm
Recommended lowering, rear: 10 to 30mm
Damping adjustment: 15 steps
Maximum front camber: About 4 degrees

Applications

Honda Civic Type R: FN2 | 2007-2011 | 2.0L K20Z4

Notes

Designed only for the FN2 Civic Type R that Honda sold in Europe and the UK; the car was never offered in the US
Replacement damper cartridges are available separately for the front and rear
Turn the damping dial gently, because the supplied wrench can apply enough force to damage it
Recheck all bolts and nuts regularly after installation and before every circuit session
Shipped from Japan by way of J’s Racing USA, with stock and lead time checked and confirmed by Bulletproof Automotive when you order

Frequently Asked Questions

How firm is the ride? Firmer than a typical street coilover. The manufacturer describes the RS as a high-spec street damper focused on sports driving, with spring rates of 10kg/mm front and 8kg/mm rear, higher than common street kits. The 15-step damping range lets you soften the setting for daily use, within the limits of those springs.
How low can the Black Series Coilovers for FN2 cars go? The manufacturer recommends lowering the Black Series Coilovers for FN2 cars by 20 to 40mm at the front and 10 to 30mm at the rear. Full-length adjustment with shortened cases and stroke means the car can be set within that range without giving up bump travel.
Can I adjust camber? Yes. The front pillow upper mounts are adjustable, allowing fine camber changes, and the front bracket mounting position has been altered so the kit reaches a maximum of about 4 degrees of front camber. That range suits circuit setups that call for extra negative camber at the front.
Can the dampers be rebuilt? Yes. The manufacturer states that every Black Series damper can be overhauled, so the kit can be serviced as it ages. Replacement damper cartridges are also offered for the front and rear individually, which helps if one corner is damaged. Contact us for overhaul and cartridge pricing.
Can the kit be installed on a US-market Civic? No. The kit is made exclusively for the FN2 Civic Type R, built from 2007 to 2011 for Europe and the UK with the 2.0L K20Z4. Honda never sold the FN2 in the US, and no US-market Civic is listed by the manufacturer for this kit.

About J’s Racing

J’s Racing was established in Osaka in 1989, as VTEC engines and lightweight Civics and Integras were changing what a Honda could do, and it has built parts for Hondas ever since. The company develops engine response, suspension, braking, cooling and aerodynamics together as one system, then proves the parts in time attack, gymkhana, endurance and circuit racing. Its Fit lapped Tsukuba Circuit in 1’00.459, and its naturally aspirated AP1 S2000, the Maou car, became the company’s reference build for the Honda roadster. Every J’s Racing part is designed and tested in Japan, and J’s Racing USA in Carson, California handles distribution in the United States.
