What is different about the 3D GT Wing 1540 Special Edition?

The 3D GT Wing 1540 Special Edition runs a 1,540mm blade against the standard version's 1,600mm, sitting closer to the FK8's fender line for a cleaner look. Height, weight, materials, and the 15-position adjustment system are otherwise identical.

Does it require drilling the trunk?

No. The dedicated brackets bolt to the genuine FK8 trunk mounting holes, so installation needs no drilling and the car can return to stock cleanly.

How adjustable is it?

Fifteen positions in total: five wing angles across three mounting heights, letting you trade downforce against drag for each track or road.

Is wet carbon strong enough for circuit use?

Yes. The twill-weave wet carbon blade rides on dry carbon brackets, and J's Racing developed the wing for highway, winding road, wet weather, and circuit use at just 3.5 kg complete.

How should I protect the finish?

J's Racing recommends a UV-cut clear coating if the car is frequently parked outside, since ultraviolet exposure is the main enemy of any carbon finish.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

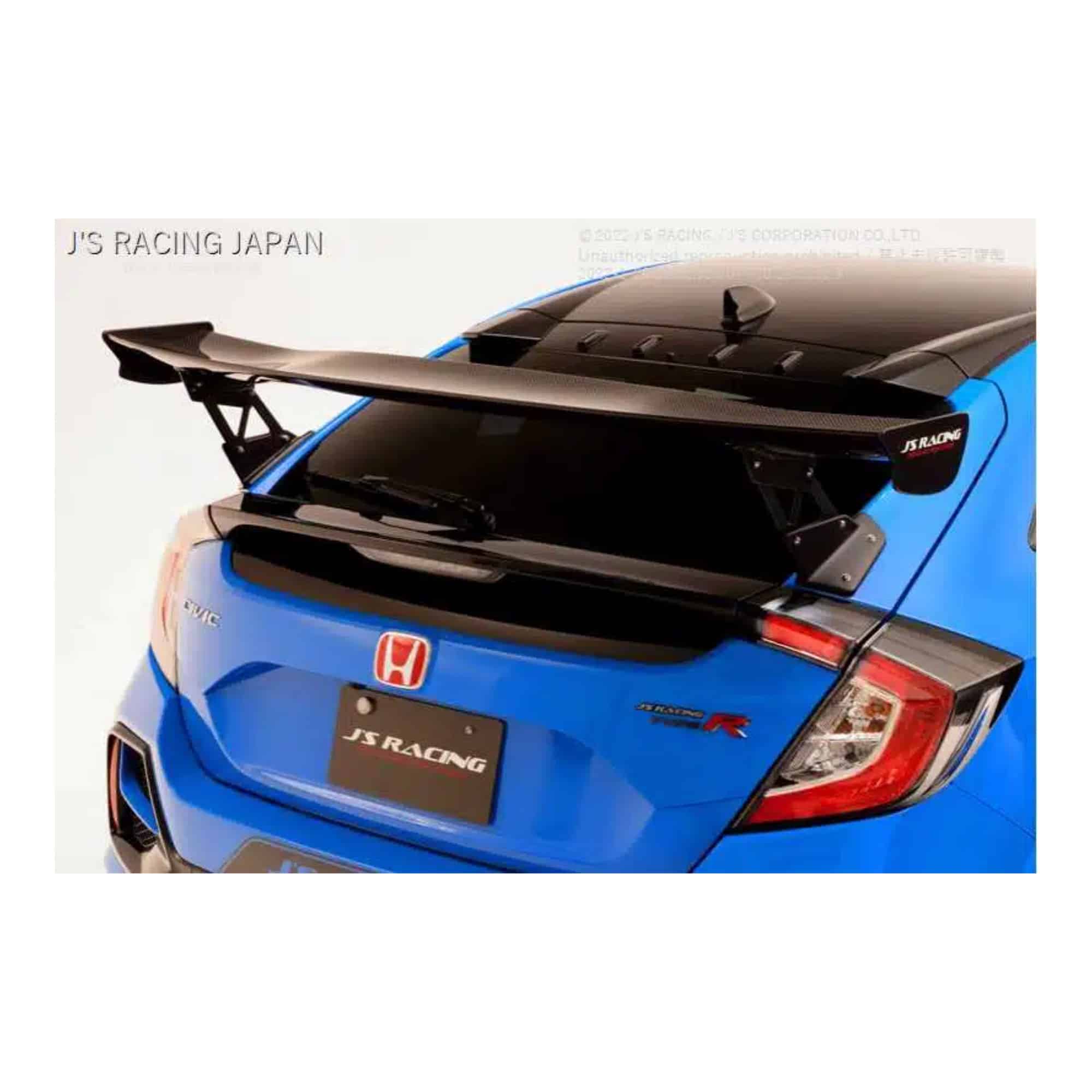

J’s Racing Wet Carbon 3D GT Wing 1540 Special Edition for FK8 Honda Civic Type R [DGW1-K8-WSE]

The J’s Racing Wet Carbon 3D GT Wing 1540 Special Edition brings the FK8 Honda Civic Type R real circuit downforce in a blade sized closer to the car’s bodywork. At 1,540mm wide, the Special Edition tucks inside the fenders where the 1,600mm version stands proud, while keeping everything that makes the 3D GT Wing work: a single-flap profile that builds downforce at medium and high speed with minimal drag, and 15 adjustable positions across five angles and three heights.

Construction

The blade is twill-weave wet carbon at just 3.5 kg complete, carried on dry carbon brackets, and the dedicated trunk brackets bolt straight to the genuine FK8 trunk holes with no drilling. J’s Racing shaped the single-flap design to stay effective on highways, winding roads, and wet surfaces as well as on circuit.

Features

15 adjustable positions across 5 angles and 3 heights
Bolts to the genuine FK8 trunk holes with no drilling
Dry carbon mounting brackets and stays
Single-flap profile builds downforce at medium to high speed while minimizing drag
Twill-weave wet carbon blade at 3.5 kg complete

Specifications

Wing Width: 1,540 mm
Wing Height: 195 mm
Weight: 3.5 kg
Blade Material: Twill-weave wet carbon
Bracket Material: Dry carbon
Adjustment: 15 positions (5 angles x 3 heights)

Applications

Honda Civic Type R: FK8 | 2017-2021 | 2.0L K20C1 Turbo

Notes

The Special Edition blade is 1,540mm wide; the standard 3D GT Wing is 1,600mm
J’s Racing recommends a UV-cut clear coating for cars frequently parked outdoors
Deciding between the 1540 and the 1,600mm wing? contact us

Frequently Asked Questions

What is different about the 3D GT Wing 1540 Special Edition? The 3D GT Wing 1540 Special Edition runs a 1,540mm blade against the standard version’s 1,600mm, sitting closer to the FK8’s fender line for a cleaner look. Height, weight, materials, and the 15-position adjustment system are otherwise identical.
Does it require drilling the trunk? No. The dedicated brackets bolt to the genuine FK8 trunk mounting holes, so installation needs no drilling and the car can return to stock cleanly.
How adjustable is it? Fifteen positions in total: five wing angles across three mounting heights, letting you trade downforce against drag for each track or road.
Is wet carbon strong enough for circuit use? Yes. The twill-weave wet carbon blade rides on dry carbon brackets, and J’s Racing developed the wing for highway, winding road, wet weather, and circuit use at just 3.5 kg complete.
How should I protect the finish? J’s Racing recommends a UV-cut clear coating if the car is frequently parked outside, since ultraviolet exposure is the main enemy of any carbon finish.

About J’s Racing

J’s Racing is one of Japan’s most respected Honda tuning houses, developing parts the hard way: on real race tracks in Super Taikyu endurance competition and time attack rather than on paper. From aero and titanium exhausts to suspension and driveline components, every product carries lessons learned from decades of racing Hondas at the limit. Bulletproof Automotive imports J’s Racing parts directly from Japan, bringing authentic, race-proven JDM engineering to enthusiasts in the US and worldwide.
