What oil should I use, and is it included?

Oil is not included. The manufacturer recommends a fully synthetic differential oil and warns that the oil choice can change the performance of the unit considerably. Installation labor is not included either, and the installer should work from the vehicle service manual for the FD2.

Will the 1.5-Way LSD for FD2 fit a US-market Civic Si?

That is not confirmed. The 1.5-Way LSD for FD2 cars is built for the transmission in the Japanese-market FD2 Civic Type R sedan, and the manufacturer warns it may not fit the US-market FG Civic. For any other Civic, ask Bulletproof Automotive to check compatibility first.

Is it noisy on the street?

The manufacturer paid particular attention to quietness and says chatter noise in street driving is suppressed as far as possible without reducing lockup. It credits the new RS clutch plates for staying quiet while transferring more torque, so the unit can live on a road car as well as a race car.

What does 1.5-way mean for the FD2?

A 1.5-way unit locks fully under acceleration and only partly when you lift off. On a front-drive FD2 that puts power down out of corners while keeping the car calmer and easier to turn in on deceleration than a 2-way unit. The cam angles of 50 and 25 set those two behaviors.

Why is the initial setting only 6.5kg?

The design philosophy is that lockup should come from throttle input, not high preload. The manufacturer says heavy initial torque is often mistaken for strength, while its disc spring setup gives lockup that follows the accelerator, so the driver feels stable without the vibration and noise that heavy preload brings.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

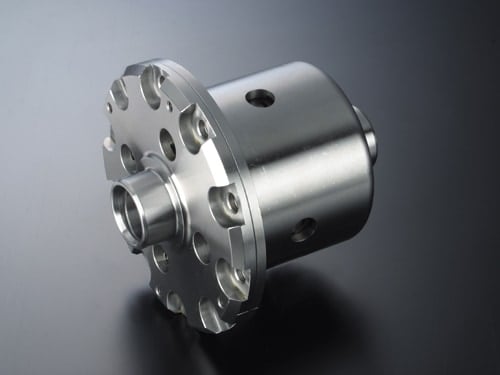

J’s Racing 1.5-Way LSD for FD2 Honda Civic Type R

J’s Racing’s 1.5-Way LSD for FD2 Civic Type R sedans is the Osaka tuner’s High Traction mechanical differential, developed in competition and run everywhere from street cars to Super Taikyu. Its 50-25 cam angles and a 6.5kg cold initial setting reflect J’s Racing’s view that a good LSD should lock in proportion to the throttle rather than lean on high preload. The result, as J’s Racing describes it, is predictable lockup and stable behavior, with chatter kept low enough for road use. It suits an FD2 that already spins its inside front wheel out of slow corners; a gently driven street car will rarely use what it offers.

Design and Performance

Since its first LSD, J’s Racing has used disc springs, whose force can stay steady at small deflection and then rise or fall beyond a set point, unlike a coil spring. Tuning that curve is how it achieves smooth lockup without the vibration in tight turns, clunks or off-throttle instability that large plates often bring. The pinion and side gears are high-strength gear steel with special heat treatment.

Features

1.5-way mechanical action with 50-25 cam angles
6.5kg initial setting measured cold
Disc spring design for smooth, predictable lockup
Chatter noise suppressed for street driving
RS clutch plates for strong transfer with low noise
Forged case machined to 1/100mm precision

Applications

Honda Civic Type R: FD2 | 2007-2010 | 2.0L K20A

Notes

J’s Racing designs this part for the JDM FD2 Civic Type R sedan, so it may not fit the US-market FG Civic
Installation labor and differential oil are not included
J’s Racing recommends a fully synthetic differential oil, since the oil used can change the LSD’s behavior considerably
If unusual vibration or noise appears while driving, stop somewhere safe and have the car inspected
Built in Japan and supplied by J’s Racing USA; Bulletproof Automotive confirms the lead time after you order

Frequently Asked Questions

What oil should I use, and is it included? Oil is not included. The manufacturer recommends a fully synthetic differential oil and warns that the oil choice can change the performance of the unit considerably. Installation labor is not included either, and the installer should work from the vehicle service manual for the FD2.
Will the 1.5-Way LSD for FD2 fit a US-market Civic Si? That is not confirmed. The 1.5-Way LSD for FD2 cars is built for the transmission in the Japanese-market FD2 Civic Type R sedan, and the manufacturer warns it may not fit the US-market FG Civic. For any other Civic, ask Bulletproof Automotive to check compatibility first.
Is it noisy on the street? The manufacturer paid particular attention to quietness and says chatter noise in street driving is suppressed as far as possible without reducing lockup. It credits the new RS clutch plates for staying quiet while transferring more torque, so the unit can live on a road car as well as a race car.
What does 1.5-way mean for the FD2? A 1.5-way unit locks fully under acceleration and only partly when you lift off. On a front-drive FD2 that puts power down out of corners while keeping the car calmer and easier to turn in on deceleration than a 2-way unit. The cam angles of 50 and 25 set those two behaviors.
Why is the initial setting only 6.5kg? The design philosophy is that lockup should come from throttle input, not high preload. The manufacturer says heavy initial torque is often mistaken for strength, while its disc spring setup gives lockup that follows the accelerator, so the driver feels stable without the vibration and noise that heavy preload brings.

About J’s Racing

J’s Racing was established in Osaka in 1989, as VTEC engines and lightweight Civics and Integras were changing what a Honda could do, and it has built parts for Hondas ever since. The company develops engine response, suspension, braking, cooling and aerodynamics together as one system, then proves the parts in time attack, gymkhana, endurance and circuit racing. Its Fit lapped Tsukuba Circuit in 1’00.459, and its naturally aspirated AP1 S2000, the Maou car, became the company’s reference build for the Honda roadster. Every J’s Racing part is designed and tested in Japan, and J’s Racing USA in Carson, California handles distribution in the United States.
