IPD 74mm Plenum for 992.1 Porsche 911 Carrera / GTS / S & 911 Dakar [92274-3.0]

IPD 74mm Plenum for 992.1 Porsche 911 Carrera / GTS / S & 911 Dakar [92274-3.0]

The 992 Carrera engine is yet another modern marvel from Porsche. While the displacement remains unchanged at 3.0L, the 9A2 Evo engine features numerous upgrades that set it apart from the previous 991.2 model. IPD had the unique opportunity to access a 992 Carrera S for extensive development and testing, allowing for a thorough examination of every engineering and design aspect. This deep scrutiny enabled IPD to create the most efficient Plenum possible. Like all IPD Plenums, the 992 version incorporates a patented “Y” design that optimizes airflow, resulting in significant horsepower and torque gains. Proven to deliver substantial performance improvements across both power bands, the IPD 992 Plenum guarantees an enhanced driving experience for any Carrera.

Engineering

• Development began with a 1D simulation to optimize the management of pulse peaks in the intake tract by testing different pipe geometries and using the known engine parameters of the 992. The process then moved to optimizing 2D slices of the plenum in CFD, focusing on areas where adverse pressure gradients could lead to separation. This step allowed for adjustments to the plenum’s curvatures and a better understanding of airflow dynamics at full throttle. Once satisfied with the 2D results, the team advanced to 3D modeling, incorporating all geometry to create a plug-and-play bolt-on part with optimal performance. After hundreds of geometric and CFD iterations, the team achieved not only an increase in mass flow over the stock intake but also a more uniform charge pressure and velocity across both branches.

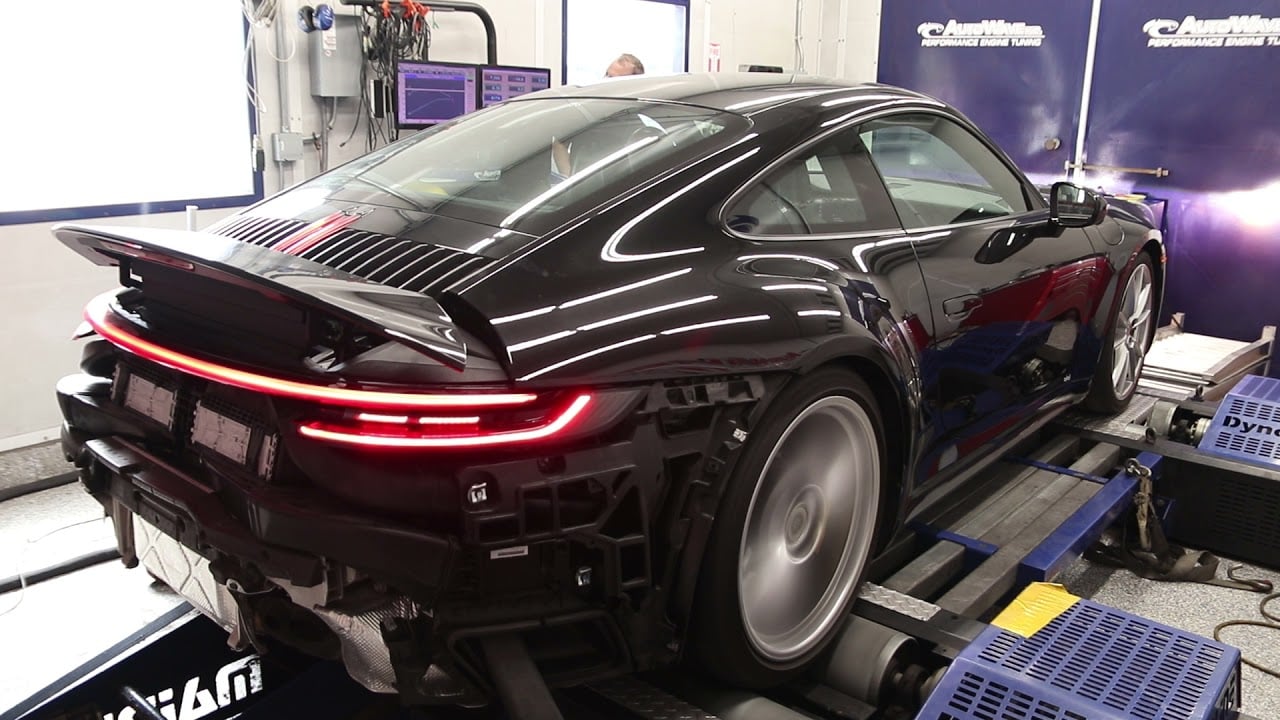

Testing

• The Plenum’s efficiencies significantly reduce initial turbo lag at lower RPMs, allowing quicker access to power and torque. However, the majority of the power and torque gains are realized from 4000rpm to redline, where they are most needed and appreciated. The horsepower and torque gains continue to increase, outperforming the factory air distributor as the engine revs higher. Peak gains of over 30 wheel horsepower and 25 wheel torque are achieved at 6200rpm.

Features

• Optimized airflow
• Reduced turbo lag
• Patented “Y” design
• +30whp & +25wt/q (@6200rpm)

Applications

• Porsche 911 Carrera: 992 (2020-2024) – 3.0L TT F6
• Porsche 911 Carrera GTS: 992 (2021-2024) – 3.0L TT F6
• Porsche 911 Carrera S: 992 (2020-2024) – 3.0L TT F6
• Porsche 911 Dakar: 992 (2022-2024) – 3.0L TT F6

Notes

• It is highly recommended that the installation of all Turbo Plenums be performed by qualified and trained Porsche technicians

About IPD Plenums

Innovative Pro Design (IPD), founded in 2004 by Mike “Turbo” Kirakosyan, is based in Southern California, the heart of Porsche tuning. IPD is renowned for its patented “Y” design Intake Plenums, which enhance power and torque through optimized airflow. Developed with Mike’s extensive experience as a fabricator, engine builder, and Porsche expert, the Plenums underwent rigorous testing, including over 1000 dyno pulls. With a product range covering over 60 Porsche models, IPD continues to innovate and fine-tune its designs. Backed by a 100% satisfaction guarantee, IPD consistently delivers impressive, dyno-proven performance gains, making it the ultimate Porsche performance upgrade.
