Are the injectors plug and play on a Huracan or R8?

No, not on their own. The ID1750-XDS Injector Set uses a USCAR electrical connector, and both the Huracan and the second generation R8 use Denso injector plugs, so a set of USCAR to Denso adapters is needed. Those adapters are not included. The injectors are otherwise vehicle specific, with 14mm top adapters and 14mm lower O-rings to suit the factory fuel rails.

Do I need an ECU tune after fitting the ID1750-XDS Injector Set?

Yes. The engine management calculates fuel delivery from injector data such as offset, flow rate and short pulse adders, and the ID1750-XDS differs from the factory injector on all three. Injector Dynamics publishes characterization data for the 1750, and the tuner loads it into the calibration. Plan the injectors and the tune as a single job rather than fitting one before the other.

Do these injectors also fit the Audi R8?

Yes, the second generation R8 V10. Injector Dynamics lists the Lamborghini Huracan and the Audi R8 against the same set because both cars use the same 5.2 liter V10. First generation R8 and Gallardo fitment is not listed by Injector Dynamics, so this set should not be ordered for either of those cars.

What is the real flow rate of a 1750 injector?

Injector Dynamics rates the ID1750-XDS at 1728cc per minute at 3.0 bar, or 43.5 psi, measured on E10 emissions certification fuel at 49C. The 1750 in the name is a rounded class figure. Maximum differential fuel pressure is 7.0 bar, or 101.5 psi, and Injector Dynamics also publishes dynamic flow data across a range of battery voltages for tuning.

Can I run E85 with these injectors?

Yes. Injector Dynamics rates the ID1750-XDS for ethanol, methanol, MTBE, nitromethane and all known hydrocarbon fuels. E85 needs substantially more fuel volume than pump gasoline for the same power, which is the main reason Huracan and R8 owners step up to this injector size. The fuel pump and the calibration must be sized for the same fuel.

Is there a warranty, and are the injectors matched?

Injector Dynamics gives a one year warranty against manufacturer defects, provided the injectors run on the correct fuel with proper filtration. The injectors are flow matched as a complete set, so a single replacement should be arranged through Injector Dynamics support rather than bought separately, which keeps the cylinder to cylinder balance intact.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

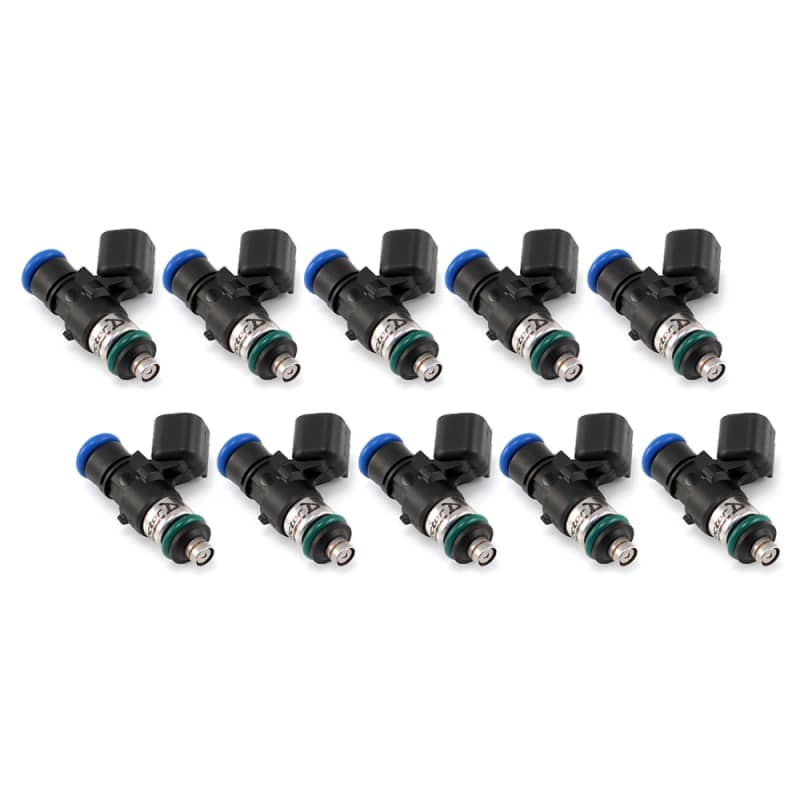

Injector Dynamics ID1750-XDS Injector Set for LB724 Lamborghini Huracan and 4S Audi R8 V10

Injector Dynamics’ ID1750-XDS Injector Set for LB724 Lamborghini Huracan and 4S Audi R8 V10 is the fuel side of a serious 5.2 V10 build, flow-matched injectors rated at 1728cc/min at 43.5 psi for cars being taken well past factory output on boost or ethanol. The Huracan and the second-generation R8 share the same V10, which is why one set covers both. Injector Dynamics developed the 1750 as the successor to its ID1700, adding dynamic flow at the top of the range without raising the minimum fuel mass, so short-pulse control at idle and light load is not traded away for headroom. It is rated for gasoline, ethanol and methanol alike. On a stock or lightly modified car it is more injector than the engine will use; it belongs on the car that already has a turbo system, a flex-fuel plan and a tuner lined up.

Fitting and Calibration

These injectors are not plug-and-play on their own. The ID1750-XDS carries a USCAR electrical connector, while the Huracan and Gen 2 R8 harness uses Denso injector plugs, so a set of USCAR-to-Denso adapters is needed and is not part of this set. A change of this size also means a recalibration. Injector Dynamics publishes characterization data for each injector, the offset, flow and short-pulse adder tables, and that data is what your tuner loads so fueling stays accurate from idle to redline. Builds at this level normally pair the injectors with an uprated fuel pump system, because the factory pump is not sized for the power they support.

Features

Flow matched as a set by Injector Dynamics
Rated for gasoline, E85, methanol, MTBE and nitromethane
More dynamic flow than the ID1700 it replaces, with no increase in minimum fuel mass
Tighter cylinder-to-cylinder balance at short pulsewidths
One ID1750-XDS Injector Set serves both the Lamborghini and the Audi versions of the 5.2 V10
Characterization data published by Injector Dynamics for the calibration

Specifications

Nominal flow: 1728cc/min at 3.0 bar (43.5 psi)
Test fuel: E10 emissions certification fuel at 49C (120F)
Maximum differential fuel pressure: 7.0 bar (101.5 psi)
Electrical connector: USCAR
Body length: 34mm
Top adapter and lower O-ring: 14mm and 14mm
Sold as: Set of 10

What’s Included

Ten ID1750-XDS injectors with 14mm top adapters

Applications

Audi R8 V10: 4S | 2017-2023 | 5.2L V10
Lamborghini Huracan: LB724 | 2015-2024 | 5.2L V10

Notes

USCAR-to-Denso adapters are required for plug-and-play fitment and are not included
An ECU recalibration is required after fitting, using the Injector Dynamics characterization data
Injector Dynamics lists the Huracan and the Gen 2 R8 against this set; the Gallardo and the first-generation R8 are not listed
Sets are flow matched, so a single replacement injector is arranged through Injector Dynamics support rather than bought on its own
Injector Dynamics warrants its injectors for one year against manufacturer defects, provided they run on the correct fuel with proper filtration
Not CARB approved; not legal for sale or use on pollution-controlled vehicles in California
For the valvetrain side of the same build, see the GSC Power-Division Beehive Valve Spring Kit with Titanium Retainers for LB724 Lamborghini Huracan and 4S Audi R8 V10 5025

Frequently Asked Questions

Are the injectors plug and play on a Huracan or R8? No, not on their own. The ID1750-XDS Injector Set uses a USCAR electrical connector, and both the Huracan and the second generation R8 use Denso injector plugs, so a set of USCAR to Denso adapters is needed. Those adapters are not included. The injectors are otherwise vehicle specific, with 14mm top adapters and 14mm lower O-rings to suit the factory fuel rails.
Do I need an ECU tune after fitting the ID1750-XDS Injector Set? Yes. The engine management calculates fuel delivery from injector data such as offset, flow rate and short pulse adders, and the ID1750-XDS differs from the factory injector on all three. Injector Dynamics publishes characterization data for the 1750, and the tuner loads it into the calibration. Plan the injectors and the tune as a single job rather than fitting one before the other.
Do these injectors also fit the Audi R8? Yes, the second generation R8 V10. Injector Dynamics lists the Lamborghini Huracan and the Audi R8 against the same set because both cars use the same 5.2 liter V10. First generation R8 and Gallardo fitment is not listed by Injector Dynamics, so this set should not be ordered for either of those cars.
What is the real flow rate of a 1750 injector? Injector Dynamics rates the ID1750-XDS at 1728cc per minute at 3.0 bar, or 43.5 psi, measured on E10 emissions certification fuel at 49C. The 1750 in the name is a rounded class figure. Maximum differential fuel pressure is 7.0 bar, or 101.5 psi, and Injector Dynamics also publishes dynamic flow data across a range of battery voltages for tuning.
Can I run E85 with these injectors? Yes. Injector Dynamics rates the ID1750-XDS for ethanol, methanol, MTBE, nitromethane and all known hydrocarbon fuels. E85 needs substantially more fuel volume than pump gasoline for the same power, which is the main reason Huracan and R8 owners step up to this injector size. The fuel pump and the calibration must be sized for the same fuel.
Is there a warranty, and are the injectors matched? Injector Dynamics gives a one year warranty against manufacturer defects, provided the injectors run on the correct fuel with proper filtration. The injectors are flow matched as a complete set, so a single replacement should be arranged through Injector Dynamics support rather than bought separately, which keeps the cylinder to cylinder balance intact.

About Injector Dynamics

Injector Dynamics designs and tests fuel injectors for motorsport and high-output road engines. The company builds its own flow test equipment, including a NIST-traceable flow prover, is an authorized technical partner of Bosch Motorsport, and supplied the emissions-compliant injectors Noble Automotive used on the twin-turbo M600. Its injectors are sold in flow-matched sets, with published characterization data for tuners.
