Does this Injector Set for McLaren P1 also fit the 12C, 650S and 570S?

Yes. Injector Dynamics lists the ID1750-XDS for the McLaren P1 and for the MP4-12C, 570S, 600LT, 650S and 675LT, and the same part number, 1750.34.14.14.8, serves all six because each runs a version of the M838T twin turbo V8. Check that your car is on that list before ordering, since later McLarens use a different engine.

Will it fit a 720S or Senna?

No. The 720S and Senna run the M840T engine and take a different Injector Dynamics set, part number 1750.34.14.14.16, which contains 16 injectors and costs roughly twice as much. This eight piece set is only for the M838T family: the 12C, 570S, 600LT, 650S, 675LT and P1. Choose the part number that matches the engine in your car.

Do I need adapters or a new harness?

No adapters are needed on the M838T cars. The set is a direct replacement on the factory fuel rails, with a USCAR electrical connector and 14mm lower O-rings that suit the factory hardware. Fit the injectors, connect them to the factory harness and have the calibration updated before the car is driven, because the fueling will be wrong until it is.

Does fitting the injectors require an ECU tune?

Yes. Fuel delivery is calculated from injector characterization data, and a larger injector changes offset, flow and short pulse behavior compared with the factory part. Injector Dynamics publishes that data for the ID1750-XDS, so a tuner can load it directly. An Injector Set for McLaren P1 and M838T builds should be fitted as part of the tune, never ahead of it.

Can the M838T run E85 on these injectors?

The ID1750-XDS is rated for ethanol, methanol, MTBE, nitromethane and all known hydrocarbon fuels, so E85 is within its rating. Ethanol needs considerably more fuel volume than gasoline for the same power, which is why tuned McLarens outgrow the factory injectors. The fuel pump, the lines and the calibration must all be sized for the same fuel.

What flow does the ID1750-XDS deliver?

Injector Dynamics rates it at 1728cc per minute at 3.0 bar, or 43.5 psi, measured on E10 emissions certification fuel at 49C, with a maximum differential fuel pressure of 7.0 bar, or 101.5 psi. The 1750 in the name is a rounded class figure, and Injector Dynamics publishes dynamic flow data across battery voltages and fuel pressures.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

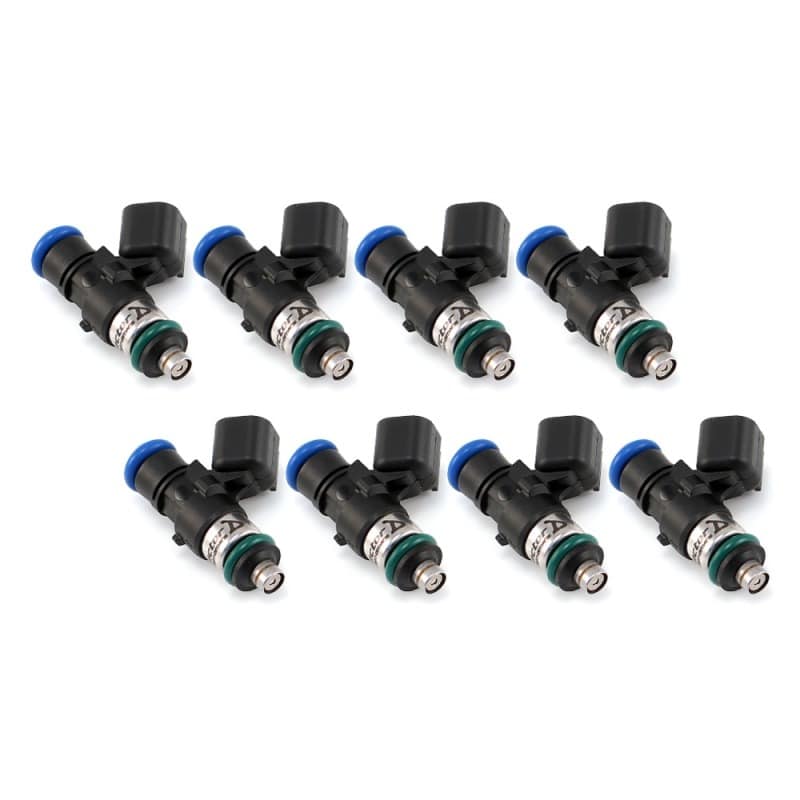

Injector Dynamics ID1750-XDS Injector Set for McLaren P1, 12C, 570S, 600LT, 650S and 675LT

Injector Dynamics’ ID1750-XDS Injector Set for McLaren P1, 12C, 570S, 600LT, 650S and 675LT covers every car built on the M838T twin-turbo V8 family with a single part number, flow-matched injectors rated at 1728cc/min at 43.5 psi. That flow is the reason to buy it. A tuned M838T running an ethanol blend outgrows the factory injectors long before it runs out of turbo, and the 1750 gives the calibration room to work with. Injector Dynamics developed it to replace the ID1700, raising dynamic flow at the top end without adding to the minimum fuel mass, so control at idle and light load is kept. For a car staying on pump fuel at factory boost it is more injector than the engine will use. For a McLaren being built properly on E85, it is the injector the rest of the fuel system should be sized around.

Fitting and Calibration

On the M838T cars the set is a direct replacement on the factory fuel rails, with a USCAR connector and 14mm lower O-rings and no adapters required. The part number is shared across six cars because each runs a version of the same engine: M838T in the 12C, 650S and 675LT, M838TE in the 570S and 600LT, and M838TQ in the hybrid P1. The 720S and Senna run the later M840T and take a different set. Whatever the car, the injectors and the calibration go in together: Injector Dynamics publishes characterization data for the 1750, and the tuner loads it so fueling is correct across the rev range.

Features

Flow matched as a set by Injector Dynamics
Rated for gasoline, E85, methanol, MTBE and nitromethane
More dynamic flow than the ID1700 with no increase in minimum fuel mass
Improved cylinder-to-cylinder balance at short pulsewidths
The same Injector Set for McLaren P1 builds fits the rest of the M838T family, so one part number covers six cars
Characterization data published by Injector Dynamics for the calibration

Specifications

Nominal flow: 1728cc/min at 3.0 bar (43.5 psi)
Test fuel: E10 emissions certification fuel at 49C (120F)
Maximum differential fuel pressure: 7.0 bar (101.5 psi)
Electrical connector: USCAR
Body length: 34mm
Lower O-ring: 14mm
Sold as: Set of 8

What’s Included

Eight ID1750-XDS injectors

Applications

McLaren 12C: M838T 3.8L twin-turbo V8
McLaren 570S: M838TE 3.8L twin-turbo V8
McLaren 600LT: M838TE 3.8L twin-turbo V8
McLaren 650S: M838T 3.8L twin-turbo V8
McLaren 675LT: M838T 3.8L twin-turbo V8
McLaren P1: M838TQ 3.8L twin-turbo V8 hybrid

Notes

Does not fit the McLaren 720S or Senna, which use the M840T engine and Injector Dynamics set 1750.34.14.14.16 of 16 injectors
An ECU recalibration is required after fitting, using the Injector Dynamics characterization data
Fitment across the M838T family follows the Injector Dynamics fitment table for the ID1750-XDS; confirm your car against the list above before ordering
Sets are flow matched, so a single replacement injector is arranged through Injector Dynamics support
Injector Dynamics warrants its injectors for one year against manufacturer defects, provided they run on the correct fuel with proper filtration
Not CARB approved; not legal for sale or use on pollution-controlled vehicles in California

Frequently Asked Questions

Does this Injector Set for McLaren P1 also fit the 12C, 650S and 570S? Yes. Injector Dynamics lists the ID1750-XDS for the McLaren P1 and for the MP4-12C, 570S, 600LT, 650S and 675LT, and the same part number, 1750.34.14.14.8, serves all six because each runs a version of the M838T twin turbo V8. Check that your car is on that list before ordering, since later McLarens use a different engine.
Will it fit a 720S or Senna? No. The 720S and Senna run the M840T engine and take a different Injector Dynamics set, part number 1750.34.14.14.16, which contains 16 injectors and costs roughly twice as much. This eight piece set is only for the M838T family: the 12C, 570S, 600LT, 650S, 675LT and P1. Choose the part number that matches the engine in your car.
Do I need adapters or a new harness? No adapters are needed on the M838T cars. The set is a direct replacement on the factory fuel rails, with a USCAR electrical connector and 14mm lower O-rings that suit the factory hardware. Fit the injectors, connect them to the factory harness and have the calibration updated before the car is driven, because the fueling will be wrong until it is.
Does fitting the injectors require an ECU tune? Yes. Fuel delivery is calculated from injector characterization data, and a larger injector changes offset, flow and short pulse behavior compared with the factory part. Injector Dynamics publishes that data for the ID1750-XDS, so a tuner can load it directly. An Injector Set for McLaren P1 and M838T builds should be fitted as part of the tune, never ahead of it.
Can the M838T run E85 on these injectors? The ID1750-XDS is rated for ethanol, methanol, MTBE, nitromethane and all known hydrocarbon fuels, so E85 is within its rating. Ethanol needs considerably more fuel volume than gasoline for the same power, which is why tuned McLarens outgrow the factory injectors. The fuel pump, the lines and the calibration must all be sized for the same fuel.
What flow does the ID1750-XDS deliver? Injector Dynamics rates it at 1728cc per minute at 3.0 bar, or 43.5 psi, measured on E10 emissions certification fuel at 49C, with a maximum differential fuel pressure of 7.0 bar, or 101.5 psi. The 1750 in the name is a rounded class figure, and Injector Dynamics publishes dynamic flow data across battery voltages and fuel pressures.

About Injector Dynamics

Injector Dynamics designs and tests fuel injectors for motorsport and high-output road engines. The company builds its own flow test equipment, including a NIST-traceable flow prover, is an authorized technical partner of Bosch Motorsport, and supplied the emissions-compliant injectors Noble Automotive used on the twin-turbo M600. Its injectors are sold in flow-matched sets, with published characterization data for tuners.
