What color finishes are available for the HPS Intercooler Charge Pipe Kit for FL5 Acura Civic and DE5 Integra 2L Turbo K20?

Refer to the Choose Color dropdown above for available finishes on this specific intercooler kit. Select your preferred color before adding the kit to your cart.

Is professional installation required for the HPS Intercooler Charge Pipe Kit for FL5 Acura Civic and DE5 Integra 2L Turbo K20?

No, the HPS Intercooler Charge Pipe Kit for FL5 Acura Civic and DE5 Integra 2L Turbo K20 is a Level-1 bolt-on install rated for DIY enthusiasts. The kit reuses the OEM mounting points and includes 100% stainless steel T-bolt clamps; typical install time is 45 to 90 minutes.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

HPS Intercooler Charge Pipe Kit for FL5 Acura Civic and DE5 Integra 2L Turbo K20

The HPS Intercooler Charge Pipe Kit for the DE5 / FL5 Acura platform replaces the restrictive factory intercooler plumbing with mandrel-bent aluminum charge pipes and 4-ply reinforced silicone couplers. The HPS Performance Hot and Cold Side Charge Pipe Kit is the essential upgrade engineered to replace the factory charge pipe system, providing significant performance improvements for your vehicle. With a larger 2.25-inch diameter on the hot side and 2.5-inch diameter cold side pipes made from 6061 mandrel bent aluminum, the enhanced airflow and reduced restriction increases the engine output by 10.2HP and 9.8ft-lbs of torque, resulting in improved throttle response, acceleration, and overall engine performance.
The HPS Performance Charge Pipe Kit is made with reliability in mind. Available in Polished / Black.

Features

Improves acceleration with dyno proven gains up to 10.2HP and 9.8ft-lbs. of torque without retuning the ECU
Replaces and upgrades your stock intercooler piping with high flow aluminum tubing

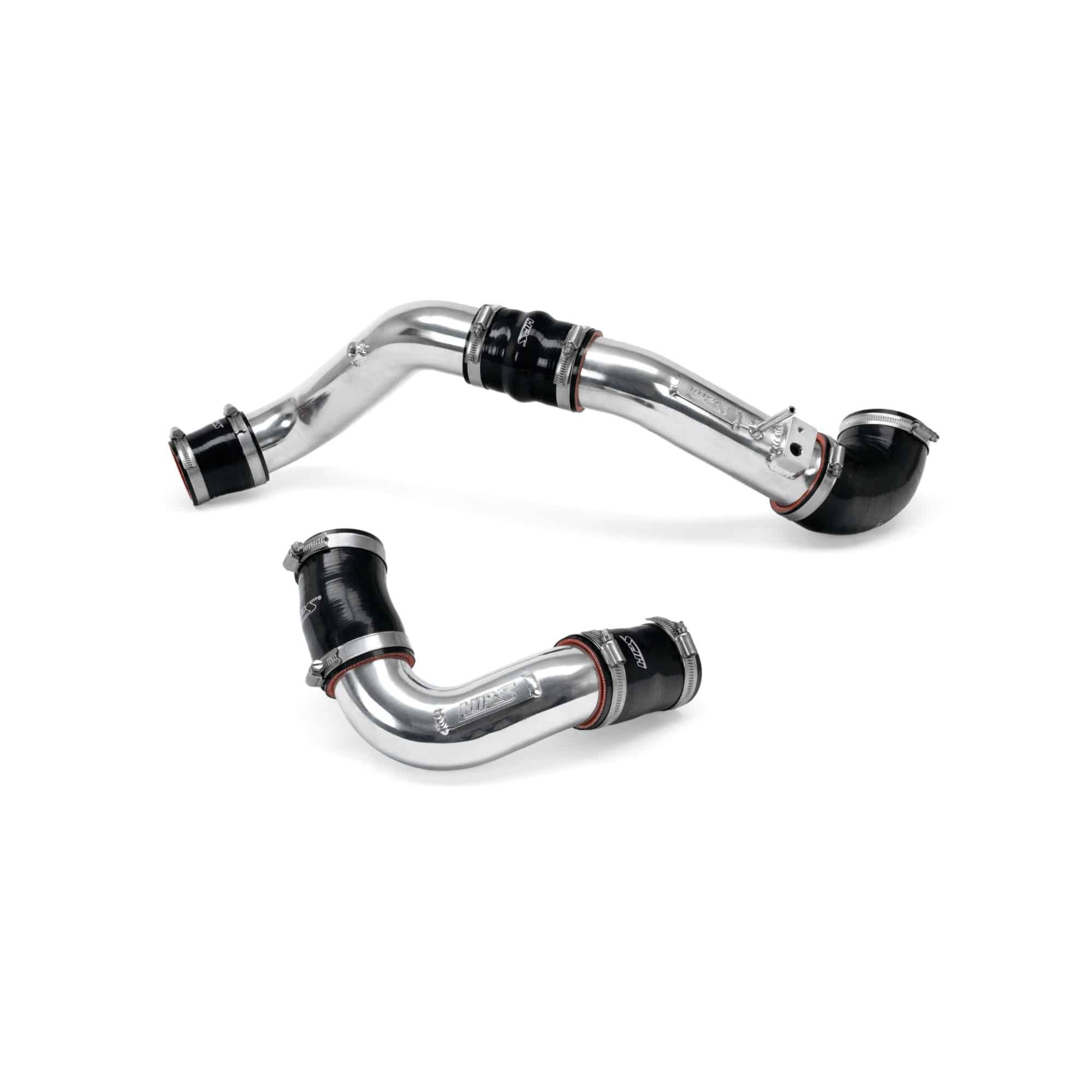

2.5″ cold side and 2.25″ hot side mandrel-bent aluminum tubing for optimized air flow
Minimizes the risk of boost leaks while providing better throttle response and acceleration

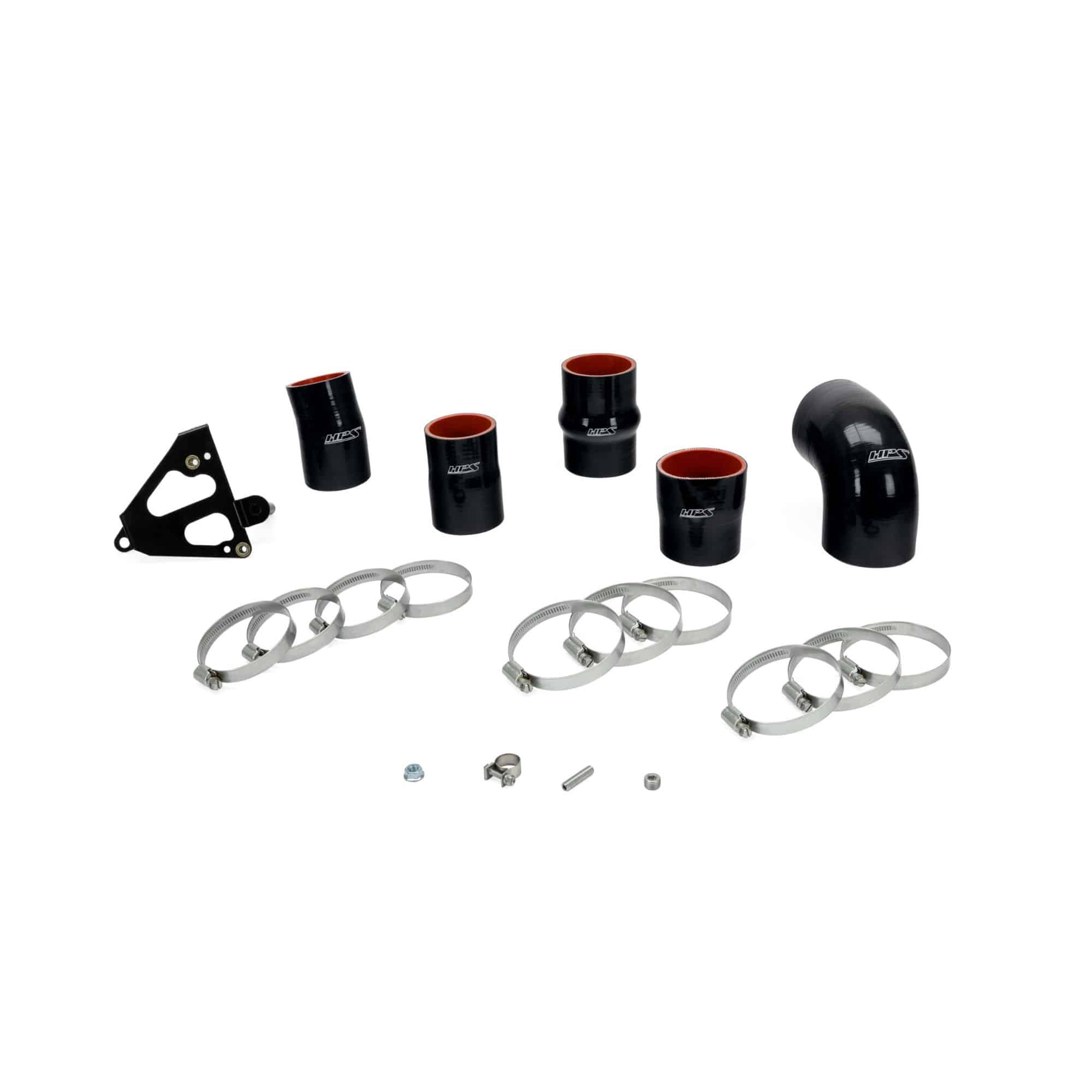

Includes HPS 4-ply oil resistant silicone couplers and 100% stainless steel embossed clamps
Replaces OEM PN: 17282-66V-A01, 17292-66V-A01, 17293-66V-A00, 17294-66V-A01
Reusable cotton air filter is cleanable and re-oilable for indefinite reuse

Specifications

Weight: 7 lbs
Shipping Dimensions: 10 x 6 x 5.1 IN
OEM Compatibility: Honda
Warranty: 2 Year manufacturer warranty
Country of Manufacture: United States

Applications

Acura Integra Type S: DE5 | 2024-2026 | 2L Turbo K20C8
Honda Civic Type R: FL5 | 2023-2026 | 2L Turbo K20C1

Product Video

Frequently Asked Questions

Does the HPS Intercooler Charge Pipe Kit for FL5 Acura Civic and DE5 Integra 2L Turbo K20 require ECU tuning? No, the HPS Intercooler Charge Pipe Kit for FL5 Acura Civic and DE5 Integra 2L Turbo K20 uses the factory mass air flow sensor and does not require ECU tuning or a remap. The kit installs with standard hand tools and does not trigger a check engine light.
How much HP does the HPS Intercooler Charge Pipe Kit for FL5 Acura Civic and DE5 Integra 2L Turbo K20 add? Power gains for the HPS Intercooler Charge Pipe Kit for FL5 Acura Civic and DE5 Integra 2L Turbo K20 are dyno-validated by HPS Performance. Refer to the listing’s Description section above for the specific HP and torque figures verified on this kit. Actual figures vary by vehicle condition and ambient temperature.
What color finishes are available for the HPS Intercooler Charge Pipe Kit for FL5 Acura Civic and DE5 Integra 2L Turbo K20? Refer to the Choose Color dropdown above for available finishes on this specific intercooler kit. Select your preferred color before adding the kit to your cart.
Is professional installation required for the HPS Intercooler Charge Pipe Kit for FL5 Acura Civic and DE5 Integra 2L Turbo K20? No, the HPS Intercooler Charge Pipe Kit for FL5 Acura Civic and DE5 Integra 2L Turbo K20 is a Level-1 bolt-on install rated for DIY enthusiasts. The kit reuses the OEM mounting points and includes 100% stainless steel T-bolt clamps; typical install time is 45 to 90 minutes.
Does the HPS Intercooler Charge Pipe Kit for FL5 Acura Civic and DE5 Integra 2L Turbo K20 include a warranty? Yes, HPS Performance backs every Intercooler Kit with a 2-year manufacturer warranty against defects in materials and workmanship.

About HPS Performance

HPS Performance Products is a US manufacturer of high-temperature reinforced silicone hoses, mandrel-bent aluminum tubing, and bolt-on performance intake and intercooler kits. Founded in 2007 and headquartered in Riverside, California, HPS has grown from a niche silicone hose supplier into a manufacturer trusted by OEM customers and aftermarket enthusiasts across hundreds of vehicle platforms. Every HPS 827-series intake kit, 57-series post-MAF hose kit, and intercooler charge pipe kit is designed in-house, fine-tuned on the dyno, and assembled at HPS’s Southern California facility using race-proven materials including 100% stainless steel T-bolt clamps and reinforced silicone couplers. Every HPS Performance kit ships with a 2-year manufacturer warranty against defects in materials and workmanship.
