Does the TYPE-S Rear Wing for GZEA14H raise the overall height of the GR Corolla?

No. HKS designed the TYPE-S Rear Wing for GZEA14H to sit lower than the factory shark antenna on the roof, so the overall height of the car stays the same. That matters to owners who use height-limited garages, car washes or covered trailers and do not want to re-measure after fitting the wing.

Does the rear wing come painted?

No. The wing is a one-piece FRP molding supplied for painting, and it must be painted before installation. HKS recommends a professional workshop for both the painting and the fitting, and the instruction manual covers degreasing, sanding, priming and a second sanding before the color coat goes on.

Is drilling required to fit the wing?

Yes. One clip hole inside the rear hatch, the upper hole that secures the left rear side spoiler, has to be enlarged, with 25mm the recommended diameter. HKS warns that the hole must not go through the outer surface of the hatch. The brackets, bolts, clip nuts, spacers and tape all come in the box.

Does the wing add real downforce?

HKS states that the position and angle of the wing were optimized through CFD analysis for low drag and high downforce. HKS does not publish a downforce figure or the speed it was measured at, so Bulletproof Automotive does not quote one. The wing is part of the wider HKS TYPE-S body kit for the GR Corolla.

Which GR Corolla model years does the rear wing fit?

HKS USA registers the wing for the 2023 to 2025 GR Corolla. HKS Japan also lists the same part number in its Gen2 body kit alongside the HKS TYPE-S Front Spoiler, 53004-AT043, but HKS USA has not yet added the 2026 car, so 2026 owners should confirm fitment with Bulletproof Automotive first.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

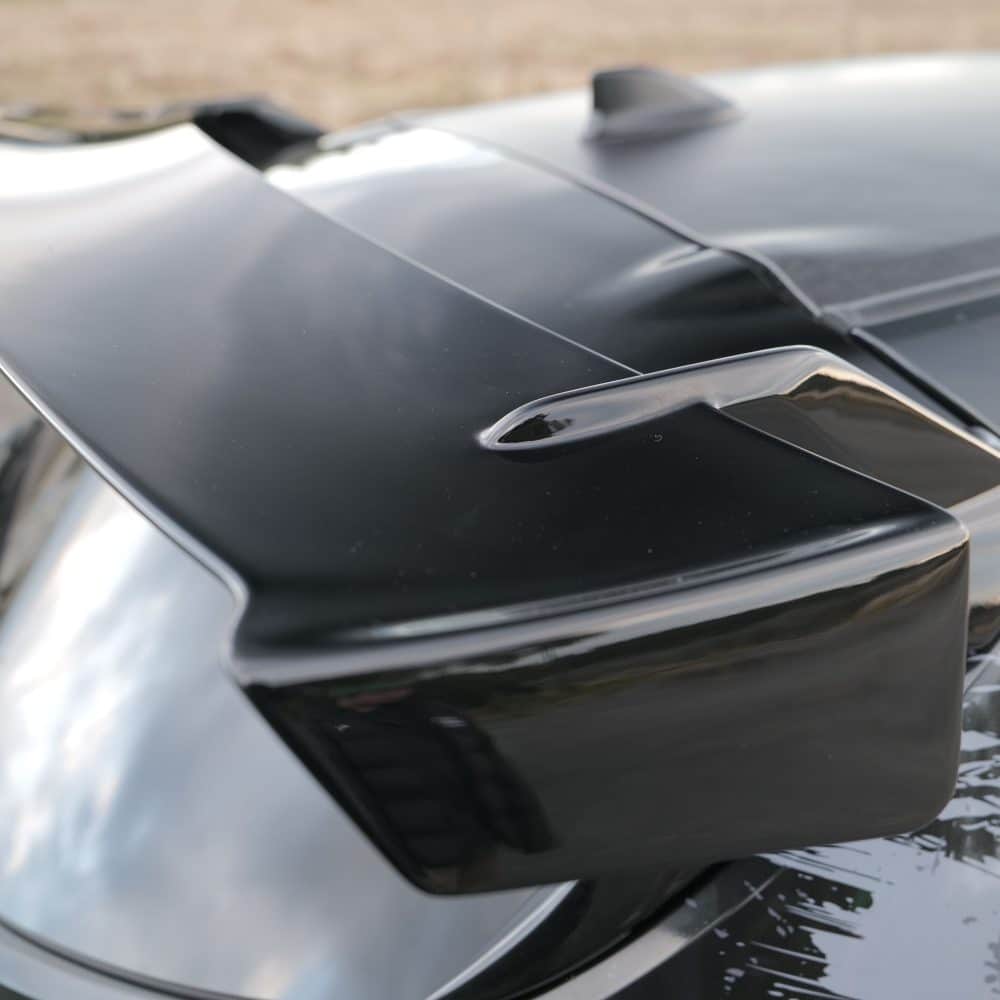

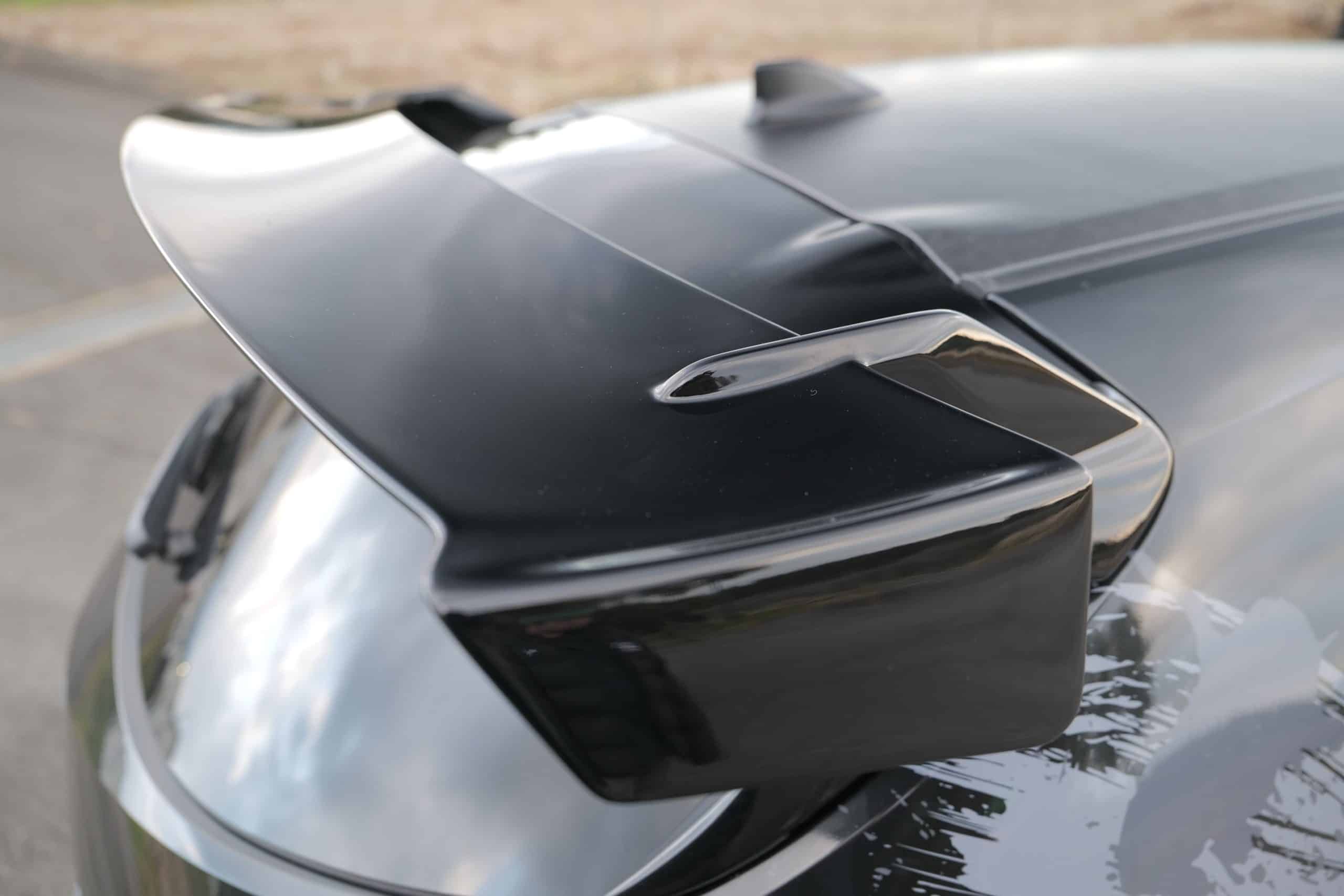

HKS TYPE-S Rear Wing for GZEA14H Toyota GR Corolla

HKS’s TYPE-S Rear Wing for GZEA14H Toyota GR Corolla is a one-piece FRP wing shaped to suit the stock wide body of the G16E-GTS hatch. HKS set its position and angle through CFD analysis, aiming for low drag and high downforce, and kept the top of the wing below the factory shark antenna so the overall height of the car does not change. It needs paint and one enlarged clip hole inside the rear hatch before fitting. It suits a street or track day GR Corolla that wants the time attack look without a tall swan neck; a car already running a large aftermarket wing gains little from it.

Features

One-piece FRP molding for a clean, joint-free profile
Position and angle optimized through CFD analysis for low drag and high downforce
Sits lower than the stock shark antenna, so overall vehicle height is unchanged
Shaped to match the stock wide body of the GR Corolla
Dedicated left and right mounting brackets supplied
Two HKS emblems included

Specifications

Material: One-piece FRP
Finish: Supplied for painting
Design: Position and angle set by CFD analysis
Included: Rear wing, left and right brackets, 2 HKS emblems, six M6-30 bolts, clip nuts, flat washers, spacers, sponge tape, double-sided tape and instruction manual
Installation: One clip hole inside the rear hatch enlarged to 25mm
Shipping Weight: 30.0lb (13.6kg), per HKS

Applications

Toyota GR Corolla: GZEA14H | 2023-2025 | G16E-GTS

Notes

The TYPE-S Rear Wing for GZEA14H is supplied for painting and must be painted before installation
HKS recommends that painting and installation are carried out by a professional workshop
Installation requires enlarging one clip hole inside the rear hatch, and the hole must not break through the outer surface
HKS advises against washing the car for 24 hours after installation

Frequently Asked Questions

Does the TYPE-S Rear Wing for GZEA14H raise the overall height of the GR Corolla? No. HKS designed the TYPE-S Rear Wing for GZEA14H to sit lower than the factory shark antenna on the roof, so the overall height of the car stays the same. That matters to owners who use height-limited garages, car washes or covered trailers and do not want to re-measure after fitting the wing.
Does the rear wing come painted? No. The wing is a one-piece FRP molding supplied for painting, and it must be painted before installation. HKS recommends a professional workshop for both the painting and the fitting, and the instruction manual covers degreasing, sanding, priming and a second sanding before the color coat goes on.
Is drilling required to fit the wing? Yes. One clip hole inside the rear hatch, the upper hole that secures the left rear side spoiler, has to be enlarged, with 25mm the recommended diameter. HKS warns that the hole must not go through the outer surface of the hatch. The brackets, bolts, clip nuts, spacers and tape all come in the box.
Does the wing add real downforce? HKS states that the position and angle of the wing were optimized through CFD analysis for low drag and high downforce. HKS does not publish a downforce figure or the speed it was measured at, so Bulletproof Automotive does not quote one. The wing is part of the wider HKS TYPE-S body kit for the GR Corolla.
Which GR Corolla model years does the rear wing fit? HKS USA registers the wing for the 2023 to 2025 GR Corolla. HKS Japan also lists the same part number in its Gen2 body kit alongside the HKS TYPE-S Front Spoiler, 53004-AT043, but HKS USA has not yet added the 2026 car, so 2026 owners should confirm fitment with Bulletproof Automotive first.
