Will the Transfer Oil Cooler for GZEA14H work with the cancel function on my car?

It depends on the build date. HKS lists transfer protection cancel support on left-hand drive GR Corolla models, including US cars, built from August 2024. Earlier cars run the kit without the cancel function, and the pump controller is wired differently for them. Send your build date to Bulletproof Automotive before ordering.

Why does the GR Corolla need a transfer oil cooler?

HKS explains that the GR Corolla transfer switches to 2WD during continuous high-load driving to prevent overheating. In HKS testing at Fuji Speedway, transfer oil without a cooler was still climbing at about 302°F, while the Transfer Oil Cooler for GZEA14H held it at around 257°F.

What oil should be used with the cooler kit?

HKS recommends the stock transfer oil or HKS G900 75W-90 gear oil. Oil thicker than 75W-90 should not be used because it can overload the pump. HKS also recommends running the pump once the oil is above 140°F, and the controller drops into standby if pump current climbs too high.

How difficult is the installation?

HKS estimates 8 hours of labor, and the job requires modification to the bumper reinforcement, intercooler air guide and undercover duct. The controller wiring also depends on whether the car has the cancel program. Bulletproof Automotive recommends a professional shop familiar with the GR Corolla.

Can the cancel program affect the vehicle warranty?

Yes. HKS warns that using the transfer protection cancel program may void the vehicle warranty, so owners should check their warranty terms with the dealer before enabling it. The HKS cooler kit itself works on cars with or without the program.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

HKS Transfer Oil Cooler for GZEA14H Toyota GR Corolla

HKS’s Transfer Oil Cooler for GZEA14H Toyota GR Corolla targets a known weak point of the car on track: under continuous high load, the transfer switches the car to 2WD to protect itself from overheating. HKS answers with a dedicated pipe-type cooler fed by a high-load, high-flow electric oil pump. It is aimed at owners doing repeated circuit sessions; a street-only GR Corolla is unlikely to need it.

Development and Testing

HKS ran a GR Corolla at Fuji Speedway with and without the kit. Without the cooler, transfer oil temperature was still rising when the test was stopped at about 302°F (150°C); with the cooler, the rise settled at around 257°F (125°C). The cooler runs on its own circuit and takes no capacity from the coolant, engine oil or intercooler. Results on other cars and tracks will vary.

Features

Dedicated pipe-type transfer cooler, independent of the coolant, engine oil and intercooler systems
High-load, high-flow electric oil pump run by an HKS controller with AUTO, FULL AUTO and MANUAL modes
Overcurrent protection that drops the pump into standby, retrying 3 seconds every 30 seconds
On cars with the cancel program, selecting TRACK mode starts the pump within 1 minute of startup
Banjo oil outlet with a PT1/8 plug hole for oil changes or a temperature sensor

Specifications

Recommended oil: Stock transfer oil or HKS G900 75W-90 gear oil
Maximum oil viscosity: 75W-90
Recommended pump operating temperature: Oil above 140°F (60°C)

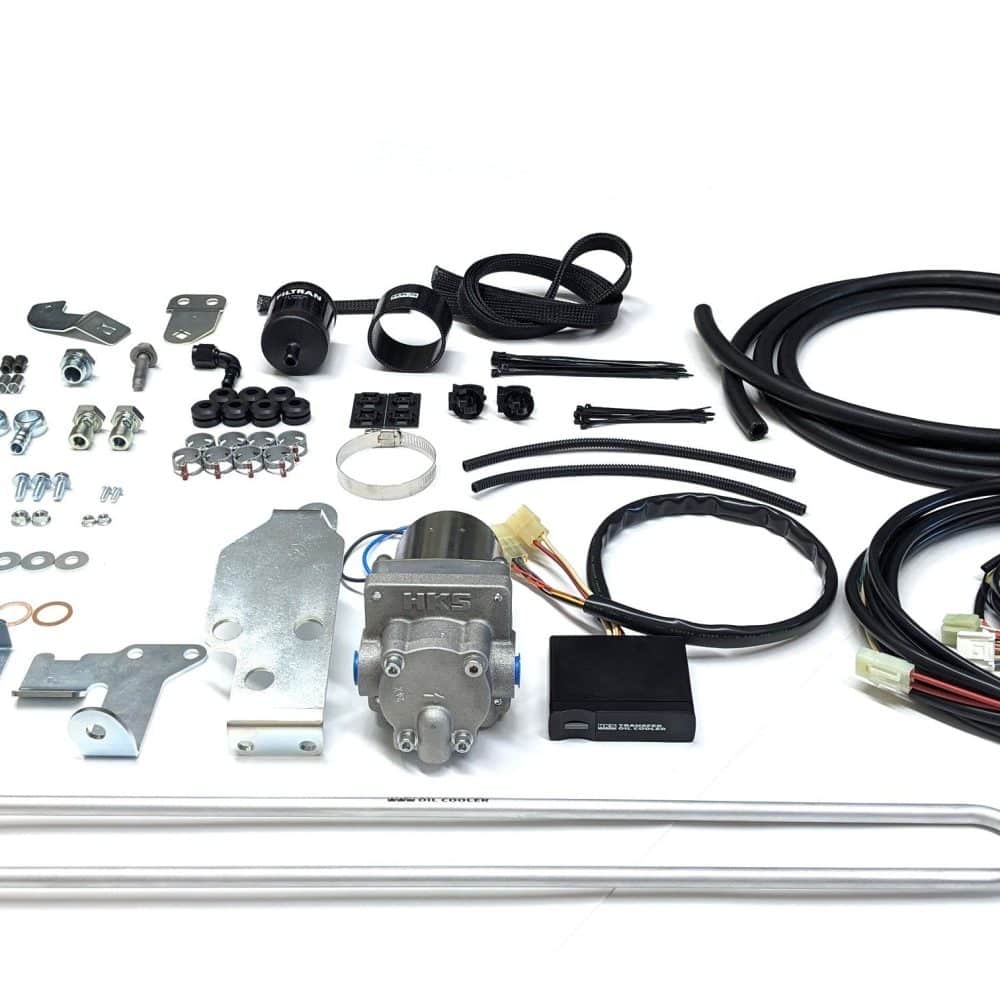

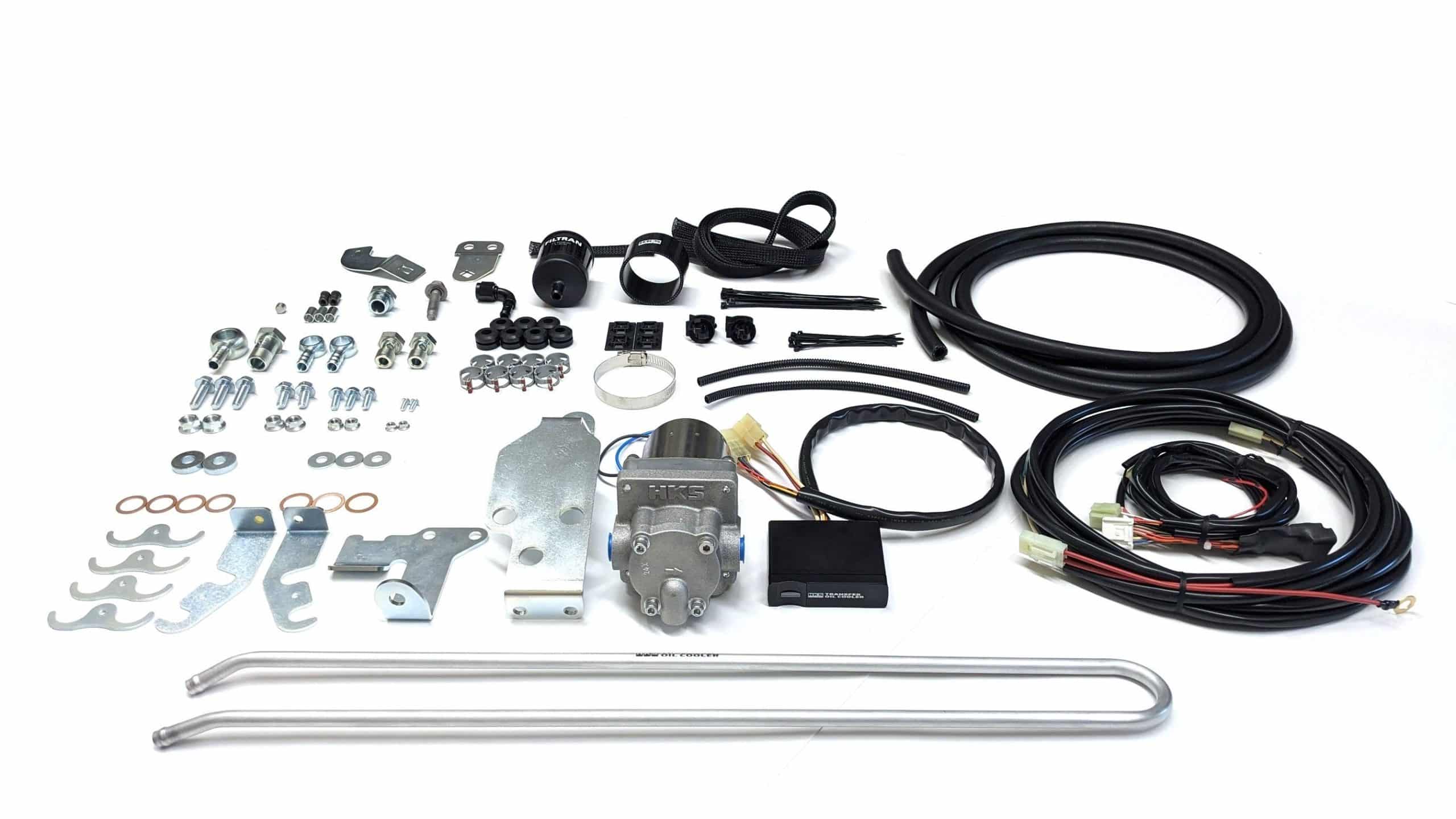

Included: Cooler pipe, oil pump, pump controller, oil filter, bracket, hose, harness and small parts set
Shipping Weight: 13.7lb (6.2kg)

Applications

Toyota GR Corolla: GZEA14H | 2023-2025 | G16E-GTS

Notes

Transfer protection cancel support depends on build date. HKS lists support on left-hand drive cars, including US models, built from August 2024, and earlier cars do not support it. Confirm your GR Corolla build date with Bulletproof Automotive before ordering.
On a car without the cancel program, do not connect the 4WD mode select switch connector; HKS warns that doing so disables 4WD
Installation of the Transfer Oil Cooler for GZEA14H requires modification to the bumper reinforcement, intercooler air guide and undercover duct, and HKS estimates 8 hours of labor
HKS recommends switching the system on just before sporty driving

Frequently Asked Questions

Will the Transfer Oil Cooler for GZEA14H work with the cancel function on my car? It depends on the build date. HKS lists transfer protection cancel support on left-hand drive GR Corolla models, including US cars, built from August 2024. Earlier cars run the kit without the cancel function, and the pump controller is wired differently for them. Send your build date to Bulletproof Automotive before ordering.
Why does the GR Corolla need a transfer oil cooler? HKS explains that the GR Corolla transfer switches to 2WD during continuous high-load driving to prevent overheating. In HKS testing at Fuji Speedway, transfer oil without a cooler was still climbing at about 302°F, while the Transfer Oil Cooler for GZEA14H held it at around 257°F.
What oil should be used with the cooler kit? HKS recommends the stock transfer oil or HKS G900 75W-90 gear oil. Oil thicker than 75W-90 should not be used because it can overload the pump. HKS also recommends running the pump once the oil is above 140°F, and the controller drops into standby if pump current climbs too high.
How difficult is the installation? HKS estimates 8 hours of labor, and the job requires modification to the bumper reinforcement, intercooler air guide and undercover duct. The controller wiring also depends on whether the car has the cancel program. Bulletproof Automotive recommends a professional shop familiar with the GR Corolla.
Can the cancel program affect the vehicle warranty? Yes. HKS warns that using the transfer protection cancel program may void the vehicle warranty, so owners should check their warranty terms with the dealer before enabling it. The HKS cooler kit itself works on cars with or without the program.

About HKS

HKS is a Japanese performance engineering brand founded in 1973 and headquartered in Fujinomiya, Shizuoka, with a long-standing reputation for developing high-quality aftermarket parts and motorsport-proven technology for enthusiast and professional applications. Known for innovations in turbocharging and engine performance, HKS produces a broad range of components including exhaust systems, turbo kits, electronics / engine management, and suspension solutions, with product development heavily influenced by decades of involvement in racing disciplines such as circuit time attack, drag, and drifting.
