Is the Super Turbo Muffler for BNR34 louder than stock?

No, not by the HKS figures. HKS measured 94 dB on its close test against 95 dB for the factory system. The change is in tone: HKS designed the sound specifically for the RB26, removed low exhaust resonance from the cabin, and says the note changes between street and highway driving.

Will it suit an RB26 with upgraded turbos?

Yes. HKS sized the 85mm straight pipe so the exhaust stays effective from a stock engine up to builds over 600PS. An owner planning turbo work, such as the HKS GTIII-SS or GTIII 2530 Sports Turbine Kit, can fit it now and keep it through the build.

Does it work with the HKS Metal Catalyzer?

Yes. HKS designed the front joint at 80mm so the Metal Catalyzer can be used with it, and says the sound still meets the JASMA standard with the HKS front pipe or Metal Catalyzer fitted. HKS adds that the level can fall outside that standard depending on how the car is set up.

Does it fit the V-Spec?

Yes. HKS lists the Super Turbo Muffler for BNR34, part 31029-AN003, for both the standard R34 Skyline GT-R and the V-Spec with the RB26DETT, covering cars built from 1999 to 2002. HKS quotes 100mm of minimum clearance on stock suspension, so a lowered car should be checked at the center silencer and main pipe.

How is it different from the URBAN MATTE Edition?

The HKS Super Turbo Muffler URBAN MATTE Edition, part 31029-AN013, is the same Super Turbo Muffler with a matte-finished tail, matte inside the tip as well, and inner slit processing. Part 31029-AN003 is the standard finish, so the choice comes down to how the tail looks.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

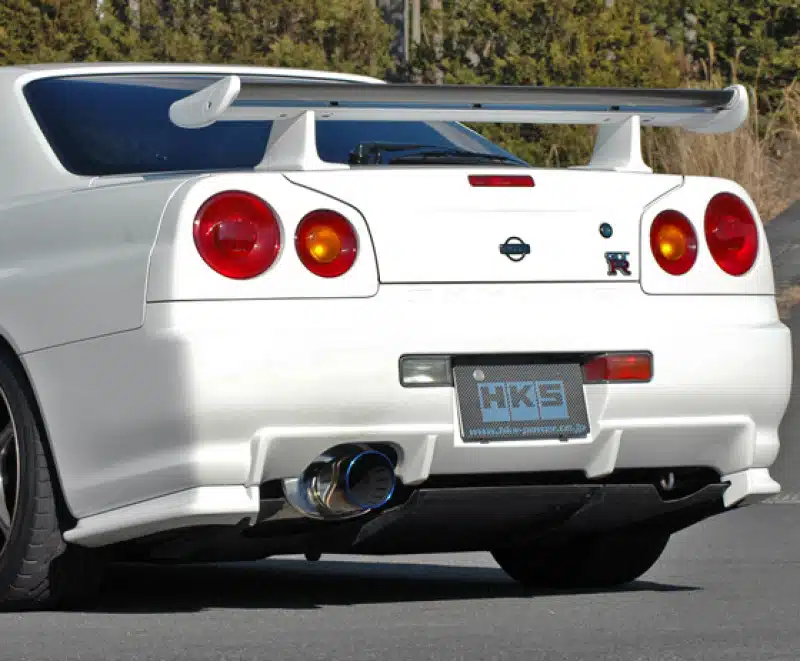

HKS Super Turbo Muffler for BNR34 Nissan Skyline GT-R

HKS’s Super Turbo Muffler for BNR34 Nissan Skyline GT-R is a SUS304 stainless cat-back for the RB26DETT, running an 85mm straight pipe from the catalyst flange back to a single 124mm tail. HKS sized it to stay effective from a stock engine to RB26 builds over 600PS, yet measured it at 94 dB against 95 dB for the factory system, so the change is in tone rather than volume. It suits the R34 owner who plans more power and still drives the car on the street.

Development and Testing

HKS set out to combine exhaust efficiency with lower sound pressure. The 85mm straight pipe and the straight-through main shell and tail pipe improve flow, while the sound was designed to meet the JASMA standard in street driving, at idle, from a cold start, at high speed and when cruising quietly, with low exhaust resonance removed from the cabin. The Super Turbo Muffler for BNR34 also uses the HKS Slotted Tail, inspired by an owl feather, which releases air at the tip to cut air friction vibration and, by HKS figures, about 2dB.

Features

85mm straight pipe from the catalyst flange back
Straight-through main shell and tail pipe
Slotted Tail that HKS says lowers sound by about 2dB
80mm front joint designed to work with the HKS Metal Catalyzer
Layout and flange positions that keep stock ground clearance

Specifications

Center Pipe Diameter: 85mm
Tip: 124mm, single
Main Material: SUS304 stainless steel
Sound Level, Factory System: 95 dB, HKS measurement
Sound Level, HKS: 94 dB, HKS measurement
Minimum Road Clearance: 100mm at the center silencer and main pipe, stock suspension
Certification Number: 03S14845

Applications

Nissan Skyline GT-R: BNR34 | 1999-2002 | RB26DETT

Notes

Fits both the standard BNR34 and the V-Spec
HKS notes the sound level may fall outside the JASMA standard depending on the car setup and specification
HKS lists 22.6kg (49.8lb) with the packing dimensions and does not publish a separate product weight
HKS notes that hangers, brackets and stays may change without prior notice

Frequently Asked Questions

Is the Super Turbo Muffler for BNR34 louder than stock? No, not by the HKS figures. HKS measured 94 dB on its close test against 95 dB for the factory system. The change is in tone: HKS designed the sound specifically for the RB26, removed low exhaust resonance from the cabin, and says the note changes between street and highway driving.
Will it suit an RB26 with upgraded turbos? Yes. HKS sized the 85mm straight pipe so the exhaust stays effective from a stock engine up to builds over 600PS. An owner planning turbo work, such as the HKS GTIII-SS or GTIII 2530 Sports Turbine Kit, can fit it now and keep it through the build.
Does it work with the HKS Metal Catalyzer? Yes. HKS designed the front joint at 80mm so the Metal Catalyzer can be used with it, and says the sound still meets the JASMA standard with the HKS front pipe or Metal Catalyzer fitted. HKS adds that the level can fall outside that standard depending on how the car is set up.
Does it fit the V-Spec? Yes. HKS lists the Super Turbo Muffler for BNR34, part 31029-AN003, for both the standard R34 Skyline GT-R and the V-Spec with the RB26DETT, covering cars built from 1999 to 2002. HKS quotes 100mm of minimum clearance on stock suspension, so a lowered car should be checked at the center silencer and main pipe.
How is it different from the URBAN MATTE Edition? The HKS Super Turbo Muffler URBAN MATTE Edition, part 31029-AN013, is the same Super Turbo Muffler with a matte-finished tail, matte inside the tip as well, and inner slit processing. Part 31029-AN003 is the standard finish, so the choice comes down to how the tail looks.

About HKS

HKS is a Japanese performance engineering brand founded in 1973 and headquartered in Fujinomiya, Shizuoka, with a long-standing reputation for developing high-quality aftermarket parts and motorsport-proven technology for enthusiast and professional applications. Known for innovations in turbocharging and engine performance, HKS produces a broad range of components including exhaust systems, turbo kits, electronics / engine management, and suspension solutions, with product development heavily influenced by decades of involvement in racing disciplines such as circuit time attack, drag, and drifting.
