Does the HKS SQV IV Kit for FL5 include a recirculation hose?

No. The SQV IV Kit for FL5 vents to atmosphere and HKS sells recirculation separately as the Suction Return Kit, part number 71002-AH004. Adding it returns released air to the intake in the same way the factory bypass valve does. HKS also offers both parts together as the Super SQV IV Return Kit Plus, part number 71008-AH012V.

Will a blow off valve cause running problems on the FL5?

The valve only opens on throttle closure, so it does not affect how the engine meters air under load. HKS designed the relief-less mechanism to hold the set boost stably rather than bleeding pressure, which is what causes trouble with threshold-type valves. Owners wanting a fully closed intake path should add the suction return kit.

What does relief-less actually mean?

It means the valve does not crack open at a fixed pressure threshold the way a diaphragm valve does. It operates across its full range and stays shut under low boost, so the pressure the ECU requests is the pressure the engine receives. Release happens on throttle closure, taking load off the compressor.

How long does installation take?

HKS quotes an average of three hours for the SQV IV Kit for FL5. The kit uses a vehicle-specific adapter and bracket drawn up for the FL5 engine bay, so no fabrication is needed. The valve mounts in a visible position by design, which means routing and clearance were engineered in rather than left to the installer.

Does the valve need servicing?

Yes. HKS lists the SUPER SQV filter, part number 1410-SA008, as a maintenance item and recommends replacing it every three to six months or every 3,000 to 5,000km of driving. The filter keeps debris out of the valve mechanism, and the interval matters more on cars driven hard or in dusty conditions.

What is the difference between this and the Black Edition?

Finish only. The Black Edition, part number 71008-KH012B, is the same relief-less valve with a black body instead of the silver one. Function, adapter, bracket and sound are identical, so the choice comes down to how it looks against the rest of the engine bay.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

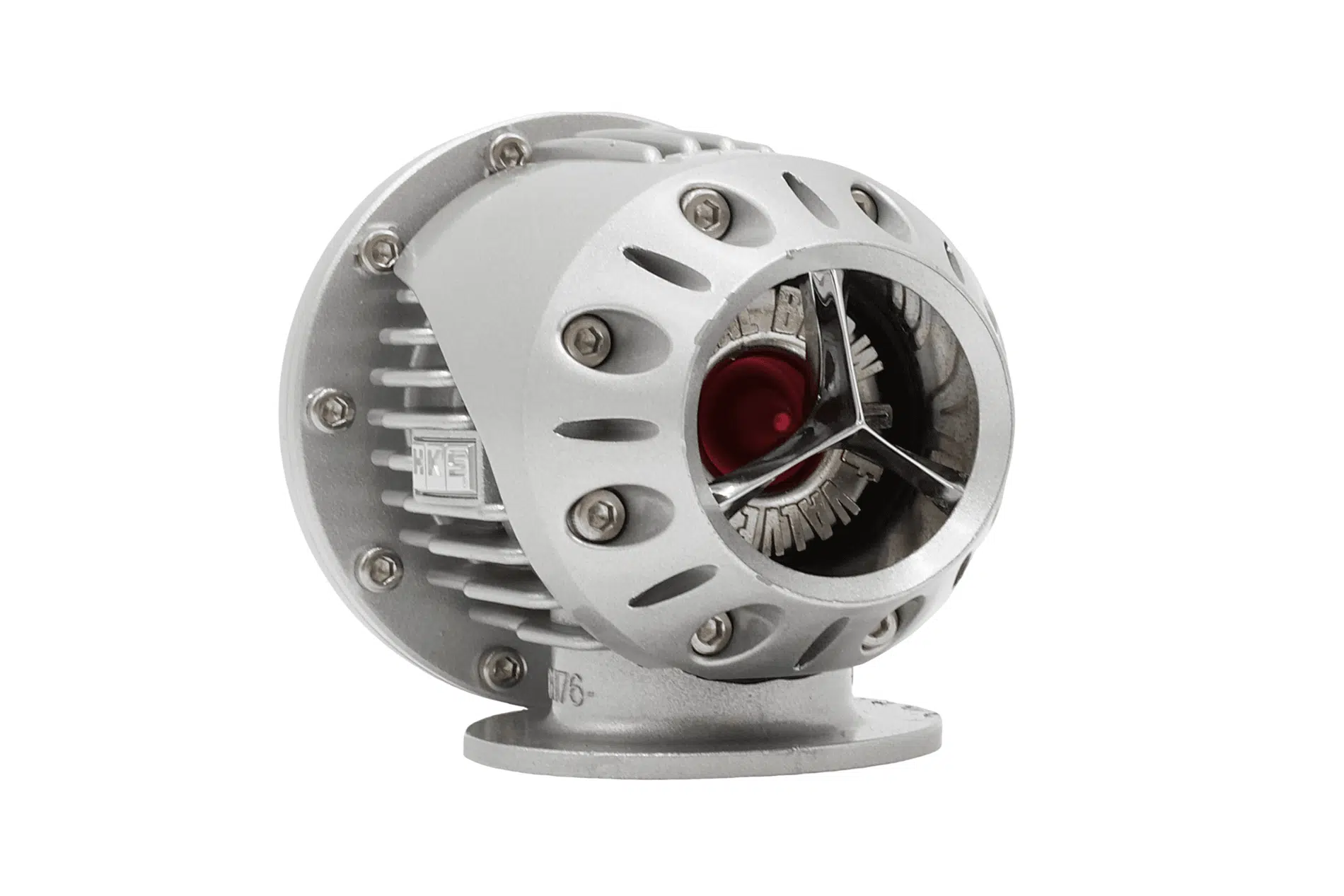

HKS Super SQV IV Kit for FL5 Honda Civic Type R

HKS’s SQV IV Kit for FL5 Honda Civic Type R is the fourth generation of the valve that made the sound famous, drawn up specifically for the K20C rather than adapted to it. The relief-less design is what sets it apart: at low boost it stays shut and holds the set pressure stably, and the moment the throttle closes it dumps the pressure the turbocharger no longer needs, taking load off the compressor instead of letting it fight a closed throttle. HKS mounts it in a visible part of the engine bay, so the polished body reads as a deliberate piece of the build, and vented to atmosphere it produces the high-frequency, crisp release note that no diaphragm valve reproduces.

Design and Performance

A pull-type valve operating across its full range rather than cracking open at a threshold, which is what HKS means by relief-less. Under low boost the SQV IV Kit for FL5 does not relieve at all, so the boost the ECU asks for is the boost the engine sees; at higher boost it holds that pressure stably and releases only on throttle closure. The result is less compressor load on every upshift and lift, and a release note that is sharp and metallic rather than a soft whoosh. Average installation time is three hours.

Features

Relief-less pull-type valve with full-range operation, not a threshold-triggered diaphragm
Holds set boost stably at high pressure and does not relieve at low boost
Vehicle-specific adapter and bracket drawn up for the FL5 engine bay
Mounted in a visible position, finished in silver, as an engine bay feature rather than a hidden part
Distinctive high-frequency release note when vented to atmosphere
Serviceable filter element rather than a sealed assembly
Weighs 2kg complete; Level-2 install at approximately three hours

What’s Included

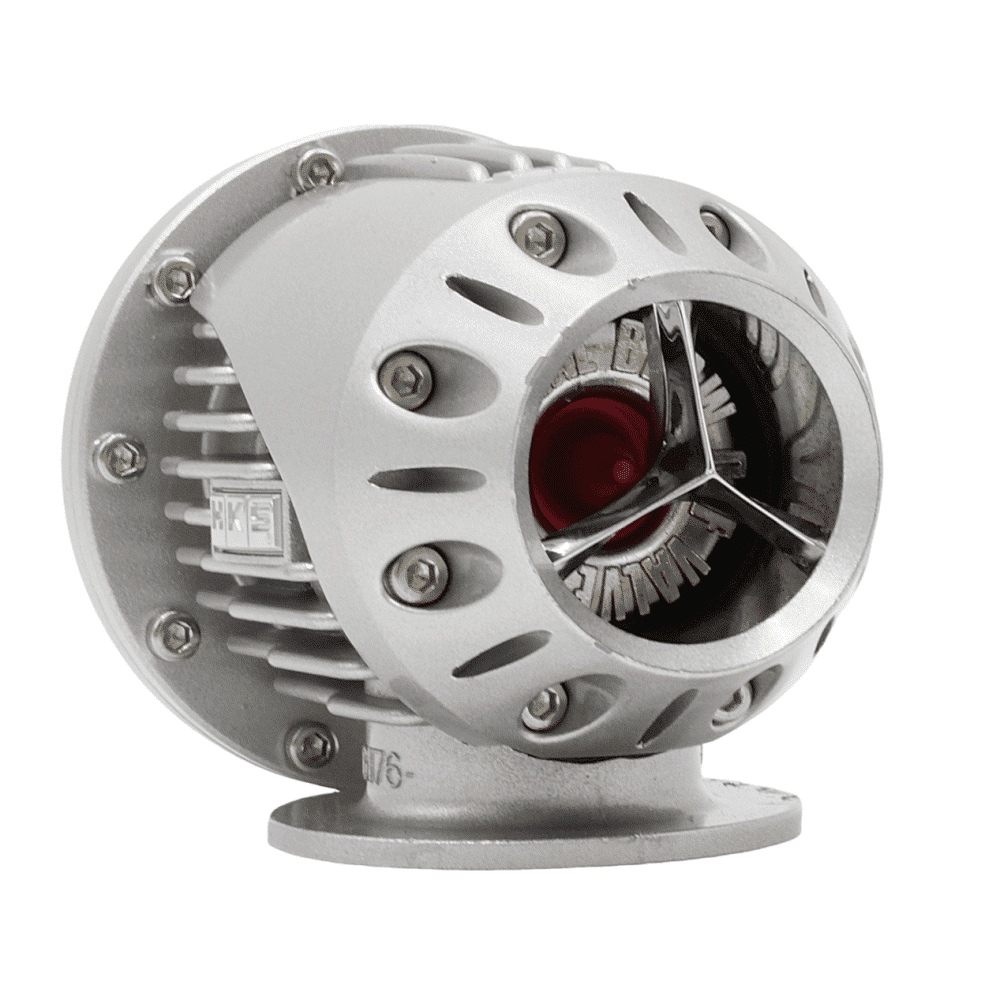

SQV IV Kit for FL5 valve unit in silver
FL5-specific adapter and mounting bracket
Fitting hardware

Applications

Honda Civic Type R: FL5 | 2023-present | K20C

Notes

This kit vents to atmosphere and does not include a recirculation hose. HKS supplies recirculation separately as the HKS Suction Return Kit for FL5 Honda Civic Type R 71002-AH004, which returns the released air to the intake in the same way the factory bypass valve does. Add it if you want the car to keep a closed intake path.
Both parts together are sold as one kit: the HKS Super SQV IV Return Kit Plus for FL5 Honda Civic Type R 71008-AH012V, which bundles this valve with the suction return kit
The same valve is offered in a black finish as the HKS Super SQV IV Kit Black Edition for FL5 Honda Civic Type R 71008-KH012B
HKS lists the SUPER SQV filter (part number 1410-SA008) as a maintenance item, to be replaced every three to six months or every 3,000 to 5,000km. Bulletproof Automotive does not currently stock it.
HKS marks this part as an overseas-market product
Browse the full HKS range on Bulletproof Automotive

Frequently Asked Questions

Does the HKS SQV IV Kit for FL5 include a recirculation hose? No. The SQV IV Kit for FL5 vents to atmosphere and HKS sells recirculation separately as the Suction Return Kit, part number 71002-AH004. Adding it returns released air to the intake in the same way the factory bypass valve does. HKS also offers both parts together as the Super SQV IV Return Kit Plus, part number 71008-AH012V.
Will a blow off valve cause running problems on the FL5? The valve only opens on throttle closure, so it does not affect how the engine meters air under load. HKS designed the relief-less mechanism to hold the set boost stably rather than bleeding pressure, which is what causes trouble with threshold-type valves. Owners wanting a fully closed intake path should add the suction return kit.
What does relief-less actually mean? It means the valve does not crack open at a fixed pressure threshold the way a diaphragm valve does. It operates across its full range and stays shut under low boost, so the pressure the ECU requests is the pressure the engine receives. Release happens on throttle closure, taking load off the compressor.
How long does installation take? HKS quotes an average of three hours for the SQV IV Kit for FL5. The kit uses a vehicle-specific adapter and bracket drawn up for the FL5 engine bay, so no fabrication is needed. The valve mounts in a visible position by design, which means routing and clearance were engineered in rather than left to the installer.
Does the valve need servicing? Yes. HKS lists the SUPER SQV filter, part number 1410-SA008, as a maintenance item and recommends replacing it every three to six months or every 3,000 to 5,000km of driving. The filter keeps debris out of the valve mechanism, and the interval matters more on cars driven hard or in dusty conditions.
What is the difference between this and the Black Edition? Finish only. The Black Edition, part number 71008-KH012B, is the same relief-less valve with a black body instead of the silver one. Function, adapter, bracket and sound are identical, so the choice comes down to how it looks against the rest of the engine bay.

About HKS

HKS is a Japanese performance engineering brand founded in 1973 and headquartered in Fujinomiya, Shizuoka, with a long-standing reputation for developing high-quality aftermarket parts and motorsport-proven technology for enthusiast and professional applications. Known for innovations in turbocharging and engine performance, HKS produces a broad range of components including exhaust systems, turbo kits, electronics / engine management, and suspension solutions, with product development heavily influenced by decades of involvement in racing disciplines such as circuit time attack, drag, and drifting.
