Does the Super Manifold GT-SPEC for ZN8 fit the ZD8 BRZ?

Yes, according to HKS Japan, which lists part 33005-AT010 for both the ZN8 GR86 and the ZD8 BRZ with the FA24. The HKS USA fitment record shows the GR86 only, and the HKS USA product name covers both cars, so BRZ owners may want to confirm with Bulletproof Automotive first.

Not according to HKS, which does not list a tuning requirement for part 33005-AT010, and no engine management is included. The manifold uses the factory O2 and A/F sensor mounting positions. Owners who plan to tune the FA24 anyway should talk to their tuner before installation.

How much power does it add?

HKS tested it together with the Hi-Power SPEC-L II exhaust. Against a stock GR86, the pair gained up to 13.7hp and 16.6lb-ft at 4,300rpm, about 11 percent, and raised peak power by 3.6hp. HKS does not publish a figure for the Super Manifold GT-SPEC for ZN8 on its own.

What does the metal catalyst do?

HKS uses a low-density metal catalyst with 150 cells per square inch, against 600 for the factory ceramic unit, which HKS says drastically lowers exhaust resistance. HKS optimized the blend of precious metals so it still meets the 2018 Japanese emissions rules, and a third-party organization certified the result.

Is it legal for road use in the United States?

Not as certified by HKS. The third-party certification covers the 2018 Japanese emissions rules only, and HKS has published no US certification or CARB Executive Order number for part 33005-AT010, so the buyer must confirm road legality locally and treat the part as intended for off-road or competition use.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

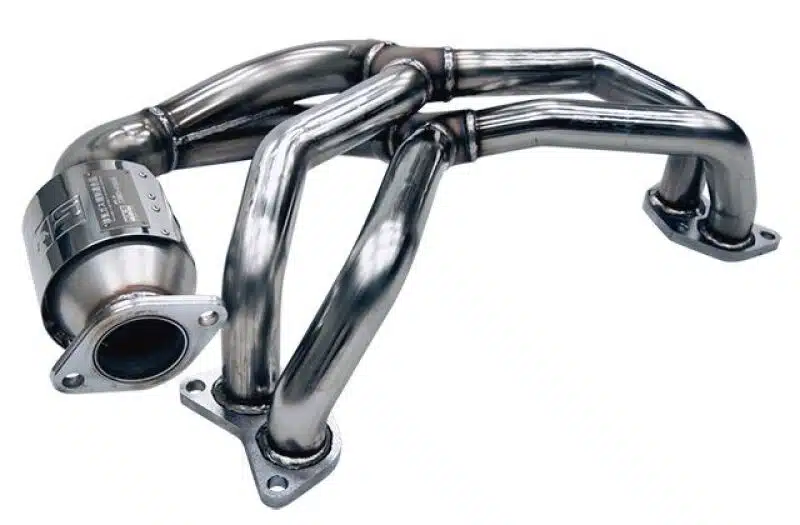

HKS Sport Cat Super Manifold GT-SPEC for ZN8 Toyota GR86 and ZD8 Subaru BRZ

HKS’s Sport Cat Super Manifold GT-SPEC for ZN8 Toyota GR86 and ZD8 Subaru BRZ is a 4-2-1 equal-length manifold for the FA24 with a low-density HKS metal catalyst built in, at 150 cells per square inch against 600 for the factory ceramic catalyst. HKS says it drastically lowers exhaust resistance while still meeting the 2018 Japanese emissions rules, with third-party certification. Paired with the HKS Hi-Power SPEC-L II on the HKS dyno, it gained up to 13.7hp and 16.6lb-ft at 4,300rpm over a stock car.

Development and Testing

HKS studied the four-pipe section closely to reach a fully equal-length 4-2-1 layout, and redesigned the head flange around the stepped section where each pipe is inserted. Tested with the Hi-Power SPEC-L II, the Super Manifold GT-SPEC for ZN8 cars improved output across the rev range, most of all in the mid range, and largely removed the torque dip around 4,000rpm.

Features

Fully equal-length 4-2-1 layout
Low-density HKS metal catalyst at 150 cells per square inch
Catalyst certified by a third party to the 2018 Japanese emissions rules
Redesigned cylinder head flange
Uses the factory O2 and A/F sensor mounting positions

Specifications

Pipe Diameter: 42.7mm to 50.8mm to 60mm
Layout: 4-2-1 equal length
Catalyst: HKS metal, 150 cells per square inch against 600 for the factory catalyst
Largest Gain, HKS Test: 13.7hp and 16.6lb-ft at 4,300rpm, with the Hi-Power SPEC-L II
Peak Power Gain, HKS Test: 3.6hp, with the Hi-Power SPEC-L II
Certification: Exhaust gas test certificate, Japan

Applications

Subaru BRZ: ZD8 | 2022-present | FA24
Toyota GR86: ZN8 | 2022-present | FA24

Notes

No engine management is included, and HKS does not list a tuning requirement for this part
HKS Japan lists the part for the ZD8 BRZ as well as the ZN8 GR86, while the HKS USA fitment record shows the GR86 only
Power figures are HKS in-house results on a GR86 fitted with the HKS Hi-Power SPEC-L II, part 32016-AF101, and vary with the car and dyno
This manifold is intended for off-road or competition use where emissions laws apply; its certification applies in Japan only, no CARB Executive Order number is published, and the buyer is responsible for checking local regulations

Frequently Asked Questions

Does the Super Manifold GT-SPEC for ZN8 fit the ZD8 BRZ? Yes, according to HKS Japan, which lists part 33005-AT010 for both the ZN8 GR86 and the ZD8 BRZ with the FA24. The HKS USA fitment record shows the GR86 only, and the HKS USA product name covers both cars, so BRZ owners may want to confirm with Bulletproof Automotive first.
Does it need a tune? Not according to HKS, which does not list a tuning requirement for part 33005-AT010, and no engine management is included. The manifold uses the factory O2 and A/F sensor mounting positions. Owners who plan to tune the FA24 anyway should talk to their tuner before installation.
How much power does it add? HKS tested it together with the Hi-Power SPEC-L II exhaust. Against a stock GR86, the pair gained up to 13.7hp and 16.6lb-ft at 4,300rpm, about 11 percent, and raised peak power by 3.6hp. HKS does not publish a figure for the Super Manifold GT-SPEC for ZN8 on its own.
What does the metal catalyst do? HKS uses a low-density metal catalyst with 150 cells per square inch, against 600 for the factory ceramic unit, which HKS says drastically lowers exhaust resistance. HKS optimized the blend of precious metals so it still meets the 2018 Japanese emissions rules, and a third-party organization certified the result.
Is it legal for road use in the United States? Not as certified by HKS. The third-party certification covers the 2018 Japanese emissions rules only, and HKS has published no US certification or CARB Executive Order number for part 33005-AT010, so the buyer must confirm road legality locally and treat the part as intended for off-road or competition use.

About HKS

HKS is a Japanese performance engineering brand founded in 1973 and headquartered in Fujinomiya, Shizuoka, with a long-standing reputation for developing high-quality aftermarket parts and motorsport-proven technology for enthusiast and professional applications. Known for innovations in turbocharging and engine performance, HKS produces a broad range of components including exhaust systems, turbo kits, electronics / engine management, and suspension solutions, with product development heavily influenced by decades of involvement in racing disciplines such as circuit time attack, drag, and drifting.
