Is the LEGAMAX Sports Exhaust for VB loud inside the cabin?

HKS tuned the LEGAMAX Sports Exhaust for VB cars for a pleasant bass note at normal engine speeds and a dry, sporty sound when the throttle opens. On its close test HKS measured 90 dB against 79 dB stock, and 63 dB against 56 dB at idle, so the WRX is clearly louder outside while staying civil on a steady cruise.

Does this exhaust reduce ground clearance on the WRX?

No. HKS states that minimum ground clearance does not change, because the lowest point remains the factory front pipe at 130mm. HKS placed the hooks, brackets and mid pipes to make the most of the underfloor space, so the four-pipe layout sits up out of the way.

Does the WRX gain power with this exhaust?

A little, according to HKS. On its chassis dyno with the exhaust as the only change, HKS recorded a peak gain of about 6hp and 14.5Nm more torque at 3,500 rpm, and a 12.9Nm torque gain at 3,200 rpm with its Power Editor also fitted. HKS lists no tuning requirement for part 31021-AF026.

How much does the system weigh?

HKS lists the complete LEGAMAX Sports system at 53.2lb, or 24.14kg. HKS does not publish a factory figure to compare, so the case for this exhaust is flow, sound and appearance rather than weight: HKS measured roughly 70% less exhaust resistance than the stock muffler on its flow bench.

Which WRX does it fit?

HKS lists part 31021-AF026 for the VB Subaru WRX sedan with the 2.4L FA24 turbo, from 2022 on. It does not fit the earlier VA WRX or WRX STI, which use different HKS systems, so owners should confirm the chassis code on their car before ordering.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

HKS LEGAMAX Sports Exhaust for VB Subaru WRX

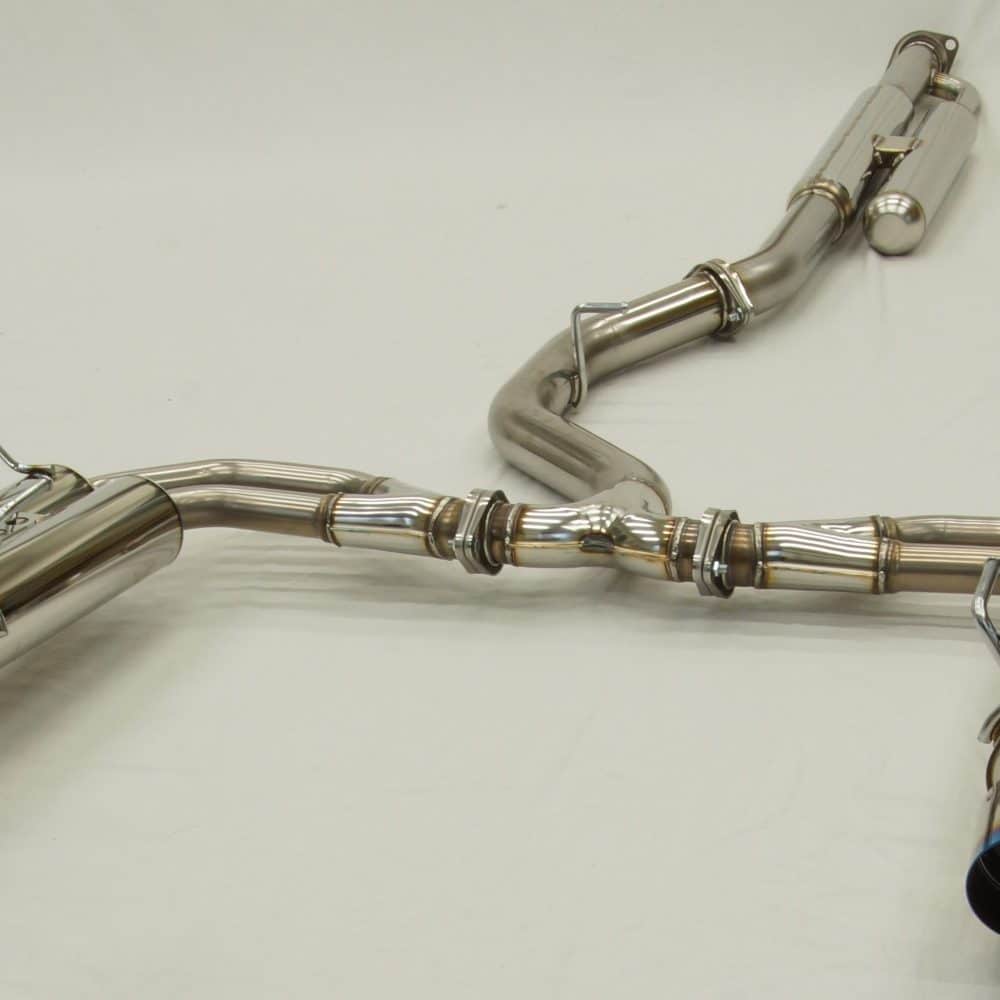

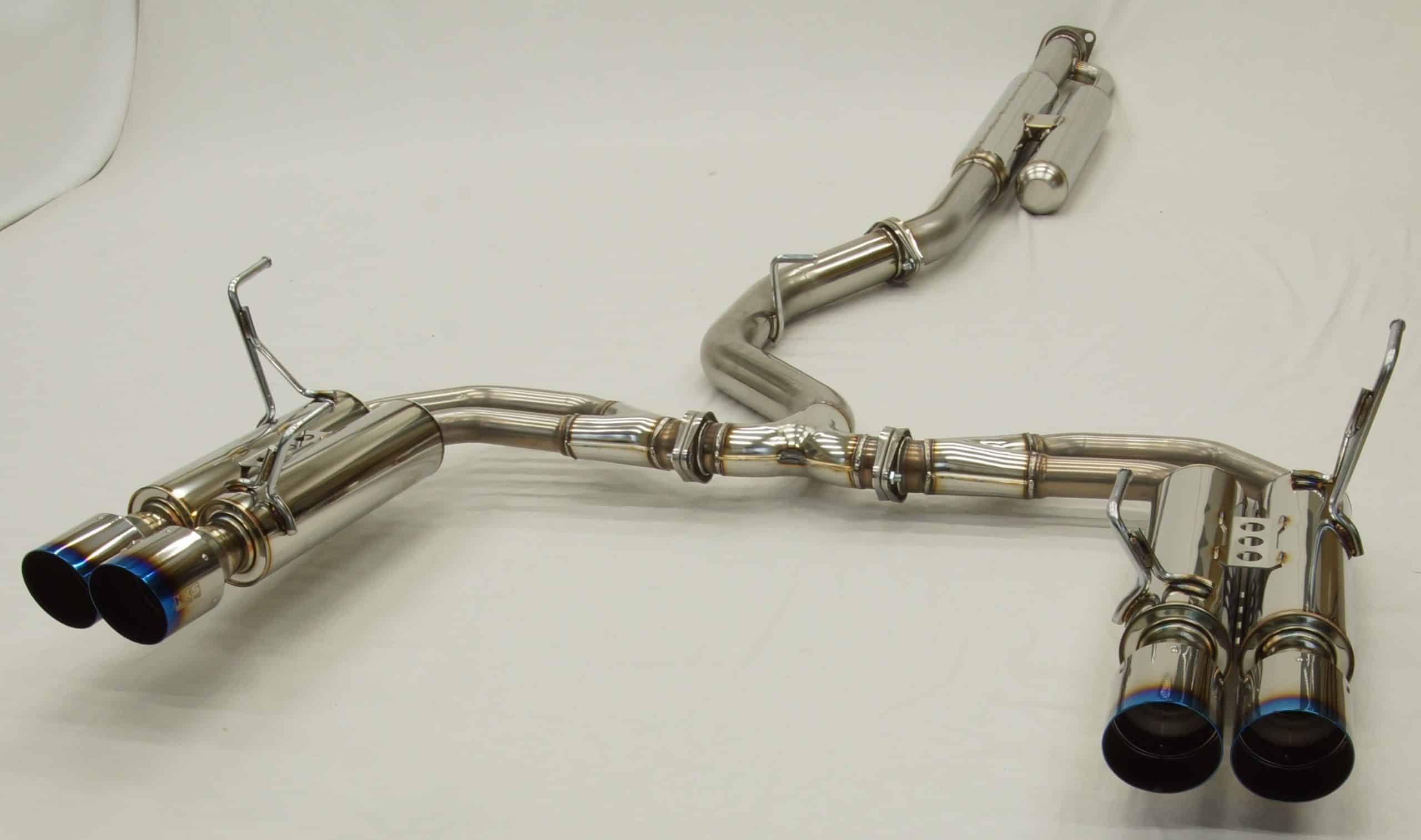

HKS’s LEGAMAX Sports Exhaust for VB Subaru WRX gives the FA24 turbo sedan a four-pipe SUS304 stainless system finished with four 98mm titanium tails, each baked by hand to a heat-colored gradation. HKS took the flow from a single 74.7mm pipe to twin 60.5mm and then four 45mm pipes, cutting exhaust resistance by about 70% while shaping a deep boxer note that turns dry and sporty under throttle. It is built for the owner who wants the car to look and sound special from every angle, lifted on a hoist as much as parked at the curb.

Development and Testing

HKS set out with three priorities for the VB system: performance, sound quality and appearance. A longer pipe run than usual calms muffled boom and lifts a sharper tone around 500Hz, while the expansion pipe, resonance pipe and silencers were tuned to keep the low boxer character. On the chassis dyno the LEGAMAX Sports Exhaust for VB cars gained about 6hp at peak and 14.5Nm of torque at 3,500 rpm with no other changes.

Features

Four titanium tails finished by hand with a baked gradation
TIG-welded main silencer construction
Symmetrical four-pipe layout that looks as finished from underneath as from behind
Minimum ground clearance unchanged from stock, with the factory front pipe still the lowest point

Specifications

Main Pipe Diameter: 74.7mm to 60.5mm x 2 to 45mm x 4
Tails: 98mm titanium, four
Main Material: SUS304 stainless steel
Weight: 53.2lb (24.14kg)
Sound Level, Factory System: 79 dB (56 dB at idle)
Sound Level, HKS: 90 dB (63 dB at idle)
Minimum Road Clearance: 130mm at the factory front pipe

Applications

Subaru WRX: VB | 2022-present | FA24T

Notes

Dyno and flow figures are HKS in-house measurements, and HKS does not state the market specification of its test car, so only the gains are quoted; the 12.9Nm result was recorded with the HKS Power Editor fitted
Sound figures are HKS measurements and vary with the vehicle and test setup
JASMA Certification: JQR60244002

Frequently Asked Questions

Is the LEGAMAX Sports Exhaust for VB loud inside the cabin? HKS tuned the LEGAMAX Sports Exhaust for VB cars for a pleasant bass note at normal engine speeds and a dry, sporty sound when the throttle opens. On its close test HKS measured 90 dB against 79 dB stock, and 63 dB against 56 dB at idle, so the WRX is clearly louder outside while staying civil on a steady cruise.
Does this exhaust reduce ground clearance on the WRX? No. HKS states that minimum ground clearance does not change, because the lowest point remains the factory front pipe at 130mm. HKS placed the hooks, brackets and mid pipes to make the most of the underfloor space, so the four-pipe layout sits up out of the way.
Does the WRX gain power with this exhaust? A little, according to HKS. On its chassis dyno with the exhaust as the only change, HKS recorded a peak gain of about 6hp and 14.5Nm more torque at 3,500 rpm, and a 12.9Nm torque gain at 3,200 rpm with its Power Editor also fitted. HKS lists no tuning requirement for part 31021-AF026.
How much does the system weigh? HKS lists the complete LEGAMAX Sports system at 53.2lb, or 24.14kg. HKS does not publish a factory figure to compare, so the case for this exhaust is flow, sound and appearance rather than weight: HKS measured roughly 70% less exhaust resistance than the stock muffler on its flow bench.
Which WRX does it fit? HKS lists part 31021-AF026 for the VB Subaru WRX sedan with the 2.4L FA24 turbo, from 2022 on. It does not fit the earlier VA WRX or WRX STI, which use different HKS systems, so owners should confirm the chassis code on their car before ordering.

About HKS

HKS is a Japanese performance engineering brand founded in 1973 and headquartered in Fujinomiya, Shizuoka, with a long-standing reputation for developing high-quality aftermarket parts and motorsport-proven technology for enthusiast and professional applications. Known for innovations in turbocharging and engine performance, HKS produces a broad range of components including exhaust systems, turbo kits, electronics / engine management, and suspension solutions, with product development heavily influenced by decades of involvement in racing disciplines such as circuit time attack, drag, and drifting.
