Is the Drag Coilover Kit for BNR32 suitable for street or circuit driving?

No. HKS designed this kit for drag racing and asks owners to take care on public roads. The soft rear spring and rear helper are chosen for stroke and traction off the line, so an R32 used for circuit or road driving is better served by the HKS HIPERMAX S Coilover Kit for BNR32.

Why is the rear spring so much softer than the front?

HKS selects the springs and helpers for the Drag Coilover Kit for BNR32 to keep enough rear stroke and traction for drag racing. It pairs an 88 N/mm front spring with a 59 N/mm rear spring and a 19.8 N/mm rear helper, while retaining front traction so the all-wheel-drive car changes attitude less at launch.

How low does the kit sit compared with a stock R32?

As delivered, HKS sets the kit 34mm below stock height at the front and 19mm below at the rear. The front adjusts down to 68mm below stock and the rear to 41mm below. HKS warns that the lowest setting may not be road legal and that problems caused by running below the factory height void the warranty.

Is the damping adjustable?

Yes. Each damper has 30 steps of damping adjustment front and rear, which lets a racer tune how the GT-R transfers weight at launch. Keep a record of settings, track conditions and tire pressures from each pass to find the best combination for the car.

Can HKS change the spring rates?

Yes. HKS offers factory spring rate changes for this kit, with the front available up to 20 N/mm softer and the rear up to 20 N/mm firmer than standard. The pillow ball upper mount assemblies cannot be swapped before shipping, so the kit always arrives with them fitted.

Can the dampers be serviced?

Yes. HKS lists overhaul service for the HIPERMAX SP DRAG line, so the dampers can be rebuilt rather than replaced when they need attention after a season of launches. Contact Bulletproof Automotive for current HKS overhaul options and turnaround times in the United States.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

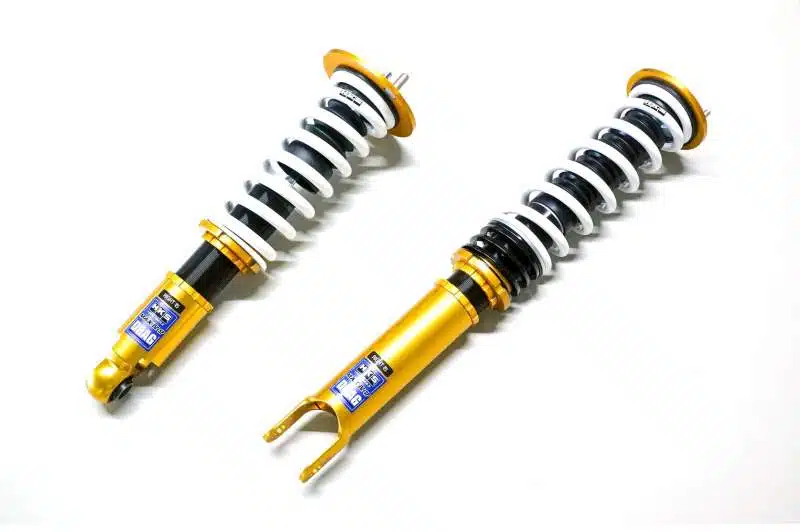

HKS HIPERMAX SP DRAG Coilover Kit for BNR32 Nissan Skyline GT-R

The HKS HIPERMAX SP DRAG Coilover Kit for BNR32 is a drag-specification suspension for the RB26DETT powered, all-wheel-drive R32 Skyline GT-R, and HKS is explicit that it is designed for drag racing. HKS developed it from the MAX IV SP using what it learned building the HIPERMAX II DRAG, and tuned the springs and damping to give the rear enough stroke and traction while keeping front traction from the all-wheel-drive system. On the R32 that means an 88 N/mm front spring over a soft 59 N/mm rear. For a street or circuit R32 this is the wrong kit; for a car that spends its weekends at the strip, it is the point.

Features

Single-tube dampers with a large-diameter piston for response and traction
Adjustable shock-body length design, replacing the fixed body length of the earlier drag kit to widen the ride height range and stroke distribution
Rear helper spring with a soft main spring for stroke and traction off the line
PNE coating on the damper body for corrosion resistance
Pillow ball upper mounts front and rear
Special damper oil, with HKS spec change and overhaul service available for the line

Specifications

Spring rate, front: 88 N/mm (9 kgf/mm)
Spring rate, rear: 59 N/mm (6 kgf/mm)
Helper spring rate, rear: 19.8 N/mm
Spring length: 250mm straight, front and rear
Ride height as delivered, front: 34mm below stock (adjustable from stock height to 68mm below)
Ride height as delivered, rear: 19mm below stock (adjustable from stock height to 41mm below)
Damping force at 0.1 m/s, front: 1200 N rebound, 570 N compression
Damping force at 0.1 m/s, rear: 2000 N rebound, 370 N compression
Damping adjustment: 30 steps front and rear
Shipping weight: 22.7 kg (50 lb)

Applications

Nissan Skyline GT-R: BNR32 | 1989-1994 | RB26DETT

Notes

HKS states that this product is designed for drag racing and asks owners to be careful when driving on public roads
The HIPERMAX SP DRAG is a separate line from the Hipermax R and is listed by HKS USA under MAX IV SP DRAG
For road and circuit use, the HKS HIPERMAX S Coilover Kit for BNR32 Nissan Skyline GT-R (80330-AN008) is the better fit than the Drag Coilover Kit for BNR32
HKS can change the spring rates before shipping, with the front up to 20 N/mm softer and the rear up to 20 N/mm firmer, but the upper mount assemblies cannot be changed
HKS warns that the lowest ride height may not be road legal and that problems caused by setting the car below the factory height void the warranty
The Drag Coilover Kit for BNR32 should be installed by a shop experienced with the R32 GT-R, followed by an alignment

Frequently Asked Questions

Is the Drag Coilover Kit for BNR32 suitable for street or circuit driving? No. HKS designed this kit for drag racing and asks owners to take care on public roads. The soft rear spring and rear helper are chosen for stroke and traction off the line, so an R32 used for circuit or road driving is better served by the HKS HIPERMAX S Coilover Kit for BNR32.
Why is the rear spring so much softer than the front? HKS selects the springs and helpers for the Drag Coilover Kit for BNR32 to keep enough rear stroke and traction for drag racing. It pairs an 88 N/mm front spring with a 59 N/mm rear spring and a 19.8 N/mm rear helper, while retaining front traction so the all-wheel-drive car changes attitude less at launch.
How low does the kit sit compared with a stock R32? As delivered, HKS sets the kit 34mm below stock height at the front and 19mm below at the rear. The front adjusts down to 68mm below stock and the rear to 41mm below. HKS warns that the lowest setting may not be road legal and that problems caused by running below the factory height void the warranty.
Is the damping adjustable? Yes. Each damper has 30 steps of damping adjustment front and rear, which lets a racer tune how the GT-R transfers weight at launch. Keep a record of settings, track conditions and tire pressures from each pass to find the best combination for the car.
Can HKS change the spring rates? Yes. HKS offers factory spring rate changes for this kit, with the front available up to 20 N/mm softer and the rear up to 20 N/mm firmer than standard. The pillow ball upper mount assemblies cannot be swapped before shipping, so the kit always arrives with them fitted.
Can the dampers be serviced? Yes. HKS lists overhaul service for the HIPERMAX SP DRAG line, so the dampers can be rebuilt rather than replaced when they need attention after a season of launches. Contact Bulletproof Automotive for current HKS overhaul options and turnaround times in the United States.

About HKS

HKS is a Japanese performance engineering brand founded in 1973 and headquartered in Fujinomiya, Shizuoka, with a long-standing reputation for developing high-quality aftermarket parts and motorsport-proven technology for enthusiast and professional applications. Known for innovations in turbocharging and engine performance, HKS produces a broad range of components including exhaust systems, turbo kits, electronics / engine management, and suspension solutions, with product development heavily influenced by decades of involvement in racing disciplines such as circuit time attack, drag, and drifting.
