How many levels of damping adjustment does the Coilover Kit for VAB have?

Thirty. HKS uses its WR Needle mechanism, which widens the oil relief channel so each of the thirty clicks makes a clearer difference than the previous range managed. The reshaped needle also extends the soft end of the adjustment, which is what makes the kit usable on a street car rather than only on track.

What is the difference between this kit and the non-pillow version?

This one carries HKS pillow ball upper mounts at the front instead of the strengthened rubber type, and that is the whole difference between the two versions of the Coilover Kit for VAB. A spherical bearing passes steering input to the chassis directly rather than through rubber, which sharpens turn-in. The trade is a little more road noise and a bearing that eventually wears out.

Is ride height adjustable without giving up suspension travel?

Yes. The damper bodies are length adjustable, so ride height is set by changing body length rather than by winding a spring seat down into the available stroke. That keeps suspension travel intact at a lowered ride height, which is the practical difference between a full coilover kit and a spring and seat arrangement.

Does the Coilover Kit for VAB also fit the Toyota GR86?

HKS registers this part number against the ZD8 BRZ only and sells a separate part number for the ZN8 GR86. The two cars share a platform, but buy the kit HKS lists for the car you own rather than assuming they cross over.

Can the kit be revalved or rebuilt later?

Yes. HKS offers a spec change service that alters the damping specification, and a full overhaul for kits that have covered serious mileage. Both run through HKS rather than a third party, which is worth knowing on a car that gets driven year round and sees track days.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

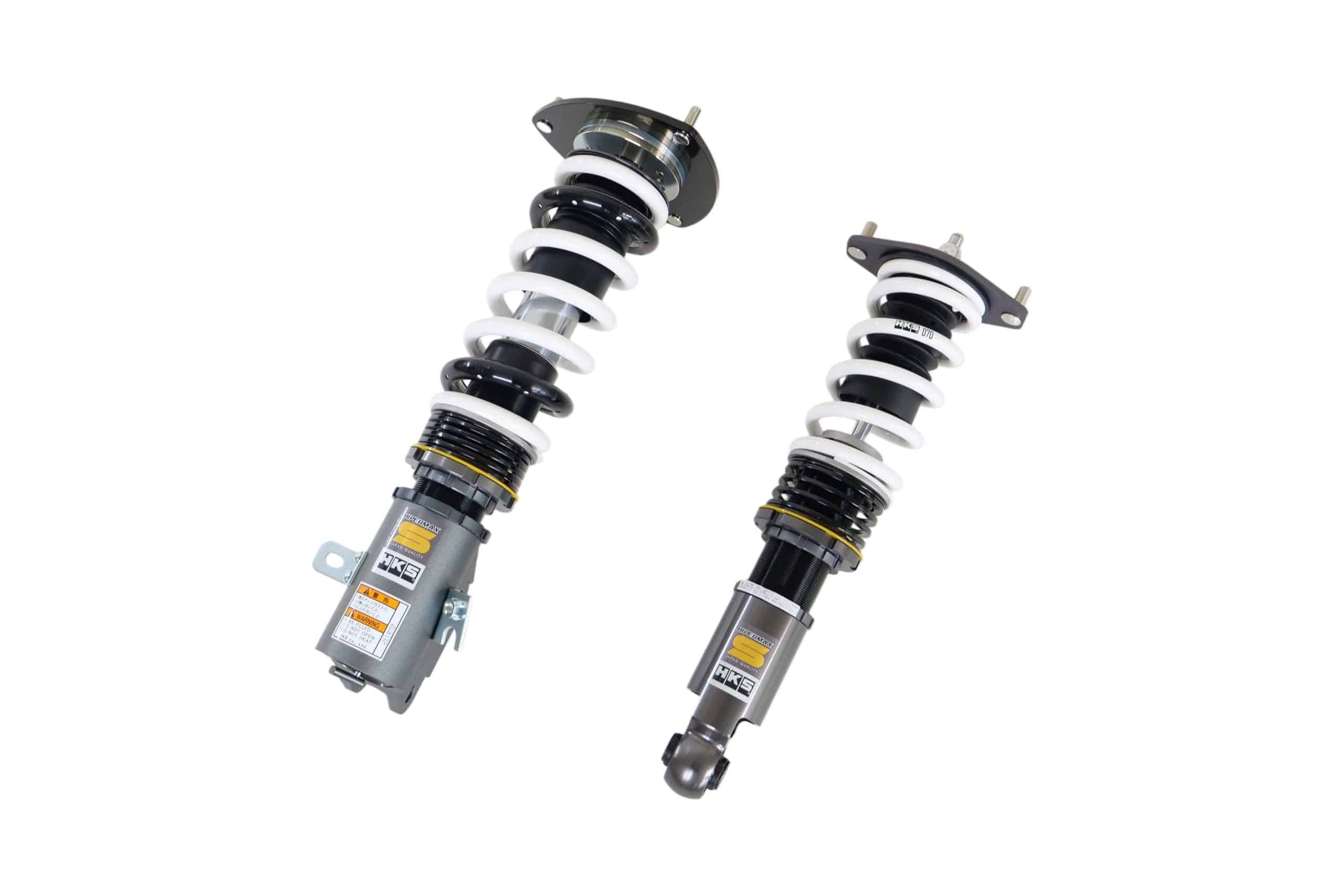

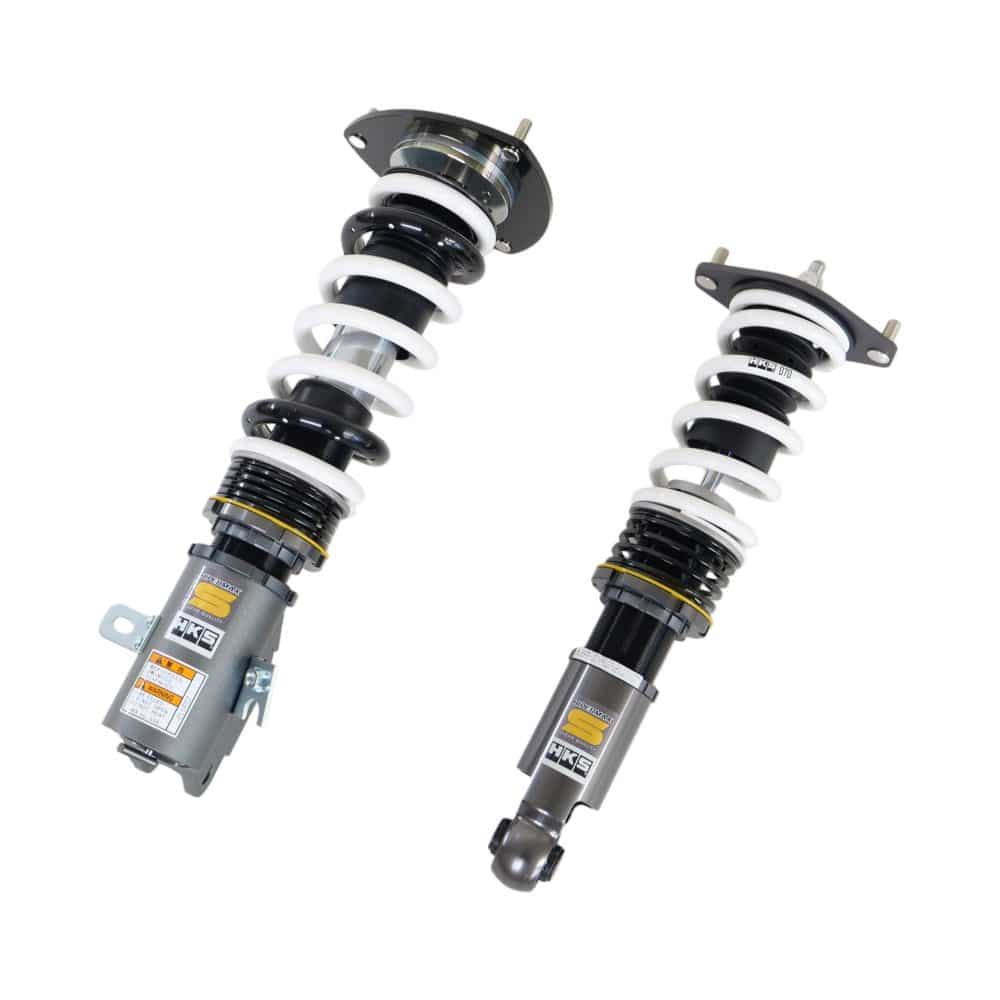

HKS HIPERMAX S Pillow Coilover Kit for VAB Subaru WRX and STI

HKS’s Coilover Kit for VAB Subaru WRX and STI is the pillow ball version of the current S generation for the VA platform, and the engineering behind it is why HKS was willing to warranty the range for three years instead of one. A single-tube damper keeps gas and oil in separate chambers, which allows a larger piston and a steadier damping force. The front is an inverted strut, so lateral load spreads across a wider area and the heavy part of the damper moves to the body side. Thirty levels of adjustment run through the WR Needle, whose reshaped relief channel makes each click count and pushes the soft end further than HKS managed before. HKS supplies the Coilover Kit for VAB as a complete four-corner set rather than a front or rear pair.

Design and Performance

Dual PVS is what changes how the car feels on a real road. The preload valve system cuts high-speed damping while keeping body movement in check, so the shaft extends more readily and the tire stays in contact over a broken surface, while fast compression still builds force quickly enough to absorb the hit. Working with it is the Advanced Bump Rubber, longer and softer than a conventional stop, which makes contact earlier in the stroke and loads gradually instead of arriving as a wall at the end of the travel. What HKS was chasing is a suspension that rides rather than crashes.

Construction

The damper bodies are length adjustable, so ride height changes without eating into the stroke. PNE coating replaces standard galvanising and HKS rates it at five times the corrosion durability. At the front this kit carries HKS pillow ball upper mounts in place of the rubber type, so steering inputs reach the chassis through a spherical bearing rather than through rubber, and the response at turn-in sharpens accordingly. Aluminium brackets and a machined, chamfered top plate finish it, and HKS handles spec changes and overhauls when the kit needs revalving later.

Features

Single-tube damper with separated gas and oil chambers and a large-diameter piston
30 levels of damping adjustment through the WR Needle mechanism, with a usable soft end for street driving
Dual PVS preload valve system, cutting high-speed damping while holding body movement in check
Advanced Bump Rubber that loads progressively rather than ending the stroke abruptly
Inverted front strut, moving damper mass to the body side and spreading lateral load
PNE coating, rated at five times the corrosion durability of standard galvanising
Three-year HKS warranty, with spec change and overhaul service available

Applications

Subaru WRX: VAG sedan | 2015-2021 | FA20T

Notes

The front upper mounts are HKS pillow ball units; the spherical bearing is a wear item and HKS sells replacements separately
The Coilover Kit for VAB is supplied as a full kit for all four corners
HKS developed this kit on 18 x 9.5J +50 wheels with 255/40R18 and 245/35R18 tires, so figures quoted elsewhere assume that setup
California Prop 65 warning applies to this product
Browse the full HKS range on Bulletproof Automotive

Frequently Asked Questions

How many levels of damping adjustment does the Coilover Kit for VAB have? Thirty. HKS uses its WR Needle mechanism, which widens the oil relief channel so each of the thirty clicks makes a clearer difference than the previous range managed. The reshaped needle also extends the soft end of the adjustment, which is what makes the kit usable on a street car rather than only on track.
What is the difference between this kit and the non-pillow version? This one carries HKS pillow ball upper mounts at the front instead of the strengthened rubber type, and that is the whole difference between the two versions of the Coilover Kit for VAB. A spherical bearing passes steering input to the chassis directly rather than through rubber, which sharpens turn-in. The trade is a little more road noise and a bearing that eventually wears out.
Is ride height adjustable without giving up suspension travel? Yes. The damper bodies are length adjustable, so ride height is set by changing body length rather than by winding a spring seat down into the available stroke. That keeps suspension travel intact at a lowered ride height, which is the practical difference between a full coilover kit and a spring and seat arrangement.
Does the Coilover Kit for VAB also fit the Toyota GR86? HKS registers this part number against the ZD8 BRZ only and sells a separate part number for the ZN8 GR86. The two cars share a platform, but buy the kit HKS lists for the car you own rather than assuming they cross over.
Can the kit be revalved or rebuilt later? Yes. HKS offers a spec change service that alters the damping specification, and a full overhaul for kits that have covered serious mileage. Both run through HKS rather than a third party, which is worth knowing on a car that gets driven year round and sees track days.

About HKS

HKS is a Japanese performance engineering brand founded in 1973 and headquartered in Fujinomiya, Shizuoka, with a long-standing reputation for developing high-quality aftermarket parts and motorsport-proven technology for enthusiast and professional applications. Known for innovations in turbocharging and engine performance, HKS produces a broad range of components including exhaust systems, turbo kits, electronics / engine management, and suspension solutions, with product development heavily influenced by decades of involvement in racing disciplines such as circuit time attack, drag, and drifting.
