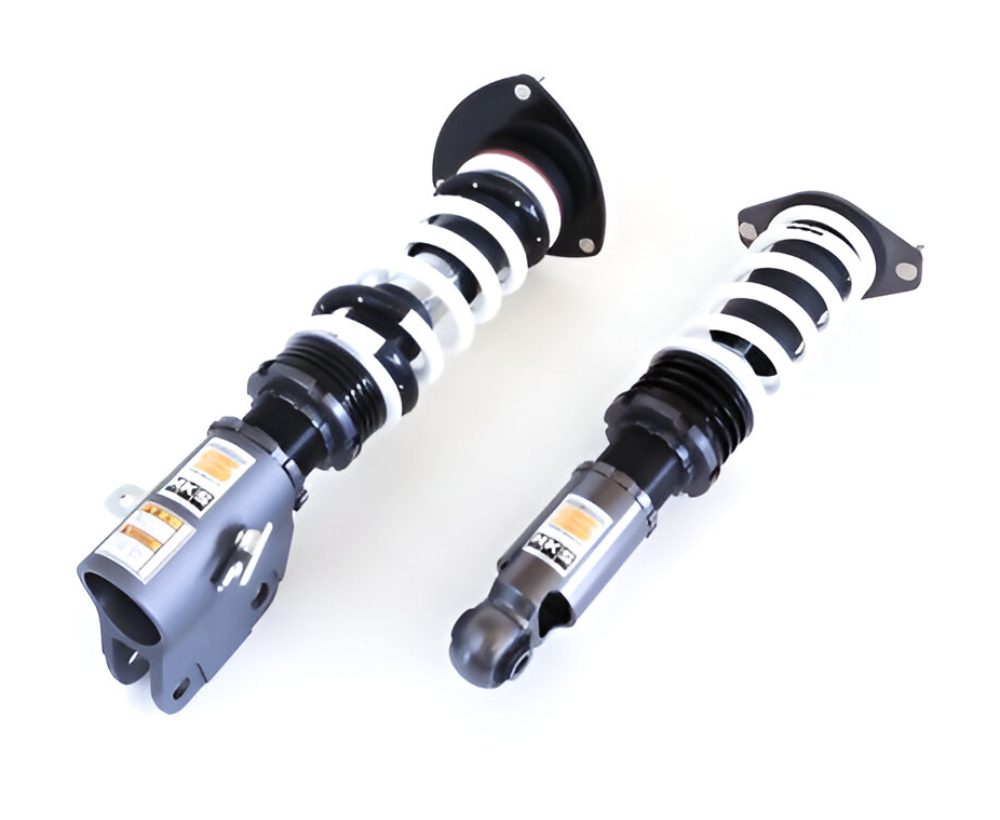

HKS HIPERMAX S Coilover Kit for VA Subaru WRX / STI [80300-AF009]

HKS HIPERMAX S Coilover Kit for VA Subaru WRX / STI [80300-AF009]

The HKS HIPERMAX S Coilover Kit for the VA Subaru WRX and STI is designed to deliver a refined balance of performance, comfort, and reliability. Built with a single-tube design and 30 levels of adjustable damping, it allows precise tuning for a wide range of driving conditions, while the adjustable shock body provides flexibility in ride height and stance. Equipped with rubber upper mounts for reduced noise and vibration, the kit also features HKS’s advanced Dual PVS system to enhance ride comfort without sacrificing handling. A durable PNE coating ensures long-term resistance to wear and corrosion, and the kit is backed by a three-year warranty for added peace of mind.

Dual PVS

• HKS has developed a dual preload valve system to replace the conventional preload valve system, effectively reducing unnecessary damping force generated at higher piston speeds. This advancement delivers a significant improvement in ride comfort without compromising overall driving performance.

Wide Range Damping Force Adjustment Mechanism

• The redesigned Needle jet increases the available range of damping force adjustment, allowing the suspension to adapt to a broader variety of driving conditions and road surfaces.

Evolution of Bump Stop Rubber

• A newly engineered bump stop rubber minimizes body roll while enhancing ride comfort, providing benefits that standard hydro bump stop rubber cannot achieve.

Low Friction Technology

• Through advanced tribology technology, HKS has achieved greater durability and reduced friction compared to conventional designs. This contributes to improved handling performance and overall ride quality.

3-Year Warranty

• The HIPERMAX S Series is supported by a three-year warranty, made possible by the optimization of internal components and enhanced quality control.

Features

• Single tube
• 30 levels adjustable damping
• Adjustable shock-body
• Rubber upper mount
• DUAL PVS
• PNE coated
• 3-year warranty

Specifications

• Spring Rate [N/mm(kgf/mm)]
  • F = 88 (9)
  • R = 69 (7)
• Spring Length (mm)
  • F = 220 (barrel)
  • R = 170 (straight)
• Upper Mount
  • F = rubber
  • R = rubber

Applications

• Subaru WRX: VAG (2015-2021)
• Subaru WRX STI: VAB (2015-2021)

Notes

• After installation Subaru EyeSight may not function properly, please refer to the factory manual
• This is a standard mount version of the HIPERMAX S, pillow upper mount version is available here
