How is the HKS SPEC-L different from the SPEC-L II?

HKS rates the SPEC-L, part 32016-BT004, as louder than the SPEC-L II, part 32016-AF101, which HKS built to meet Japanese regulations. The SPEC-L finishes in 97mm titanium tips where the SPEC-L II uses 94mm stainless tails, and the two weigh almost the same, at 24.9lb and 25.1lb.

Does the SPEC-L Exhaust for ZN8 also fit the Subaru BRZ?

Yes. HKS lists the SPEC-L Exhaust for ZN8 GR86, part 32016-BT004, for the ZD8 Subaru BRZ as well, from 2022 on. The two cars share the FA24 engine, so one part number covers either badge and there is no separate BRZ version to order.

Does the HKS SPEC-L drone on the highway in a GR86?

HKS tuned the SPEC-L for a bass note under acceleration and says it keeps drone out of the cabin, though it publishes no cruise figure. It lists 88 to 89 dB against 82 dB stock on its close test, and 66 dB against 57 dB at idle, so startup is clearly louder than stock.

Are the SPEC-L tips titanium?

Yes, the tips are. HKS builds the pipes and silencers from ultra-thin SUS304 stainless steel and finishes each round muffler with a 97mm titanium tip. The thin stainless is what brings the system close to titanium weight, and SUS304 resists corrosion well through rain and winter use.

Does the SPEC-L add power or need a tune?

HKS recorded gains of 3hp at peak power and 1.2Nm at peak torque on its dyno. HKS lists no tuning requirement for part 32016-BT004, and the kit includes no engine management, so the FA24 keeps its factory calibration and the exhaust stays on if a tune follows later.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

HKS Hi-Power SPEC-L Exhaust for ZN8 Toyota GR86 and ZD8 Subaru BRZ

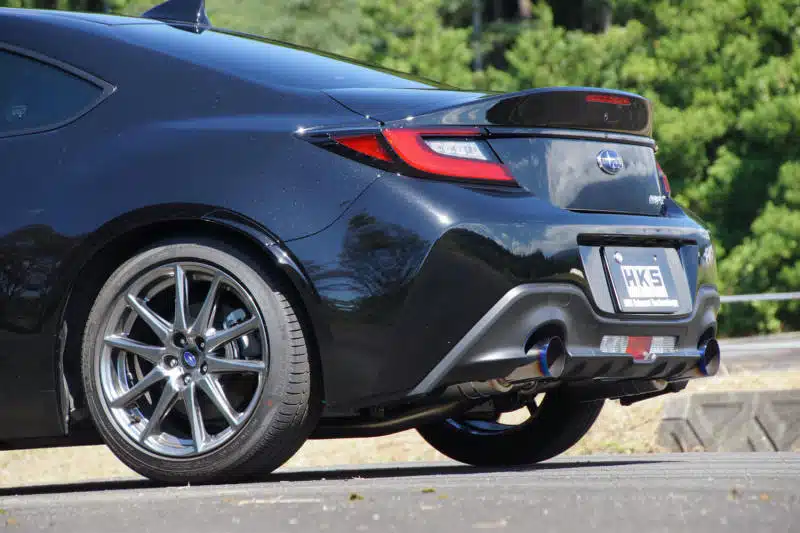

HKS’s Hi-Power SPEC-L Exhaust for ZN8 Toyota GR86 and ZD8 Subaru BRZ is the more vocal of the two dual-exit systems HKS of Fujinomiya offers for the FA24 coupes, voiced for a bass note that builds with revs. HKS forms the pipes and silencers from ultra-thin SUS304 stainless and caps each round muffler with a 97mm titanium tip, bringing the system to 24.9lb (11.3kg) against 35.7lb (16.2kg) for the factory exhaust. It suits the owner who wants the car heard; a calmer cabin calls for the HKS Hi-Power SPEC-L II Exhaust.

Development and Testing

HKS sized the piping for the 2.4L FA24 and proved it on a flow bench, where the system holds far lower back-pressure than the factory exhaust, and on a dyno, where the SPEC-L Exhaust for ZN8 and ZD8 cars gained 3hp at peak power and 1.2Nm at peak torque. HKS treats the lower restriction as headroom for further modifications rather than a large bolt-on gain.

Features

Ultra-thin stainless pipe and silencers bring the weight to a level HKS compares with titanium exhausts
Round mufflers finished with large titanium tips, one per side
Bass-led tone under acceleration, tuned by HKS to keep exhaust drone out of the cabin

Specifications

Main Pipe Diameter: 65mm splitting to twin 50.8mm
Tips: 97mm titanium, left and right
Main Material: SUS304 stainless steel
Weight: 24.9lb (11.3kg), factory system 35.7lb (16.2kg)
Sound Level, Factory System: 82 dB (57 dB at idle)
Sound Level, HKS: 88 to 89 dB (66 dB at idle)

Applications

Subaru BRZ: ZD8 | 2022-present | FA24
Toyota GR86: ZN8 | 2022-present | FA24

Notes

HKS USA catalogs part 32016-BT004 as the US version of the Hi-Power SPEC-L for the GR86 and BRZ
The single-exit HKS Hi-Power SPEC-L II Cup Exhaust is a separate, lighter race part for the manual GR86
Dyno and flow bench results are HKS in-house figures from a test vehicle HKS does not name, so only the gains are given
This exhaust is intended for off-road or competition use where emissions laws apply, and the buyer is responsible for checking local emissions and noise regulations before installation

Frequently Asked Questions

How is the HKS SPEC-L different from the SPEC-L II? HKS rates the SPEC-L, part 32016-BT004, as louder than the SPEC-L II, part 32016-AF101, which HKS built to meet Japanese regulations. The SPEC-L finishes in 97mm titanium tips where the SPEC-L II uses 94mm stainless tails, and the two weigh almost the same, at 24.9lb and 25.1lb.
Does the SPEC-L Exhaust for ZN8 also fit the Subaru BRZ? Yes. HKS lists the SPEC-L Exhaust for ZN8 GR86, part 32016-BT004, for the ZD8 Subaru BRZ as well, from 2022 on. The two cars share the FA24 engine, so one part number covers either badge and there is no separate BRZ version to order.
Does the HKS SPEC-L drone on the highway in a GR86? HKS tuned the SPEC-L for a bass note under acceleration and says it keeps drone out of the cabin, though it publishes no cruise figure. It lists 88 to 89 dB against 82 dB stock on its close test, and 66 dB against 57 dB at idle, so startup is clearly louder than stock.
Are the SPEC-L tips titanium? Yes, the tips are. HKS builds the pipes and silencers from ultra-thin SUS304 stainless steel and finishes each round muffler with a 97mm titanium tip. The thin stainless is what brings the system close to titanium weight, and SUS304 resists corrosion well through rain and winter use.
Does the SPEC-L add power or need a tune? HKS recorded gains of 3hp at peak power and 1.2Nm at peak torque on its dyno. HKS lists no tuning requirement for part 32016-BT004, and the kit includes no engine management, so the FA24 keeps its factory calibration and the exhaust stays on if a tune follows later.

About HKS

HKS is a Japanese performance engineering brand founded in 1973 and headquartered in Fujinomiya, Shizuoka, with a long-standing reputation for developing high-quality aftermarket parts and motorsport-proven technology for enthusiast and professional applications. Known for innovations in turbocharging and engine performance, HKS produces a broad range of components including exhaust systems, turbo kits, electronics / engine management, and suspension solutions, with product development heavily influenced by decades of involvement in racing disciplines such as circuit time attack, drag, and drifting.
