Does the Hi-Power Single-Exit Exhaust for ZN6 also fit the Subaru BRZ?

Yes. The HKS Hi-Power Single-Exit Exhaust for ZN6 cars, part 32016-BT003, is also listed for the ZC6 Subaru BRZ from 2013 to 2020, as well as the Scion FR-S and Toyota 86, all with the FA20 engine. It is not listed for the 2022 and later GR86 or BRZ with the FA24, which need their own HKS exhaust part.

How loud is the HKS Hi-Power single exit on an 86 or BRZ?

HKS measured 90 dB on its close test for this system, against 86 dB for the factory system, and 77 dB at idle. HKS does not publish a highway cruise figure. A 4 dB rise on the close test is a moderate change on paper, and the large silencer is there to keep the tone comfortable.

Can the tip position be adjusted?

Yes. HKS notes that the titanium tail of part 32016-BT003 can slide through 20mm, which lets the installer set how far the tip sits relative to the rear bumper. That helps on cars with an aftermarket rear bumper or diffuser, and the tail should be set before the system is finally tightened.

What is the exhaust made from?

HKS builds the Hi-Power Single-Exit Exhaust for ZN6 cars from S409 stainless steel and finishes it with a titanium tail. The center pipe measures 75mm at its largest point, and HKS lists the tip at 119mm in its specification table, although its product remarks give 97mm.

How much ground clearance does the exhaust have?

HKS lists 120mm of minimum road clearance at the mid pipe, measured on stock suspension from the lowest point of the kit to the road. Actual clearance can differ from vehicle to vehicle, so owners on lowering springs or coilovers should measure their own car before ordering.

Is this exhaust a one-piece system?

No. HKS supplies the Hi-Power single exit as three pieces, which makes the system easier to lift into place under the car. A second set of hands helps while the sections are lined up, and HKS notes that hooks, brackets and stays may change without prior notice.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

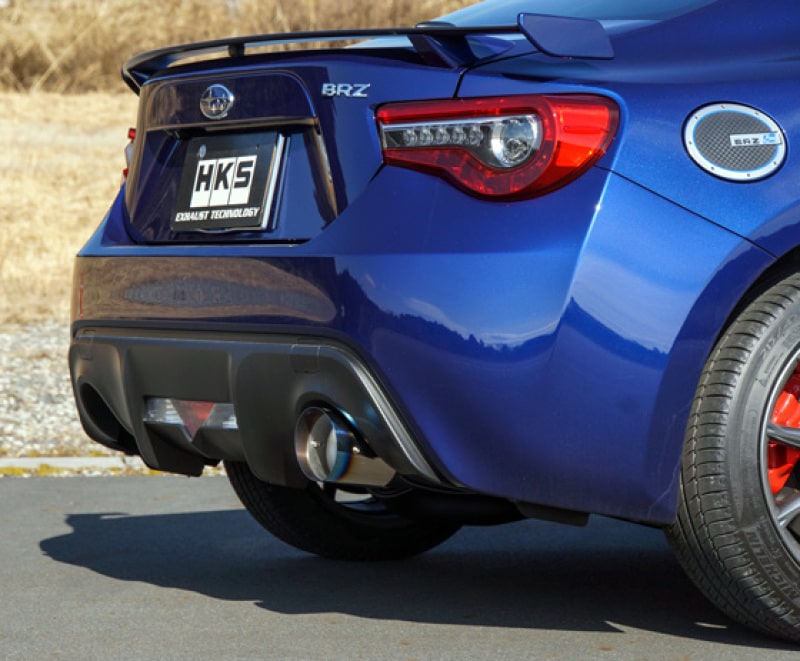

HKS Hi-Power Single-Exit Exhaust for ZN6 Toyota 86, Scion FR-S and ZC6 Subaru BRZ

The HKS Hi-Power Single-Exit Exhaust for ZN6 and ZC6 cars is the single-outlet, silenced version of the Hi-Power muffler for the FA20 Toyota 86, Scion FR-S and Subaru BRZ, built from S409 stainless around a 75mm straight-through pipe and finished with a titanium tail. HKS measured it at 90 dB on the close test against 86 dB for the factory system, and 77 dB at idle, a moderate step that suits owners who want more voice from the flat four without chasing the loudest option. Owners set on a dual-tip rear should choose a dual-exit HKS system instead.

Features

Straight-through layout that HKS designed to keep flow restriction low at any tuning level
Large silencer section that HKS uses to bring engine sound down to a comfortable level
Titanium tail that slides through 20mm, so the tip position can be set to suit the rear bumper
Three-piece construction for easier handling during installation

Specifications

Center Pipe Diameter: 75mm at its largest point
Tip Diameter: 119mm, per the HKS specification table
Main Material: S409 stainless steel
Tail: Titanium, 20mm slide
Construction: 3 pieces
Close Sound Level, Factory System: 86 dB, HKS measurement
Close Sound Level, HKS: 90 dB, HKS measurement
Idle Sound Level, HKS: 77 dB, HKS measurement
Minimum Road Clearance: 120mm at the mid pipe, stock suspension

Applications

Scion FR-S: ZN6 | 2013-2016 | FA20
Subaru BRZ: ZC6 | 2013-2020 | FA20
Toyota 86: ZN6 | 2017-2020 | FA20

Notes

HKS lists the Hi-Power Single-Exit Exhaust for ZN6 and ZC6 cars for the FA20 generation only; it is not listed for the 2022 and later FA24 GR86 or BRZ
HKS gives the tip as 119mm in its specification table and 97mm in its product remarks; this listing uses the specification table figure
HKS measures road clearance between the lowest point of the kit and the road surface on stock suspension, and measures the center pipe at its largest diameter, excluding the silencer and tip
Sound levels are HKS measurements, and real-world volume varies with the vehicle, tires, modifications and road surface
Set the tail position within its 20mm slide range before the final tightening of the system

Frequently Asked Questions

Does the Hi-Power Single-Exit Exhaust for ZN6 also fit the Subaru BRZ? Yes. The HKS Hi-Power Single-Exit Exhaust for ZN6 cars, part 32016-BT003, is also listed for the ZC6 Subaru BRZ from 2013 to 2020, as well as the Scion FR-S and Toyota 86, all with the FA20 engine. It is not listed for the 2022 and later GR86 or BRZ with the FA24, which need their own HKS exhaust part.
How loud is the HKS Hi-Power single exit on an 86 or BRZ? HKS measured 90 dB on its close test for this system, against 86 dB for the factory system, and 77 dB at idle. HKS does not publish a highway cruise figure. A 4 dB rise on the close test is a moderate change on paper, and the large silencer is there to keep the tone comfortable.
Can the tip position be adjusted? Yes. HKS notes that the titanium tail of part 32016-BT003 can slide through 20mm, which lets the installer set how far the tip sits relative to the rear bumper. That helps on cars with an aftermarket rear bumper or diffuser, and the tail should be set before the system is finally tightened.
What is the exhaust made from? HKS builds the Hi-Power Single-Exit Exhaust for ZN6 cars from S409 stainless steel and finishes it with a titanium tail. The center pipe measures 75mm at its largest point, and HKS lists the tip at 119mm in its specification table, although its product remarks give 97mm.
How much ground clearance does the exhaust have? HKS lists 120mm of minimum road clearance at the mid pipe, measured on stock suspension from the lowest point of the kit to the road. Actual clearance can differ from vehicle to vehicle, so owners on lowering springs or coilovers should measure their own car before ordering.
Is this exhaust a one-piece system? No. HKS supplies the Hi-Power single exit as three pieces, which makes the system easier to lift into place under the car. A second set of hands helps while the sections are lined up, and HKS notes that hooks, brackets and stays may change without prior notice.

About HKS

HKS is a Japanese performance engineering brand founded in 1973 and headquartered in Fujinomiya, Shizuoka, with a long-standing reputation for developing high-quality aftermarket parts and motorsport-proven technology for enthusiast and professional applications. Known for innovations in turbocharging and engine performance, HKS produces a broad range of components including exhaust systems, turbo kits, electronics / engine management, and suspension solutions, with product development heavily influenced by decades of involvement in racing disciplines such as circuit time attack, drag, and drifting.
