How adjustable is the APR Performance GTC-300 Carbon Fiber Adjustable Wing?

The angle of attack adjusts from 0° to 15°. Higher angles increase downforce for cornering and braking, while lower angles reduce drag for better straight-line speed. The angle-adjustable risers also allow wing height and position to be fine-tuned.

Which span should I choose, 61" or 67"?

The APR Performance GTC-300 Carbon Fiber Adjustable Wing is offered in a 61" (1549mm) and a 67" (1702mm) span. Contact us to confirm which suits your F82 and your intended use before ordering.

What is the wing made from?

Pre-impregnated woven carbon fiber sheet, autoclave-cured in aluminum billet molds for high density, durability, and resistance to heat and stress-induced deformation. The risers are 10mm aircraft-grade 6061 billet aluminum.

Which BMW does this fit?

The F82 M4. Confirm your exact model year and body style before ordering the APR Performance GTC-300 Carbon Fiber Adjustable Wing.

Is this available right now?

Product is currently out of stock, please contact us for lead times / availability.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

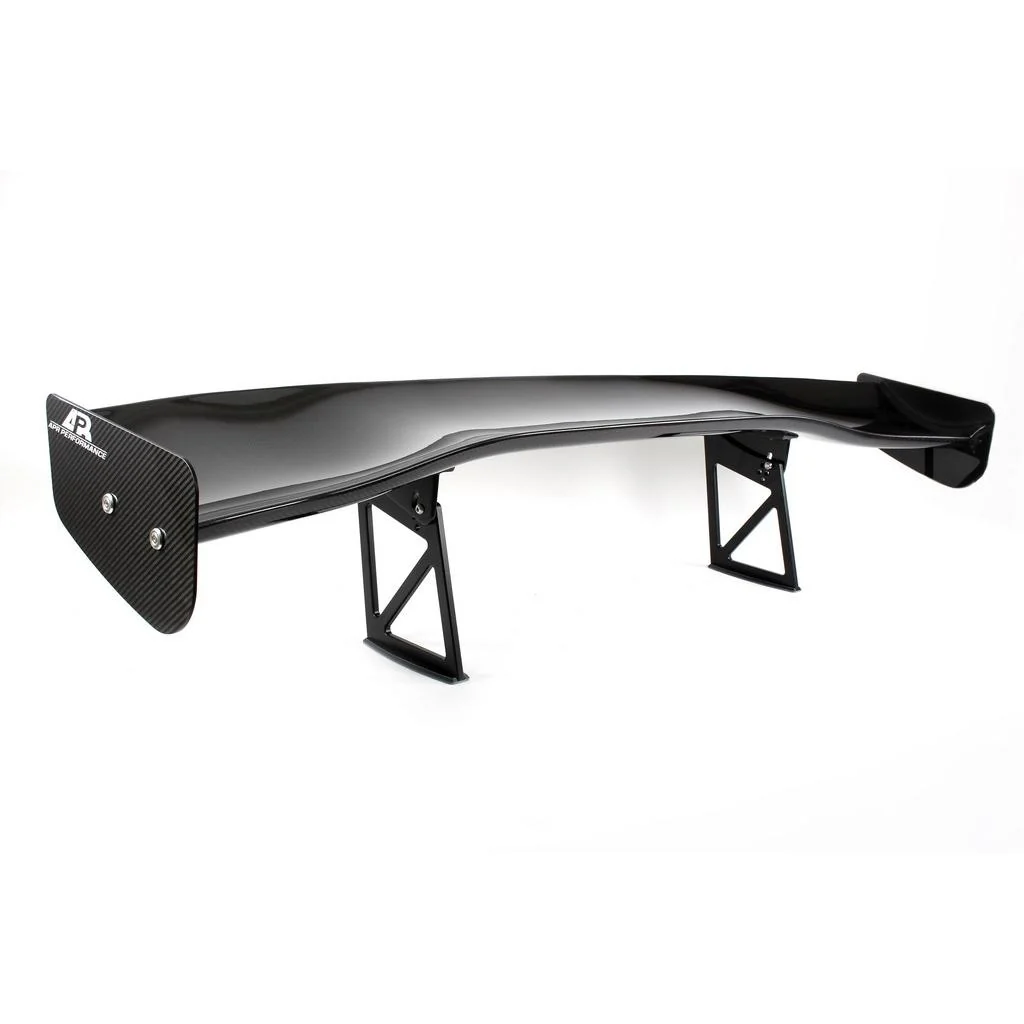

APR Performance GTC-300 Carbon Fiber Adjustable Wing for F82 BMW M4

The APR Performance GTC-300 Carbon Fiber Adjustable Wing is a high-performance aerodynamics component designed to optimize the aerodynamic balance of performance vehicles, primarily in motorsports and track applications. Engineered for high-efficiency downforce generation with minimal drag, the APR Performance GTC-300 Carbon Fiber Adjustable Wing is tailored for cars seeking improved cornering, braking stability, and high-speed balance.

Construction

The APR Performance GTC-300 Carbon Fiber Adjustable Wing is built from pre-impregnated woven carbon fiber sheet for a high strength-to-weight ratio. It is autoclave-cured in aluminum billet molds, which gives optimal material density, durability, and resistance to heat and stress-induced deformation. Carbon fiber’s natural rigidity prevents flexing at high speeds, so aerodynamic performance stays consistent under heavy loads.

Features

Fully adjustable angle of attack from 0° to 15° for tuning downforce and drag to track conditions
Airfoil shaped through CFD for high-efficiency downforce with minimal drag
Cambered design creates an effective pressure differential across the upper and lower surfaces, keeping airflow attached and limiting flow separation at speed
APR quotes an 8.8 to 1 downforce-to-drag ratio for the wing
Higher angles increase rear tire load for cornering and braking, while lower angles reduce drag for straight-line speed
Angle-adjustable risers in 10mm 6061 billet aluminum allow fine-tuning of wing height and position
Suited to track cars, time attack builds, and street-tuned vehicles
Optional paint protection film
Optional Gurney flap available

Specifications

Span: 61″ or 67″ (1549mm or 1702mm)
Chord Depth: Variable, 10″-12″ (254mm-304.8mm)
Angle of Attack: Adjustable, 0° to 15°
Riser Material: 10mm aircraft-grade 6061 billet aluminum
Optional Gurney Flap Height: 1/2″ (12.7mm)

Applications

BMW M4: F82 | 2015-2019

Notes

Please contact us for lead times / availability
The GTC-300 is offered with carbon fiber bottom plates for vehicle-specific fitment and aluminum bottom plates for universal fitment. Confirm which mounting setup is supplied for your F82 before ordering
Professional installation recommended. Confirm mounting position and clearance on your trunk lid before final installation.
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov

Frequently Asked Questions

What is the APR Performance GTC-300 Carbon Fiber Adjustable Wing designed for? It is a high-performance aerodynamic wing built primarily for motorsport and track applications. It also suits time attack builds and street-tuned cars that want enhanced stability and cornering performance without excessive drag.
How adjustable is the APR Performance GTC-300 Carbon Fiber Adjustable Wing? The angle of attack adjusts from 0° to 15°. Higher angles increase downforce for cornering and braking, while lower angles reduce drag for better straight-line speed. The angle-adjustable risers also allow wing height and position to be fine-tuned.
Which span should I choose, 61″ or 67″? The APR Performance GTC-300 Carbon Fiber Adjustable Wing is offered in a 61″ (1549mm) and a 67″ (1702mm) span. Contact us to confirm which suits your F82 and your intended use before ordering.
What is the wing made from? Pre-impregnated woven carbon fiber sheet, autoclave-cured in aluminum billet molds for high density, durability, and resistance to heat and stress-induced deformation. The risers are 10mm aircraft-grade 6061 billet aluminum.
What does the Gurney flap do? A Gurney flap is a small lip on the trailing edge of the airfoil that adds downforce and reduces flow separation. For the APR Performance GTC-300 Carbon Fiber Adjustable Wing it is an optional add-on, 1/2″ (12.7mm) tall, attached with 3M VHB double-sided tape. Contact us to add it to your order.
Which BMW does this fit? The F82 M4. Confirm your exact model year and body style before ordering the APR Performance GTC-300 Carbon Fiber Adjustable Wing.
Is this available right now? Product is currently out of stock, please contact us for lead times / availability.

About APR Performance

APR Performance has been a market leader in producing and manufacturing high quality aerodynamic performance products for the aftermarket automobile industry since 1999. The company designs and manufactures vehicle-specific aerodynamic components, including front air dams, splitters, side rocker extensions, rear wings and diffusers. They are built from carbon fiber for lightweight strength and factory-quality fitment across a wide range of performance and sports car platforms.
