How much cutting does installation involve on a 2015-2021 STI?

Very little. Two small ribs are trimmed from the OEM undertray and the splash guard takes a few simple cuts. GrimmSpeed routes the piping so that the bumper cover and light housings stay uncut, and the washer tank and coolant reservoir do not need to be moved or replaced.

Can I keep the factory STI airbox?

Yes, with one change: the factory intake snorkel has to come out to make room for the piping. GrimmSpeed recommends its StealthBox intake for the STI to get the most from the front mount, but that intake requires a tune and does not work with off-the-shelf maps.

Is the STI front mount kit the same as the WRX kit?

No. Both use a 27 x 11 x 4 inch core, but GrimmSpeed sells separate kits for the 2015-2021 STI with the EJ257 and the 2015-2021 WRX with the FA20DIT, each with its own part numbers and installation instructions. Order the kit listed for the STI.

What finish choices are offered?

Four combinations are offered. The core can be left as raw aluminum or ordered in satin black powdercoat for rock chip protection, and the piping is finished in red or black wrinkle powdercoat to match other GrimmSpeed parts. A removable GrimmSpeed vinyl decal comes pre-applied to the core.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

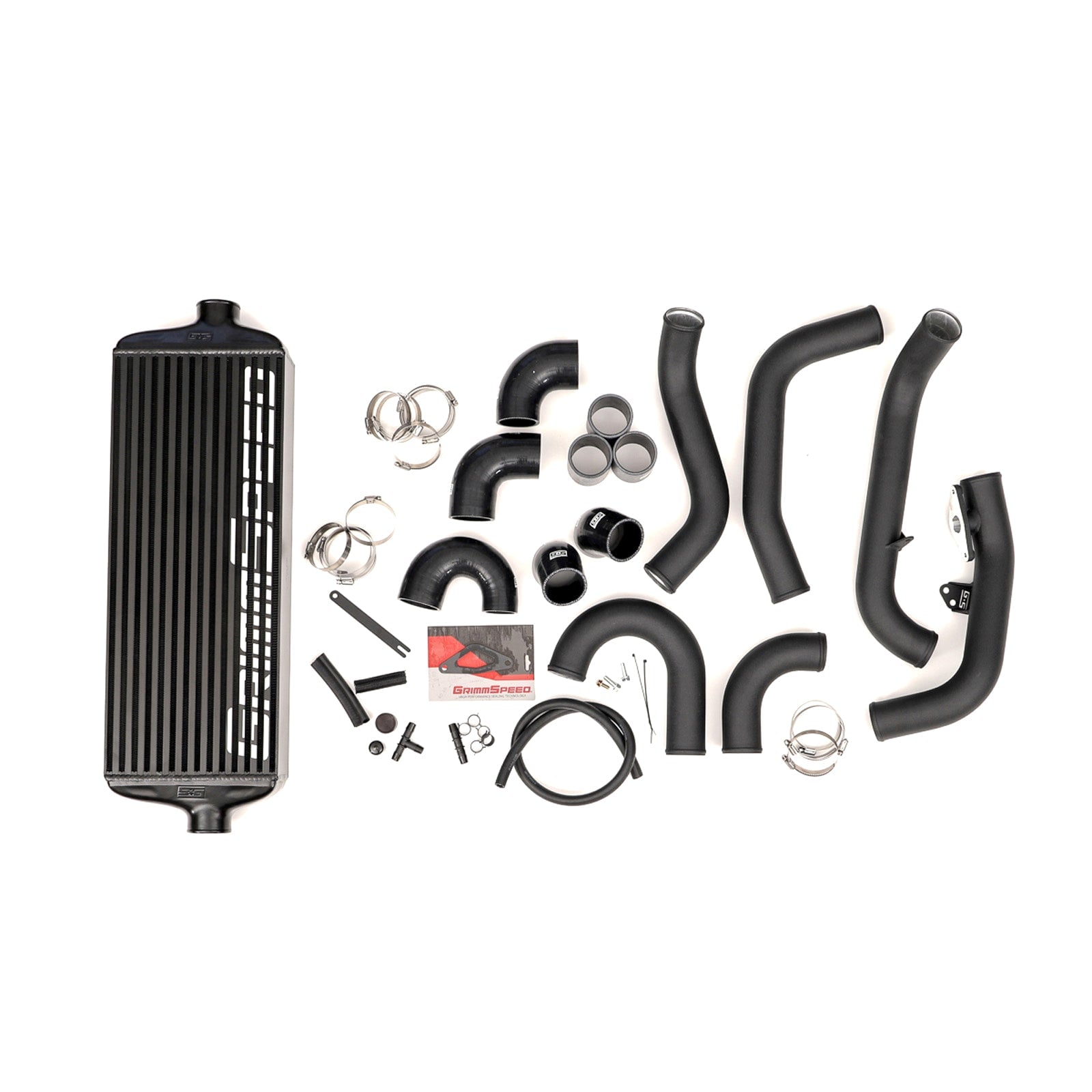

GrimmSpeed Front Mount Intercooler Kit for VA Subaru STI

GrimmSpeed’s Front Mount Intercooler Kit for VA Subaru STI relocates intercooling on the 2.5L EJ257 to a 27 x 11 x 4 in cross flow bar-and-plate core ahead of the radiator, fed by 2.5 in inside diameter 6061 aluminum piping with a 0.090 in wall. Cast end tanks were designed alongside that core, and every unit is welded and inspected by hand in the USA. The kit is aimed at the STI owner who has lapped a track or run a hot mountain road and felt the top mount fade; for gentle street use at stock boost it is more cooling than the car strictly needs. GrimmSpeed lists no tune requirement and no change in boost or spool.

Features

Large cross flow core with bar-and-plate construction, balanced between heat rejection and pressure drop
Cast aluminum end tanks designed with the core for equal flow distribution
Steel bolt-on brackets that keep the core from shifting under hard track driving
Thick-wall piping, bead rolled at each end so the couplers lock in place under boost
Precision routing that keeps factory components and fog light mounting in place
Stainless Breeze Hi-Torque liner clamps that grip without cutting the silicone
OEM bypass valve location, compatible with most aftermarket valves

Specifications

Core Dimensions: 27 x 11 x 4 in
Pipe Size: 2.5 in inside diameter
Pipe Wall: 0.090 in
Pipe Material: 6061 aluminum, CNC mandrel bent
Coupler Construction: 5-ply silicone
Finish Options: Raw Aluminum or satin black core; red or black wrinkle powdercoat piping

Applications

Subaru WRX STI: VA | 2015-2021 | 2.5L EJ257

Notes

The Front Mount Intercooler Kit for VA Subaru STI needs no tune; GrimmSpeed states maximum boost and time to spool are unchanged
The only permanent modifications are removing two small ribs on the OEM undertray and a few cuts to the splash guard
The snorkel on the factory intake must be removed. GrimmSpeed recommends its GrimmSpeed StealthBox Cold Air Intake for VA Subaru STI for best results, and that intake requires a tune.

Frequently Asked Questions

Does the GrimmSpeed Front Mount Intercooler Kit for VA Subaru STI need a tune? No. GrimmSpeed lists no tune requirement for the GrimmSpeed Front Mount Intercooler Kit for VA Subaru STI and reports no change in maximum boost or time to spool on the EJ257. Adding the recommended GrimmSpeed STI intake at the same time does bring a tune into play, since that intake is not compatible with the factory calibration.
How much cutting does installation involve on a 2015-2021 STI? Very little. Two small ribs are trimmed from the OEM undertray and the splash guard takes a few simple cuts. GrimmSpeed routes the piping so that the bumper cover and light housings stay uncut, and the washer tank and coolant reservoir do not need to be moved or replaced.
Can I keep the factory STI airbox? Yes, with one change: the factory intake snorkel has to come out to make room for the piping. GrimmSpeed recommends its StealthBox intake for the STI to get the most from the front mount, but that intake requires a tune and does not work with off-the-shelf maps.
Is the STI front mount kit the same as the WRX kit? No. Both use a 27 x 11 x 4 inch core, but GrimmSpeed sells separate kits for the 2015-2021 STI with the EJ257 and the 2015-2021 WRX with the FA20DIT, each with its own part numbers and installation instructions. Order the kit listed for the STI.
What finish choices are offered? Four combinations are offered. The core can be left as raw aluminum or ordered in satin black powdercoat for rock chip protection, and the piping is finished in red or black wrinkle powdercoat to match other GrimmSpeed parts. A removable GrimmSpeed vinyl decal comes pre-applied to the core.

About GrimmSpeed

GrimmSpeed began in 2006 in a single-stall garage in Maplewood, Minnesota, porting and polishing Subaru manifolds. After building parts for several other makes, the company narrowed its focus back to Subaru, and its range now covers intercoolers, charge pipes, intakes, bypass valves, headers, up-pipes, catback exhausts, turbochargers, brake caliper kits, drivetrain mounts and titanium engine bay parts for the WRX, STI, Forester XT, Legacy GT, Ascent and BRZ, along with the Toyota 86 and GR86. GrimmSpeed engineers and manufactures as much of that range as it can in-house, and its front mount intercoolers are welded and inspected by hand in the USA.
