Does the equal length header for VB WRX require a tune?

No. GrimmSpeed lists the equal length header for VB WRX and the other FA24DIT applications as needing no tune and safe to run as a direct bolt-on. Gaskets and hardware are included, and GrimmSpeed publishes a PDF installation guide for the 2022 to 2025 WRX.

Does the GrimmSpeed FA24 header fit the Ascent, Outback and Legacy?

Yes, according to GrimmSpeed. The listed fitments are the 2019 and later Ascent, the Outback Wilderness, XT and Onyx trims with the FA24DIT, and the Legacy Sport and XT trims with the FA24DIT, along with the 2022 and later WRX. Naturally aspirated Outback and Legacy models are not included.

Will the VB WRX header reduce ground clearance?

No. The cast collector places the runners so the header fits between the stock skid plate and the oil pan. GrimmSpeed states there is no ground clearance loss, and the factory skid plate goes back on without spacers once the header is installed.

What size are the runners on the GrimmSpeed VB header?

The runners are 1.75 in, 14 gauge 304 stainless tubing, CNC bent and trimmed as single pieces. GrimmSpeed holds the variance between the longest and shortest runner to under 1 percent, with almost no variance in bend angle, which is what makes the design a true equal length header.

Why does a cast collector matter on the FA24 header?

A cast collector lets GrimmSpeed set the exact runner spacing and angles needed for equal lengths and bends, with smoother and more consistent internal flow than a welded collector. It also avoids the weld junctions where other headers can interrupt flow or crack, and it helps the header clear the skid plate.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

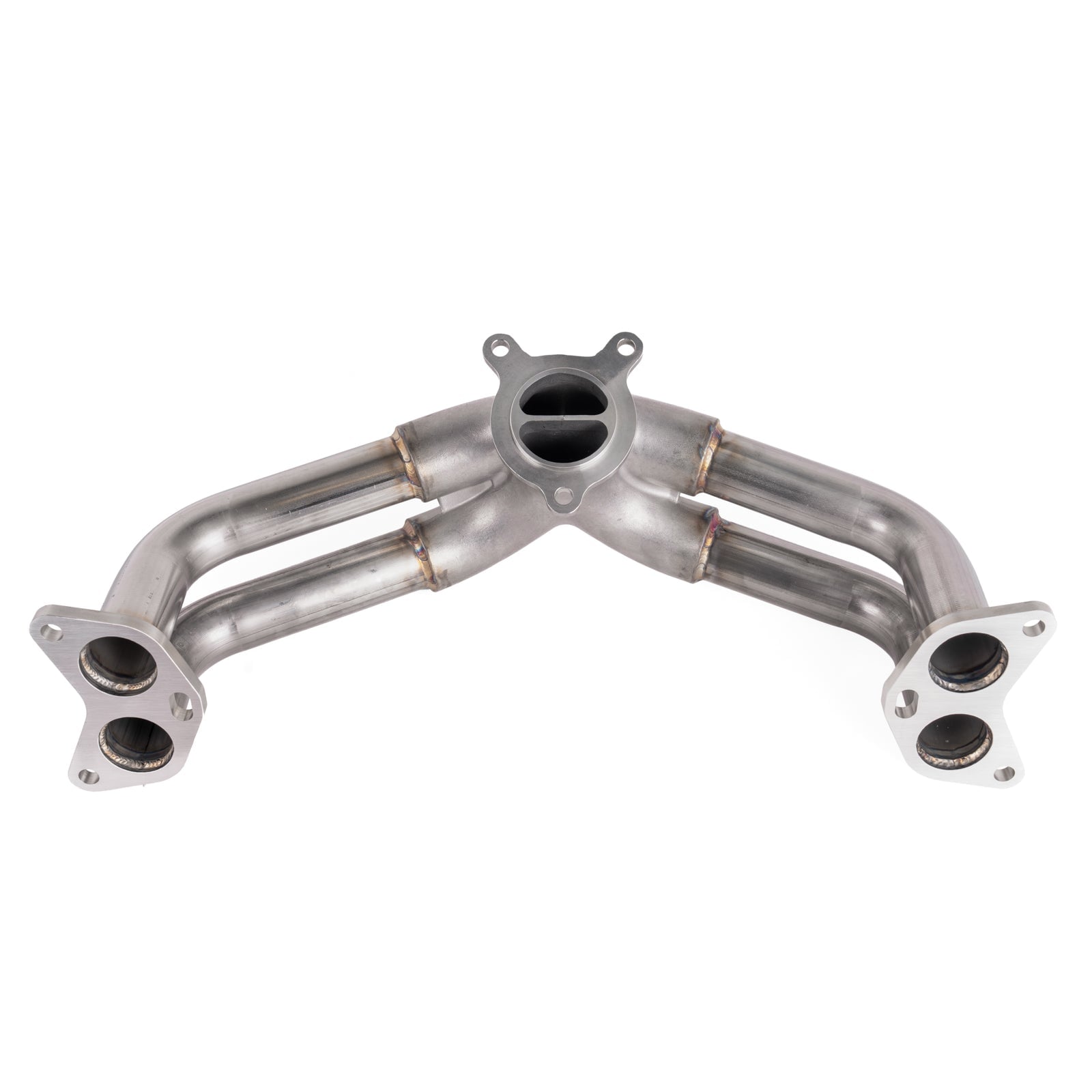

GrimmSpeed Equal Length Header for VB Subaru WRX

The GrimmSpeed equal length header for VB Subaru WRX is a full 304 stainless manifold for the 2.4L FA24DIT, built from 1.75 in, 14 gauge runners that are CNC bent and trimmed as single pieces so their lengths vary by less than 1 percent. That precision feeds the twin-scroll turbo evenly. GrimmSpeed also lists the FA24DIT Ascent, Outback and Legacy. For a VB owner adding power with a bolt-on that needs no tune and costs nothing in ground clearance, this is the header we would choose; a buyer happy with factory spool can live without it.

Design and Construction

One-piece runners leave no extra welds to crack or disturb flow. They meet in a low-restriction cast 304 stainless collector that sets the spacing for equal bends and lets the header tuck between the stock skid plate and oil pan. The 1/2 in head flanges, far thicker than OEM, stay flat for a better gasket seal, and inside welds leave a rounded entry lip.

Features

Full 304 stainless construction, including the badge
Single-piece mandrel bent runners with near-zero variance in bend angle
Cast merge collector with low-restriction inlet and outlet
Step-free flow from flange to collector
Clears the factory skid plate with no spacers
No tune required
Gaskets and hardware included

Specifications

Material: 304 stainless steel
Runner Tubing: 1.75 in, 14 gauge
Head Flanges: 1/2 in, CNC cut and faced
Runner Length Variance: Under 1 percent, longest to shortest
Collector: Cast 304 stainless
Turbo Layout: Twin scroll

Applications

Subaru Ascent: WM | 2019-present | 2.4L FA24DIT
Subaru Legacy: BW | 2020-present | 2.4L FA24DIT
Subaru Outback: BT | 2020-present | 2.4L FA24DIT
Subaru WRX: VB | 2022-present | 2.4L FA24DIT

Notes

Outback fitment is limited to FA24DIT Wilderness, XT and Onyx trims, and Legacy fitment to FA24DIT Sport and XT trims; naturally aspirated models are not covered
The equal length header for VB and FA24DIT vehicles does not fit the 2015-2021 VA WRX; see the GrimmSpeed Equal Length Header for VA Subaru WRX and SJ Forester XT

Frequently Asked Questions

Does the equal length header for VB WRX require a tune? No. GrimmSpeed lists the equal length header for VB WRX and the other FA24DIT applications as needing no tune and safe to run as a direct bolt-on. Gaskets and hardware are included, and GrimmSpeed publishes a PDF installation guide for the 2022 to 2025 WRX.
Does the GrimmSpeed FA24 header fit the Ascent, Outback and Legacy? Yes, according to GrimmSpeed. The listed fitments are the 2019 and later Ascent, the Outback Wilderness, XT and Onyx trims with the FA24DIT, and the Legacy Sport and XT trims with the FA24DIT, along with the 2022 and later WRX. Naturally aspirated Outback and Legacy models are not included.
Will the VB WRX header reduce ground clearance? No. The cast collector places the runners so the header fits between the stock skid plate and the oil pan. GrimmSpeed states there is no ground clearance loss, and the factory skid plate goes back on without spacers once the header is installed.
What size are the runners on the GrimmSpeed VB header? The runners are 1.75 in, 14 gauge 304 stainless tubing, CNC bent and trimmed as single pieces. GrimmSpeed holds the variance between the longest and shortest runner to under 1 percent, with almost no variance in bend angle, which is what makes the design a true equal length header.
Why does a cast collector matter on the FA24 header? A cast collector lets GrimmSpeed set the exact runner spacing and angles needed for equal lengths and bends, with smoother and more consistent internal flow than a welded collector. It also avoids the weld junctions where other headers can interrupt flow or crack, and it helps the header clear the skid plate.

About GrimmSpeed

GrimmSpeed began in 2006 in a single-stall garage in Maplewood, Minnesota, porting and polishing Subaru manifolds. After building parts for several other makes, the company narrowed its focus back to Subaru, and its range now covers intercoolers, charge pipes, intakes, bypass valves, headers, up-pipes, catback exhausts, turbochargers, brake caliper kits, drivetrain mounts and titanium engine bay parts for the WRX, STI, Forester XT, Legacy GT, Ascent and BRZ, along with the Toyota 86 and GR86. GrimmSpeed engineers and manufactures as much of that range as it can in-house, and its front mount intercoolers are welded and inspected by hand in the USA.
