Does the Drivetrain Package for VA and older WRX models fit automatic cars?

No. GrimmSpeed states that the Street Transmission Mount in the Drivetrain Package for VA, GR / GV and GD cars is not compatible with 4-speed or 5-speed automatic or CVT models. The package is meant for 5-speed and 6-speed manual WRX and STI models.

Do 5-speed WRX models need extra parts?

No extra purchase is required. The 5-speed and 6-speed gearboxes differ slightly at the mount, so GrimmSpeed includes an adapter spacer with the Street Transmission Mount. On a 5-speed WRX the spacer fits between the stainless bracket and the transmission crossmember to give the mount correct geometry.

How much extra vibration should I expect?

Some, but GrimmSpeed specified street compounds: 80A urethane in the pitch stop and 75A polyurethane in the transmission mount, chosen for what GrimmSpeed calls a minimal increase in vibration during normal driving. The engine mounts are designed to firm things up without polyurethane harshness.

Does the package fit a Forester XT or Legacy GT?

Not as listed here. GrimmSpeed describes the package as fitting a wide range of 2002-2021 Subaru turbo models, but its engine mount kit is listed only for the WRX and STI. Forester XT, Legacy GT and Outback XT owners should confirm each part with GrimmSpeed before ordering.

Which mount makes the biggest difference?

Each controls a different motion. The pitch stop limits the engine nodding fore and aft against the firewall, the engine mounts limit side-to-side rock, and the transmission mount steadies the gearbox. Fitted together, they address every movement behind sloppy shifts.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

GrimmSpeed Drivetrain Package for VA, GR / GV, and GD Subaru WRX and STI

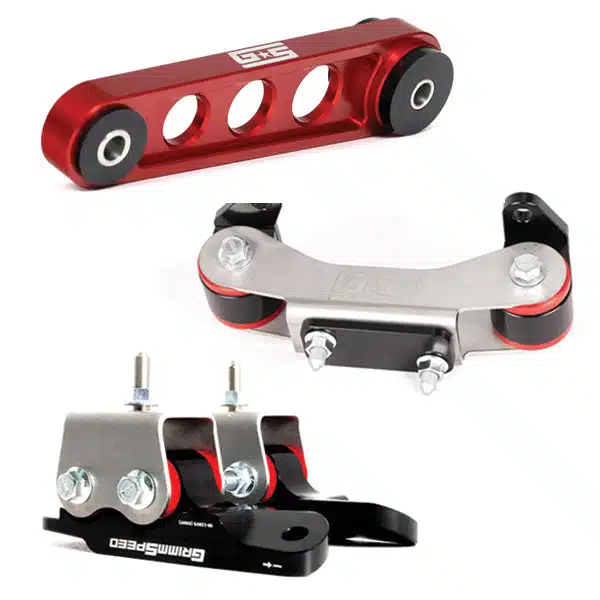

GrimmSpeed’s Drivetrain Package for VA, GR / GV and GD cars bundles three street mounts for manual WRX and STI models from 2002 to 2021, covering the EJ205, EJ255 and EJ257 as well as the FA20 in the 2015-2021 WRX. A billet 6061 Street Pitch Stop Mount on 80A urethane, a Street Transmission Mount on 75A polyurethane and billet engine mounts replace factory rubber that lets the drivetrain shuffle under load. It suits a tuned car best; a stock commuter that never launches hard may not feel the full benefit.

Fitment and Installation

The transmission mount ships assembled, with hardware and a press-fit stud. GrimmSpeed publishes separate engine mount install guides for the FA20 WRX and for EJ-powered WRX and STI models, and each engine mount body carries a slot so it can be placed by hand.

Features

Anodized one-piece billet pitch stop with a reversible logo face.
Transmission mount rated by GrimmSpeed at twice the stiffness of the Subaru Group N mount.
Covers 5-speed and 6-speed manual gearboxes; engine mounts pair billet aluminum with stainless brackets.

Specifications

Pitch stop: single-piece billet 6061 aluminum, anodized
Pitch stop bushings: 80A urethane
Transmission mount: 6061 billet aluminum and 304 stainless steel
Transmission mount bushings: 75A polyurethane
Engine mount bracket: 10-gauge 304 stainless steel
Engine mount hardware: zinc-plated Class 10.9

What’s Included

GrimmSpeed Street Pitch Stop Mount (x1)
GrimmSpeed Street Transmission Mount with 5-speed spacer (x1)
GrimmSpeed Engine Mount Kit for 2002-2021 WRX and STI (x1)

Applications

Subaru WRX: GD | 2002-2007 | 2.0L EJ205, 2.5L EJ255, 5-speed manual
Subaru WRX: GR / GV | 2008-2014 | 2.5L EJ255, 5-speed manual
Subaru WRX: VA | 2015-2021 | 2.0L FA20DIT, 6-speed manual
Subaru WRX STI: GD | 2004-2007 | 2.5L EJ257, 6-speed manual
Subaru WRX STI: GR / GV | 2008-2014 | 2.5L EJ257, 6-speed manual
Subaru WRX STI: VA | 2015-2021 | 2.5L EJ257, 6-speed manual

Notes

Manual transmission only: GrimmSpeed states its Street Transmission Mount is not compatible with 4-speed or 5-speed automatic or CVT models
Five-speed WRX models must fit the included adapter spacer between the transmission mount bracket and crossmember
None of the three mounts in the Drivetrain Package for VA, GR / GV and GD cars is listed on its own at BA

Frequently Asked Questions

Does the Drivetrain Package for VA and older WRX models fit automatic cars? No. GrimmSpeed states that the Street Transmission Mount in the Drivetrain Package for VA, GR / GV and GD cars is not compatible with 4-speed or 5-speed automatic or CVT models. The package is meant for 5-speed and 6-speed manual WRX and STI models.
Do 5-speed WRX models need extra parts? No extra purchase is required. The 5-speed and 6-speed gearboxes differ slightly at the mount, so GrimmSpeed includes an adapter spacer with the Street Transmission Mount. On a 5-speed WRX the spacer fits between the stainless bracket and the transmission crossmember to give the mount correct geometry.
How much extra vibration should I expect? Some, but GrimmSpeed specified street compounds: 80A urethane in the pitch stop and 75A polyurethane in the transmission mount, chosen for what GrimmSpeed calls a minimal increase in vibration during normal driving. The engine mounts are designed to firm things up without polyurethane harshness.
Does the package fit a Forester XT or Legacy GT? Not as listed here. GrimmSpeed describes the package as fitting a wide range of 2002-2021 Subaru turbo models, but its engine mount kit is listed only for the WRX and STI. Forester XT, Legacy GT and Outback XT owners should confirm each part with GrimmSpeed before ordering.
Which mount makes the biggest difference? Each controls a different motion. The pitch stop limits the engine nodding fore and aft against the firewall, the engine mounts limit side-to-side rock, and the transmission mount steadies the gearbox. Fitted together, they address every movement behind sloppy shifts.

About GrimmSpeed

GrimmSpeed began in 2006 in a single-stall garage in Maplewood, Minnesota, porting and polishing Subaru manifolds. After building parts for several other makes, the company narrowed its focus back to Subaru, and its range now covers intercoolers, charge pipes, intakes, bypass valves, headers, up-pipes, catback exhausts, turbochargers, brake caliper kits, drivetrain mounts and titanium engine bay parts for the WRX, STI, Forester XT, Legacy GT, Ascent and BRZ, along with the Toyota 86 and GR86. GrimmSpeed engineers and manufactures as much of that range as it can in-house, and its front mount intercoolers are welded and inspected by hand in the USA.
