Does the GrimmSpeed 2008-2014 WRX intake need a tune?

Yes. GrimmSpeed lists this intake as Tuning Required and not compatible with the factory tune or any off-the-shelf maps, and its install guide warns against operating the vehicle without a proper tune. GrimmSpeed recommends a professional tune for the best power and air fuel ratios.

How much power does the Cold Air Intake for GR / GV cars add?

GrimmSpeed publishes no bolt-on figure for the Cold Air Intake for GR / GV WRX and STI models. On its tuned and modified 2012 WRX, the intake made 21 whp more at peak and up to 30 whp more earlier in the powerband than another popular intake on the same map. GrimmSpeed says both runs were rich.

Does it fit the 2009-2013 Forester XT and the STI?

Yes. GrimmSpeed lists the 2008-2014 WRX, the 2008-2014 STI and the 2009-2013 Forester XT for this intake. The earlier 2004-2008 Forester XT and the 2002-2007 WRX and STI take a different GrimmSpeed intake, and the 2015 and later cars are not covered.

Do I need to remove the factory snorkel?

Yes, on vehicles that have one. The GrimmSpeed install guide starts by releasing the pop clips on the factory snorkel, then removes the factory airbox and moves the MAF sensor to the GrimmSpeed tube. The filter is then set 1 inch from the end of the straightener.

How long does installation take?

GrimmSpeed rates the installation at 30 minutes in its quick specs, while the written guide allows 45 to 60 minutes at medium difficulty. Screwdrivers, wire cutters, 10mm sockets and wrenches and a 3mm Allen wrench cover the whole job from start to finish.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

GrimmSpeed Cold Air Intake for GR / GV Subaru WRX and STI, and SH Forester XT

The GrimmSpeed Cold Air Intake for GR / GV Subaru WRX and STI, and SH Forester XT takes the place of the factory airbox on the EJ255 and EJ257, with a TIG-welded aluminum tube, 6061 MAF flange and riveted shield. One design covers the 2008-2014 WRX and STI and the 2009-2013 Forester XT. GrimmSpeed says it tunes as predictably as the stock box, but a tune is required, so a vehicle staying on the factory map should keep its airbox.

Development and Testing

GrimmSpeed’s studies of MAF placement showed that the velocity profile at the sensor decides reading accuracy, because the MAF samples air speed at the center of the tube. Dyno validation followed on its 2012 WRX, against the stock airbox and a rival intake.

Features

Hybrid cold air and short ram layout with minimal tube length and bend angle
MAF sensor mounted inside the heat shield, isolated from engine bay heat
Air straightener that mimics the factory configuration for accurate MAF readings
Custom high-flow filter, reusable, with an integrated velocity stack entrance
Laser-cut, CNC-bent heat shield in textured black powdercoat
Made in the USA, with the tube finished in black or red

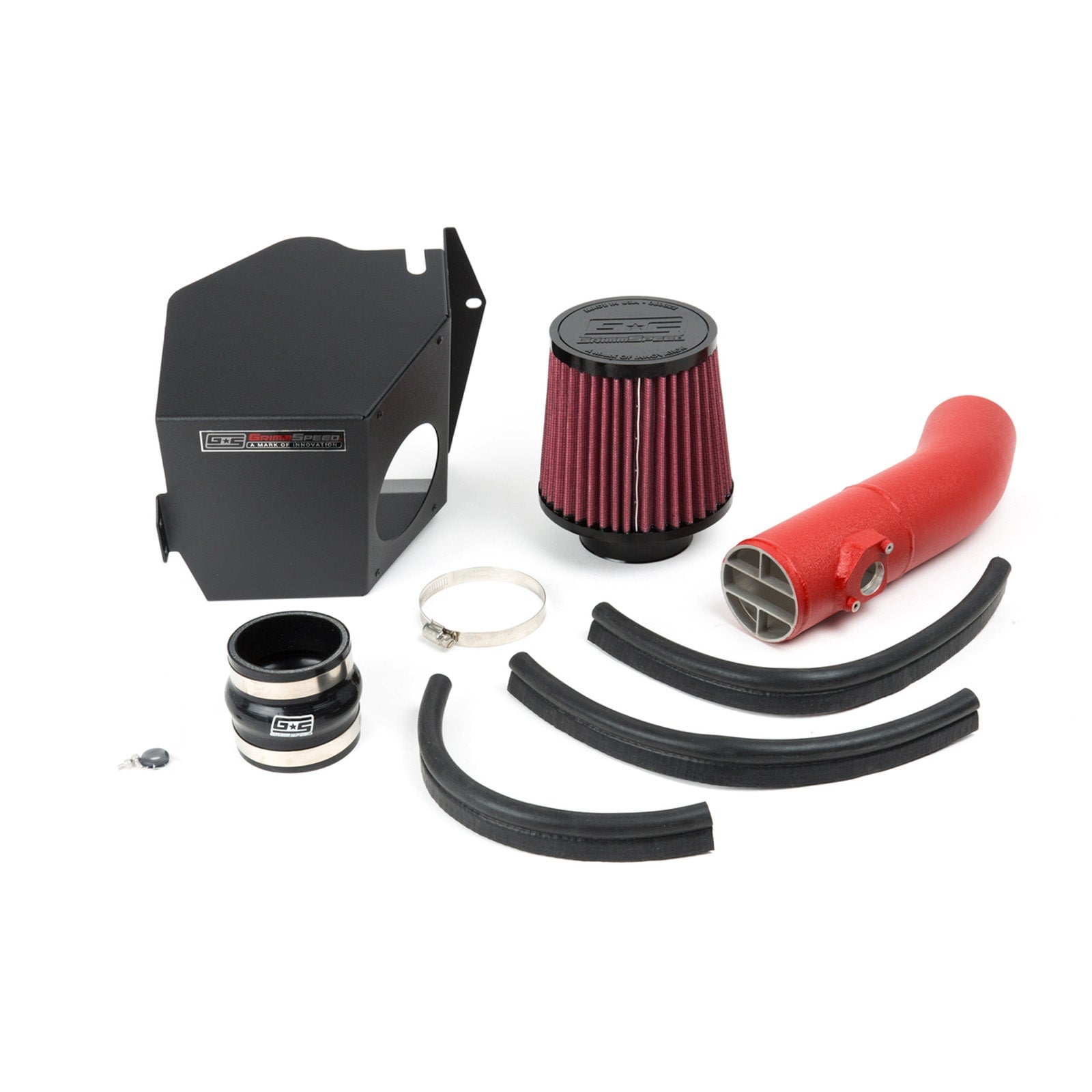

What’s Included

Intake tube
High-flow dry filter
Hump hose connector
Heat shield assembly
Hose clamps (x3)
MAF flange screws (x2)
Precut rubber sealing strip (x3)
MAF wire grommet

Applications

Subaru Forester XT: SH | 2009-2013 | 2.5L EJ255
Subaru WRX: GR / GV | 2008-2014 | 2.5L EJ255
Subaru WRX STI: GR / GV | 2008-2014 | 2.5L EJ257

Notes

Tuning is mandatory: GrimmSpeed rates this intake as incompatible with the factory tune and with off-the-shelf maps
FAQ power figures come from GrimmSpeed’s 2012 WRX with a 3-Port EBCS, downpipe, up-pipe and top mount intercooler on a COBB Stage 2 93 octane SF map, comparing two intakes; they are not bolt-on gains
The Cold Air Intake for GR / GV WRX, STI and SH Forester XT reuses the factory MAF sensor
Also available as part of the GrimmSpeed Stage 1 Power Package for GV / GR STI and the GrimmSpeed Stage 1 Power Package for GR / GV WRX and Forester XT

Frequently Asked Questions

Does the GrimmSpeed 2008-2014 WRX intake need a tune? Yes. GrimmSpeed lists this intake as Tuning Required and not compatible with the factory tune or any off-the-shelf maps, and its install guide warns against operating the vehicle without a proper tune. GrimmSpeed recommends a professional tune for the best power and air fuel ratios.
How much power does the Cold Air Intake for GR / GV cars add? GrimmSpeed publishes no bolt-on figure for the Cold Air Intake for GR / GV WRX and STI models. On its tuned and modified 2012 WRX, the intake made 21 whp more at peak and up to 30 whp more earlier in the powerband than another popular intake on the same map. GrimmSpeed says both runs were rich.
Does it fit the 2009-2013 Forester XT and the STI? Yes. GrimmSpeed lists the 2008-2014 WRX, the 2008-2014 STI and the 2009-2013 Forester XT for this intake. The earlier 2004-2008 Forester XT and the 2002-2007 WRX and STI take a different GrimmSpeed intake, and the 2015 and later cars are not covered.
Do I need to remove the factory snorkel? Yes, on vehicles that have one. The GrimmSpeed install guide starts by releasing the pop clips on the factory snorkel, then removes the factory airbox and moves the MAF sensor to the GrimmSpeed tube. The filter is then set 1 inch from the end of the straightener.
How long does installation take? GrimmSpeed rates the installation at 30 minutes in its quick specs, while the written guide allows 45 to 60 minutes at medium difficulty. Screwdrivers, wire cutters, 10mm sockets and wrenches and a 3mm Allen wrench cover the whole job from start to finish.

About GrimmSpeed

GrimmSpeed began in 2006 in a single-stall garage in Maplewood, Minnesota, porting and polishing Subaru manifolds. After building parts for several other makes, the company narrowed its focus back to Subaru, and its range now covers intercoolers, charge pipes, intakes, bypass valves, headers, up-pipes, catback exhausts, turbochargers, brake caliper kits, drivetrain mounts and titanium engine bay parts for the WRX, STI, Forester XT, Legacy GT, Ascent and BRZ, along with the Toyota 86 and GR86. GrimmSpeed engineers and manufactures as much of that range as it can in-house, and its front mount intercoolers are welded and inspected by hand in the USA.
