Does the Air/Oil Separator Kit for GR / GV WRX keep the factory PCV valve?

Yes. The GrimmSpeed Air/Oil Separator Kit for GR / GV WRX, Legacy GT, Outback XT and Forester XT retains the factory PCV valve in its recommended installation. The separator threads into the oil filler neck and joins the existing head and crankcase breather hoses through the supplied tee and connectors.

Will I still need to empty a catch can?

No. GrimmSpeed describes the separator as maintenance free and self-maintained, so there is no catch can to check, drain or refill oil after. It coalesces oil out of the ventilation air without mesh media, which GrimmSpeed avoids because mesh can collect contaminants and build up sludge.

Why does oil in the intake matter on a turbo Subaru?

GrimmSpeed lists four effects of oil in the intake system: reduced effective fuel octane, a higher chance of engine knock, worse emissions and higher oil consumption. On a turbocharged EJ255 the knock risk is the one that matters most, since detonation is what damages these engines.

Will the GrimmSpeed AOS work on a built engine?

Possibly not. GrimmSpeed states that this separator is designed to handle factory amounts of blow-by and may not work for an engine that is built or that shows abnormal oil consumption. Those engines usually need a separator sized for higher crankcase flow.

How difficult is the GrimmSpeed AOS install?

It is a home garage job for someone comfortable removing the top mount intercooler. The separator threads into the oil fill, the supplied hoses join it to the cylinder head and crankcase breather lines, and the hoses route under the intercooler. GrimmSpeed publishes a written guide for these vehicles.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

GrimmSpeed Air/Oil Separator Kit for GR / GV Subaru WRX, BL / BP Legacy GT and Outback XT, and SH Forester XT

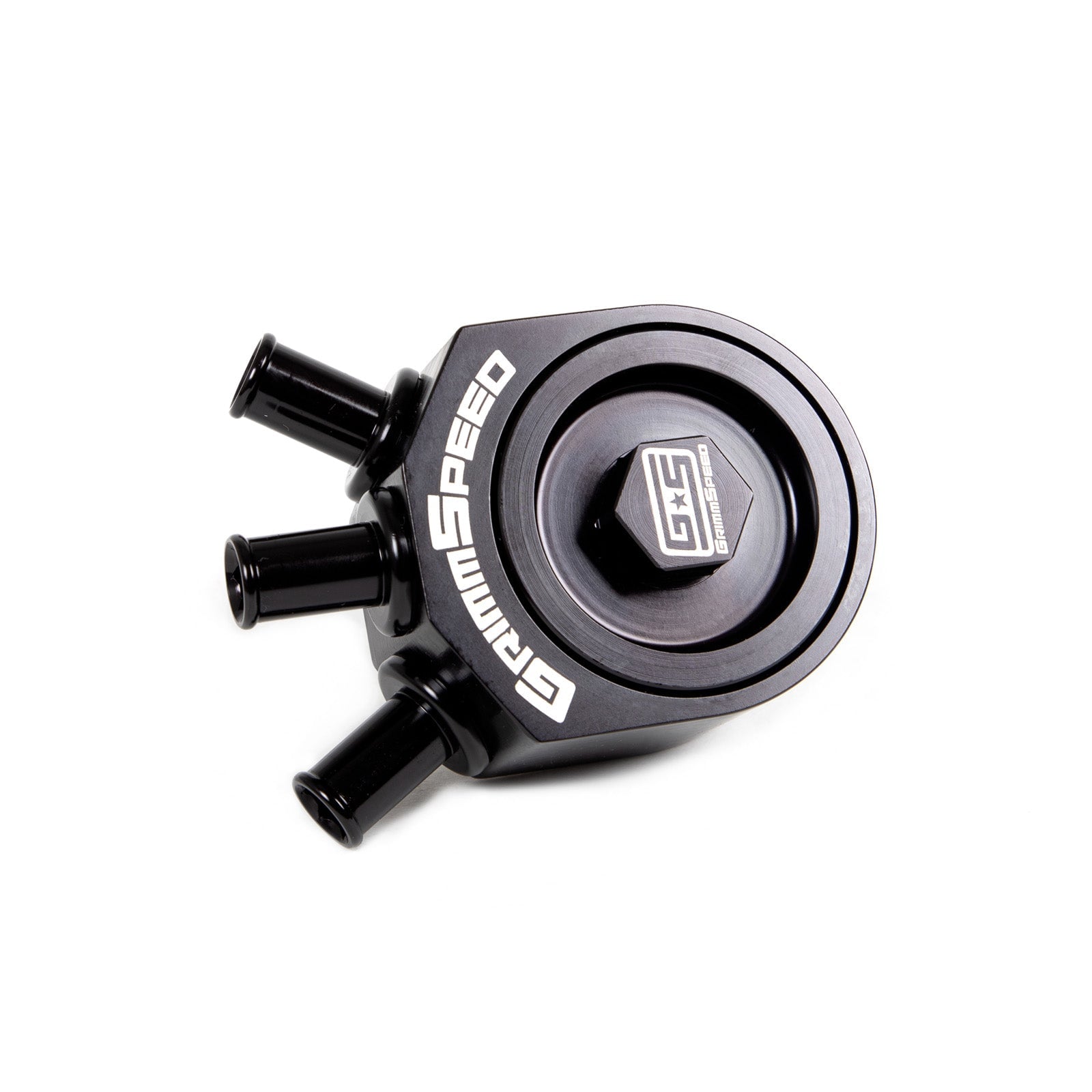

GrimmSpeed’s Air/Oil Separator Kit for GR / GV Subaru WRX, the BL / BP Legacy GT and Outback XT, and the SH Forester XT pulls oil out of the EJ255 crankcase and head ventilation air before it reaches the intake. The compact, fully machined billet aluminum body threads into the oil filler neck, and GrimmSpeed keeps the factory PCV valve in its recommended installation. With no mesh element to clog and no reservoir to empty, it beats a conventional catch can on upkeep. It is sized for factory blow-by, so it suits a healthy stock or lightly modified engine rather than a built one.

Features

Self-maintained design with no catch can to check or empty
Fully machined billet aluminum, black or red anodized
User replaceable O-ring seals
Factory PCV valve retained

What’s Included

GrimmSpeed billet air/oil separator
AOS hose fittings (x3)
1/2 in tee hose connector
1/2 in to 5/8 in hose connectors (x4)
5/8 in 90 degree elbow hose connector
Hose caps and plugs, 1/2 in and 5/8 in
Hose: 8 ft of 1/2 in, 1 ft of 3/8 in, 1 ft of 5/8 in
Zip ties (x20)

Applications

Subaru Forester XT: SH | 2009-2013 | 2.5L EJ255
Subaru Legacy GT: BL / BP | 2005-2009 | 2.5L EJ255
Subaru Outback XT: BP | 2005-2009 | 2.5L EJ255
Subaru WRX: GR / GV | 2008-2014 | 2.5L EJ255

Notes

GrimmSpeed designed this separator for factory amounts of blow-by; on a built engine or one with abnormal oil consumption it may not work
The intercooler comes off during installation, and the new hoses must tuck under it without being pinched when it goes back on
GrimmSpeed warns against over tightening the unit into the oil fill; the fittings face the brake master cylinder
The Air/Oil Separator Kit for GR / GV WRX and its sister fitments is a different part from the GrimmSpeed AOS for the 2002-2007 WRX and STI

Frequently Asked Questions

Does the Air/Oil Separator Kit for GR / GV WRX keep the factory PCV valve? Yes. The GrimmSpeed Air/Oil Separator Kit for GR / GV WRX, Legacy GT, Outback XT and Forester XT retains the factory PCV valve in its recommended installation. The separator threads into the oil filler neck and joins the existing head and crankcase breather hoses through the supplied tee and connectors.
Will I still need to empty a catch can? No. GrimmSpeed describes the separator as maintenance free and self-maintained, so there is no catch can to check, drain or refill oil after. It coalesces oil out of the ventilation air without mesh media, which GrimmSpeed avoids because mesh can collect contaminants and build up sludge.
Why does oil in the intake matter on a turbo Subaru? GrimmSpeed lists four effects of oil in the intake system: reduced effective fuel octane, a higher chance of engine knock, worse emissions and higher oil consumption. On a turbocharged EJ255 the knock risk is the one that matters most, since detonation is what damages these engines.
Will the GrimmSpeed AOS work on a built engine? Possibly not. GrimmSpeed states that this separator is designed to handle factory amounts of blow-by and may not work for an engine that is built or that shows abnormal oil consumption. Those engines usually need a separator sized for higher crankcase flow.
How difficult is the GrimmSpeed AOS install? It is a home garage job for someone comfortable removing the top mount intercooler. The separator threads into the oil fill, the supplied hoses join it to the cylinder head and crankcase breather lines, and the hoses route under the intercooler. GrimmSpeed publishes a written guide for these vehicles.

About GrimmSpeed

GrimmSpeed began in 2006 in a single-stall garage in Maplewood, Minnesota, porting and polishing Subaru manifolds. After building parts for several other makes, the company narrowed its focus back to Subaru, and its range now covers intercoolers, charge pipes, intakes, bypass valves, headers, up-pipes, catback exhausts, turbochargers, brake caliper kits, drivetrain mounts and titanium engine bay parts for the WRX, STI, Forester XT, Legacy GT, Ascent and BRZ, along with the Toyota 86 and GR86. GrimmSpeed engineers and manufactures as much of that range as it can in-house, and its front mount intercoolers are welded and inspected by hand in the USA.
