Does the 326mm Brake Caliper Kit for ZC6 and ZD8 cars include rotors and pads?

No. The 326mm Brake Caliper Kit for ZC6, ZD8, ZN6 and ZN8 cars includes two calipers, two brackets, hardware, a fitment template and instructions. Rotors and pads are separate purchases: GrimmSpeed lists Subaru OEM rotor 26300FE001, a 326 x 30mm 5 x 100 part, and F50 pads to FMSI D1001.

Does this GrimmSpeed caliper kit fit the 2022 and later BRZ and GR86?

Yes. GrimmSpeed lists its BRZ, Toyota GR86 and Scion FR-S kits for the first generation, starting in 2013, and for the second generation that arrived for 2022. Both use a leading caliper position, which is why GrimmSpeed mirrors these calipers internally instead of reusing the WRX design.

Will GrimmSpeed calipers clear 17 inch BRZ wheels?

Often, and GrimmSpeed has verified select 17 inch wheels at appropriate offsets without naming specific factory wheels. Its figures put the caliper 3.5mm wider on the outboard side than the STI caliper and 11.5mm taller at the spring bridge securing point. Test the printable 1:1 template in your wheel first.

Do I need to change brake lines for these calipers?

No. The calipers connect to the factory BRZ and GR86 brake lines with the supplied banjo bolts and crush washers, and lines are not in the box. GrimmSpeed notes that new lines may be recommended depending on the vehicle, so braided lines suit a car used for regular track days.

Why buy this kit instead of swapping used STI Brembos onto a BRZ?

GrimmSpeed built the kit so owners avoid sourcing used Brembos or fabricating brackets. The calipers are new, mirrored for the leading position on these cars and supplied with vehicle-specific brackets and hardware. GrimmSpeed also reports third-party testing showing lower drag and smoother pedal response than OEM STI Brembos.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

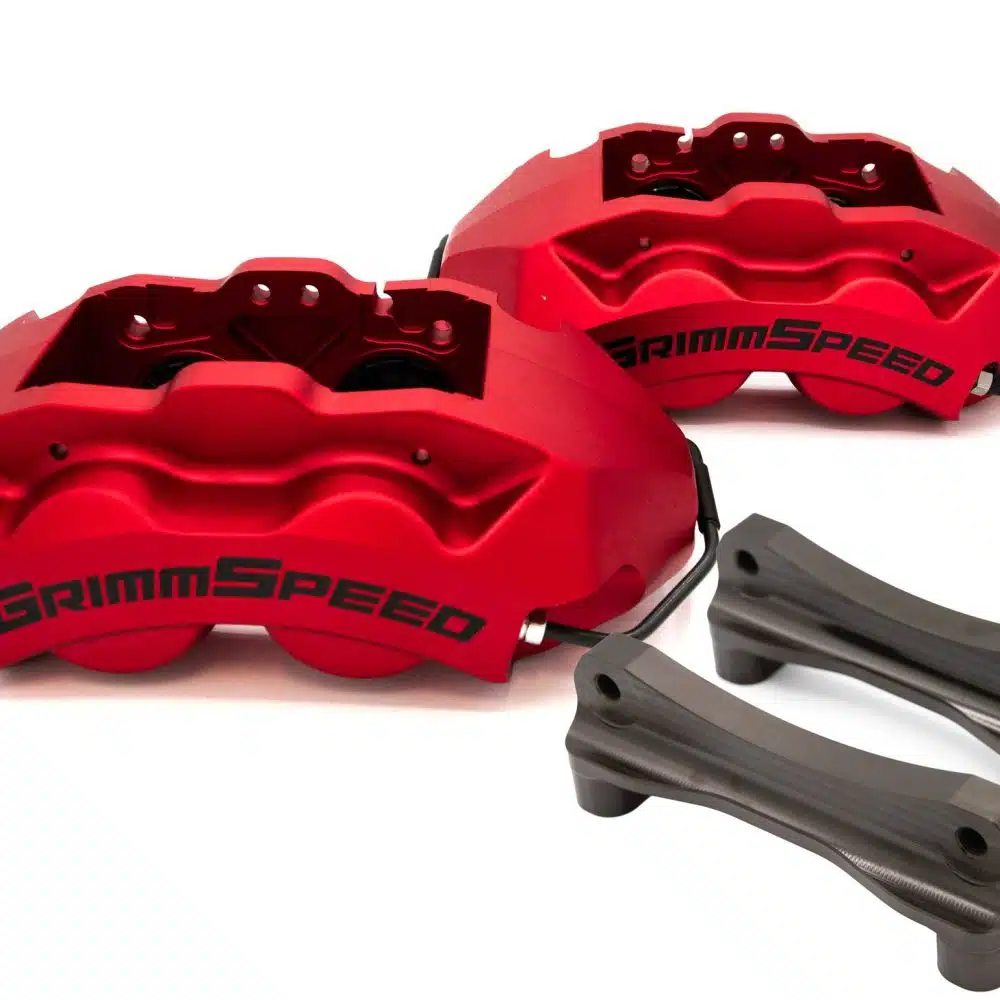

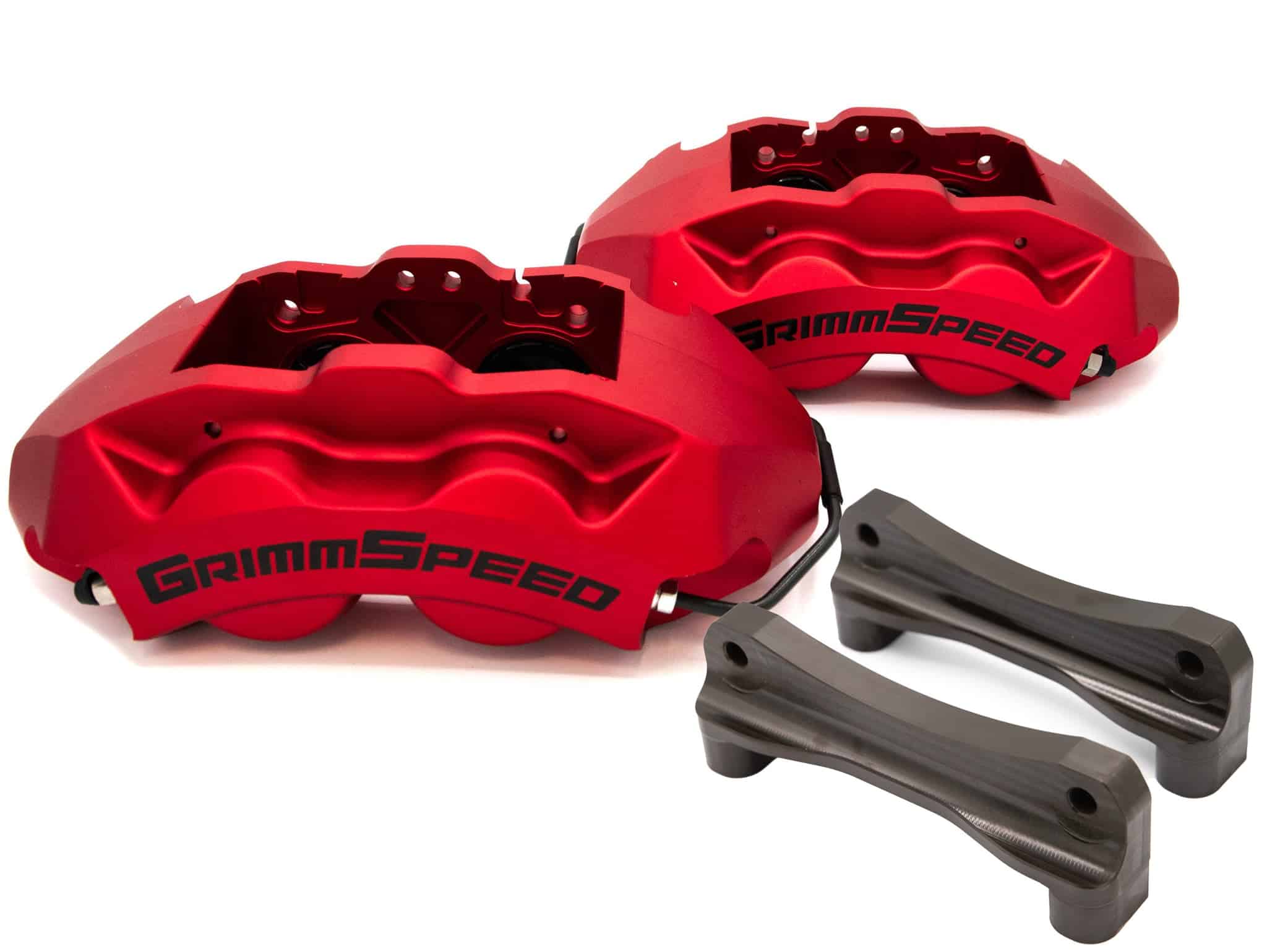

GrimmSpeed 4-Piston 326mm Brake Caliper Kit for ZC6 / ZD8 Subaru BRZ and ZN6 / ZN8 Toyota 86 and GR86

The GrimmSpeed 326mm Brake Caliper Kit for ZC6 / ZD8 Subaru BRZ and its Toyota and Scion twins covers both generations, from the 2013 BRZ and FR-S through the 2022 and later BRZ and GR86. GrimmSpeed mirrors these calipers internally for the leading caliper position these cars use, so this is a dedicated design. The kit is matched to Subaru rotor 26300FE001, a 326 x 30mm 5×100 part, and to F50 pads, FMSI D1001. It is the sensible first step for an owner who tracks the car and wants OEM rotor availability; the 340mm version is the larger option.

Features

Internally mirrored to suit the leading caliper position on the BRZ and GR86
Two-piece forged 6061-T6 aluminum body, hard anodized for heat and corrosion resistance
Unequal 44mm and 41mm pistons per side for even pad contact
Vented, Type 3 hard anodized billet pistons
Billet 4140 chromoly brackets with an electrocoated finish
Lightweight build of approximately 9.9 lb per corner, bracket and hardware included

What’s Included

GrimmSpeed 4-piston brake calipers, Red or Gunmetal Gray (x2)
Vehicle-specific billet 4140 steel caliper brackets (x2)
Hardware kit: bridge bolts, banjo bolts, crush washers, bleeder dust caps, caliper guide pins, security cotter pins, caliper spring bridges and bolts
Printable 1:1 fitment template
Installation instructions

Applications

Scion FR-S: ZN6 | 2013-2016 | 2.0L FA20
Subaru BRZ: ZC6 / ZD8 | 2013-2020 and 2022-present | 2.0L FA20 / 2.4L FA24
Toyota 86: ZN6 | 2017-2020 | 2.0L FA20
Toyota GR86: ZN8 | 2022-present | 2.4L FA24

Notes

Rotors and brake pads are not included; the 326mm Brake Caliper Kit for ZC6 and later cars needs 326 x 30mm rotors such as Subaru 26300FE001 and F50 pads to FMSI D1001
GrimmSpeed lists BRZ, Toyota GR86 and Scion FR-S fitment for both the first generation and the 2022 and later second generation
The calipers reuse the factory brake lines and no lines come in the kit; GrimmSpeed says new lines may be recommended depending on the vehicle

Frequently Asked Questions

Does the 326mm Brake Caliper Kit for ZC6 and ZD8 cars include rotors and pads? No. The 326mm Brake Caliper Kit for ZC6, ZD8, ZN6 and ZN8 cars includes two calipers, two brackets, hardware, a fitment template and instructions. Rotors and pads are separate purchases: GrimmSpeed lists Subaru OEM rotor 26300FE001, a 326 x 30mm 5 x 100 part, and F50 pads to FMSI D1001.
Does this GrimmSpeed caliper kit fit the 2022 and later BRZ and GR86? Yes. GrimmSpeed lists its BRZ, Toyota GR86 and Scion FR-S kits for the first generation, starting in 2013, and for the second generation that arrived for 2022. Both use a leading caliper position, which is why GrimmSpeed mirrors these calipers internally instead of reusing the WRX design.
Will GrimmSpeed calipers clear 17 inch BRZ wheels? Often, and GrimmSpeed has verified select 17 inch wheels at appropriate offsets without naming specific factory wheels. Its figures put the caliper 3.5mm wider on the outboard side than the STI caliper and 11.5mm taller at the spring bridge securing point. Test the printable 1:1 template in your wheel first.
Do I need to change brake lines for these calipers? No. The calipers connect to the factory BRZ and GR86 brake lines with the supplied banjo bolts and crush washers, and lines are not in the box. GrimmSpeed notes that new lines may be recommended depending on the vehicle, so braided lines suit a car used for regular track days.
Why buy this kit instead of swapping used STI Brembos onto a BRZ? GrimmSpeed built the kit so owners avoid sourcing used Brembos or fabricating brackets. The calipers are new, mirrored for the leading position on these cars and supplied with vehicle-specific brackets and hardware. GrimmSpeed also reports third-party testing showing lower drag and smoother pedal response than OEM STI Brembos.

About GrimmSpeed

GrimmSpeed began in 2006 in a single-stall garage in Maplewood, Minnesota, porting and polishing Subaru manifolds. After building parts for several other makes, the company narrowed its focus back to Subaru, and its range now covers intercoolers, charge pipes, intakes, bypass valves, headers, up-pipes, catback exhausts, turbochargers, brake caliper kits, drivetrain mounts and titanium engine bay parts for the WRX, STI, Forester XT, Legacy GT, Ascent and BRZ, along with the Toyota 86 and GR86. GrimmSpeed engineers and manufactures as much of that range as it can in-house, and its front mount intercoolers are welded and inspected by hand in the USA.
