Does the GrimmSpeed 326mm Brake Caliper Kit for VA include rotors and pads?

No. The 326mm Brake Caliper Kit for VA, GR / GV and GD cars ships with two calipers, two billet steel brackets, hardware, a fitment template and instructions. Buy 326 x 30mm rotors separately, Subaru 26300FE001 on 5 x 100 hubs or 26300FE070 on 5 x 114.3 hubs, plus F50 pads to FMSI D1001.

Will the GrimmSpeed calipers clear 17 inch wheels?

Yes, with many wheels. GrimmSpeed says the caliper is 3.5mm wider on the outboard side than the STI caliper and 11.5mm taller at the spring bridge securing point, and it has verified select 17 inch wheels at appropriate offsets. Use the printable 1:1 template to test your exact wheel first.

Do I need new brake lines for this caliper kit?

No. The calipers connect to the factory brake lines with the supplied banjo bolts and crush washers, so no lines come in the box. GrimmSpeed adds that new lines may be recommended depending on the vehicle, and original lines on an older WRX or STI are worth replacing during the job.

How does the 326mm kit differ from the 340mm GrimmSpeed kit?

The 326mm kit uses F50 pads and has a listed OEM rotor for both 5 x 100 and 5 x 114.3 hubs. The 340mm kit changes to F40 pads, FMSI D968, and GrimmSpeed lists its OEM rotor for 5 x 114.3 cars only. A 5 x 100 car belongs on the 326mm kit.

Is the GrimmSpeed caliper kit a bolt-on install?

Yes. GrimmSpeed designed the kit around OEM-style hubs and rotors, so no knuckle swap or custom adapter is needed. The vehicle-specific brackets position the calipers, the factory lines reconnect with the supplied banjo bolts and new crush washers, and the system is then bled fully before driving.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

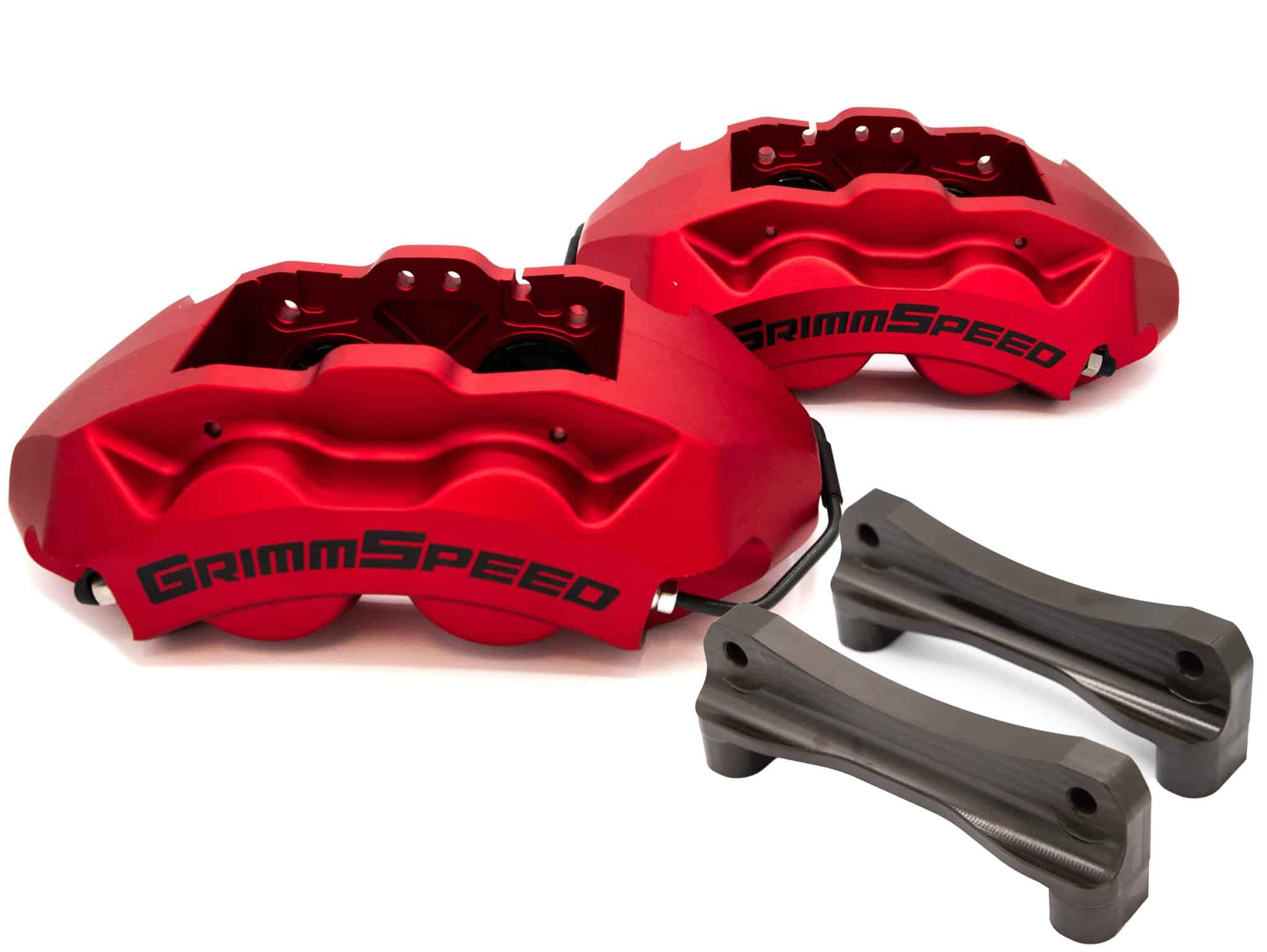

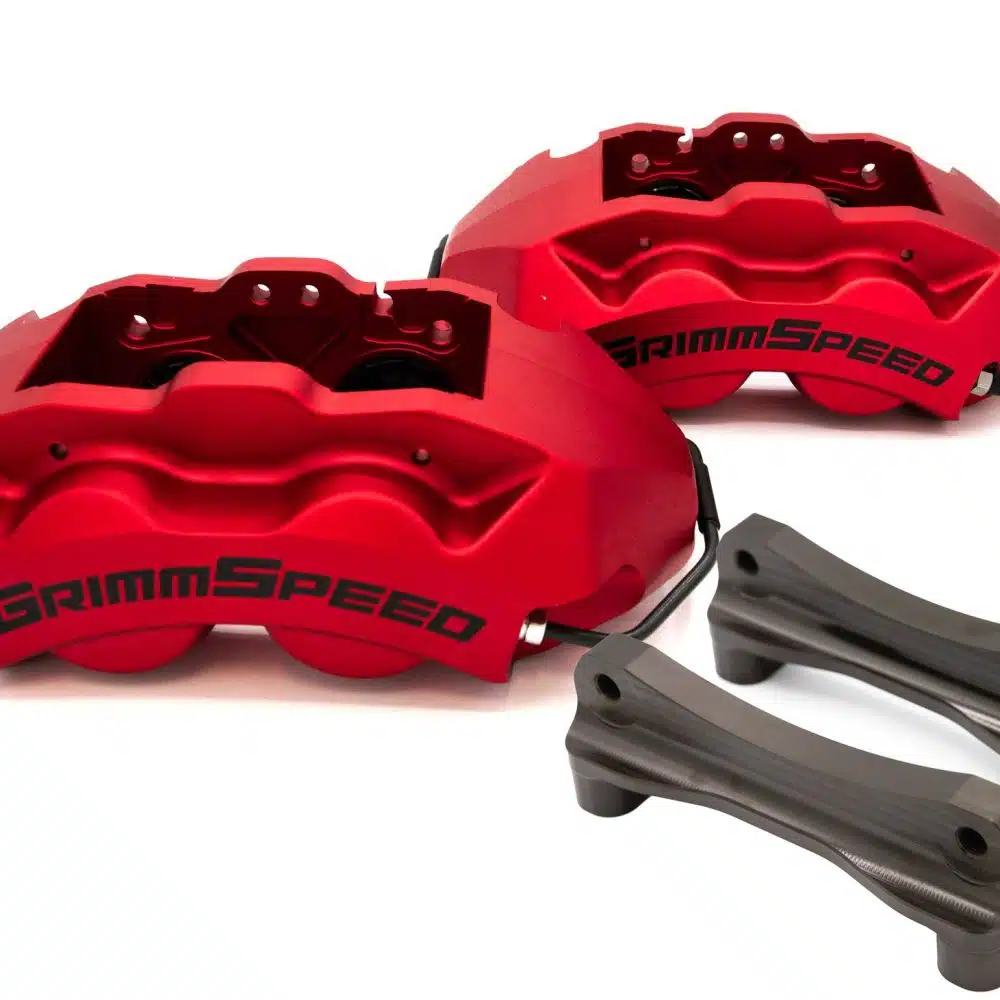

GrimmSpeed 4-Piston 326mm Brake Caliper Kit for VA, GR / GV and GD Subaru WRX and STI

The GrimmSpeed 326mm Brake Caliper Kit for VA, GR / GV and GD Subaru WRX and STI fits fixed 4-piston calipers forged from 6061-T6 aluminum over a 326 x 30mm rotor, using billet 4140 steel brackets and the widely stocked F50 pad, FMSI D1001. GrimmSpeed names an OEM Subaru rotor for either hub, 26300FE001 for 5×100 cars and 26300FE070 for 5×114.3 cars, which makes this the version that suits the most cars in the 2002-2021 range. A 5×114.3 car with room for a larger rotor can consider the 340mm kit.

Features

Two-piece forged 6061-T6 aluminum body, hard anodized against heat and corrosion
Staggered 44mm primary and 41mm secondary pistons on each side for even pad pressure and less taper wear
Vented billet pistons with Type 3 hard anodizing
Electrocoated billet 4140 chromoly brackets matched to the 326mm rotor
Lightweight at approximately 9.9 lb per corner with bracket and hardware
Runs on factory brake lines and OEM-style hubs, with no knuckle swap

What’s Included

GrimmSpeed 4-piston brake calipers, Red or Gunmetal Gray (x2)
Vehicle-specific billet 4140 steel caliper brackets (x2)
Hardware kit: bridge bolts, banjo bolts, crush washers, bleeder dust caps, caliper guide pins, security cotter pins, caliper spring bridges and bolts
Printable 1:1 fitment template
Installation instructions

Applications

Subaru WRX: GD, GR / GV, VA | 2002-2021
Subaru WRX STI: GD, GR / GV, VA | 2004-2021

Notes

Rotors and brake pads are not included; the kit needs 326 x 30mm rotors and F50 pads to FMSI D1001
GrimmSpeed lists Subaru OEM rotor 26300FE001 for 5×100 cars and 26300FE070 for 5×114.3 cars, so match the rotor to your hub bolt pattern
No brake lines are supplied; the calipers use the factory lines, and GrimmSpeed notes new lines may be recommended depending on the vehicle
The 326mm Brake Caliper Kit for VA, GR / GV and GD cars has a printable 1:1 template for checking wheel clearance before installation

Frequently Asked Questions

Does the GrimmSpeed 326mm Brake Caliper Kit for VA include rotors and pads? No. The 326mm Brake Caliper Kit for VA, GR / GV and GD cars ships with two calipers, two billet steel brackets, hardware, a fitment template and instructions. Buy 326 x 30mm rotors separately, Subaru 26300FE001 on 5 x 100 hubs or 26300FE070 on 5 x 114.3 hubs, plus F50 pads to FMSI D1001.
Will the GrimmSpeed calipers clear 17 inch wheels? Yes, with many wheels. GrimmSpeed says the caliper is 3.5mm wider on the outboard side than the STI caliper and 11.5mm taller at the spring bridge securing point, and it has verified select 17 inch wheels at appropriate offsets. Use the printable 1:1 template to test your exact wheel first.
Do I need new brake lines for this caliper kit? No. The calipers connect to the factory brake lines with the supplied banjo bolts and crush washers, so no lines come in the box. GrimmSpeed adds that new lines may be recommended depending on the vehicle, and original lines on an older WRX or STI are worth replacing during the job.
How does the 326mm kit differ from the 340mm GrimmSpeed kit? The 326mm kit uses F50 pads and has a listed OEM rotor for both 5 x 100 and 5 x 114.3 hubs. The 340mm kit changes to F40 pads, FMSI D968, and GrimmSpeed lists its OEM rotor for 5 x 114.3 cars only. A 5 x 100 car belongs on the 326mm kit.
Is the GrimmSpeed caliper kit a bolt-on install? Yes. GrimmSpeed designed the kit around OEM-style hubs and rotors, so no knuckle swap or custom adapter is needed. The vehicle-specific brackets position the calipers, the factory lines reconnect with the supplied banjo bolts and new crush washers, and the system is then bled fully before driving.

About GrimmSpeed

GrimmSpeed began in 2006 in a single-stall garage in Maplewood, Minnesota, porting and polishing Subaru manifolds. After building parts for several other makes, the company narrowed its focus back to Subaru, and its range now covers intercoolers, charge pipes, intakes, bypass valves, headers, up-pipes, catback exhausts, turbochargers, brake caliper kits, drivetrain mounts and titanium engine bay parts for the WRX, STI, Forester XT, Legacy GT, Ascent and BRZ, along with the Toyota 86 and GR86. GrimmSpeed engineers and manufactures as much of that range as it can in-house, and its front mount intercoolers are welded and inspected by hand in the USA.
