Does the GiroDisc STO Rear Iron Rotor Conversion keep the factory calipers?

Yes. GiroDisc designed the GiroDisc STO Rear Iron Rotor Conversion as a direct replacement for the carbon ceramic rear rotors, and it uses the factory Huracan STO calipers. Contact Bulletproof Automotive before ordering so the complete conversion parts list can be confirmed.

What is the minimum thickness for the STO rear rings?

GiroDisc recommends replacing these rear rings at 26mm. They should also be replaced if a crack leads to the edge of the ring, whatever the remaining thickness. The minimum figure is marked on the hat and ring edge for easy checks in the paddock.

How many vanes does each STO rear ring have?

Forty-eight curved vanes. They act as a centrifugal pump, pulling air in through the hub and pushing it out through the disc, which helps the rotor keep its temperature under control during long sessions on a fast circuit in summer heat.

Where are the STO hats, rings and drive pins made?

GiroDisc manufactures all three in-house at its facility in Bellingham, Washington, from domestically sourced materials. The hat is 6061-T6 aluminum with a black anodized finish, and the drive pins are high-strength alloy steel with cadmium plating for corrosion resistance. Every major part is therefore produced under one roof.

Will a floating rear rotor be noisy on the street?

No. GiroDisc assembles these rotors with spring clips and Belleville washers, which give the ring race-ready float while keeping the hardware from rattling. The result is a rotor that behaves on the road as well as it does on the track.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

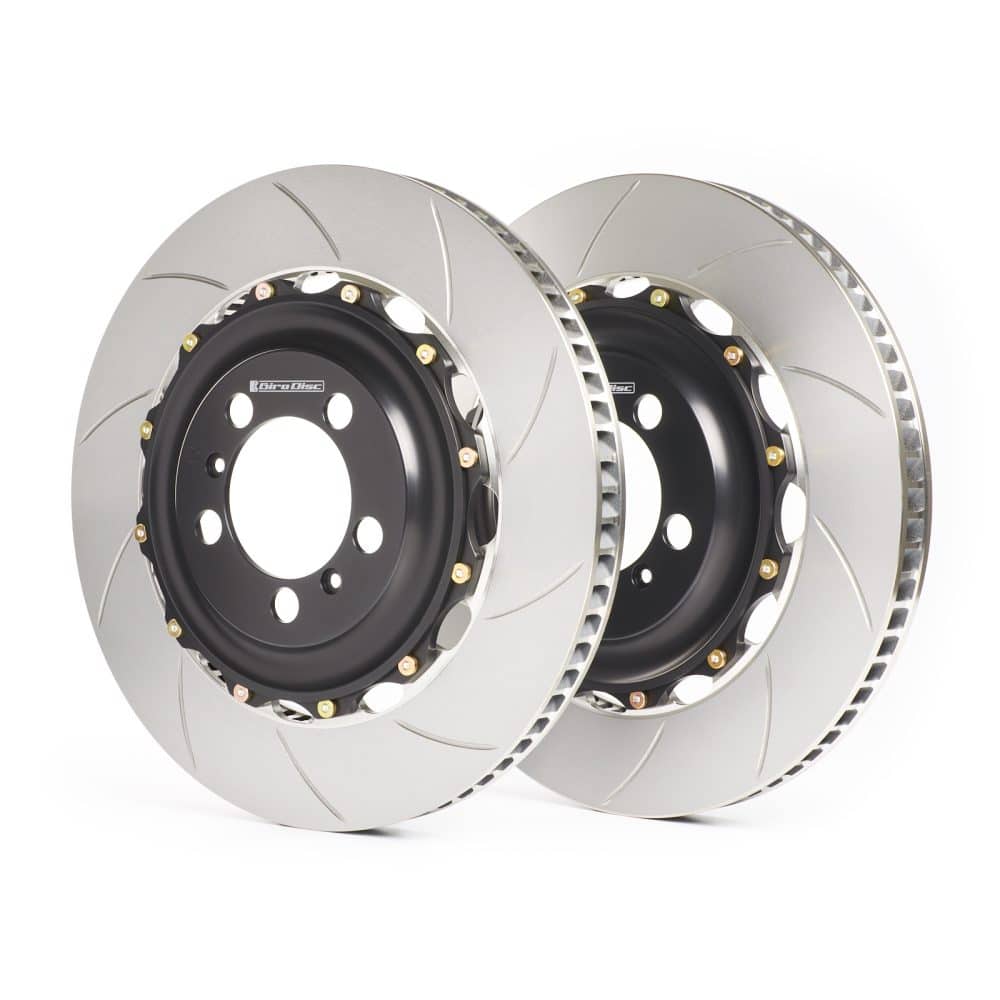

GiroDisc STO Rear Iron Rotor Conversion for Lamborghini Huracan

GiroDisc’s STO Rear Iron Rotor Conversion replaces the carbon ceramic rear discs of a Lamborghini Huracan STO with fully floating two-piece iron rotors that work with the factory calipers. Each ring is machined from a proprietary high-carbon iron casting with 48 curved vanes, and the black-anodized 6061-T6 aluminum hat, ring and drive pins are all made in-house in Bellingham, Washington, from domestically sourced materials. Spring clips and Belleville washers give race-ready float without street noise. It is aimed at the STO owner who laps the car often and wants rear rotors that are serviced by changing rings.

Design and Performance

The 48 curved vanes act as a centrifugal pump, pulling air in through the hub to cool the rotors under hard use. GiroDisc formulates the high-carbon iron to its own specification for durability, and the drive pins are high-strength alloy steel with cadmium plating against corrosion. Spring clips and Belleville washers hold the float in check, so the assembly stays quiet on the road between sessions.

Features

Direct replacement for the factory carbon ceramic rear rotors
Works with the factory Huracan STO calipers
48 curved vanes in a proprietary high-carbon iron ring
Black-anodized 6061-T6 aluminum hat
Hats, rings and drive pins made in-house in Bellingham, Washington
Spring clips and Belleville washers for float without noise

What’s Included

Rear rotor assemblies (L/R)

Applications

Lamborghini Huracan STO with carbon ceramic brakes: 5.2L V10

Notes

The GiroDisc STO Rear Iron Rotor Conversion is designed for cars delivered with factory carbon ceramic brakes
Contact Bulletproof Automotive before ordering to confirm the full parts list for the conversion
Worn rings are renewed with the GiroDisc Huracan STO rear replacement rings, which bolt to these hats
The front axle takes the GiroDisc Huracan STO front iron rotor conversion
Stock photography may not depict the actual product

Frequently Asked Questions

Does the GiroDisc STO Rear Iron Rotor Conversion keep the factory calipers? Yes. GiroDisc designed the GiroDisc STO Rear Iron Rotor Conversion as a direct replacement for the carbon ceramic rear rotors, and it uses the factory Huracan STO calipers. Contact Bulletproof Automotive before ordering so the complete conversion parts list can be confirmed.
What is the minimum thickness for the STO rear rings? GiroDisc recommends replacing these rear rings at 26mm. They should also be replaced if a crack leads to the edge of the ring, whatever the remaining thickness. The minimum figure is marked on the hat and ring edge for easy checks in the paddock.
How many vanes does each STO rear ring have? Forty-eight curved vanes. They act as a centrifugal pump, pulling air in through the hub and pushing it out through the disc, which helps the rotor keep its temperature under control during long sessions on a fast circuit in summer heat.
Where are the STO hats, rings and drive pins made? GiroDisc manufactures all three in-house at its facility in Bellingham, Washington, from domestically sourced materials. The hat is 6061-T6 aluminum with a black anodized finish, and the drive pins are high-strength alloy steel with cadmium plating for corrosion resistance. Every major part is therefore produced under one roof.
Will a floating rear rotor be noisy on the street? No. GiroDisc assembles these rotors with spring clips and Belleville washers, which give the ring race-ready float while keeping the hardware from rattling. The result is a rotor that behaves on the road as well as it does on the track.

About GiroDisc

GiroDisc designs, manufactures, and sells 2-piece, fully floating brake rotors for a wide range of performance vehicles. Every major component, including the hats, rotor rings, and drive pins, is manufactured in-house at their facility in Bellingham, Washington, from domestically sourced materials. GiroDisc rotors use a proprietary high-carbon iron ring formulated for superior metallurgy and thermal performance, paired with reusable machined-aluminum hats that reduce the long-term cost of maintaining a high-performance brake system. The 2-piece floating design sheds unsprung and rotating mass while remaining street-friendly, delivering race-proven braking for track and street use alike.
