Do the GiroDisc Rear Rotors for Mercedes-Benz S63 models bolt on directly?

Yes. The GiroDisc Rear Rotors for Mercedes-Benz S63, S65, CL63 and CL65 AMG are a direct replacement for the original rear discs. They mount to the hub and accept the factory calipers with no modification, so the installation follows the normal rotor change procedure.

Which rings renew the AMG rear rotors?

GiroDisc part D2-170, a 365x26mm rear ring set for these Mercedes hats. The rings are sold as a pair with replacement hardware and bolt to the existing hats once the iron reaches the minimum thickness marked on the hat and ring edge.

What do the drive pins do on a floating AMG rotor?

The ten drive pins transfer braking torque from the iron ring to the aluminum hat while allowing the ring to move slightly in both axial and radial directions. That float lets the ring grow with heat without distorting, and the pins are cadmium plated against corrosion.

Will the rear rotors change the brake balance of the AMG?

No. Rotor size and calipers stay as Mercedes specified, so the factory brake bias and ABS efficiency are maintained. That is the main advantage of a direct replacement disc over a big brake kit on a car with sophisticated stability and braking systems.

Are the AMG rear rotors left and right specific?

Yes. GiroDisc builds a left and a right rotor because the curved vanes only pump air outward when they rotate in one direction. Each rotor is labeled for its corner, and they should be fitted accordingly so the cooling design works as intended.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

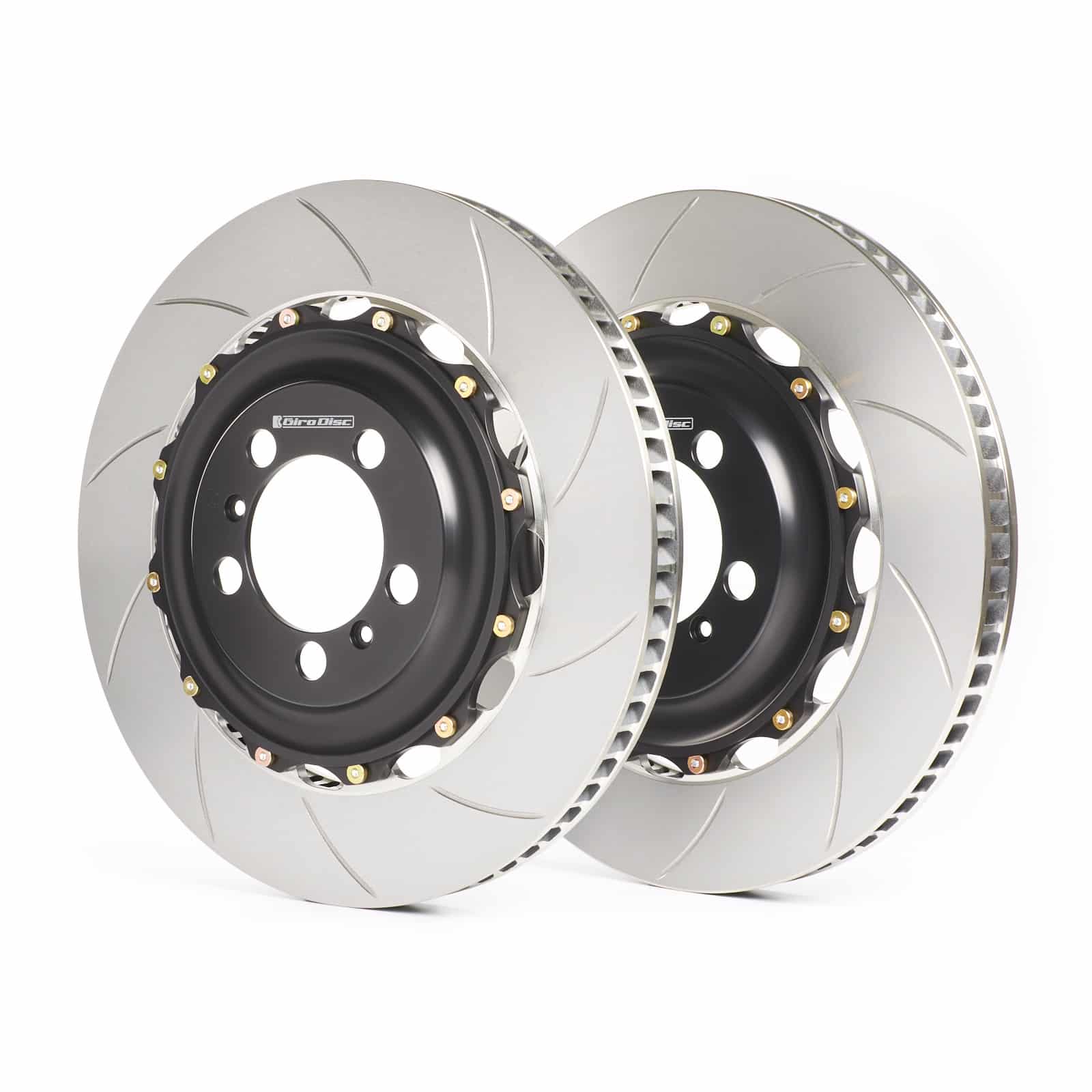

GiroDisc Rear Rotors for Mercedes-Benz S63, S65, CL63 and CL65 AMG

GiroDisc’s Rear Rotors for Mercedes-Benz S63, S65, CL63 and CL65 AMG models replace the one-piece rear discs with a floating two-piece assembly that bolts straight to the hub and works with the original calipers. Ten drive pins, made by GiroDisc and cadmium plated, join a slotted ring of proprietary iron to an aluminum hat machined from US-sourced 6061-T6. Fitted with the matching fronts, they give a big AMG the same floating construction at both axles and a simple ring-replacement path for the years ahead.

Bolt-On and Go

No machining or spacers are needed: the rotor goes on in place of the factory disc, the caliper refits as before, and the factory brake bias and ABS efficiency are kept. GiroDisc labels each rotor for its side so the curved vanes pump air outward. The pins are secured by class 12.9 cap screws, never tightened beyond 60 in-lb (7 Nm).

Features

Direct replacement for the factory rear discs
Ten cadmium-plated alloy steel drive pins made by GiroDisc
Spring washers that let the ring expand without cold rattle
Curved vanes that work as a centrifugal pump
Slotted face that clears water and debris
Hat in US-sourced 6061-T6 aluminum

What’s Included

Rear rotor assemblies (L/R)

Applications

Mercedes-Benz CL63 AMG: coupe
Mercedes-Benz CL65 AMG: coupe
Mercedes-Benz S63 AMG: W221
Mercedes-Benz S65 AMG: W221

Notes

GiroDisc lists the Rear Rotors for Mercedes-Benz S63, S65, CL63 and CL65 AMG by model name, so confirm your model year with us before ordering
Worn iron is renewed with the GiroDisc 365x26mm Mercedes rear replacement rings, which bolt to these hats
The front axle takes the GiroDisc S63, S65, CL63 and CL65 front rotors
Bed the rotors in before hard use, as GiroDisc recommends for all new discs
Stock photography may not depict the actual product

Frequently Asked Questions

Do the GiroDisc Rear Rotors for Mercedes-Benz S63 models bolt on directly? Yes. The GiroDisc Rear Rotors for Mercedes-Benz S63, S65, CL63 and CL65 AMG are a direct replacement for the original rear discs. They mount to the hub and accept the factory calipers with no modification, so the installation follows the normal rotor change procedure.
Which rings renew the AMG rear rotors? GiroDisc part D2-170, a 365x26mm rear ring set for these Mercedes hats. The rings are sold as a pair with replacement hardware and bolt to the existing hats once the iron reaches the minimum thickness marked on the hat and ring edge.
What do the drive pins do on a floating AMG rotor? The ten drive pins transfer braking torque from the iron ring to the aluminum hat while allowing the ring to move slightly in both axial and radial directions. That float lets the ring grow with heat without distorting, and the pins are cadmium plated against corrosion.
Will the rear rotors change the brake balance of the AMG? No. Rotor size and calipers stay as Mercedes specified, so the factory brake bias and ABS efficiency are maintained. That is the main advantage of a direct replacement disc over a big brake kit on a car with sophisticated stability and braking systems.
Are the AMG rear rotors left and right specific? Yes. GiroDisc builds a left and a right rotor because the curved vanes only pump air outward when they rotate in one direction. Each rotor is labeled for its corner, and they should be fitted accordingly so the cooling design works as intended.

About GiroDisc

GiroDisc designs, manufactures, and sells 2-piece, fully floating brake rotors for a wide range of performance vehicles. Every major component, including the hats, rotor rings, and drive pins, is manufactured in-house at their facility in Bellingham, Washington, from domestically sourced materials. GiroDisc rotors use a proprietary high-carbon iron ring formulated for superior metallurgy and thermal performance, paired with reusable machined-aluminum hats that reduce the long-term cost of maintaining a high-performance brake system. The 2-piece floating design sheds unsprung and rotating mass while remaining street-friendly, delivering race-proven braking for track and street use alike.
