Do the GiroDisc Rear Rotors for C5 Corvettes need extra parts?

Yes, on base cars. The GiroDisc Rear Rotors for C5 and C6 Z51 applications replace the C6 Z51 330mm rear disc directly. C5 and C6 base cars also need the Z51 rear caliper bracket, GM part number 88964167 or equivalent, which works with the existing calipers.

Which C6 cars take these rear rotors without the bracket?

C6 cars built with the Z51 package, whose 330mm rear rotor GiroDisc describes as the J55 or heavy-duty brake package size. These rotors replace that disc directly, so such a car needs no extra parts. Base C6 cars need the Z51 rear caliper bracket first.

How much does each Corvette rear rotor weigh?

GiroDisc lists each complete rear assembly at 12.4 lb. The fully floating design sheds unsprung weight and rotating mass from the rear axle, with a 330mm ring that is 26mm thick when new and a black-anodized aluminum hat. The hat is reused for life.

When should the Corvette rear rings be replaced?

GiroDisc recommends replacing them at 24mm, two millimeters below new thickness, or straight away if a crack leads to the edge of the ring. The replacement part is GiroDisc D2-324, supplied in pairs with new hardware for the existing hats.

Are the rotors quiet on a street-driven Corvette?

Yes. GiroDisc assembles each rotor with spring clips and spring washers, which give the ring race-ready float but keep it street friendly, with no noise from loose hardware. The Corvette stays quiet in daily use while gaining a replaceable iron ring.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

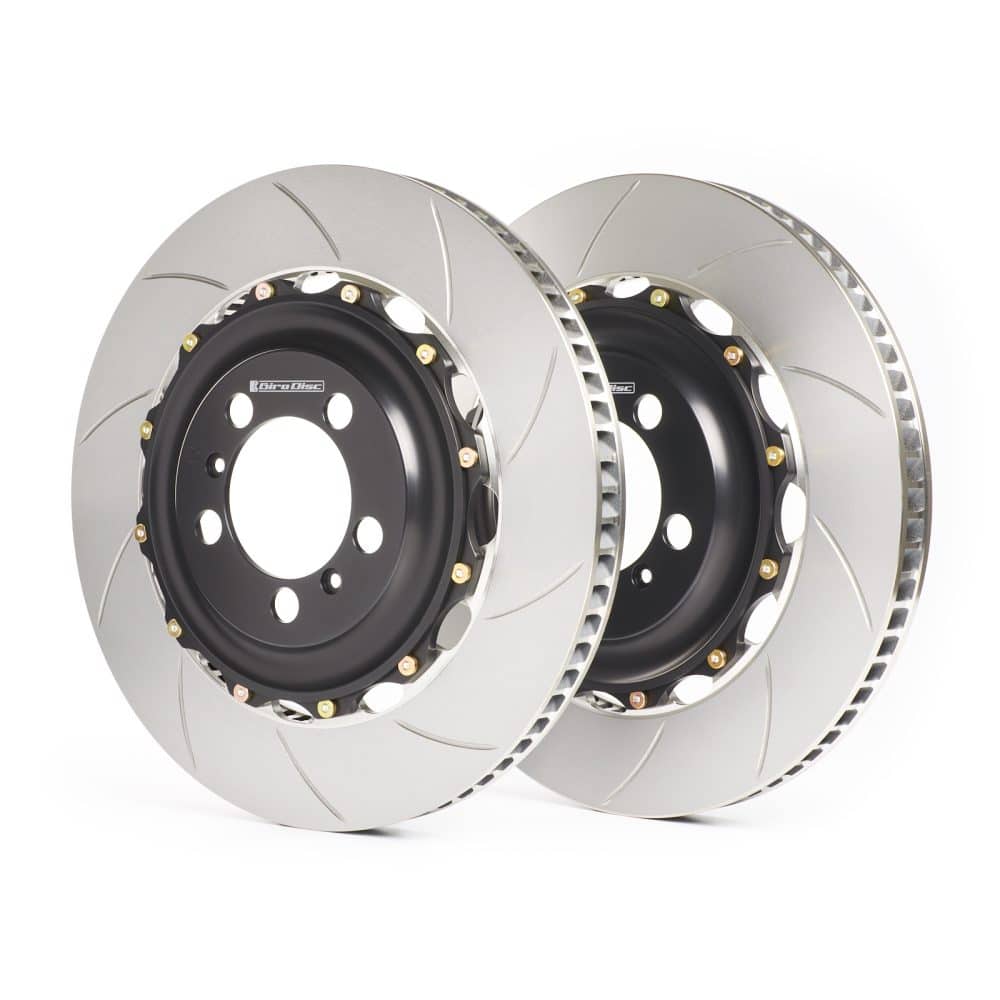

GiroDisc Rear Rotors for C5 and C6 Chevrolet Corvette Z51

GiroDisc’s Rear Rotors for C5 and C6 Chevrolet Corvette Z51 models are a direct replacement for the C6 Z51 330mm rear disc, the size fitted with the J55 or heavy-duty brake package, and GiroDisc weighs each at 12.4 lb. The 26mm ring is machined from GiroDisc’s high-carbon iron and floats on a black-anodized 6061-T6 hat. C5 and C6 base cars can run them too with the Z51 rear caliper bracket, which makes this a tidy upgrade path for older Corvettes.

Fitment and Installation

On C6 Z51 cars the rotor drops straight in. On C5 and C6 base cars, GiroDisc specifies the Z51 rear caliper bracket, GM part number 88964167 or an equivalent, which works with the existing calipers and completes the conversion to the Z51 rear brake package. Spring clips and spring washers give the ring race-ready float without noise from loose hardware.

Features

12.4 lb per rotor assembly, per GiroDisc
330mm diameter, 26mm thick ring
24mm minimum thickness
Black-anodized 6061-T6 aluminum hat
Hats, rings and drive pins made in Bellingham, Washington
Curved vanes that pull air in through the hub

What’s Included

Rear rotor assemblies (L/R)

Applications

Chevrolet Corvette base, with Z51 rear caliper bracket: C5, C6
Chevrolet Corvette Z51: C6

Notes

C5 and C6 base cars need the Z51 rear caliper bracket, GM part number 88964167 or equivalent, to fit the Rear Rotors for C5 and C6 Z51 applications
The caliper bracket is not included with the rotors
Worn rings are renewed with the GiroDisc C5 and C6 Z51 rear replacement rings, which bolt to these hats
The GiroDisc C5 and C6 Z51 front rotors complete the set
Stock photography may not depict the actual product

Frequently Asked Questions

Do the GiroDisc Rear Rotors for C5 Corvettes need extra parts? Yes, on base cars. The GiroDisc Rear Rotors for C5 and C6 Z51 applications replace the C6 Z51 330mm rear disc directly. C5 and C6 base cars also need the Z51 rear caliper bracket, GM part number 88964167 or equivalent, which works with the existing calipers.
Which C6 cars take these rear rotors without the bracket? C6 cars built with the Z51 package, whose 330mm rear rotor GiroDisc describes as the J55 or heavy-duty brake package size. These rotors replace that disc directly, so such a car needs no extra parts. Base C6 cars need the Z51 rear caliper bracket first.
How much does each Corvette rear rotor weigh? GiroDisc lists each complete rear assembly at 12.4 lb. The fully floating design sheds unsprung weight and rotating mass from the rear axle, with a 330mm ring that is 26mm thick when new and a black-anodized aluminum hat. The hat is reused for life.
When should the Corvette rear rings be replaced? GiroDisc recommends replacing them at 24mm, two millimeters below new thickness, or straight away if a crack leads to the edge of the ring. The replacement part is GiroDisc D2-324, supplied in pairs with new hardware for the existing hats.
Are the rotors quiet on a street-driven Corvette? Yes. GiroDisc assembles each rotor with spring clips and spring washers, which give the ring race-ready float but keep it street friendly, with no noise from loose hardware. The Corvette stays quiet in daily use while gaining a replaceable iron ring.

About GiroDisc

GiroDisc designs, manufactures, and sells 2-piece, fully floating brake rotors for a wide range of performance vehicles. Every major component, including the hats, rotor rings, and drive pins, is manufactured in-house at their facility in Bellingham, Washington, from domestically sourced materials. GiroDisc rotors use a proprietary high-carbon iron ring formulated for superior metallurgy and thermal performance, paired with reusable machined-aluminum hats that reduce the long-term cost of maintaining a high-performance brake system. The 2-piece floating design sheds unsprung and rotating mass while remaining street-friendly, delivering race-proven braking for track and street use alike.
