Which Ferraris do the GiroDisc Front Rotors for Ferrari 456M, 550 and 575M fit?

GiroDisc lists the Front Rotors for Ferrari 456M, 550 Maranello and 575M Maranello cars as a direct replacement for the factory front discs. All three front-engined V12 models share this 330mm front rotor, so one part number covers each of them.

How heavy is each GiroDisc front assembly?

GiroDisc lists 18 lb per complete rotor assembly, hat and hardware included. The aluminum hat carries the load to the hub, while iron is used only where the friction surface needs it, which reduces both rotating and unsprung mass at the front.

What is the minimum thickness of the rings?

The rings start at 32mm, and GiroDisc recommends replacing them at 30mm. It also recommends replacement if a crack leads to the edge of a ring. The replacement part is D1-003, sold as a pair with new hardware. The hats carry over.

Do these rotors make noise when the brakes are cold?

No. GiroDisc assembles every rotor with spring clips and Belleville washers. They give the ring the float it needs under heat while keeping the hardware from rattling, so the car stays quiet at parking speeds and on cold mornings. That applies to every GiroDisc rotor.

Why do the curved vanes matter on a heavy V12?

A fast, heavy grand tourer puts a great deal of heat into its front discs. The 48 curved vanes act as a centrifugal pump, pulling air in through the hub and pushing it out through the ring, which helps the disc recover between hard stops.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

GiroDisc Front Rotors for Ferrari 456M, 550 and 575M

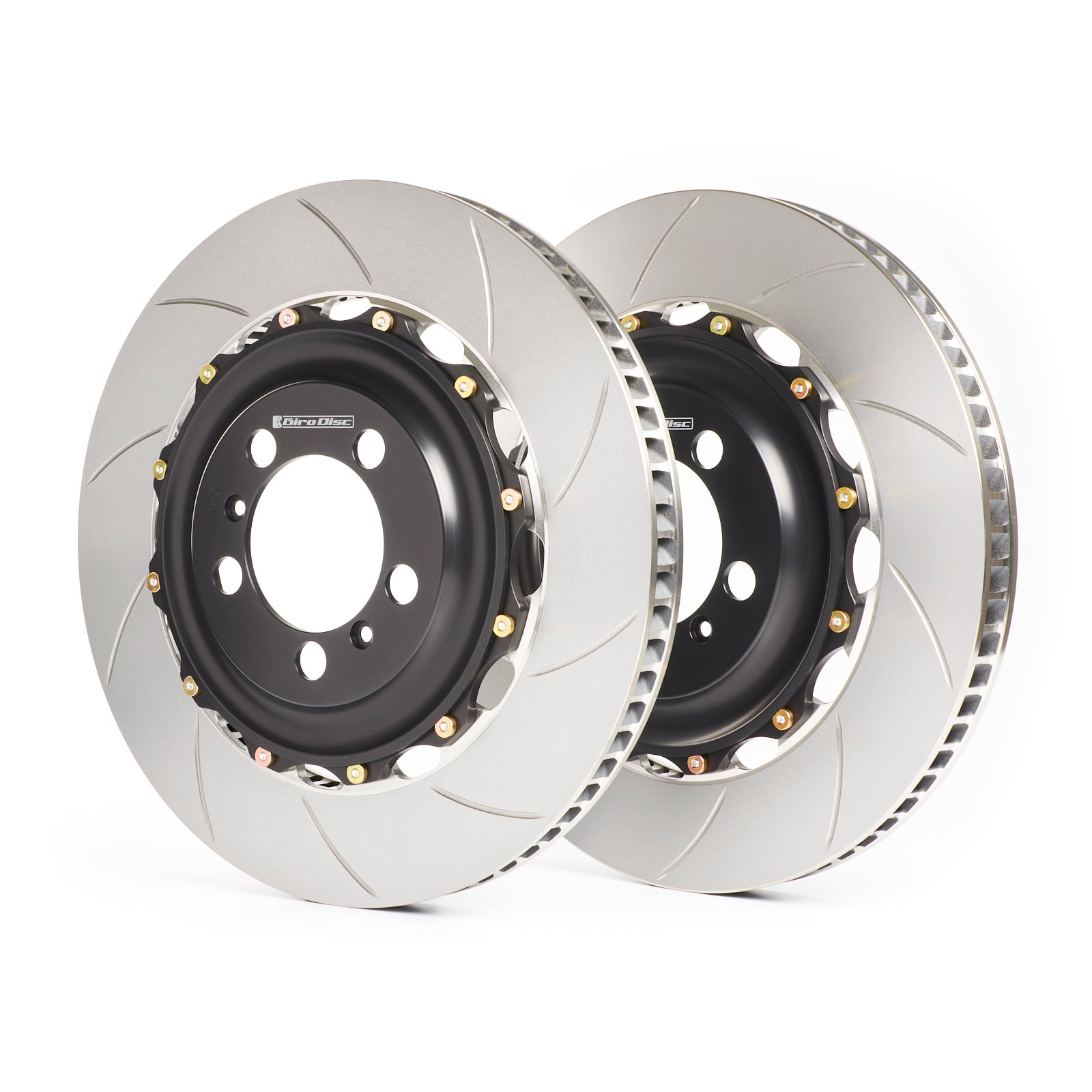

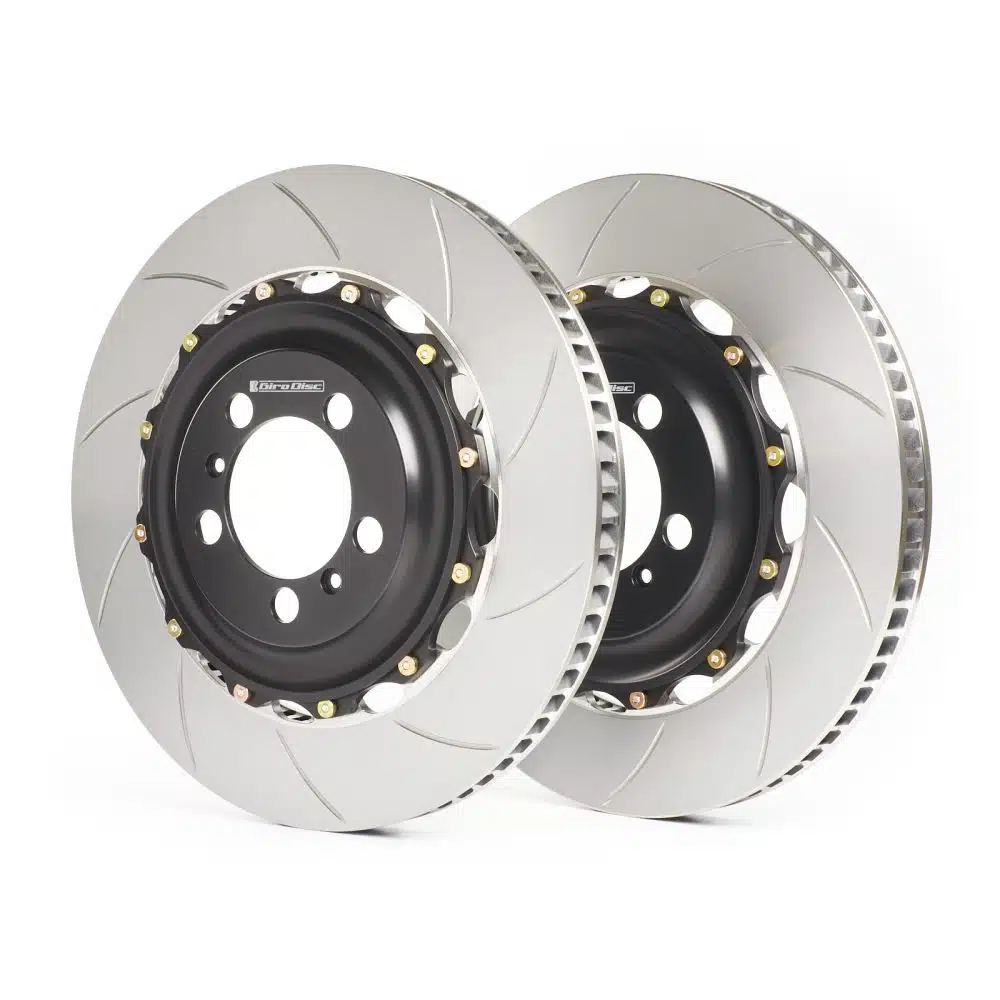

GiroDisc’s Front Rotors for Ferrari 456M, 550 Maranello and 575M Maranello cars are a direct replacement for the factory front discs on Ferrari’s front-engined V12 grand tourers. Each 330mm by 32mm assembly weighs 18 lb, and the ring runs 48 curved vanes. These are heavy, fast cars that were often driven long distances at speed, and owners who still use them that way get a cooler, more consistent front brake without altering the original calipers.

Design and Performance

The hat is 6061-T6 aluminum in a black anodize finish and is reused for the life of the car; the iron ring, machined from GiroDisc’s high-carbon casting, is the only wear item. Spring clips and Belleville washers give the ring race-ready float while keeping it free of noise from loose hardware on the street.

Features

330mm diameter and 32mm thickness
18 lb per complete rotor assembly, by GiroDisc measurement
48 curved vanes acting as a centrifugal air pump
Black anodized 6061-T6 aluminum hat
Cadmium-plated high-strength steel drive pins
Spring clips and Belleville washers for quiet float

Specifications

Outer diameter: 330mm
Thickness: 32mm
Minimum thickness: 30mm
Weight: 18 lb per rotor assembly
Vane count: 48 curved vanes
Replacement rings: D1-003

What’s Included

Front rotor assemblies (L/R)

Applications

Ferrari 456M: 5.5L V12
Ferrari 550 Maranello: 5.5L V12
Ferrari 575M Maranello: 5.7L V12

Notes

The GiroDisc Front Rotors for Ferrari 456M, 550 and 575M cars are a direct replacement for the factory front discs
Worn rings are renewed with the GiroDisc V12 front replacement rings on these hats
Replace the rings at 30mm or if a crack reaches the edge
Cap screws are never tightened beyond 60 in-lb (7 Nm)
Stock photography may not depict the actual product

Frequently Asked Questions

Which Ferraris do the GiroDisc Front Rotors for Ferrari 456M, 550 and 575M fit? GiroDisc lists the Front Rotors for Ferrari 456M, 550 Maranello and 575M Maranello cars as a direct replacement for the factory front discs. All three front-engined V12 models share this 330mm front rotor, so one part number covers each of them.
How heavy is each GiroDisc front assembly? GiroDisc lists 18 lb per complete rotor assembly, hat and hardware included. The aluminum hat carries the load to the hub, while iron is used only where the friction surface needs it, which reduces both rotating and unsprung mass at the front.
What is the minimum thickness of the rings? The rings start at 32mm, and GiroDisc recommends replacing them at 30mm. It also recommends replacement if a crack leads to the edge of a ring. The replacement part is D1-003, sold as a pair with new hardware. The hats carry over.
Do these rotors make noise when the brakes are cold? No. GiroDisc assembles every rotor with spring clips and Belleville washers. They give the ring the float it needs under heat while keeping the hardware from rattling, so the car stays quiet at parking speeds and on cold mornings. That applies to every GiroDisc rotor.
Why do the curved vanes matter on a heavy V12? A fast, heavy grand tourer puts a great deal of heat into its front discs. The 48 curved vanes act as a centrifugal pump, pulling air in through the hub and pushing it out through the ring, which helps the disc recover between hard stops.

About GiroDisc

GiroDisc designs, manufactures, and sells 2-piece, fully floating brake rotors for a wide range of performance vehicles. Every major component, including the hats, rotor rings, and drive pins, is manufactured in-house at their facility in Bellingham, Washington, from domestically sourced materials. GiroDisc rotors use a proprietary high-carbon iron ring formulated for superior metallurgy and thermal performance, paired with reusable machined-aluminum hats that reduce the long-term cost of maintaining a high-performance brake system. The 2-piece floating design sheds unsprung and rotating mass while remaining street-friendly, delivering race-proven braking for track and street use alike.
