Which Vipers do the GiroDisc Front Rotors for Dodge Viper fit?

GiroDisc lists the GiroDisc Front Rotors for Dodge Viper for 2003 and later cars with the standard 355mm front brake setup. GiroDisc offers separate front rotors for the Viper TA and ACR-X and an iron conversion for the ACR, so check the brake package on the car before ordering.

How much does each Viper front rotor weigh?

GiroDisc quotes 18.4 lb per rotor assembly. That figure includes the aluminum hat, the 355mm by 32mm iron ring and the drive pin hardware, so it is the weight that actually spins on each front hub of the car. GiroDisc does not quote a factory weight for comparison.

What is the minimum thickness of the Viper front ring?

GiroDisc recommends replacing the rings at 30mm, down from 32mm new. It also advises replacement if a crack leads to the edge of the ring, regardless of the thickness that remains on the friction face. Measure at several points around the ring.

Which rings fit the Viper front rotor when it wears?

GiroDisc names GD355.32.52 as the replacement ring for this rotor, a 355mm by 32mm ring that bolts to the existing aluminum hats with new hardware. Only the rings are replaced, and the anodized hats return to service. The ring is sold as a pair.

Are the Viper front calipers changed?

No. GiroDisc describes the rotor as a direct replacement for the 2003-on Viper with the standard 355mm setup. The factory calipers refit as they were, so the brake balance and ABS calibration Dodge set for the car carry on unchanged.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

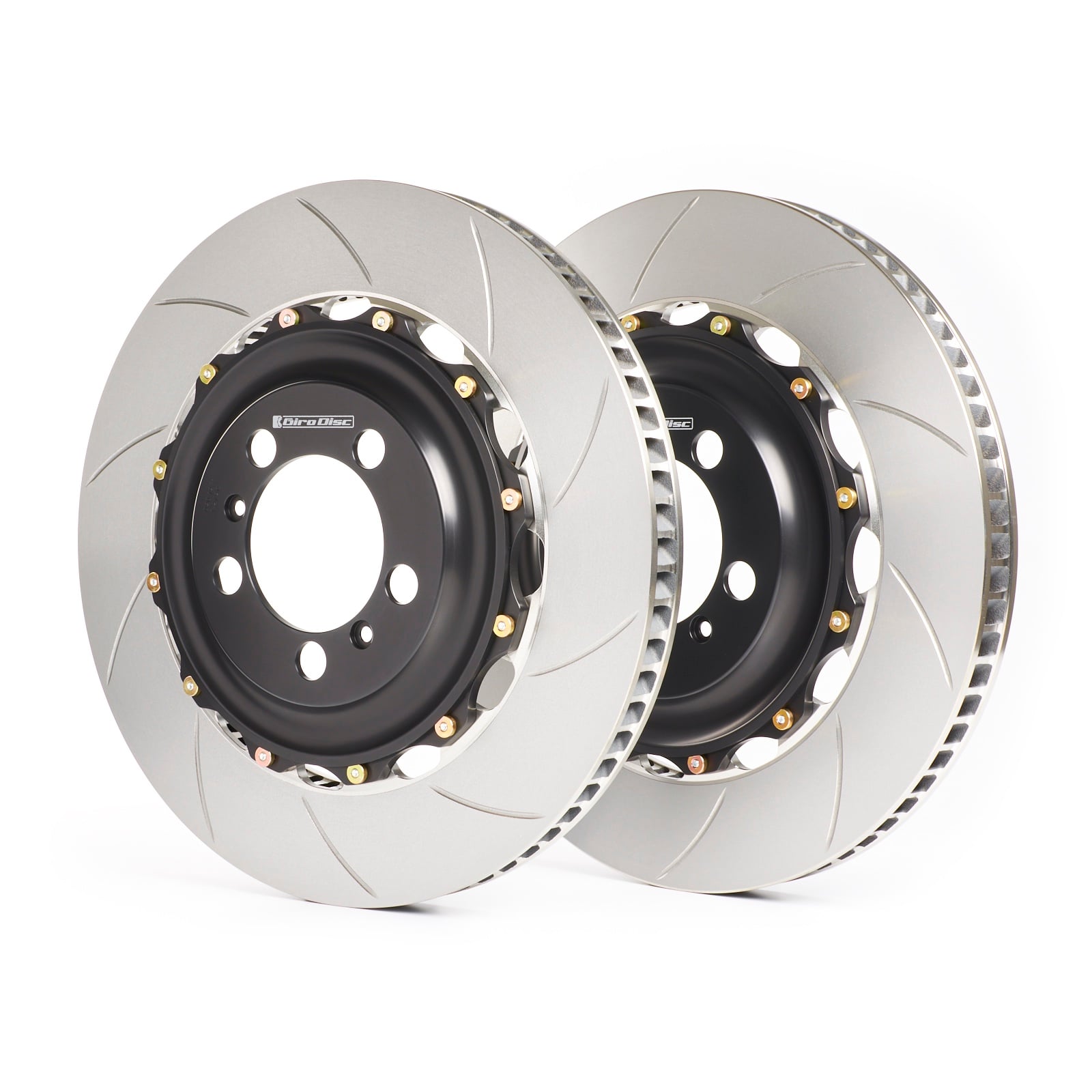

GiroDisc Front Rotors for Dodge Viper with 355mm Brakes

GiroDisc’s Front Rotors for Dodge Viper are built for the 2003-on car with the standard 355mm front brake setup, and at 18.4 lb per assembly they put a light two-piece floating disc behind the factory calipers. The 355mm by 32mm ring is machined from GiroDisc’s proprietary high-carbon iron casting, and the hat is black anodized 6061-T6 aluminum, with every major component made in Bellingham, Washington. For a Viper owner who enjoys open track days, it is a direct replacement that keeps the original brake system intact.

Design and Performance

Forty-eight curved vanes run through each ring, acting as a centrifugal pump that pulls air in through the hub to cool the disc under hard use. The GiroDisc Front Rotors for Dodge Viper are assembled with spring clips and Belleville washers, so the ring floats freely when hot yet stays quiet on the street. The drive pins are high-strength steel alloy, cadmium plated against corrosion.

Features

For the standard 355mm front brake setup
18.4 lb per rotor assembly
48 curved cooling vanes
Black anodized 6061-T6 aluminum hat
Spring clips and Belleville washers for quiet float
Direct replacement for the factory front rotors

Specifications

Outer diameter: 355mm
Thickness: 32mm
Minimum ring thickness: 30mm
Weight: 18.4 lb per rotor assembly
Cooling vanes: 48 curved

What’s Included

Front rotor assemblies (L/R)

Applications

Dodge Viper with standard 355mm front brakes: 2003 onward

Notes

Worn rings are renewed with the GiroDisc 355x32mm replacement rings on these hats
The rear axle is covered by the GiroDisc 2003-on Viper rear rotors
Vipers in TA, ACR or ACR-X specification use other GiroDisc front rotors
Stock photography may not depict the actual product

Frequently Asked Questions

Which Vipers do the GiroDisc Front Rotors for Dodge Viper fit? GiroDisc lists the GiroDisc Front Rotors for Dodge Viper for 2003 and later cars with the standard 355mm front brake setup. GiroDisc offers separate front rotors for the Viper TA and ACR-X and an iron conversion for the ACR, so check the brake package on the car before ordering.
How much does each Viper front rotor weigh? GiroDisc quotes 18.4 lb per rotor assembly. That figure includes the aluminum hat, the 355mm by 32mm iron ring and the drive pin hardware, so it is the weight that actually spins on each front hub of the car. GiroDisc does not quote a factory weight for comparison.
What is the minimum thickness of the Viper front ring? GiroDisc recommends replacing the rings at 30mm, down from 32mm new. It also advises replacement if a crack leads to the edge of the ring, regardless of the thickness that remains on the friction face. Measure at several points around the ring.
Which rings fit the Viper front rotor when it wears? GiroDisc names GD355.32.52 as the replacement ring for this rotor, a 355mm by 32mm ring that bolts to the existing aluminum hats with new hardware. Only the rings are replaced, and the anodized hats return to service. The ring is sold as a pair.
Are the Viper front calipers changed? No. GiroDisc describes the rotor as a direct replacement for the 2003-on Viper with the standard 355mm setup. The factory calipers refit as they were, so the brake balance and ABS calibration Dodge set for the car carry on unchanged.

About GiroDisc

GiroDisc designs, manufactures, and sells 2-piece, fully floating brake rotors for a wide range of performance vehicles. Every major component, including the hats, rotor rings, and drive pins, is manufactured in-house at their facility in Bellingham, Washington, from domestically sourced materials. GiroDisc rotors use a proprietary high-carbon iron ring formulated for superior metallurgy and thermal performance, paired with reusable machined-aluminum hats that reduce the long-term cost of maintaining a high-performance brake system. The 2-piece floating design sheds unsprung and rotating mass while remaining street-friendly, delivering race-proven braking for track and street use alike.
