What do the GiroDisc Front Replacement Rings for B9 fit?

The GiroDisc Front Replacement Rings for B9 vehicles fit the hats of GiroDisc A1-311 front rotors on the Audi S4, S5 and SQ5. They are designed only for GiroDisc hats and will not mount to factory rotors or to two-piece hats from other brands.

How many vanes do the B9 front rings have?

Each ring carries 72 curved vanes. They work as a centrifugal pump, pulling air in through the hub and pushing it out through the ring as the wheel turns, which carries heat away from the disc between hard stops on a canyon road or a road course.

What hardware comes with the B9 front rings?

Every pair arrives with new cadmium-plated alloy steel drive pins, class 12.9 cap screws with hardened washers and anti-noise spring washers for both front corners. The only parts reused from the worn rotors are the GiroDisc aluminum hats themselves, so nothing else needs to be ordered for the job.

How do I check wear on the B9 front rings?

Measure the ring thickness with a micrometer. GiroDisc puts the minimum at 32mm, marked on the hat and ring edge. Replace the pair at that figure, or straight away if a crack runs from the friction face to the outer edge.

Why are the cap screws on the B9 rings left light?

The cap screws are tightened to 60 in-lb, which is 7 Nm, at most. That light torque lets the iron ring float on its drive pins as it heats and cools, and the screws can look loose on a cold disc by design.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

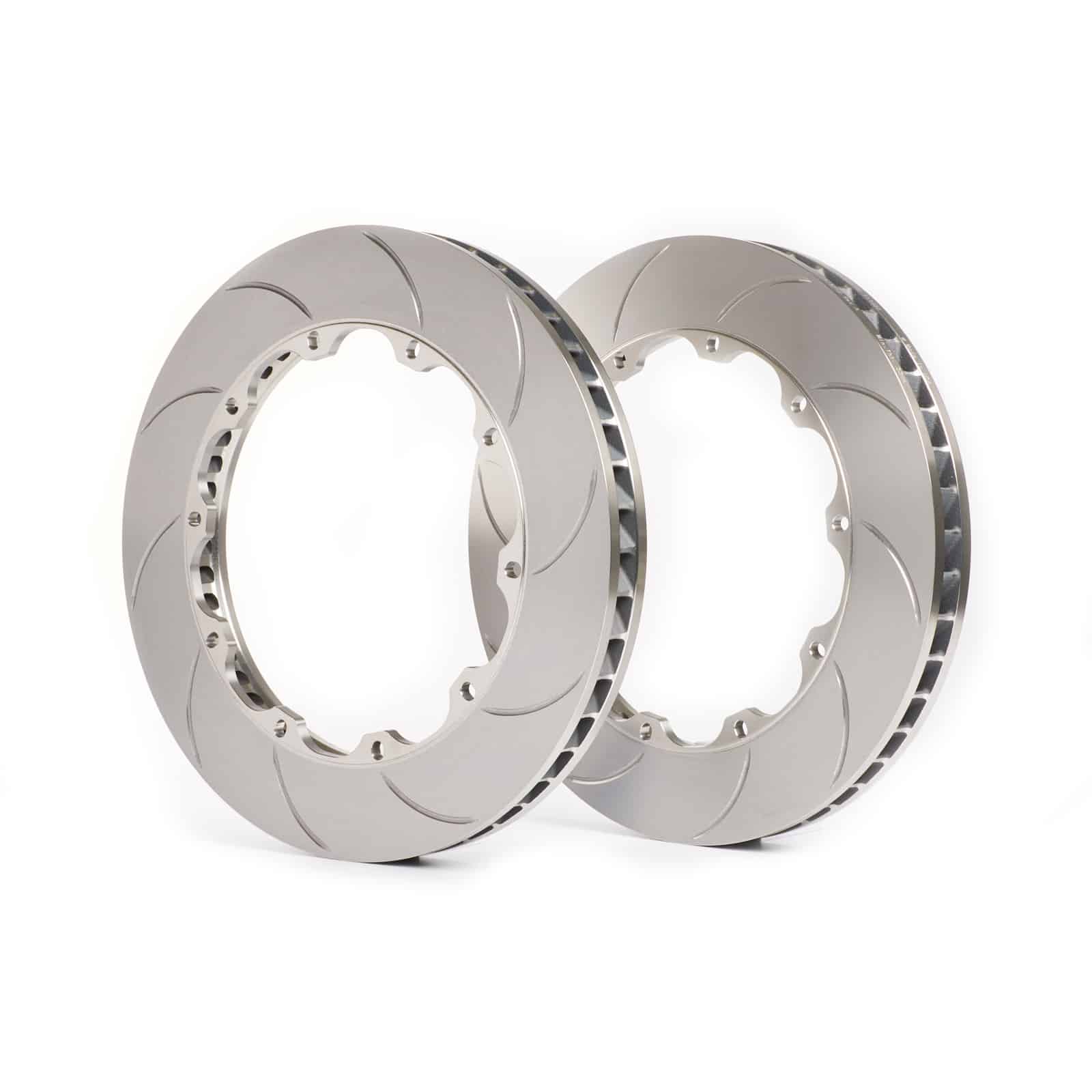

GiroDisc Front Replacement Rings for B9 Audi S4, S5 and SQ5

GiroDisc’s Front Replacement Rings for B9 Audi S4, S5 and SQ5 vehicles fit the hats of GiroDisc’s B9 front rotors and bring the friction surface back to new. Each ring has 72 curved vanes and is cast from GiroDisc’s high-carbon iron, poured in the USA and machined in-house, with replacement due at 32mm. A full hardware kit comes with the pair. Owners who have worn through a set of GiroDisc fronts on their B9 will find a ring change far cheaper than new assemblies, with the anodized hats carrying on in service.

Fitment and Installation

Unbolt the worn rings from the GiroDisc hats, fit the new pair with the supplied drive pins, cap screws and spring washers, and tighten the cap screws to no more than 60 in-lb, or 7 Nm. Match each labeled ring to its side of the vehicle.

Features

72 curved vanes for cooling airflow
Replace at 32mm, marked on hat and ring edge
High-carbon iron poured in the USA
New drive pins, cap screws and spring washers included
Left and right handed, labeled by position

What’s Included

Front replacement rings (L/R)
Replacement mounting hardware

Applications

Audi S4: B9
Audi S5: B9
Audi SQ5: B9

Notes

The GiroDisc Front Replacement Rings for B9 fit only the hats of the GiroDisc B9 S4, S5 and SQ5 front rotors; hats are not included
Factory rotors and other brands are not compatible
Rings are sold as a pair
Stock photography may not depict the actual product

Frequently Asked Questions

What do the GiroDisc Front Replacement Rings for B9 fit? The GiroDisc Front Replacement Rings for B9 vehicles fit the hats of GiroDisc A1-311 front rotors on the Audi S4, S5 and SQ5. They are designed only for GiroDisc hats and will not mount to factory rotors or to two-piece hats from other brands.
How many vanes do the B9 front rings have? Each ring carries 72 curved vanes. They work as a centrifugal pump, pulling air in through the hub and pushing it out through the ring as the wheel turns, which carries heat away from the disc between hard stops on a canyon road or a road course.
What hardware comes with the B9 front rings? Every pair arrives with new cadmium-plated alloy steel drive pins, class 12.9 cap screws with hardened washers and anti-noise spring washers for both front corners. The only parts reused from the worn rotors are the GiroDisc aluminum hats themselves, so nothing else needs to be ordered for the job.
How do I check wear on the B9 front rings? Measure the ring thickness with a micrometer. GiroDisc puts the minimum at 32mm, marked on the hat and ring edge. Replace the pair at that figure, or straight away if a crack runs from the friction face to the outer edge.
Why are the cap screws on the B9 rings left light? The cap screws are tightened to 60 in-lb, which is 7 Nm, at most. That light torque lets the iron ring float on its drive pins as it heats and cools, and the screws can look loose on a cold disc by design.

About GiroDisc

GiroDisc designs, manufactures, and sells 2-piece, fully floating brake rotors for a wide range of performance vehicles. Every major component, including the hats, rotor rings, and drive pins, is manufactured in-house at their facility in Bellingham, Washington, from domestically sourced materials. GiroDisc rotors use a proprietary high-carbon iron ring formulated for superior metallurgy and thermal performance, paired with reusable machined-aluminum hats that reduce the long-term cost of maintaining a high-performance brake system. The 2-piece floating design sheds unsprung and rotating mass while remaining street-friendly, delivering race-proven braking for track and street use alike.
