Which Viper does the GiroDisc ACR Front Iron Rotor Conversion fit?

The GiroDisc ACR Front Iron Rotor Conversion fits the Dodge Viper ACR with factory carbon-ceramic front brakes. It replaces those ceramic discs with two-piece iron rotors. Other Viper models use different GiroDisc parts, so confirm the model and brake package before ordering.

Why convert a Viper ACR from carbon-ceramic to iron?

Ceramic discs are costly to replace once worn, while this GiroDisc conversion only needs new iron rings on its reusable aluminum hats. For an ACR that runs frequent track days, that makes brake running costs far easier to plan, and the curved vane rings are made to resist overheating.

Why is the GiroDisc friction band narrower than the ACR ceramic disc?

GiroDisc chose a narrower friction band than the factory carbon-ceramic rotor to keep the iron assembly at a reasonable weight. An iron disc with the full ceramic width would be heavy. Confirm the full parts list for the conversion with us before ordering.

How many drive pins hold each ACR front ring?

Twelve. GiroDisc makes the high-strength alloy steel pins to its own specification and cadmium plates them against corrosion. Class 12.9 cap screws with hardened washers retain them, and spring washers allow the ring to float and expand with heat while staying quiet.

Does the ACR front conversion need a bed-in?

Yes. GiroDisc recommends a bed-in procedure for any new disc. Bed the rotors in with a series of progressively firmer stops from speed followed by a cool-down drive, so the fresh iron is conditioned evenly before the Viper goes on track.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

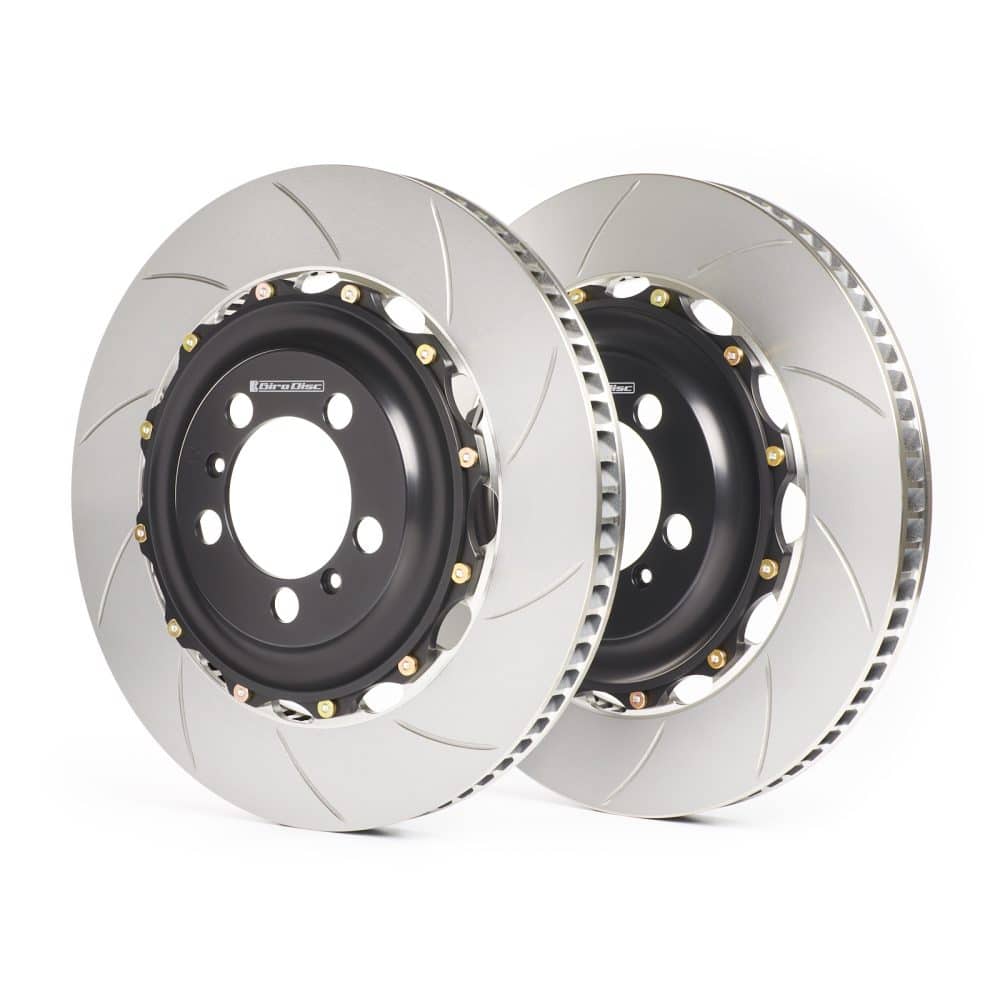

GiroDisc ACR Front Iron Rotor Conversion for Dodge Viper

GiroDisc’s ACR Front Iron Rotor Conversion for the Dodge Viper replaces the factory carbon-ceramic front discs with a two-piece iron and aluminum assembly. It is aimed at ACR owners who log serious track time and would sooner renew iron rings than buy ceramic discs. Twelve cadmium-plated alloy steel drive pins float each ring on a 6061-T6 aluminum hat, and GiroDisc kept the friction band narrower than the ceramic original to hold the weight down.

Design and Performance

Curved vanes inside the iron act as a centrifugal pump, moving air from the hub out through the disc during long braking zones. The ACR Front Iron Rotor Conversion uses class 12.9 cap screws with hardened washers on the drive pins, and anti-noise spring washers let the ring expand with heat without rattling when cold. Once the hats are fitted, only rings are replaced.

Features

Two-piece iron assembly in place of the factory ceramic front disc
12 cadmium-plated alloy steel drive pins
6061-T6 aircraft-specification aluminum hat
Curved vanes for centrifugal cooling
Anti-noise spring washers on every pin
Slotted face that keeps the friction surface clean

What’s Included

Front rotor assemblies (L/R)

Applications

Dodge Viper ACR: 8.4L V10

Notes

GiroDisc made the friction band narrower than the factory ceramic disc to save weight, so confirm the complete conversion parts list with us before ordering
The matching GiroDisc ACR rear iron conversion completes the swap
The cap screws can look loose by design and are never tightened beyond 60 in-lb (7 Nm)
Stock photography may not depict the actual product

Frequently Asked Questions

Which Viper does the GiroDisc ACR Front Iron Rotor Conversion fit? The GiroDisc ACR Front Iron Rotor Conversion fits the Dodge Viper ACR with factory carbon-ceramic front brakes. It replaces those ceramic discs with two-piece iron rotors. Other Viper models use different GiroDisc parts, so confirm the model and brake package before ordering.
Why convert a Viper ACR from carbon-ceramic to iron? Ceramic discs are costly to replace once worn, while this GiroDisc conversion only needs new iron rings on its reusable aluminum hats. For an ACR that runs frequent track days, that makes brake running costs far easier to plan, and the curved vane rings are made to resist overheating.
Why is the GiroDisc friction band narrower than the ACR ceramic disc? GiroDisc chose a narrower friction band than the factory carbon-ceramic rotor to keep the iron assembly at a reasonable weight. An iron disc with the full ceramic width would be heavy. Confirm the full parts list for the conversion with us before ordering.
How many drive pins hold each ACR front ring? Twelve. GiroDisc makes the high-strength alloy steel pins to its own specification and cadmium plates them against corrosion. Class 12.9 cap screws with hardened washers retain them, and spring washers allow the ring to float and expand with heat while staying quiet.
Does the ACR front conversion need a bed-in? Yes. GiroDisc recommends a bed-in procedure for any new disc. Bed the rotors in with a series of progressively firmer stops from speed followed by a cool-down drive, so the fresh iron is conditioned evenly before the Viper goes on track.

About GiroDisc

GiroDisc designs, manufactures, and sells 2-piece, fully floating brake rotors for a wide range of performance vehicles. Every major component, including the hats, rotor rings, and drive pins, is manufactured in-house at their facility in Bellingham, Washington, from domestically sourced materials. GiroDisc rotors use a proprietary high-carbon iron ring formulated for superior metallurgy and thermal performance, paired with reusable machined-aluminum hats that reduce the long-term cost of maintaining a high-performance brake system. The 2-piece floating design sheds unsprung and rotating mass while remaining street-friendly, delivering race-proven braking for track and street use alike.
