Do the GiroDisc 390mm Rear Rotors for McLaren fit a 765LT with standard brakes?

No. The 390mm Rear Rotors for McLaren are built for the 765LT and 750S fitted with the upgraded MSO track brake package, which uses 390mm rear discs. Cars with the standard brake package run 380mm rear discs and need a different GiroDisc part.

What do these rear rotors replace on the car?

They are a direct replacement for the factory carbon-ceramic rear rotors on MSO track brake equipped cars. The rear axle moves to two-piece iron, with a black-anodized aluminum hat and a 72-vane cast iron ring that can be renewed on its own as it wears.

How thick are the rear rings and what is the service limit?

The rings are 34mm thick when new, and GiroDisc recommends replacing them at 32mm. They should also be changed straight away if a crack runs to the edge of the ring. The replacement part is D2-206, sold in pairs with hardware.

Where are GiroDisc rotors manufactured?

GiroDisc machines the hats, rotor rings and drive pins in-house at its facility in Bellingham, Washington, from domestically sourced materials. The ring iron is a proprietary high-carbon casting made to GiroDisc specifications, which gives the rotor good resistance to hard track use.

Will floating rear rotors rattle on the road?

No. GiroDisc assembles each rotor with spring clips and Belleville washers. They allow the ring to grow with heat and stay centered, yet hold it firmly enough that there is no noise from loose hardware when the car is driven slowly on the street.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

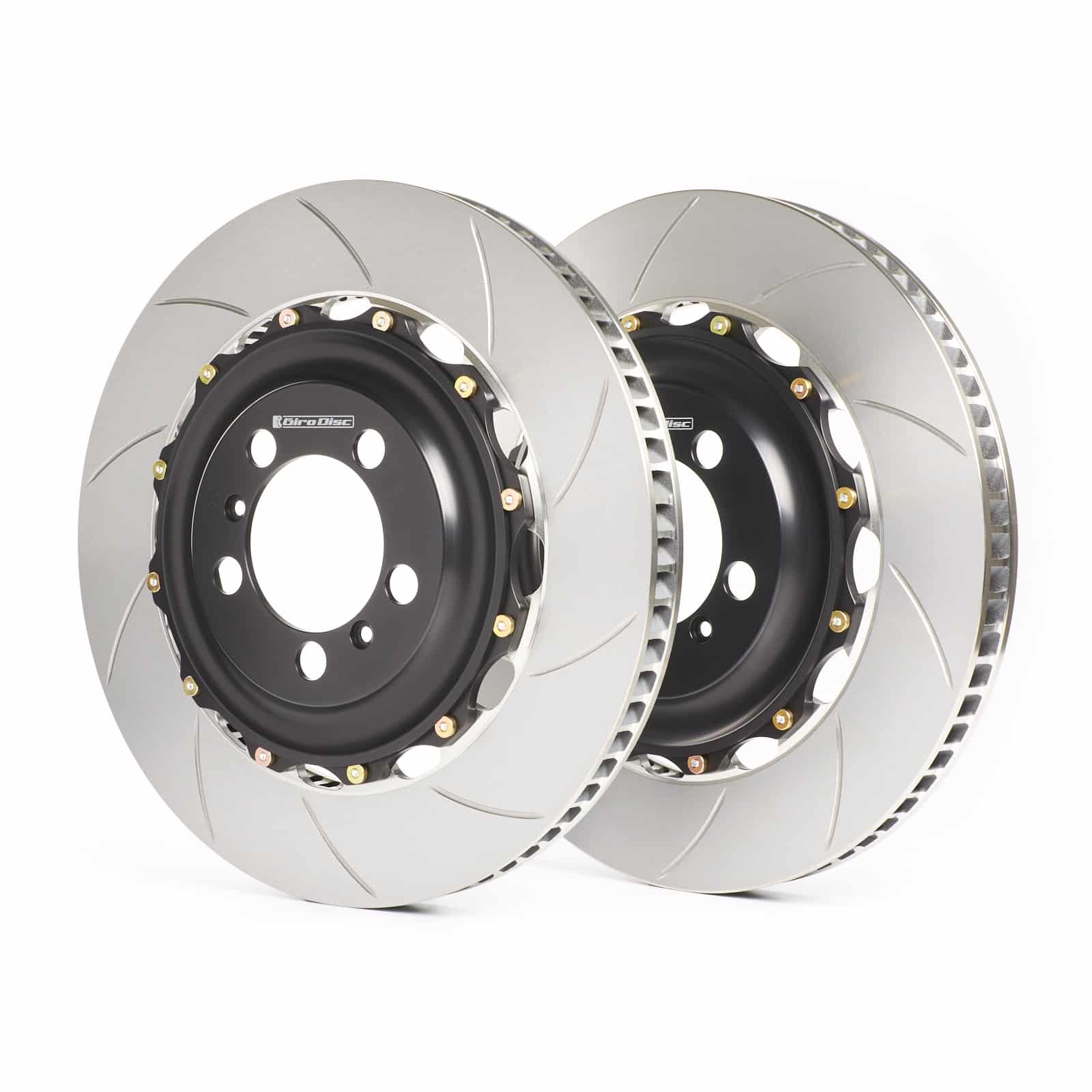

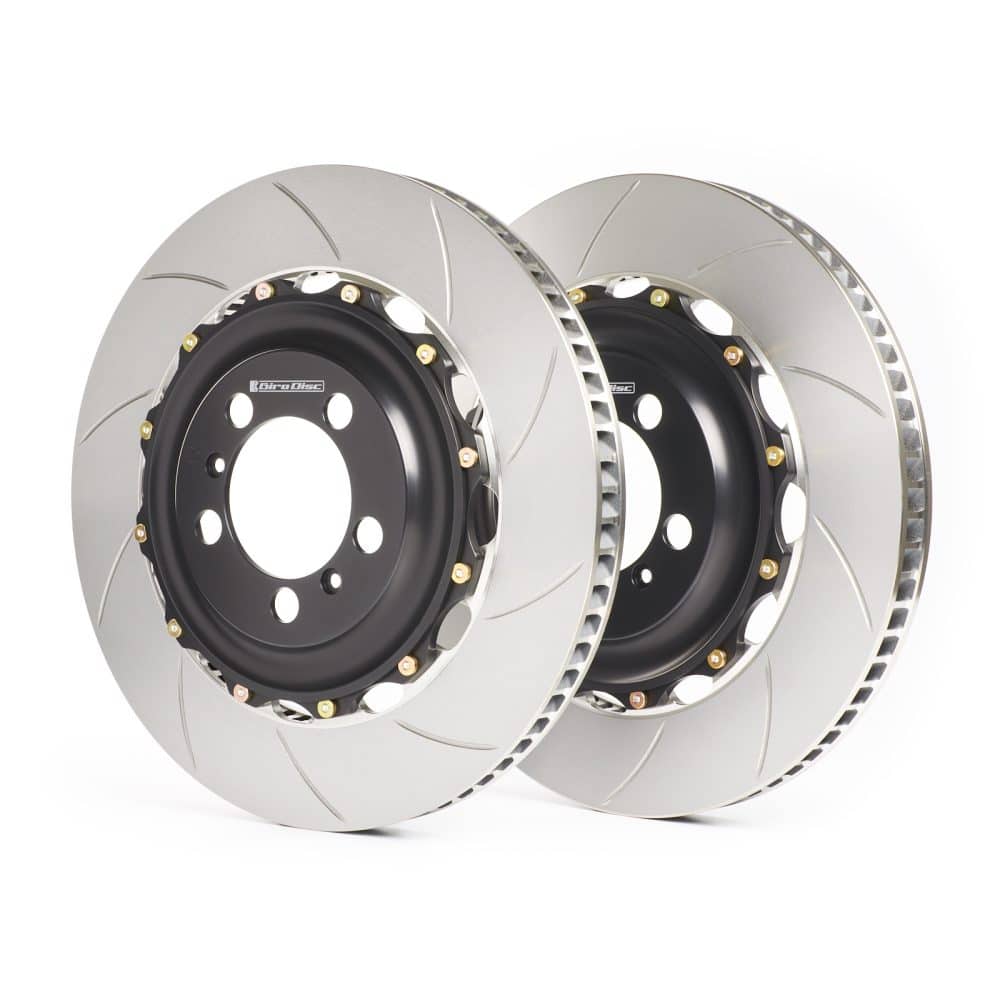

GiroDisc 390mm Rear Rotors for McLaren 765LT and 750S with MSO Track Brakes

GiroDisc’s 390mm Rear Rotors for McLaren 765LT and 750S are made for cars fitted with the upgraded MSO track brake package, whose rear discs are 390mm rather than the 380mm used with the standard brakes. They are a direct replacement for the factory carbon-ceramic rear rotors, moving the axle to two-piece iron. Each 34mm ring carries 72 curved vanes and floats on a black-anodized 6061-T6 aluminum hat. This is the rear brake for owners who track their car hard and want a consumable that costs sensibly to renew.

Design and Performance

GiroDisc casts the rings from its own high-carbon iron and machines hats, rings and drive pins in Bellingham, Washington from domestically sourced material. Spring clips and Belleville washers give the ring race-ready float while keeping it quiet on the street. When the rings wear to 32mm, new D2-206 rings bolt onto the same hats.

Features

390mm rear rotor to suit the MSO track brake package
34mm ring with 72 curved cooling vanes
Black-anodized 6061-T6 aluminum hat
Cadmium-plated high-strength steel drive pins
Spring clips and Belleville washers for quiet float
Hats, rings and pins made in-house in Bellingham

Specifications

Outer diameter: 390mm
Thickness: 34mm
Minimum thickness: 32mm
Vane count: 72 curved
Replacement rings: D2-206

What’s Included

Rear rotor assemblies (L/R)

Applications

McLaren 750S: With upgraded MSO track brake package
McLaren 765LT: With upgraded MSO track brake package

Notes

Cars on the standard brake package use 380mm rear discs and are not covered by the 390mm Rear Rotors for McLaren
Worn rings are replaced with the GiroDisc 390mm rear replacement rings for the McLaren 765LT and 750S on the existing hats
Cap screws are never tightened beyond 60 in-lb (7 Nm)
Stock photography may not depict the actual product

Frequently Asked Questions

Do the GiroDisc 390mm Rear Rotors for McLaren fit a 765LT with standard brakes? No. The 390mm Rear Rotors for McLaren are built for the 765LT and 750S fitted with the upgraded MSO track brake package, which uses 390mm rear discs. Cars with the standard brake package run 380mm rear discs and need a different GiroDisc part.
What do these rear rotors replace on the car? They are a direct replacement for the factory carbon-ceramic rear rotors on MSO track brake equipped cars. The rear axle moves to two-piece iron, with a black-anodized aluminum hat and a 72-vane cast iron ring that can be renewed on its own as it wears.
How thick are the rear rings and what is the service limit? The rings are 34mm thick when new, and GiroDisc recommends replacing them at 32mm. They should also be changed straight away if a crack runs to the edge of the ring. The replacement part is D2-206, sold in pairs with hardware.
Where are GiroDisc rotors manufactured? GiroDisc machines the hats, rotor rings and drive pins in-house at its facility in Bellingham, Washington, from domestically sourced materials. The ring iron is a proprietary high-carbon casting made to GiroDisc specifications, which gives the rotor good resistance to hard track use.
Will floating rear rotors rattle on the road? No. GiroDisc assembles each rotor with spring clips and Belleville washers. They allow the ring to grow with heat and stay centered, yet hold it firmly enough that there is no noise from loose hardware when the car is driven slowly on the street.

About GiroDisc

GiroDisc designs, manufactures, and sells 2-piece, fully floating brake rotors for a wide range of performance vehicles. Every major component, including the hats, rotor rings, and drive pins, is manufactured in-house at their facility in Bellingham, Washington, from domestically sourced materials. GiroDisc rotors use a proprietary high-carbon iron ring formulated for superior metallurgy and thermal performance, paired with reusable machined-aluminum hats that reduce the long-term cost of maintaining a high-performance brake system. The 2-piece floating design sheds unsprung and rotating mass while remaining street-friendly, delivering race-proven braking for track and street use alike.
