Which turbochargers take the G Series Speed Sensor Street Kit?

Garrett lists this Speed Sensor Street Kit for G Series turbochargers and for the GTX47, GTX50 and GTX55 Gen II. GTX28, GTX30 and GTX35 Gen II models, along with GT and GTW turbochargers, use the threaded GT and GTX kit, part 781328-0001, instead, because the two sensors mount differently.

How does the G Series sensor mount?

It pushes into the speed sensor port on the compressor housing, sealed by an O-ring, and is held in place by a bolt torqued to 5 to 6 Nm, or 44 to 53 in-lb. Garrett lists the bolt as part of the G Series kits. The GT and GTX sensor threads in with a lock nut instead.

What does the gauge show?

The gauge displays compressor wheel speed from the sensor, and Garrett gives it a maximum speed recall function that keeps the highest wheel speed for five minutes. That lets the driver check the peak after a run and compare it with the maximum allowable speed of the turbocharger.

Do I need the Street or the Pro kit?

Choose the Street kit for a gauge in the cabin. Choose the Pro kit, 781328-0004 for G Series, if the speed signal will go only to a data logger or engine management system. Garrett states that all of its speed sensor kits work with data loggers, so the Street kit can log as well.

Is a speed sensor worth fitting to a G Series turbo?

Garrett publishes a maximum allowable turbocharger speed for every G Series model and warns that exceeding it can cause damage and premature failure. A sensor shows where the shaft actually runs, helps confirm the turbocharger match, and lets a tuner keep boost targets inside the compressor map.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Garrett Speed Sensor Street Kit, G Series Models with Gauge

Garrett’s Speed Sensor Street Kit for G Series models measures compressor wheel speed on Garrett’s G Series turbochargers and on the GTX47, GTX50 and GTX55 Gen II, and shows it on the included Garrett gauge. The G Series sensor differs from the GT and GTX type: it carries an O-ring, pushes into the port and is held by a bolt torqued to 5 to 6 Nm, and Garrett lists a bolt in this kit. With a maximum speed recall that holds the peak reading for five minutes, the gauge suits owners who want to check shaft speed after a pull. Owners who log through an ECU instead should look at the G Series Pro kit.

Reading the Numbers

Garrett explains that boost and shaft speed plotted together on a compressor map show the operating conditions for peak power over a wider range. The same data confirms the turbocharger match and shows whether it is running near its maximum speed.

Features

Speed sensor, wiring loom, gauge and bolt for G Series compressor housings
O-ring sealed push-in sensor, retained by a bolt torqued to 5 to 6 Nm (44 to 53 in-lb)
Gauge with maximum speed recall, holding the highest wheel speed for five minutes
Signal wire can also feed a data logger alongside the gauge

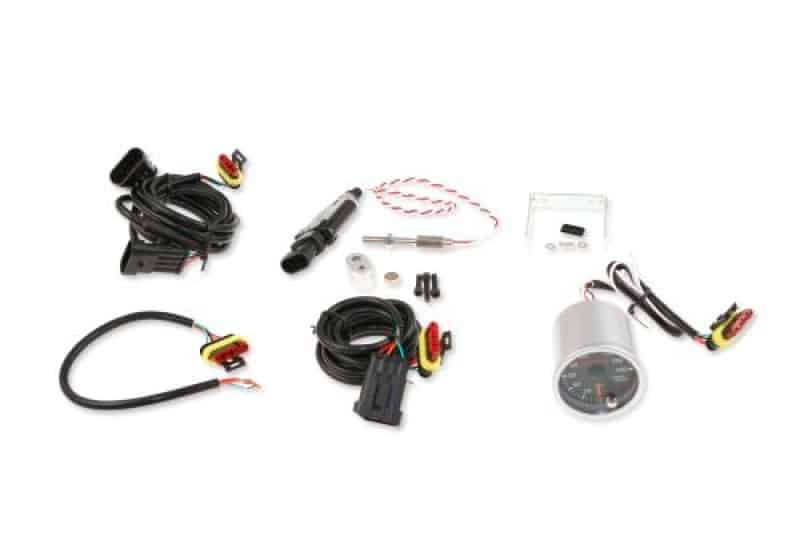

What’s Included

Speed sensor
Wiring loom
Gauge
Bolt

Applications

The Speed Sensor Street Kit is not vehicle specific. Garrett lists this version by turbocharger family:

Garrett families: G Series, GTX47 Gen II, GTX50 Gen II and GTX55 Gen II
Not for: GT, GTW, GTX and GTX28, GTX30 and GTX35 Gen II turbochargers

Notes

For GT and GTX turbochargers, choose the GT and GTX version among the Garrett speed sensor kits
A Pro version without a gauge, for data logger installs, is also available
Garrett recommends installation by a qualified automotive technician
Allow the engine to cool before installation, as turbocharger parts can be extremely hot

Frequently Asked Questions

Which turbochargers take the G Series Speed Sensor Street Kit? Garrett lists this Speed Sensor Street Kit for G Series turbochargers and for the GTX47, GTX50 and GTX55 Gen II. GTX28, GTX30 and GTX35 Gen II models, along with GT and GTW turbochargers, use the threaded GT and GTX kit, part 781328-0001, instead, because the two sensors mount differently.
How does the G Series sensor mount? It pushes into the speed sensor port on the compressor housing, sealed by an O-ring, and is held in place by a bolt torqued to 5 to 6 Nm, or 44 to 53 in-lb. Garrett lists the bolt as part of the G Series kits. The GT and GTX sensor threads in with a lock nut instead.
What does the gauge show? The gauge displays compressor wheel speed from the sensor, and Garrett gives it a maximum speed recall function that keeps the highest wheel speed for five minutes. That lets the driver check the peak after a run and compare it with the maximum allowable speed of the turbocharger.
Do I need the Street or the Pro kit? Choose the Street kit for a gauge in the cabin. Choose the Pro kit, 781328-0004 for G Series, if the speed signal will go only to a data logger or engine management system. Garrett states that all of its speed sensor kits work with data loggers, so the Street kit can log as well.
Is a speed sensor worth fitting to a G Series turbo? Garrett publishes a maximum allowable turbocharger speed for every G Series model and warns that exceeding it can cause damage and premature failure. A sensor shows where the shaft actually runs, helps confirm the turbocharger match, and lets a tuner keep boost targets inside the compressor map.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
