Which cars does the PowerMax Stage 1 Turbocharger fit?

Garrett lists the PowerMax Stage 1 Turbocharger for the MK7 2.0L TSI in the 2015-2018 Golf, GTI and Golf R, the 2017-2018 Golf Alltrack, the 2015-2018 Audi A3 and S3, and the Audi TT and TTS from 2014. It replaces the factory IS12, IS20 or IS38 turbo on those cars.

How much power will it support?

Garrett rates it at up to 485 horsepower, or 362 kW, calculated strictly from the choke flow of the compressor map as potential flywheel power. That is the capability of the turbo. Fuel, intake, intercooling and the calibration decide what a given GTI or S3 makes.

Should I choose Stage 1 or Stage 2?

Stage 1 is a GT2260S rated to 485 horsepower with a 185,000 rpm limit, and it keeps the factory layout. Stage 2 is a G25-660 rated to 600 horsepower. Choose Stage 2 only if the fuel system, intercooling and calibration are being built for that level.

Yes. Garrett states that results depend highly on the modifications and tuning or calibration of the car. Fitted to a car on factory software, the Stage 1 turbo will not deliver its potential until the calibration is matched to it.

What is the maximum turbo speed?

Garrett gives 185,000 rpm for Stage 1 and states that running above it is at the risk of the owner, with damage and premature failure possible. The compressor housing is machined for speed sensor kit 781328-0003 with gauge or 781328-0004 without, so shaft speed can be logged during tuning.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

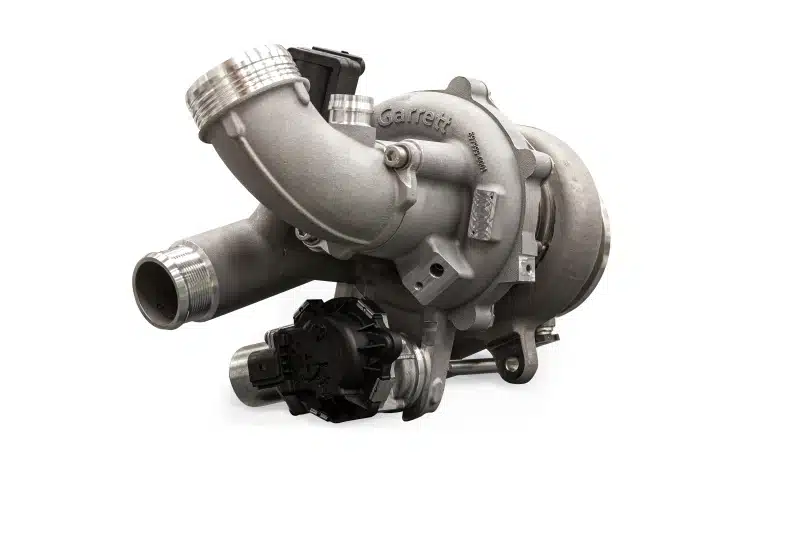

Garrett PowerMax Stage 1 Turbocharger for MK7 Volkswagen and Audi 2.0L TSI

Garrett’s PowerMax Stage 1 Turbocharger for the MK7 Volkswagen and Audi 2.0L TSI is a direct-fit GT2260S that replaces the factory IS12, IS20 or IS38 turbo on the Golf, GTI, Golf R, A3, S3 and TT family. Garrett rates it at up to 485 horsepower from the choke flow of its compressor map. It is the step for a GTI, Golf R or A3 owner whose factory turbo has run out on a tuned car. Owners chasing 500 horsepower and beyond should look at the Stage 2, which Garrett rates at 600.

Construction

The turbine wheel is Mar-M alloy and the twin scroll turbine housing is stainless steel, both rated by Garrett to 1050C (1922F). Garrett ships the turbo fully assembled with a calibrated electronic actuator and the ancillary components for direct factory fitment.

Features

Direct-fit GT2260S for the MK7 2.0L TSI, replacing IS12, IS20 and IS38 turbos
Fully assembled with a calibrated electronic actuator and ancillary components
Mar-M turbine wheel in a twin scroll stainless turbine housing
Machined speed sensor port in the compressor housing

Specifications

Garrett turbo model: GT2260S
Compressor inducer and exducer: 47mm and 60mm
Turbine inducer and exducer: 50mm and 45mm
Turbine wheel and housing rating: 1050C (1922F)
Garrett power rating: Up to 485 horsepower (362 kW)
Maximum turbocharger speed: 185,000 rpm

Applications

Garrett lists the PowerMax Stage 1 Turbocharger for these North American models:

Audi A3: 2015-2018 | 2.0L TSI
Audi S3: 2015-2018 | 2.0L TSI
Audi TT: 2014-present | 2.0L TSI
Audi TTS: 2014-present | 2.0L TSI
Volkswagen Golf: MK7 | 2015-2018 | 2.0L TSI
Volkswagen Golf Alltrack: MK7 | 2017-2018 | 2.0L TSI
Volkswagen Golf GTI: MK7 | 2015-2018 | 2.0L TSI
Volkswagen Golf R: MK7 | 2015-2018 | 2.0L TSI

Notes

Garrett also offers the MK7 PowerMax Stage 2 turbocharger, a G25-660 rated to 600 horsepower
Garrett states that running above 185,000 rpm is at the owner’s risk and can cause damage and premature failure
Speed sensor kits 781328-0003 and 781328-0004 are sold separately; see Garrett speed sensor kits
The 485 horsepower figure is a choke-flow rating; results depend on the car’s modifications and calibration

Frequently Asked Questions

Which cars does the PowerMax Stage 1 Turbocharger fit? Garrett lists the PowerMax Stage 1 Turbocharger for the MK7 2.0L TSI in the 2015-2018 Golf, GTI and Golf R, the 2017-2018 Golf Alltrack, the 2015-2018 Audi A3 and S3, and the Audi TT and TTS from 2014. It replaces the factory IS12, IS20 or IS38 turbo on those cars.
How much power will it support? Garrett rates it at up to 485 horsepower, or 362 kW, calculated strictly from the choke flow of the compressor map as potential flywheel power. That is the capability of the turbo. Fuel, intake, intercooling and the calibration decide what a given GTI or S3 makes.
Should I choose Stage 1 or Stage 2? Stage 1 is a GT2260S rated to 485 horsepower with a 185,000 rpm limit, and it keeps the factory layout. Stage 2 is a G25-660 rated to 600 horsepower. Choose Stage 2 only if the fuel system, intercooling and calibration are being built for that level.
Do I need a tune? Yes. Garrett states that results depend highly on the modifications and tuning or calibration of the car. Fitted to a car on factory software, the Stage 1 turbo will not deliver its potential until the calibration is matched to it.
What is the maximum turbo speed? Garrett gives 185,000 rpm for Stage 1 and states that running above it is at the risk of the owner, with damage and premature failure possible. The compressor housing is machined for speed sensor kit 781328-0003 with gauge or 781328-0004 without, so shaft speed can be logged during tuning.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
