What is included in the PowerMax MGT1446Z Turbo Kit?

Both turbochargers for the VR30DDTT: the left side, Garrett 955599-5001S, and the right side, Garrett 955600-5001S. Each is a complete assembly with a calibrated actuator, so the PowerMax MGT1446Z Turbo Kit installs at the factory mounting points with the original oil, coolant, intake and exhaust connections.

Which Infiniti models does it fit?

Garrett lists the kit for the 2016-2024 Infiniti Q50 with the 3.0L VR30DDTT, including Red Sport 400 and the 3.0t trims, and for the 2017-2022 Q60 with the 3.0L engine. Four-cylinder and hybrid Q50 models use different engines and are not covered.

How much power can these turbos support?

Garrett states up to 560 horsepower, or 412 kW, for the pair. The figure comes from laboratory compressor flow testing and represents the total capability of the turbos, not a dyno result. Actual output depends on vehicle configuration, supporting modifications and the ECU calibration.

Garrett says ECU calibration may be required depending on the setup and performance goals. In practice the extra flow only turns into power when the calibration raises the boost and fueling targets. A car left on its factory calibration gets new turbos that behave close to stock.

Will the Nissan Z kit fit my Q50?

Buy the part listed for your car. Garrett sells the Infiniti Q50 and Q60 turbos under kit 959783-5001S and the Nissan Z turbos under kit 959782-5001S, with separate part numbers for each side, even though both use the MGT1446Z model and the same published wheel sizes.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

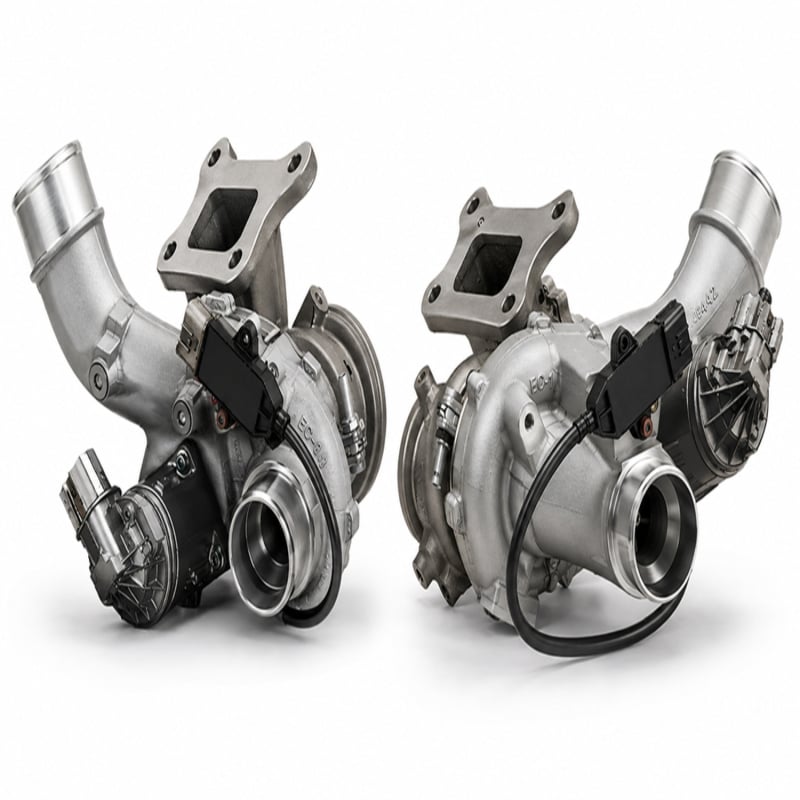

Garrett PowerMax MGT1446Z Turbo Kit for Infiniti Q50 and Q60 3.0L VR30DDTT

Garrett’s PowerMax MGT1446Z Turbo Kit replaces both turbochargers on the 3.0L VR30DDTT in the 2016-2024 Infiniti Q50 and 2017-2022 Q60 with direct-fit Garrett units that keep the factory footprint. Garrett quotes 12 percent more compressor flow than the original turbos and a capability of up to 560 horsepower for the pair, measured from laboratory compressor flow testing. That is a measured step rather than a big-turbo conversion: it suits a tuned Red Sport or 3.0t car whose calibration is running out of factory turbo, and does little for a car that stays on its stock software.

Fit and Installation

Garrett engineers each turbo as a complete replacement for the factory unit, with a calibrated actuator and the original mounting locations, oil and coolant connections and intake and exhaust interfaces. The aim is an OEM-plus part: factory fit and drivability, with more airflow available when the calibration asks for it.

Features

Left and right MGT1446Z turbos in one PowerMax MGT1446Z Turbo Kit, each with a calibrated actuator
Reuses the factory mounting points, oil and coolant lines and intake and exhaust connections
12 percent more compressor flow than the original turbochargers
Engineered by Garrett to OEM durability and quality standards

Specifications

Garrett turbo model: MGT1446Z
Compressor inducer and exducer: 36mm and 46mm
Turbine inducer and exducer: 39mm and 36mm
Compressor flow over factory: 12 percent more
Actuator: Calibrated by Garrett
Garrett power capability: Up to 560 horsepower (412 kW) for the pair

What’s Included

Left turbocharger, Garrett 955599-5001S
Right turbocharger, Garrett 955600-5001S

Applications

Garrett lists the PowerMax MGT1446Z Turbo Kit for these Infiniti models:

Infiniti Q50: 2016-2024 | 3.0L VR30DDTT Twin-Turbo V6
Infiniti Q60: 2017-2022 | 3.0L VR30DDTT Twin-Turbo V6

Notes

Each side is also sold alone as the Q50 and Q60 left turbo or the Q50 and Q60 right turbo
The Nissan Z uses its own part number, the Nissan Z PowerMax turbo kit
Garrett notes that ECU calibration may be required depending on the setup and performance goals
The horsepower figure is a laboratory flow rating for the turbos; vehicle results depend on configuration, modifications and tuning

Frequently Asked Questions

What is included in the PowerMax MGT1446Z Turbo Kit? Both turbochargers for the VR30DDTT: the left side, Garrett 955599-5001S, and the right side, Garrett 955600-5001S. Each is a complete assembly with a calibrated actuator, so the PowerMax MGT1446Z Turbo Kit installs at the factory mounting points with the original oil, coolant, intake and exhaust connections.
Which Infiniti models does it fit? Garrett lists the kit for the 2016-2024 Infiniti Q50 with the 3.0L VR30DDTT, including Red Sport 400 and the 3.0t trims, and for the 2017-2022 Q60 with the 3.0L engine. Four-cylinder and hybrid Q50 models use different engines and are not covered.
How much power can these turbos support? Garrett states up to 560 horsepower, or 412 kW, for the pair. The figure comes from laboratory compressor flow testing and represents the total capability of the turbos, not a dyno result. Actual output depends on vehicle configuration, supporting modifications and the ECU calibration.
Do I need a tune? Garrett says ECU calibration may be required depending on the setup and performance goals. In practice the extra flow only turns into power when the calibration raises the boost and fueling targets. A car left on its factory calibration gets new turbos that behave close to stock.
Will the Nissan Z kit fit my Q50? Buy the part listed for your car. Garrett sells the Infiniti Q50 and Q60 turbos under kit 959783-5001S and the Nissan Z turbos under kit 959782-5001S, with separate part numbers for each side, even though both use the MGT1446Z model and the same published wheel sizes.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
