What is the difference between the silver and black versions?

The finish. This is the bare aluminum 888883-6001, which Turn 14 lists as Silver, and Garrett also builds a flat black 888883-6002. Garrett publishes a single specification for both, so the core, coolant passages, weight and 980 horsepower rating do not change with the color you choose.

Which BMW models does the PowerMax M3 M4 Intercooler fit?

Garrett lists the PowerMax M3 M4 Intercooler for the 2015 and later M3 on the F80 chassis and the M4 on the F82 and F83 chassis, with the gasoline inline six. It is a direct fit in the factory position. Later M3 and M4 generations are not on the Garrett fitment list for this part.

Is the 980 horsepower rating a power gain?

No. It is the most power Garrett says the cooler can support. The measured result in Garrett testing was smaller and practical: an average 10F drop in intake manifold temperature and an average of 12.4 horsepower more than the factory cooler once the car was heat soaked.

How does Garrett measure intercooler effectiveness?

Garrett reports instantaneous effectiveness, the share of the possible heat the cooler removes at a given moment. Its testing put the factory cooler at 90 percent and the Garrett unit at 92 percent, with outlet temperature about 5F lower on each run before heat soak and 10F lower after it.

How long does installation take?

Garrett quotes about 1.5 hours. The cooler bolts into the stock location with the factory bolts, hoses and clamps, so the job is a swap rather than a fabrication project, and the original cooler can be kept if the car ever needs to return to stock.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

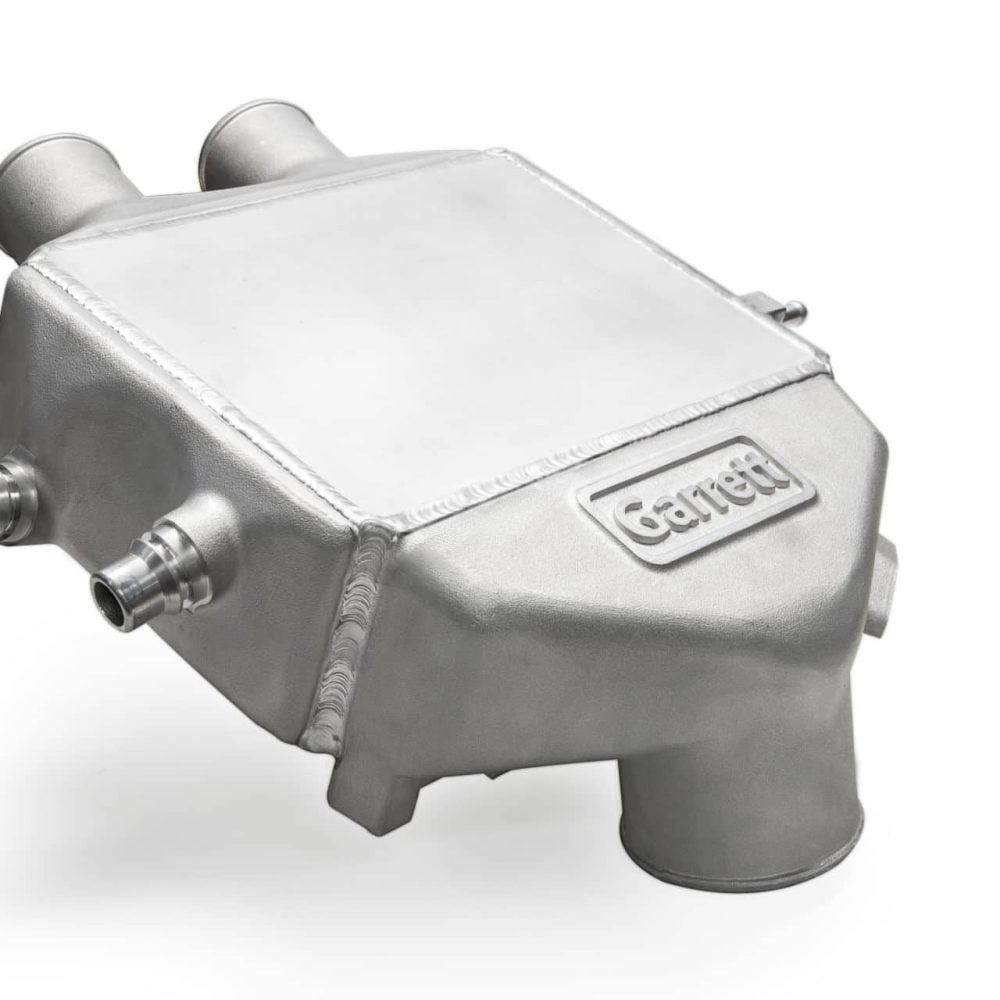

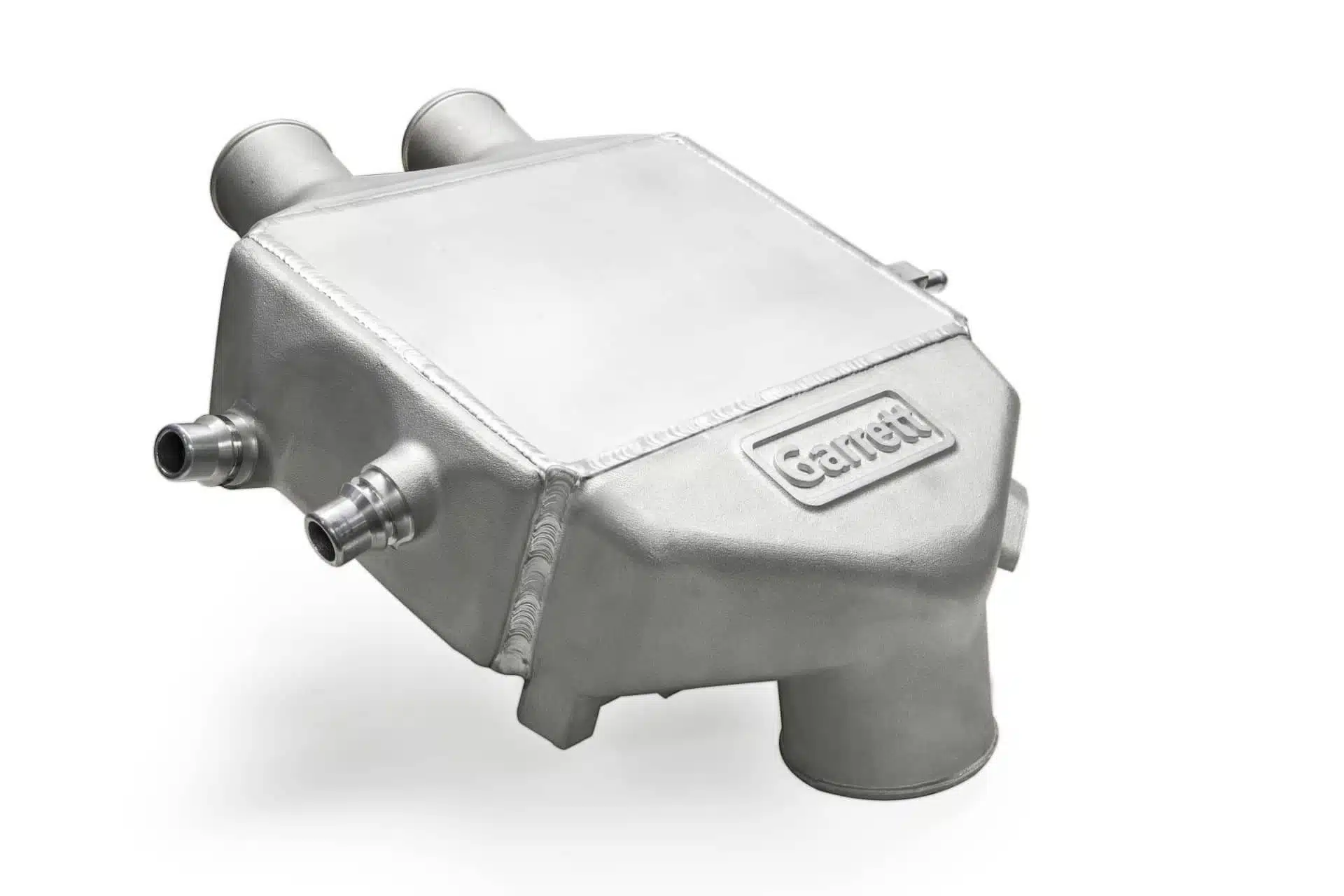

Garrett PowerMax M3 M4 Intercooler for F80 F82 F83 BMW M3 and M4, Silver

Garrett’s PowerMax M3 M4 Intercooler in silver is the bare aluminum version of Garrett’s air-to-liquid upgrade for the F80 M3 and the F82 and F83 M4 from 2015 on; Turn 14 sells it as Silver and Garrett lists it as the aluminum finish, part 888883-6001. Underneath the finish it matches the black version: a bar-and-plate core 47 percent larger than stock, dual-pass coolant flow, cast aluminum end tanks and a 980 horsepower rating. Pick it if you prefer the look of raw metal under the hood. On a stock car the gain is modest, while a tuned car that heat soaks during spirited driving or track use is where Garrett’s test data shows the cooler earning its place.

Design

Garrett used computational fluid dynamics to shape the end tanks and states that flow through each passage of the core varies by about 7 percent from the mean. Even distribution means the whole core does the work, and Garrett’s test data shows charge air flow about 2 lb/min higher and charge pressure about 1.5 psi higher after the tenth pull.

Features

Bare aluminum finish, Garrett part 888883-6001
Air-to-liquid design with a dual-pass coolant circuit through a core 47 percent larger than the factory unit
Cast aluminum end tanks and bar-and-plate construction
Direct fit, reusing the factory bolts, hoses and clamps

Specifications

Garrett part number: 888883-6001
Finish: Aluminum (listed by Turn 14 as Silver)
Size: 7.2 x 9.8 x 3.6 in (183 x 249 x 92 mm)
Weight: 14.10 lb
Core size against stock: 47 percent larger
Supported power: Up to 980 horsepower (Garrett rating)

Applications

Garrett lists the PowerMax M3 M4 Intercooler for these models:

BMW M3: F80 | 2015-present | I6
BMW M4: F82, F83 | 2015-present | I6

Notes

Fits the F80 M3 and F82 and F83 M4; Garrett does not list later generations
Garrett quotes about 1.5 hours to install in the stock location
The 980 horsepower rating describes cooler capacity, not added power
The same cooler is sold in flat black as the black finish version

Frequently Asked Questions

What is the difference between the silver and black versions? The finish. This is the bare aluminum 888883-6001, which Turn 14 lists as Silver, and Garrett also builds a flat black 888883-6002. Garrett publishes a single specification for both, so the core, coolant passages, weight and 980 horsepower rating do not change with the color you choose.
Which BMW models does the PowerMax M3 M4 Intercooler fit? Garrett lists the PowerMax M3 M4 Intercooler for the 2015 and later M3 on the F80 chassis and the M4 on the F82 and F83 chassis, with the gasoline inline six. It is a direct fit in the factory position. Later M3 and M4 generations are not on the Garrett fitment list for this part.
Is the 980 horsepower rating a power gain? No. It is the most power Garrett says the cooler can support. The measured result in Garrett testing was smaller and practical: an average 10F drop in intake manifold temperature and an average of 12.4 horsepower more than the factory cooler once the car was heat soaked.
How does Garrett measure intercooler effectiveness? Garrett reports instantaneous effectiveness, the share of the possible heat the cooler removes at a given moment. Its testing put the factory cooler at 90 percent and the Garrett unit at 92 percent, with outlet temperature about 5F lower on each run before heat soak and 10F lower after it.
How long does installation take? Garrett quotes about 1.5 hours. The cooler bolts into the stock location with the factory bolts, hoses and clamps, so the job is a swap rather than a fabrication project, and the original cooler can be kept if the car ever needs to return to stock.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
