Will the PowerMax GT2563 Turbocharger fit my Golf R?

Garrett lists the PowerMax GT2563 Turbocharger for the 2022-present Golf R in North America with the 2.0L EA888 Evo4, replacing factory turbos 06Q145703F, 06Q145703G and 06Q145703H. The earlier Mk7 Golf R uses a different engine generation and takes the PowerMax MK7 turbos instead.

How much power did Garrett see on a car?

Garrett reports 520 horsepower and 425 lb-ft of torque on a vehicle with a conservative tune, against a turbo capability rating of 550 horsepower. Those are figures from that test, not a promise for every car, and Garrett states that results depend heavily on the modifications and calibration of the vehicle.

Yes. A turbo with 20 percent more compressor flow and 37 percent more turbine flow than stock only adds power when the calibration asks for it, and Garrett reached its published result with a tune. Plan fuel and intake support around the power target as well.

What is the turbine side made of?

Garrett uses a Mar-M alloy turbine wheel and an internally wastegated stainless steel turbine housing, both rated to 1050 degrees Celsius. The wastegate channel in the housing is optimized for higher flow and boost control, which matters on a turbo flowing this much more than the factory unit.

What is the overspeed limit?

Garrett sets the maximum allowable speed at 177,800 rpm and states that running above it is at the risk of the owner and can cause damage and premature failure. The compressor housing takes the G-Smart Bluetooth module 923586-0003 or speed sensor kits 781328-0003 and 781328-0004, all sold separately.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

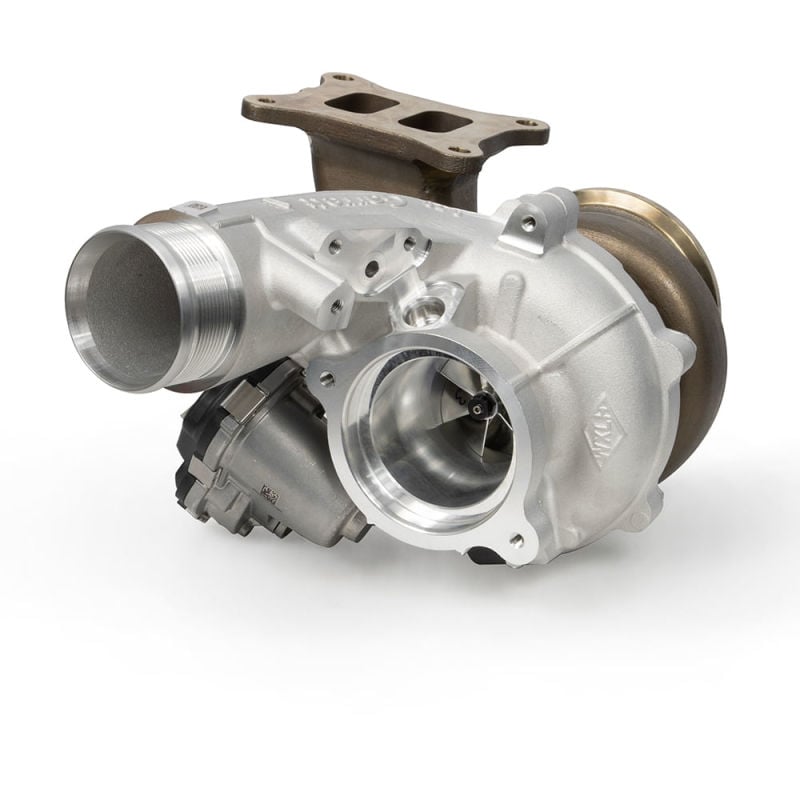

Garrett PowerMax GT2563 Turbocharger for Mk8 Volkswagen Golf R 2.0L EA888 Evo4

Garrett’s PowerMax GT2563 Turbocharger is the direct-fit upgrade for the 2.0L EA888 Evo4 in the North American Mk8 Volkswagen Golf R, sized with 20 percent more compressor flow and 37 percent more turbine flow than the factory turbo while keeping the original footprint. Garrett rates it at 550 horsepower of turbo capability and reports 520 horsepower and 425 lb-ft on a vehicle with a conservative tune. That is a large step for a Golf R and it suits an owner with fuel, intake and a calibration planned around it. For a car that stays on its factory software, it is more turbocharger than the engine will use.

Materials and Design

The turbine wheel is Mar-M alloy and the stainless steel turbine housing, internally wastegated, is rated with it to 1050C (1922F). Garrett reshaped the wastegate channel for higher flow and better boost control and reinforced the integrated thrust bearing for this application. The turbo ships complete with a calibrated electric actuator for factory fitment.

Features

Complete PowerMax GT2563 Turbocharger assembly with calibrated electric actuator
Stainless internal wastegate housing with an optimized wastegate channel
Reinforced integrated thrust bearing
Fully machined speed sensor port

Specifications

Garrett turbo model: GT2563
Compressor inducer and exducer: 51mm and 63mm
Turbine inducer and exducer: 58mm and 50mm
Flow gain over factory: 20 percent compressor, 37 percent turbine
Turbine wheel and housing: Mar-M alloy wheel, stainless housing, both rated to 1050C (1922F)
Maximum turbocharger speed: 177,800 rpm

Applications

Garrett lists the PowerMax GT2563 Turbocharger for this North American model:

Volkswagen Golf R: Mk8 | 2022-present | 2.0L EA888 Evo4

Notes

The 520 horsepower and 425 lb-ft figures are Garrett’s on-vehicle result with a conservative tune; Garrett does not list that test car’s other modifications
Garrett states that running above 177,800 rpm is at the owner’s risk and can cause damage and premature failure
Speed sensor options are the G-Smart module 923586-0003 or sensor kits 781328-0003 and 781328-0004, sold separately; see Garrett speed sensor kits
The Mk8 Golf GTI uses a different turbo, the PowerMax GT2260S for the EA888 Evo4

Frequently Asked Questions

Will the PowerMax GT2563 Turbocharger fit my Golf R? Garrett lists the PowerMax GT2563 Turbocharger for the 2022-present Golf R in North America with the 2.0L EA888 Evo4, replacing factory turbos 06Q145703F, 06Q145703G and 06Q145703H. The earlier Mk7 Golf R uses a different engine generation and takes the PowerMax MK7 turbos instead.
How much power did Garrett see on a car? Garrett reports 520 horsepower and 425 lb-ft of torque on a vehicle with a conservative tune, against a turbo capability rating of 550 horsepower. Those are figures from that test, not a promise for every car, and Garrett states that results depend heavily on the modifications and calibration of the vehicle.
Do I need a tune? Yes. A turbo with 20 percent more compressor flow and 37 percent more turbine flow than stock only adds power when the calibration asks for it, and Garrett reached its published result with a tune. Plan fuel and intake support around the power target as well.
What is the turbine side made of? Garrett uses a Mar-M alloy turbine wheel and an internally wastegated stainless steel turbine housing, both rated to 1050 degrees Celsius. The wastegate channel in the housing is optimized for higher flow and boost control, which matters on a turbo flowing this much more than the factory unit.
What is the overspeed limit? Garrett sets the maximum allowable speed at 177,800 rpm and states that running above it is at the risk of the owner and can cause damage and premature failure. The compressor housing takes the G-Smart Bluetooth module 923586-0003 or speed sensor kits 781328-0003 and 781328-0004, all sold separately.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
