Will the PowerMax GT2260S Turbocharger fit my GTI?

Garrett lists the PowerMax GT2260S Turbocharger for the 2022-present Golf GTI in North America with the 2.0L EA888 Evo4, replacing factory turbo 06Q145702B. The Mk7 GTI uses an earlier engine and a different Garrett PowerMax part, and the Golf R of either generation takes its own turbo.

How much power should I expect?

Garrett reports 447 horsepower from a GTI tested in Germany with this turbo, a custom downpipe, the stock intercooler and fuel system, and 98 octane fuel. That is one car with those parts and that fuel, so treat it as a reference point. Garrett states that results depend heavily on modifications and calibration.

Do I need a downpipe and tune?

A tune, yes, because the extra 32 percent of compressor flow only becomes power when the calibration asks for it. Garrett does not state that a downpipe is required, but its published 447 horsepower result was measured with a custom downpipe, so a stock exhaust may land lower.

What is different about the compressor?

Garrett fits GTX Gen II compressor aerodynamics, the same family of wheel design used in its GTX Gen II performance turbos, adapted to the factory packaging. Garrett credits it with 32 percent more flow than the original turbo, paired with 50 percent more turbine flow from the Mar-M wheel and twin scroll housing.

What is the maximum turbo speed?

Garrett sets the limit at 186,000 rpm and states that running above it is at the risk of the owner and can cause damage and premature failure. A machined port in the compressor housing accepts speed sensor kit 781328-0003 with a gauge or 781328-0004 without one, both sold separately.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

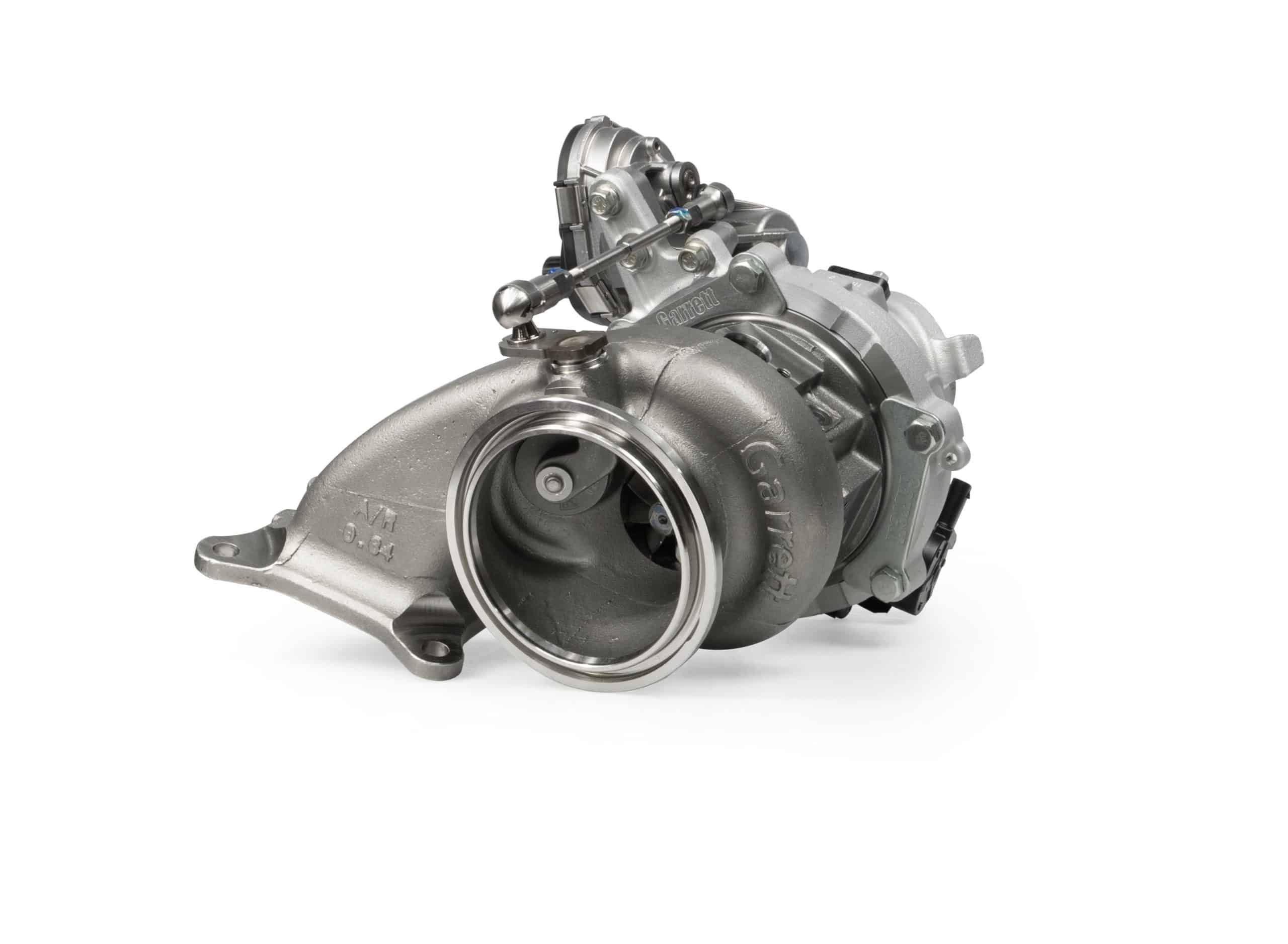

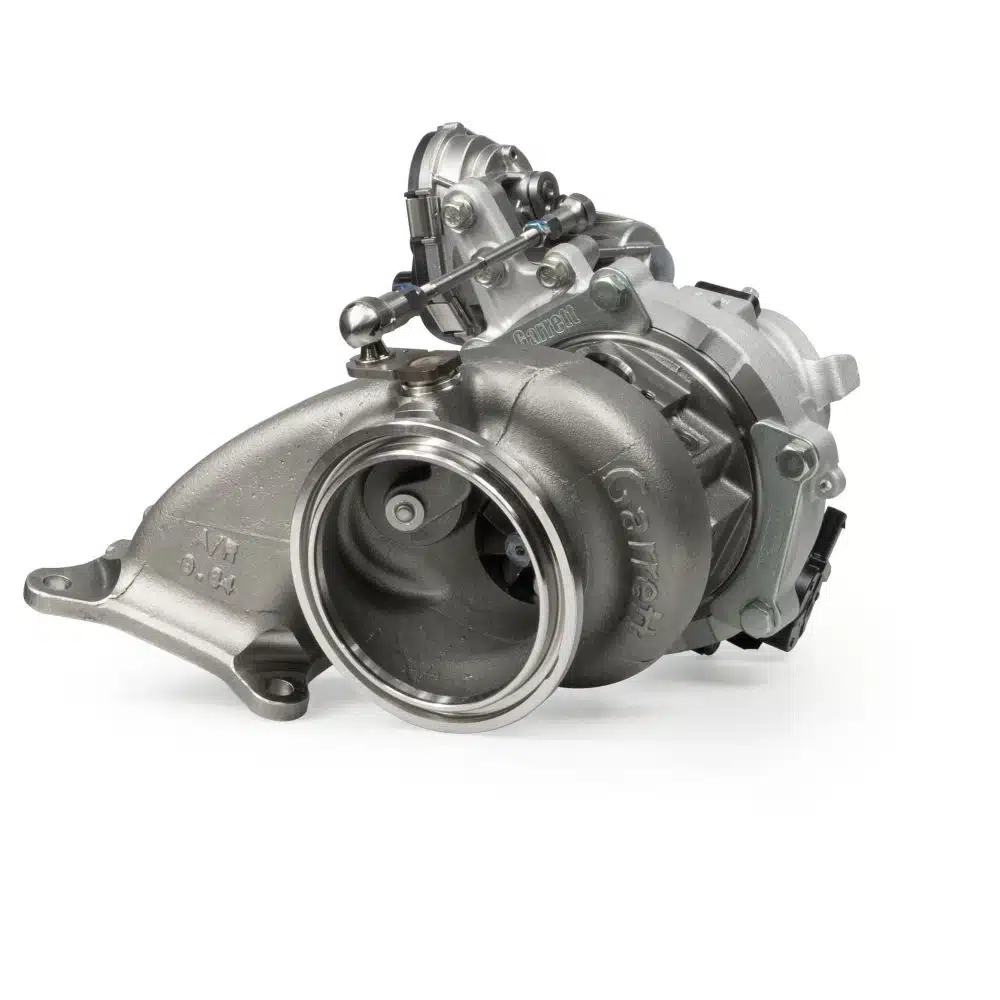

Garrett PowerMax GT2260S Turbocharger for Mk8 Volkswagen Golf GTI 2.0L EA888 Evo4

Garrett’s PowerMax GT2260S Turbocharger replaces the factory turbo on the 2.0L EA888 Evo4 in the North American Mk8 Volkswagen Golf GTI, packaged to the original layout with a complete electronic actuator. Garrett uses GTX Gen II compressor aerodynamics for 32 percent more compressor flow than the factory turbo and reports 50 percent more turbine flow. Its published result is 447 horsepower on a German-market GTI with a custom downpipe, the stock intercooler and fuel system, and 98 octane fuel. It suits a GTI owner planning a tune and downpipe; on a stock car the extra flow sits unused.

Turbine and Bearings

The turbine wheel is Mar-M alloy, running in a twin scroll stainless steel turbine housing, both rated to 1050C (1922F). The rotating group uses Garrett’s latest journal bearing design with a 360 degree reinforced thrust bearing. Garrett also publishes an installation supplement for this turbo covering the wire shroud.

Features

Complete PowerMax GT2260S Turbocharger with electronic actuator, packaged for the factory layout
GTX Gen II compressor aerodynamics
Twin scroll stainless turbine housing and Mar-M turbine wheel
Speed sensor port machined into the compressor housing

Specifications

Garrett turbo model: GT2260S
Compressor inducer and exducer: 47mm and 60mm
Turbine inducer and exducer: 50mm and 45mm
Flow gain over factory: 32 percent compressor, 50 percent turbine
Bearing system: Journal bearing, 360 degree reinforced thrust bearing
Maximum turbocharger speed: 186,000 rpm

Applications

Garrett lists the PowerMax GT2260S Turbocharger for this North American model:

Volkswagen Golf GTI: Mk8 | 2022-present | 2.0L EA888 Evo4

Notes

The 447 horsepower figure is Garrett’s on-vehicle result from a European GTI with a custom downpipe, stock intercooler, stock fuel system and 98 octane fuel
Garrett states that running above 186,000 rpm is at the owner’s risk and can cause damage and premature failure
Speed sensor kits 781328-0003 and 781328-0004 are sold separately; see Garrett speed sensor kits
The Mk8 Golf R uses a different turbo, the PowerMax GT2563 for the Golf R

Frequently Asked Questions

Will the PowerMax GT2260S Turbocharger fit my GTI? Garrett lists the PowerMax GT2260S Turbocharger for the 2022-present Golf GTI in North America with the 2.0L EA888 Evo4, replacing factory turbo 06Q145702B. The Mk7 GTI uses an earlier engine and a different Garrett PowerMax part, and the Golf R of either generation takes its own turbo.
How much power should I expect? Garrett reports 447 horsepower from a GTI tested in Germany with this turbo, a custom downpipe, the stock intercooler and fuel system, and 98 octane fuel. That is one car with those parts and that fuel, so treat it as a reference point. Garrett states that results depend heavily on modifications and calibration.
Do I need a downpipe and tune? A tune, yes, because the extra 32 percent of compressor flow only becomes power when the calibration asks for it. Garrett does not state that a downpipe is required, but its published 447 horsepower result was measured with a custom downpipe, so a stock exhaust may land lower.
What is different about the compressor? Garrett fits GTX Gen II compressor aerodynamics, the same family of wheel design used in its GTX Gen II performance turbos, adapted to the factory packaging. Garrett credits it with 32 percent more flow than the original turbo, paired with 50 percent more turbine flow from the Mar-M wheel and twin scroll housing.
What is the maximum turbo speed? Garrett sets the limit at 186,000 rpm and states that running above it is at the risk of the owner and can cause damage and premature failure. A machined port in the compressor housing accepts speed sensor kit 781328-0003 with a gauge or 781328-0004 without one, both sold separately.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
