Will the PowerMax AVNT3788R Turbo fit my 2017 F-250?

No. Garrett lists this part number, 951205-5001S, for the 2015 and 2016 F-250 and F-350 only. From 2017 the factory turbo part changes, and Garrett covers the 2017-2019 F-250, F-350 and F-450 with the PowerMax AVNT3788R Turbo under part 951206-5001S.

Which factory turbo does it replace?

Garrett lists the 2015-2016 factory turbo as Ford FC3Q-9G438-BB, with service part FC3Z-6K682-B. Garrett built that original unit, and the PowerMax version keeps the same footprint while moving to a larger 63.5mm compressor wheel. Compare the number on your turbo before ordering.

How much power will it support?

Garrett rates it at up to 650 horsepower, or 485 kW. The figure is calculated strictly from the choke flow of the compressor map and represents potential flywheel horsepower. With the factory engine listed at 440 horsepower, what the truck makes depends on its fueling, exhaust and calibration.

For more power, yes. Garrett states that performance results depend highly on the modifications and tuning or calibration of the vehicle. On the stock calibration the truck keeps its factory boost and fueling, and the PowerMax works as a direct replacement with extra flow capacity available later.

Does it come with the actuator?

Yes. Garrett describes the 6.7L PowerMax as a complete drop-in assembly that includes the actuator and fits within the original turbocharger footprint. There is no actuator to transfer from the old turbo, which keeps the swap close to a factory replacement.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

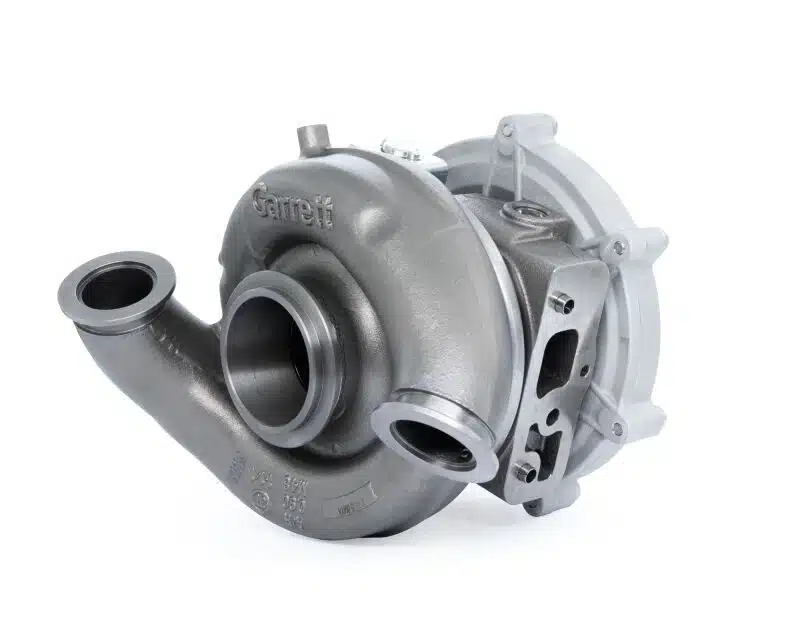

Garrett PowerMax AVNT3788R Turbo for 2015-2016 Ford Super Duty 6.7L Power Stroke

Garrett’s PowerMax AVNT3788R Turbo for the 2015-2016 Ford Super Duty 6.7L Power Stroke is a direct-fit replacement for the factory turbo on the F-250 and F-350, built by the company that supplies the original. Its 63.5mm compressor wheel gives 17 percent more compressor flow than the stock turbo, and Garrett rates it at up to 650 horsepower from the choke flow of the compressor map. Garrett lists the factory engine at 440 horsepower, so the turbo has room for a tuned truck. For a truck staying on the stock calibration it is a factory-quality replacement with spare capacity rather than a power gain.

Direct-Fit Assembly

Garrett engineers the PowerMax as a complete drop-in assembly. It includes the actuator and fits within the original turbocharger footprint, so it installs in the factory location using the stock mounting arrangement. Garrett splits the 6.7L application by model year, and this part number covers the 2015 and 2016 trucks only.

Features

Complete PowerMax AVNT3788R Turbo assembly with actuator, fitting the factory footprint
63.5mm compressor wheel for 17 percent more compressor flow than stock
Built by Garrett, the original turbocharger supplier for the 6.7L Power Stroke
Replaces Ford FC3Q-9G438-BB, service part FC3Z-6K682-B

Specifications

Garrett turbo model: AVNT3788R
Compressor inducer and exducer: 63.5mm and 88mm
Turbine inducer and exducer: 72mm and 62mm
Compressor flow over factory: 17 percent more
Garrett power rating: Up to 650 horsepower (485 kW)

Applications

Garrett lists the PowerMax AVNT3788R Turbo for these 2015-2016 trucks:

Ford F-250 Super Duty: 2015-2016 | 6.7L Power Stroke V8 Diesel
Ford F-350 Super Duty: 2015-2016 | 6.7L Power Stroke V8 Diesel

Notes

For 2017-2019 trucks, choose the 2017-2019 6.7L PowerMax turbo
The 650 horsepower figure is a choke-flow rating; truck results depend on modifications and calibration
A calibration is needed to turn the added compressor flow into more power

Frequently Asked Questions

Will the PowerMax AVNT3788R Turbo fit my 2017 F-250? No. Garrett lists this part number, 951205-5001S, for the 2015 and 2016 F-250 and F-350 only. From 2017 the factory turbo part changes, and Garrett covers the 2017-2019 F-250, F-350 and F-450 with the PowerMax AVNT3788R Turbo under part 951206-5001S.
Which factory turbo does it replace? Garrett lists the 2015-2016 factory turbo as Ford FC3Q-9G438-BB, with service part FC3Z-6K682-B. Garrett built that original unit, and the PowerMax version keeps the same footprint while moving to a larger 63.5mm compressor wheel. Compare the number on your turbo before ordering.
How much power will it support? Garrett rates it at up to 650 horsepower, or 485 kW. The figure is calculated strictly from the choke flow of the compressor map and represents potential flywheel horsepower. With the factory engine listed at 440 horsepower, what the truck makes depends on its fueling, exhaust and calibration.
Do I need a tune? For more power, yes. Garrett states that performance results depend highly on the modifications and tuning or calibration of the vehicle. On the stock calibration the truck keeps its factory boost and fueling, and the PowerMax works as a direct replacement with extra flow capacity available later.
Does it come with the actuator? Yes. Garrett describes the 6.7L PowerMax as a complete drop-in assembly that includes the actuator and fits within the original turbocharger footprint. There is no actuator to transfer from the old turbo, which keeps the swap close to a factory replacement.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
