Is the 1.40 A/R GXR55 Turbine Housing Kit right for my engine?

It is if the engine is large or revs very high. The 1.40 A/R GXR55 Turbine Housing Kit flows the most of the two GXR55 sizes, which suits engines toward 12.0L that can spool it. Smaller engines in the 3.0L to 12.0L range usually respond better with the 1.24 A/R.

Does the map groove version of the core matter for this housing?

No. The 0.18 inch and 0.25 inch map grooves are compressor housing features. Garrett lists this turbine housing for both GXR55-88 super cores, 934174-5008S and 934174-5001S, because they share the same turbine wheel with a 103mm exducer. Choosing the map groove version is a separate decision from choosing the A/R.

What does the XBoost compressor add?

Garrett states that the GXR55-88 XBoost compressor flows 21 percent more than the G55-1950, with higher pressure ratio capability and better efficiency at high flow rates. A larger turbine housing such as this 1.40 A/R gives that extra airflow an exhaust side that can keep up.

Is this housing stainless steel?

Yes. Garrett describes the GXR55 turbine housings as stainless steel with V-band inlet flanges, offered in 1.24 and 1.40 A/R. Garrett does not publish a temperature rating for them, so exhaust gas temperature should be monitored during tuning at these power levels.

Is the super core included?

No. This listing is the turbine housing kit only. The GXR55-88 super core, with its center section, rotating assembly and compressor housing, is sold separately in 0.18 inch or 0.25 inch map groove form, and Garrett publishes a maximum speed of 84,000 rpm for it.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

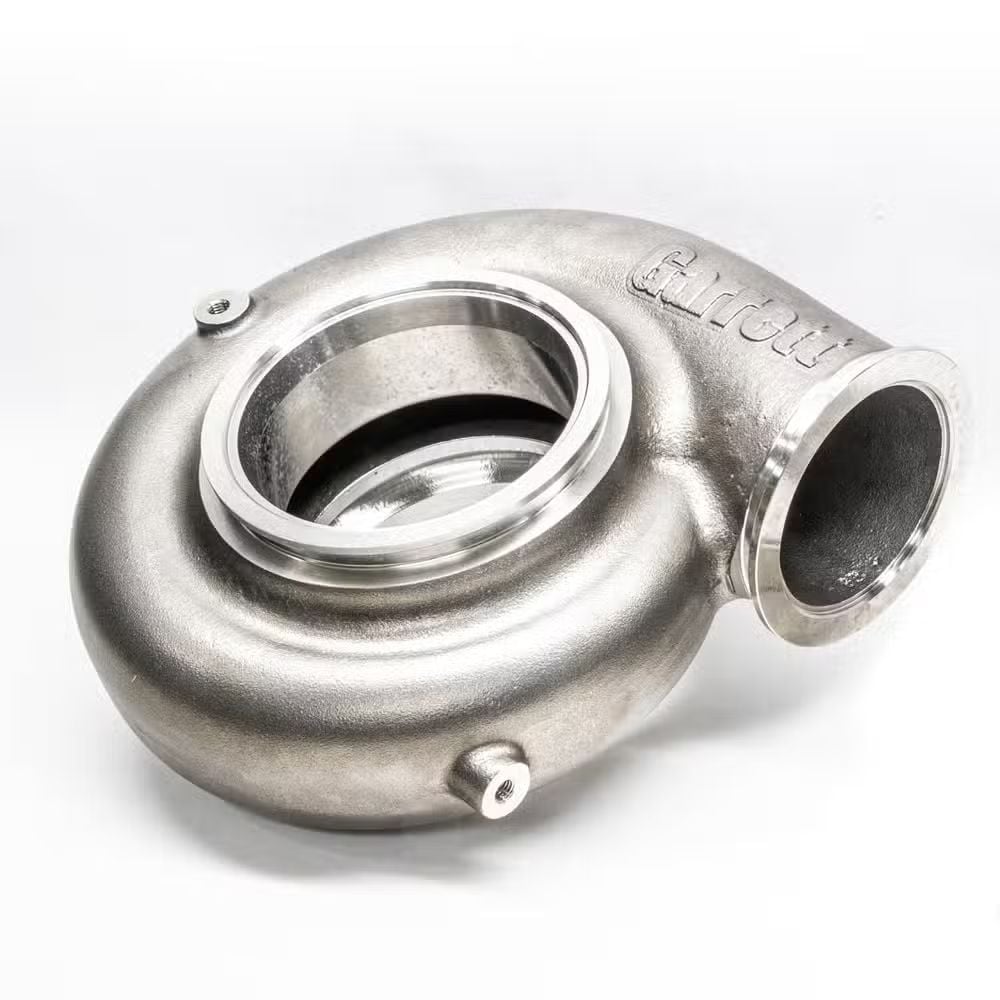

Garrett GXR55 Turbine Housing Kit, 1.40 A/R V-Band, 103mm Turbine

Garrett’s GXR55 Turbine Housing Kit at 1.40 A/R is the larger, higher-flowing of the two housings for the GXR55-88, with V-band connections at both ends, stainless steel construction and a free-float layout around a 103mm exducer turbine wheel. Garrett rates the GXR55-88 at up to 2350 horsepower, and this is the housing that gives that compressor the most exhaust flow to work with. It suits engines toward the 12.0L end of the 3.0L to 12.0L range, or smaller engines that live at very high rpm. On an engine that needs boost early, the 1.24 A/R is the better choice.

Why a larger A/R here

A/R compares the area of the housing passage with its distance from the turbine center. Moving from 1.24 to 1.40 lowers exhaust velocity and backpressure, which helps the GXR55-88 turbine flow at the top of the rev range at the cost of a later boost threshold.

Features

Larger of two A/R sizes in the GXR55 Turbine Housing Kit range
V-band joints at the inlet and outlet
No internal wastegate; an external gate controls boost
Sized for the GXR55-88 turbine wheel with a 112mm inducer and 103mm exducer

Specifications

Garrett part number: 761208-0087
A/R: 1.40
Turbine inlet and outlet: V-band and V-band
Divided inlet: No
Wastegate: External (free float)
Material: Stainless steel
Matching turbine wheel: 112mm inducer and 103mm exducer

Applications

This GXR55 Turbine Housing Kit fits the following Garrett cores:

Garrett GXR55-88, 0.18 inch map groove: 934174-5008S super core
Garrett GXR55-88, 0.25 inch map groove: 934174-5001S super core

Notes

An external wastegate is required, because this housing has no internal wastegate
The GXR55-88 super core is sold separately
Garrett sets the maximum turbocharger speed of the GXR55-88 at 84,000 rpm and states that running above it is at the owner’s risk
The smaller 1.24 A/R GXR55 housing suits engines that need earlier boost
Garrett does not publish a hardware list for this kit; confirm clamps and gaskets before ordering

Frequently Asked Questions

Is the 1.40 A/R GXR55 Turbine Housing Kit right for my engine? It is if the engine is large or revs very high. The 1.40 A/R GXR55 Turbine Housing Kit flows the most of the two GXR55 sizes, which suits engines toward 12.0L that can spool it. Smaller engines in the 3.0L to 12.0L range usually respond better with the 1.24 A/R.
Does the map groove version of the core matter for this housing? No. The 0.18 inch and 0.25 inch map grooves are compressor housing features. Garrett lists this turbine housing for both GXR55-88 super cores, 934174-5008S and 934174-5001S, because they share the same turbine wheel with a 103mm exducer. Choosing the map groove version is a separate decision from choosing the A/R.
What does the XBoost compressor add? Garrett states that the GXR55-88 XBoost compressor flows 21 percent more than the G55-1950, with higher pressure ratio capability and better efficiency at high flow rates. A larger turbine housing such as this 1.40 A/R gives that extra airflow an exhaust side that can keep up.
Is this housing stainless steel? Yes. Garrett describes the GXR55 turbine housings as stainless steel with V-band inlet flanges, offered in 1.24 and 1.40 A/R. Garrett does not publish a temperature rating for them, so exhaust gas temperature should be monitored during tuning at these power levels.
Is the super core included? No. This listing is the turbine housing kit only. The GXR55-88 super core, with its center section, rotating assembly and compressor housing, is sold separately in 0.18 inch or 0.25 inch map groove form, and Garrett publishes a maximum speed of 84,000 rpm for it.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
