Which cores fit the GXR55 Turbine Housing Kit?

Garrett lists this 1.24 A/R GXR55 Turbine Housing Kit for two super cores: the GXR55-88 with a 0.18 inch map groove, part 934174-5008S, and the GXR55-88 with a 0.25 inch map groove, part 934174-5001S. The map groove changes the compressor side only, so both use this housing.

Should I choose 1.24 or 1.40 A/R?

Choose by displacement and rpm. The 1.24 A/R brings boost in sooner and suits engines in the lower part of the 3.0L to 12.0L range Garrett gives for the GXR55-88. The 1.40 flows more at high rpm and suits the largest engines chasing the top of the rating.

How much power can the GXR55-88 make?

Garrett rates the GXR55-88 at 1000 to 2350 horsepower. The figure comes from the choke flow of the compressor map and represents potential flywheel horsepower, so the fuel system, boost level, intercooling and calibration decide where a particular engine ends up.

Do I need an external wastegate?

Yes. Garrett lists both GXR55 turbine kits as free float, so the housing has no internal wastegate port, flapper or actuator. Boost must be controlled by an external wastegate mounted on the exhaust manifold, sized for the very high exhaust flow of an engine in this power class.

What maximum turbocharger speed applies?

Garrett publishes 84,000 rpm as the maximum turbocharger speed for the GXR55-88 and warns that running above it can damage the turbocharger. A speed sensor fitted to the machined port in the compressor housing lets the tuner log shaft speed and stay under that limit.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

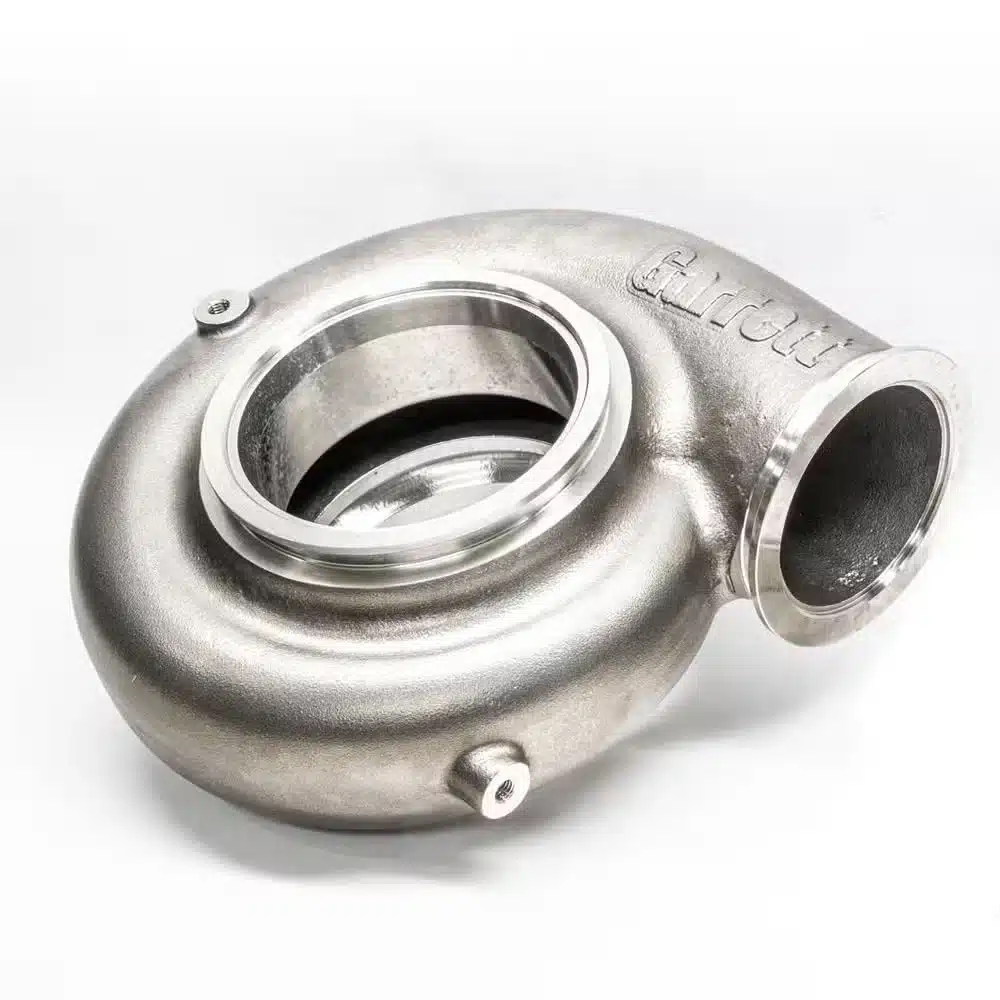

Garrett GXR55 Turbine Housing Kit, 1.24 A/R V-Band, 103mm Turbine

Garrett’s GXR55 Turbine Housing Kit in 1.24 A/R is the smaller of the two exhaust housings Garrett offers for its GXR55-88 super cores, a stainless steel casting with V-band joints at the inlet and outlet and no internal wastegate, machined around a turbine wheel with a 103mm exducer. Garrett rates the GXR55-88 at 1000 to 2350 horsepower on engines from 3.0L to 12.0L, so even the smaller housing is built for very large output. Between the two sizes, the 1.24 favors response and suits the lower half of that displacement range. A builder chasing the top of the rating on a big V8 should look at the 1.40 A/R.

About the GXR55 frame

The GXR55-88 pairs an 88.9mm compressor inducer and 133mm exducer with a turbine wheel measuring 112mm at the inducer and 103mm at the exducer. Garrett states that the XBoost compressor flows 21 percent more than the G55-1950, and both map groove versions of the core share these turbine housings.

Features

V-band inlet and outlet, clockable during mock-up
Free-float design with boost held by an external wastegate
Smaller of two A/R sizes in the GXR55 Turbine Housing Kit range
Machined for the 103mm exducer turbine wheel

Specifications

Garrett part number: 761208-0086
A/R: 1.24
Turbine inlet and outlet: V-band and V-band
Divided inlet: No
Wastegate: External (free float)
Material: Stainless steel
Matching turbine wheel: 112mm inducer and 103mm exducer

Applications

Garrett lists this GXR55 Turbine Housing Kit for these super cores:

Garrett GXR55-88, 0.18 inch map groove: 934174-5008S super core
Garrett GXR55-88, 0.25 inch map groove: 934174-5001S super core

Notes

An external wastegate is required, because this housing has no internal wastegate
The GXR55-88 super core is sold separately
Garrett sets the maximum turbocharger speed of the GXR55-88 at 84,000 rpm and states that running above it is at the owner’s risk
Garrett also offers this housing in 1.40 A/R
Garrett does not publish a hardware list for this kit; confirm clamps and gaskets before ordering

Frequently Asked Questions

Which cores fit the GXR55 Turbine Housing Kit? Garrett lists this 1.24 A/R GXR55 Turbine Housing Kit for two super cores: the GXR55-88 with a 0.18 inch map groove, part 934174-5008S, and the GXR55-88 with a 0.25 inch map groove, part 934174-5001S. The map groove changes the compressor side only, so both use this housing.
Should I choose 1.24 or 1.40 A/R? Choose by displacement and rpm. The 1.24 A/R brings boost in sooner and suits engines in the lower part of the 3.0L to 12.0L range Garrett gives for the GXR55-88. The 1.40 flows more at high rpm and suits the largest engines chasing the top of the rating.
How much power can the GXR55-88 make? Garrett rates the GXR55-88 at 1000 to 2350 horsepower. The figure comes from the choke flow of the compressor map and represents potential flywheel horsepower, so the fuel system, boost level, intercooling and calibration decide where a particular engine ends up.
Do I need an external wastegate? Yes. Garrett lists both GXR55 turbine kits as free float, so the housing has no internal wastegate port, flapper or actuator. Boost must be controlled by an external wastegate mounted on the exhaust manifold, sized for the very high exhaust flow of an engine in this power class.
What maximum turbocharger speed applies? Garrett publishes 84,000 rpm as the maximum turbocharger speed for the GXR55-88 and warns that running above it can damage the turbocharger. A speed sensor fitted to the machined port in the compressor housing lets the tuner log shaft speed and stay under that limit.
